Toyota HILUX Alternator — Figure 1903

Toyota HILUX EPC diagram 1903, Alternator, with 1 images and 16 PNC and OE references.

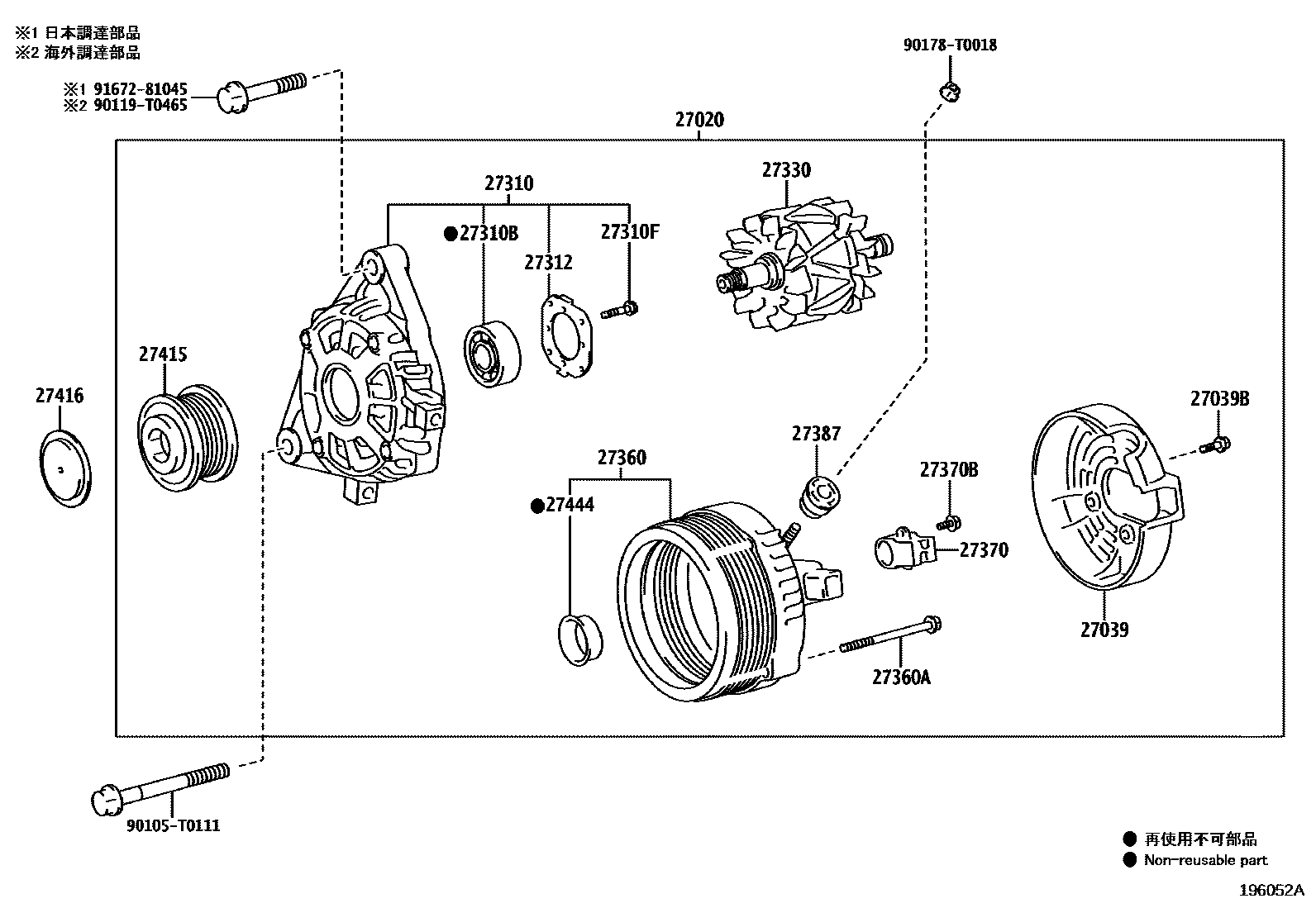

Toyota HILUX Alternator EPC diagram — 196052A
Alternator — 196052A (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-30230
27039Alternator Rear End Cover27039-37220
27039BToyota part90099-04627
27310Alternator Drive End Frame Assembly27310-30240
27310BBearing (for Alternator Drive End Frame)90099-10223
27310FToyota part90099-00268
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-37220
27360Alternator Stator Coil Assembly27360-30240
27360AToyota part90099-04626
27370Alternator Brush Holder Assembly27370-31220
27370BToyota part90099-00197
27387Terminal Insulator27387-20130
27415PULLEY, ALTERNATOR W/CLUTCH27415-30010
27416Generator pulley cover27416-0L050
27444Generator bearing cap seals27444-21190
