Toyota HILUX Exhaust Pipe — Figure 1702

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 1 images and 8 PNC and OE references.

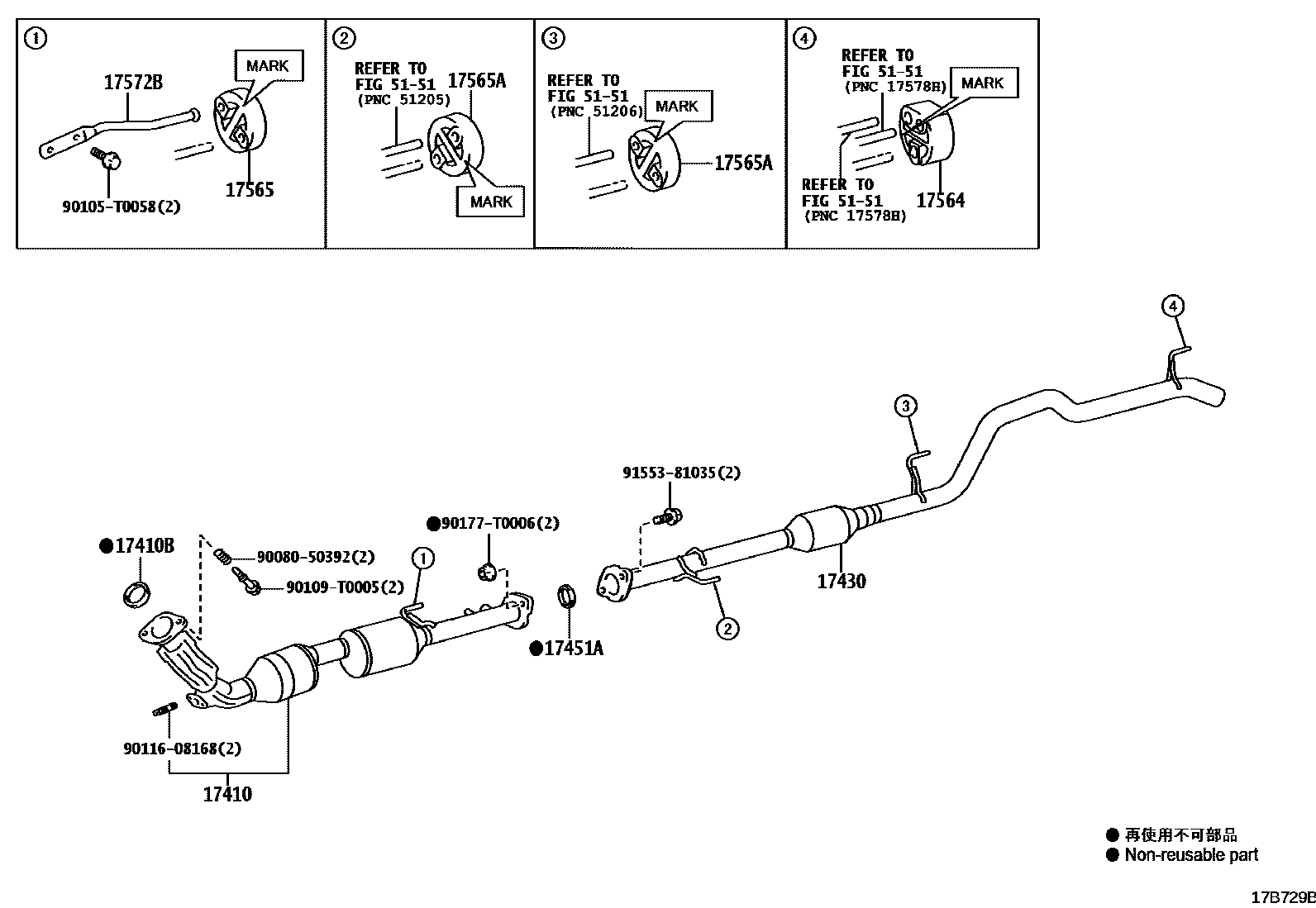

Toyota HILUX Exhaust Pipe EPC diagram — 17B729B
Exhaust Pipe — 17B729B (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0E110
17410BExhaust pipe gasket17451-0L050 · 17451-0L060
17430Exhaust tailpipe assembly17430-0E040
17451ANo. 2 exhaust pipe gasket90917-06076
17564No. 4 exhaust pipe lifting lug17565-0L100 · 17565-0L120
17565No. 5 exhaust pipe lifting lug17565-0P240
17565ANo. 4 exhaust pipe lifting lug17565-0L080 · 17565-0P240
17572BNo. 2 exhaust pipe bracket17572-0L040
