Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714

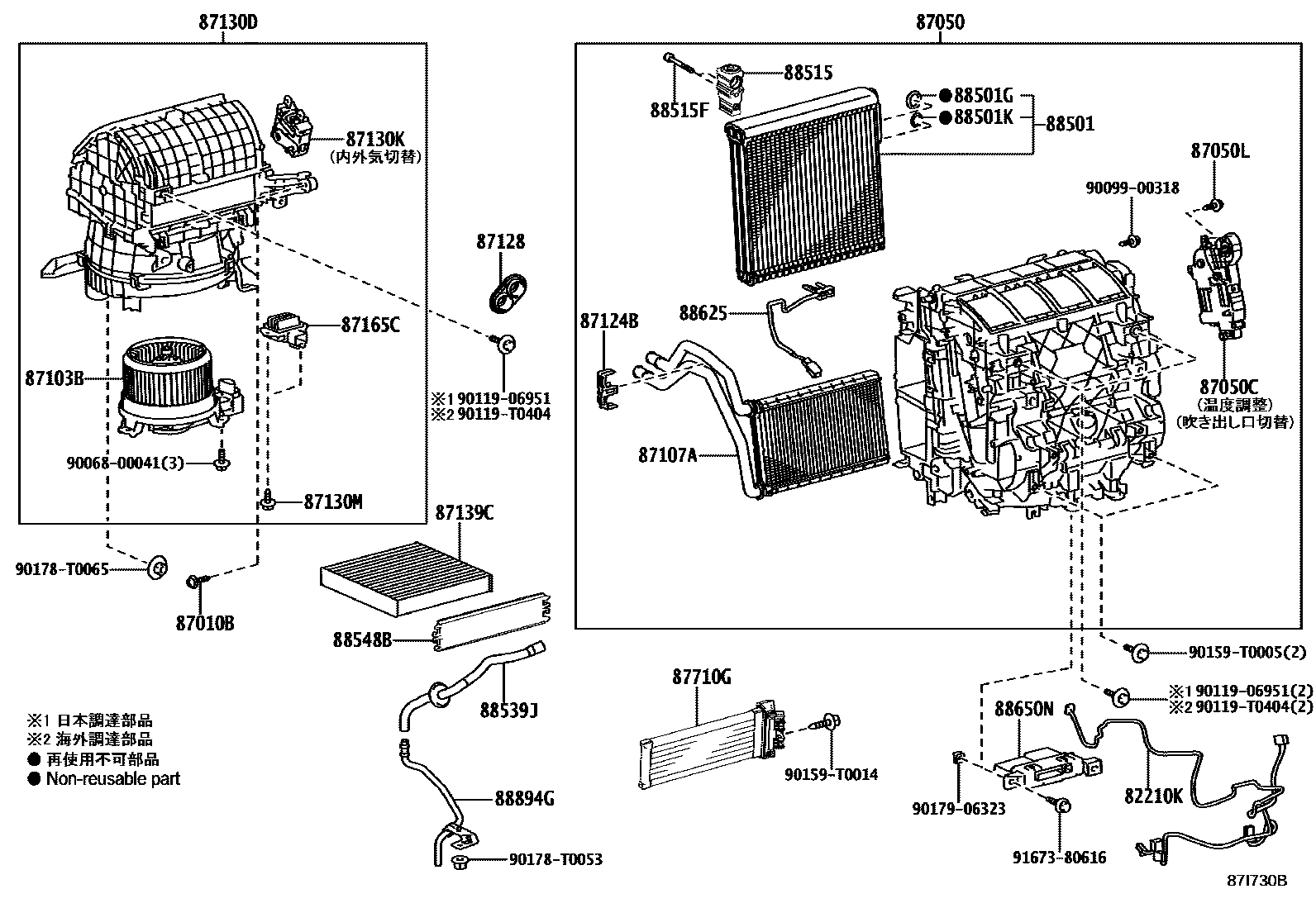

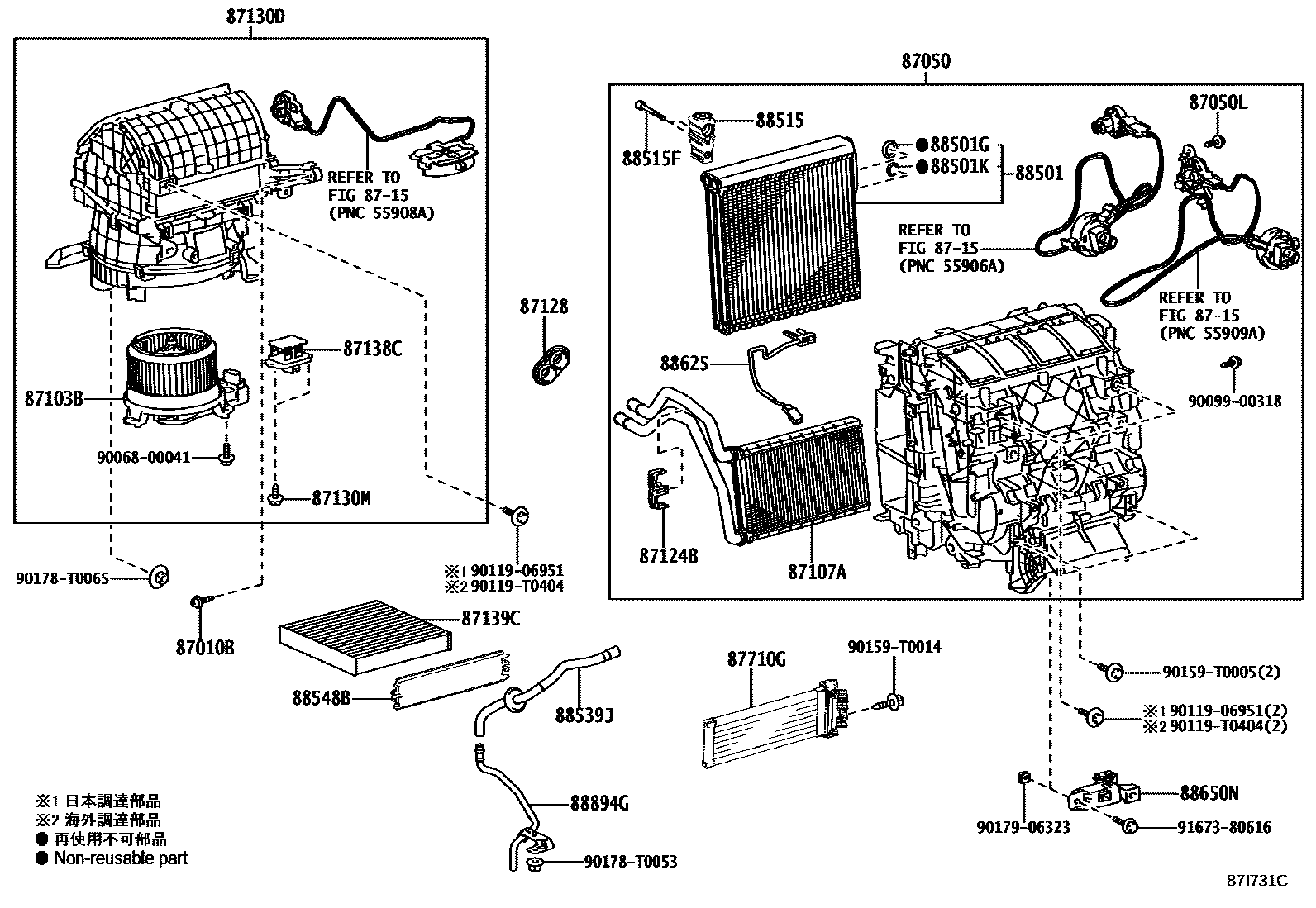

Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0K050 |
| 87010B | Toyota part | 90068-00042 |
| 87050 | Air conditioning radiator assembly | 87050-0KM80 · 87050-0KP00 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-0K210 |
| 87050L | Toyota part | 90068-00042 |
| 87103B | Blower motor sub-assembly with fan | 87103-0K381 |
| 87107A | Heater radiator device sub-assembly | 87107-0K110 |
| 87124B | heater clip | 87124-06140 |
| 87128 | heater seal | 87128-0K180 |
| 87130D | Blower assembly | 87130-0K461 · 87130-0K471 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0K251 |
| 87130M | Toyota part | 90068-00042 |
| 87138C | Blower resistor | 87138-0K360 |
| 87139C | air purification filter | 87139-0K070 · 87139-58010 |
| 87165C | Blower motor control device | 87165-0K060 |
| 87710G | Rapid heater assembly | 87710-0K100 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K560 |
| 88501G | Toyota part | 90068-14044 |
| 88501K | Toyota part | 90068-14043 |
| 88515 | Cooler expansion valve | 88515-0K590 |
| 88515F | Toyota part | 90068-04062 |
| 88539J | Cooler drain hose | 88539-0K390 |
| 88548B | air filter housing | 88899-06330 |
| 88625 | Cooler No. 1 Thermistor | 88620-0K020 |
| 88650N | Air conditioning amplifier assembly | 88650-0K420 · 88650-0K720 |
| 88894G | Drain hose connector | 88894-0K020 |
