Toyota HILUX antenna — Figure 8604

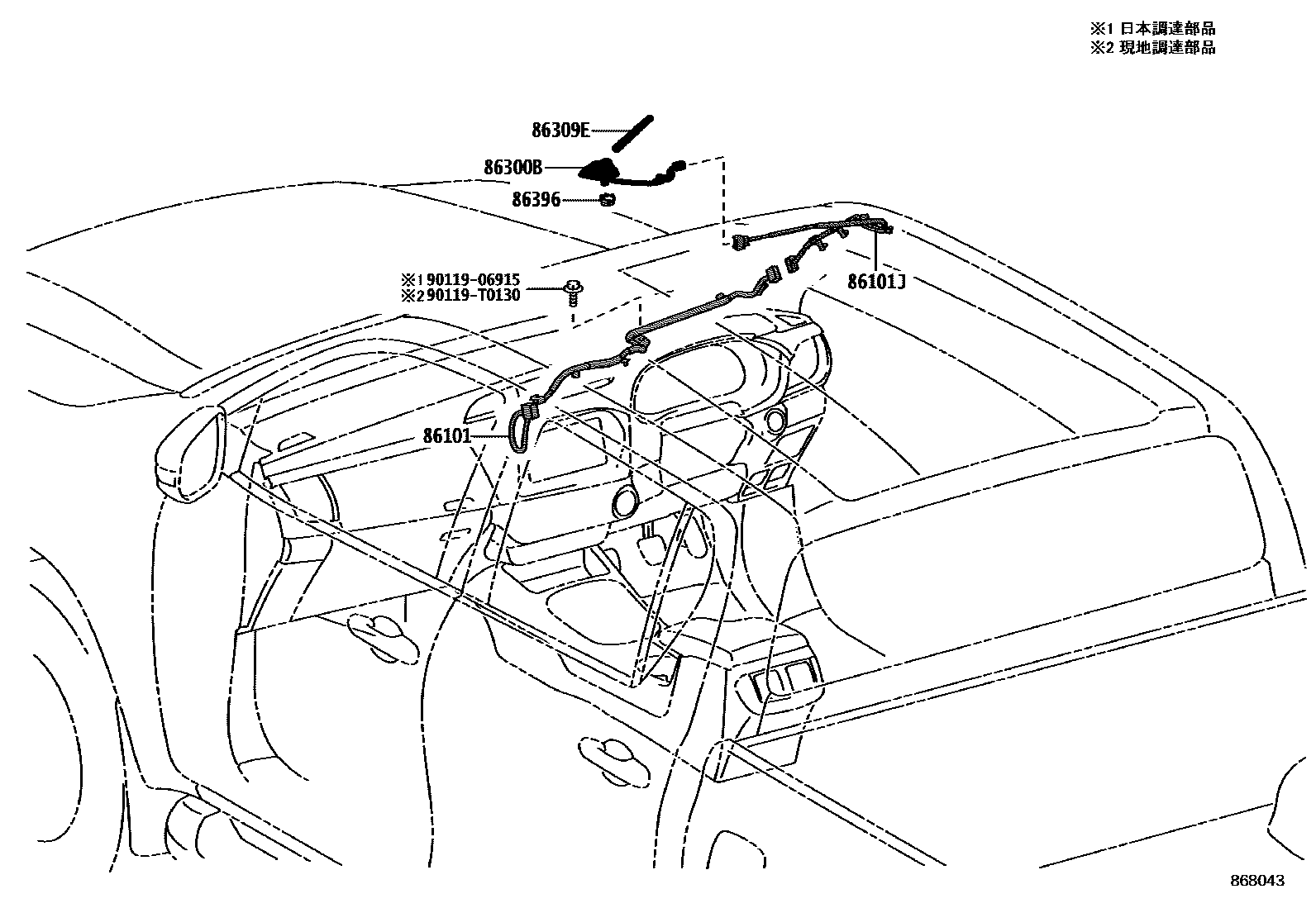

Toyota HILUX EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0KF31 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-0K711 |
| 86300B | Amplifier antenna assembly | 86300-0K300 |
| 86309E | Roof antenna sub-assembly | 86309-0K010 |
| 86396 | Antenna nut | 86396-47010 |
