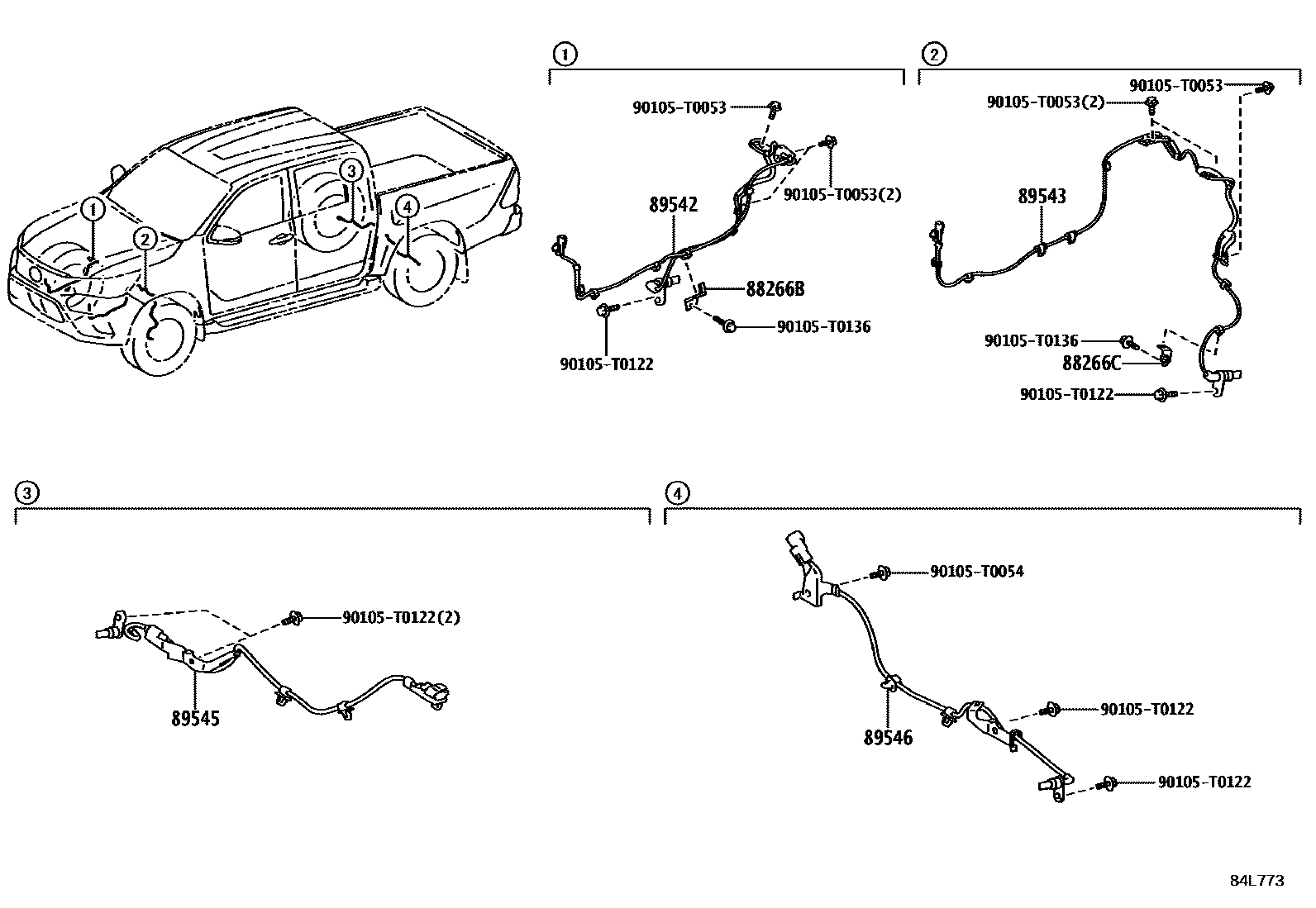

Toyota HILUX ABS 和 VSC — Figure 8414
Toyota HILUX EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88266B | No. 1 anti-skid control sensor clip | 88266-0K020 |
| 88266C | No. 2 anti-skid control sensor clip | 88266-0K040 |
| 89542 | Right front wheel speed sensor | 89542-0K060 |
| 89543 | Left front wheel speed sensor | 89543-0K061 |
| 89545 | Right rear wheel speed sensor | 89545-0K240 |
| 89546 | Left rear wheel speed sensor | 89546-0K240 |
