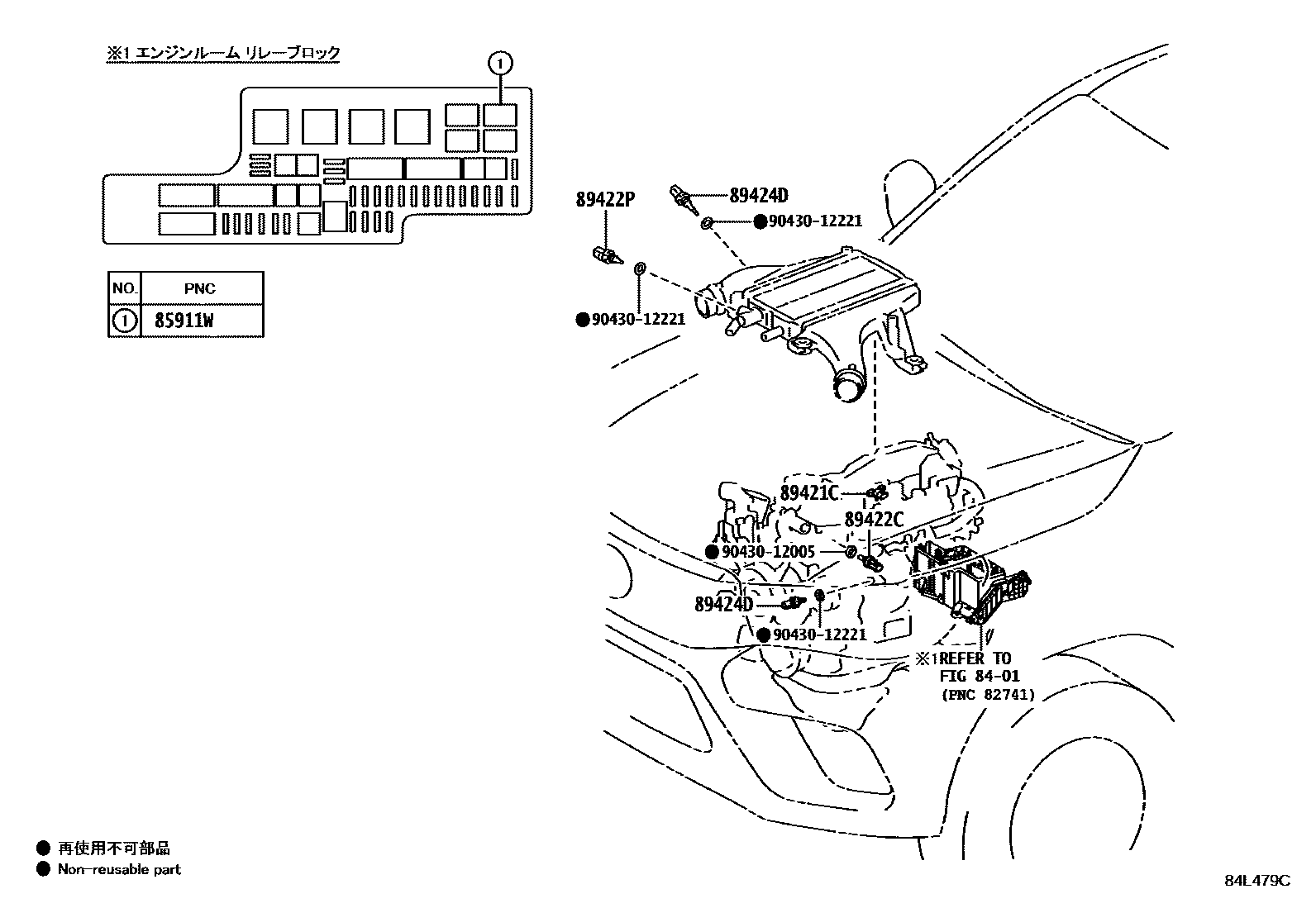

Toyota HILUX 电子控制柴油机(ECD) — Figure 8405
Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911W | Toyota part | 90987-02027 · 90987-T2001 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-71030 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89422P | Toyota part | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60020 |
| 89661A | Engine control ECU | 89661-FAR00 |
| 89667A | No. 1 engine control ECU bracket | 89667-0K070 · 89667-0K100 · 89667-0K220 |
| 89668A | No. 2 engine control ECU bracket | 89668-0K090 · 89668-0K110 · 89668-0K240 |
