Toyota HILUX 开关和继电器和ECU — Figure 8401

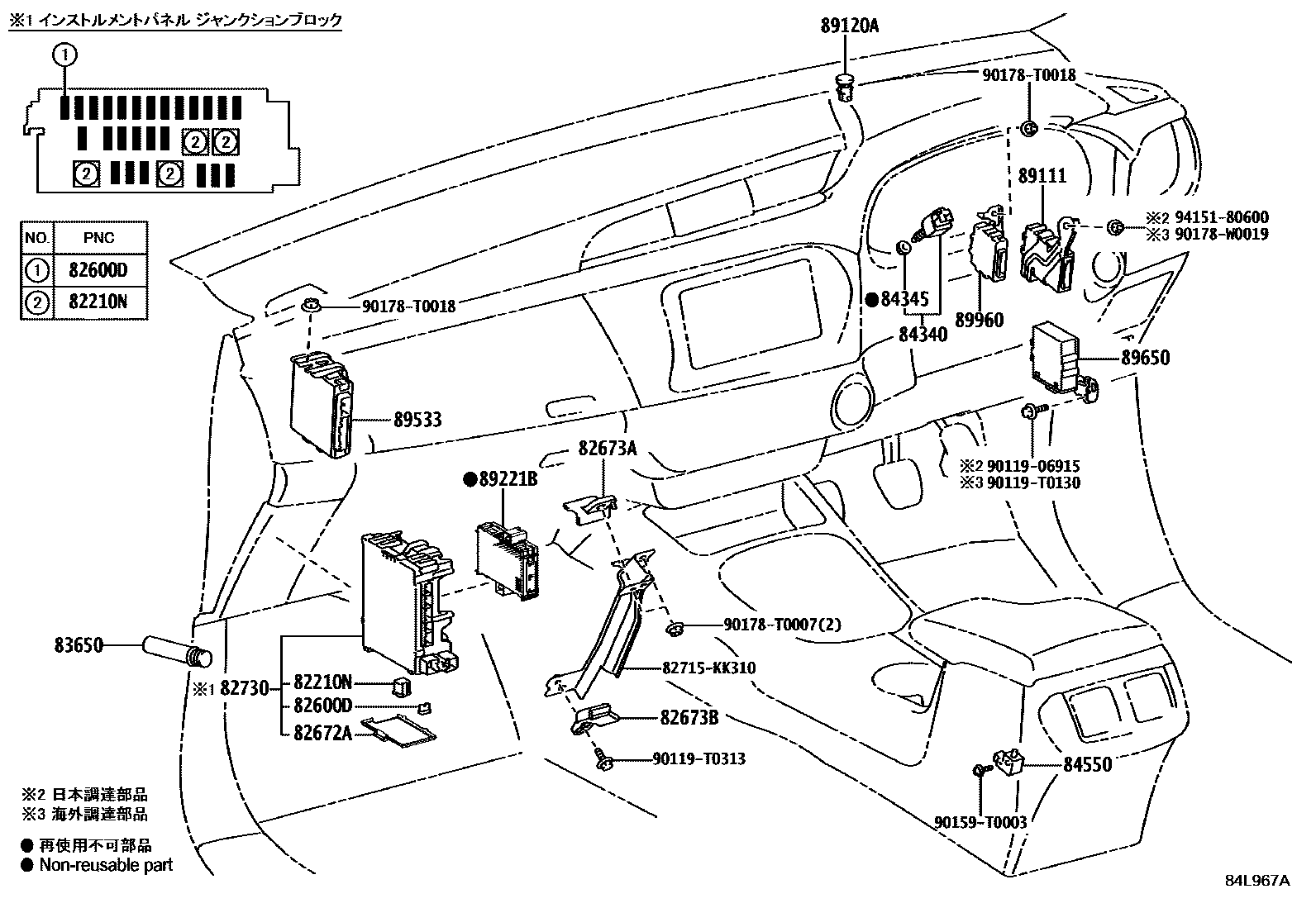

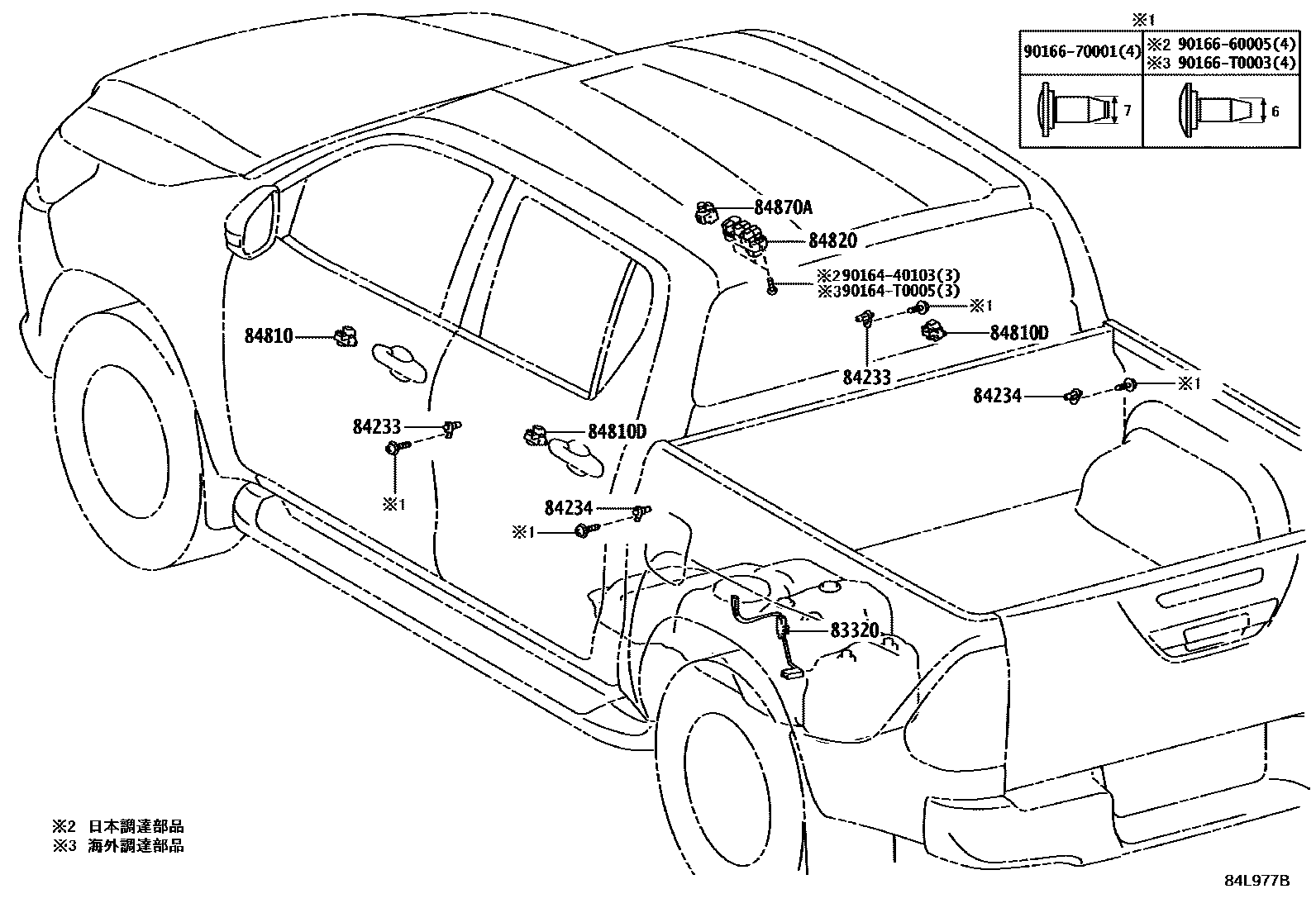

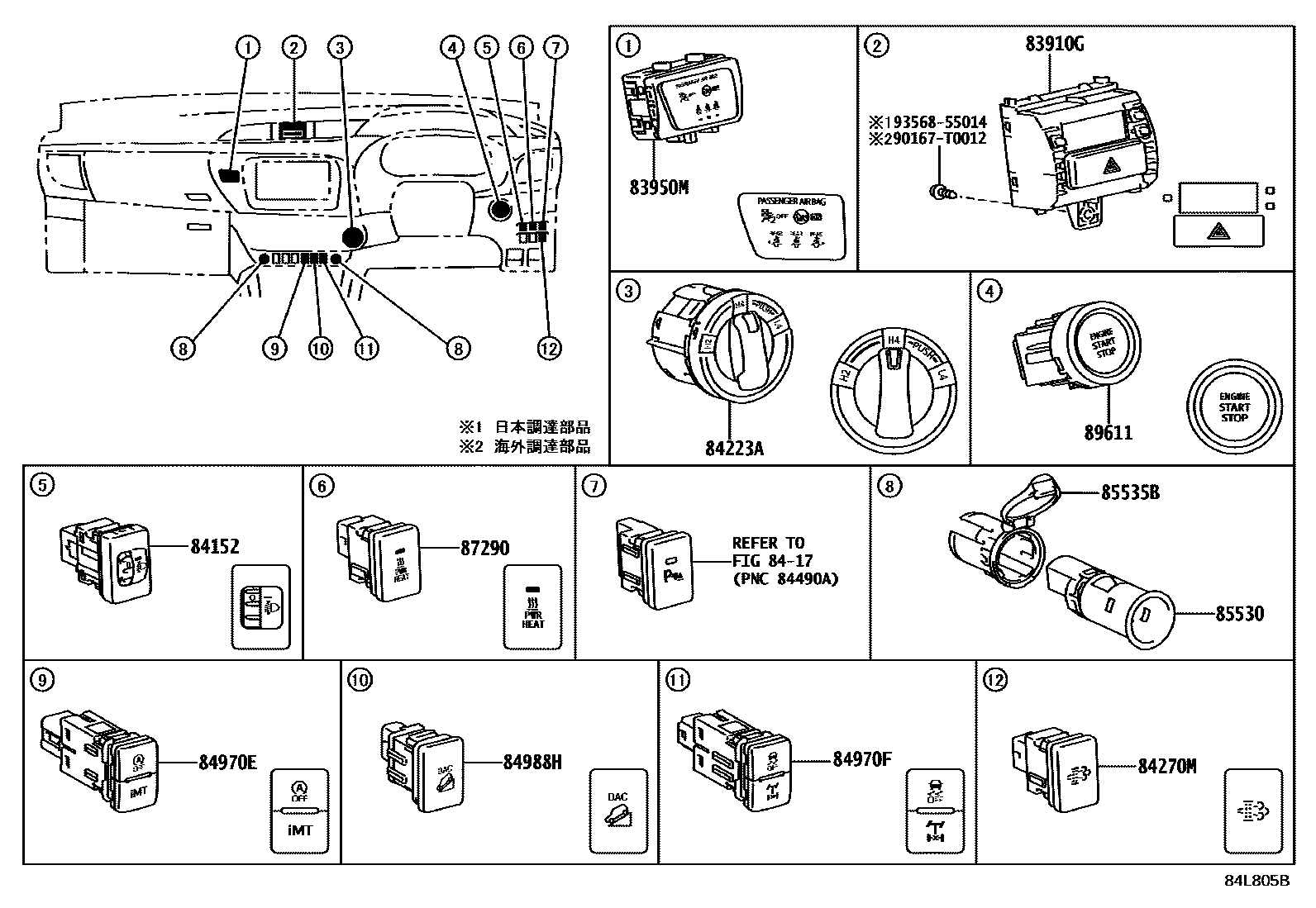

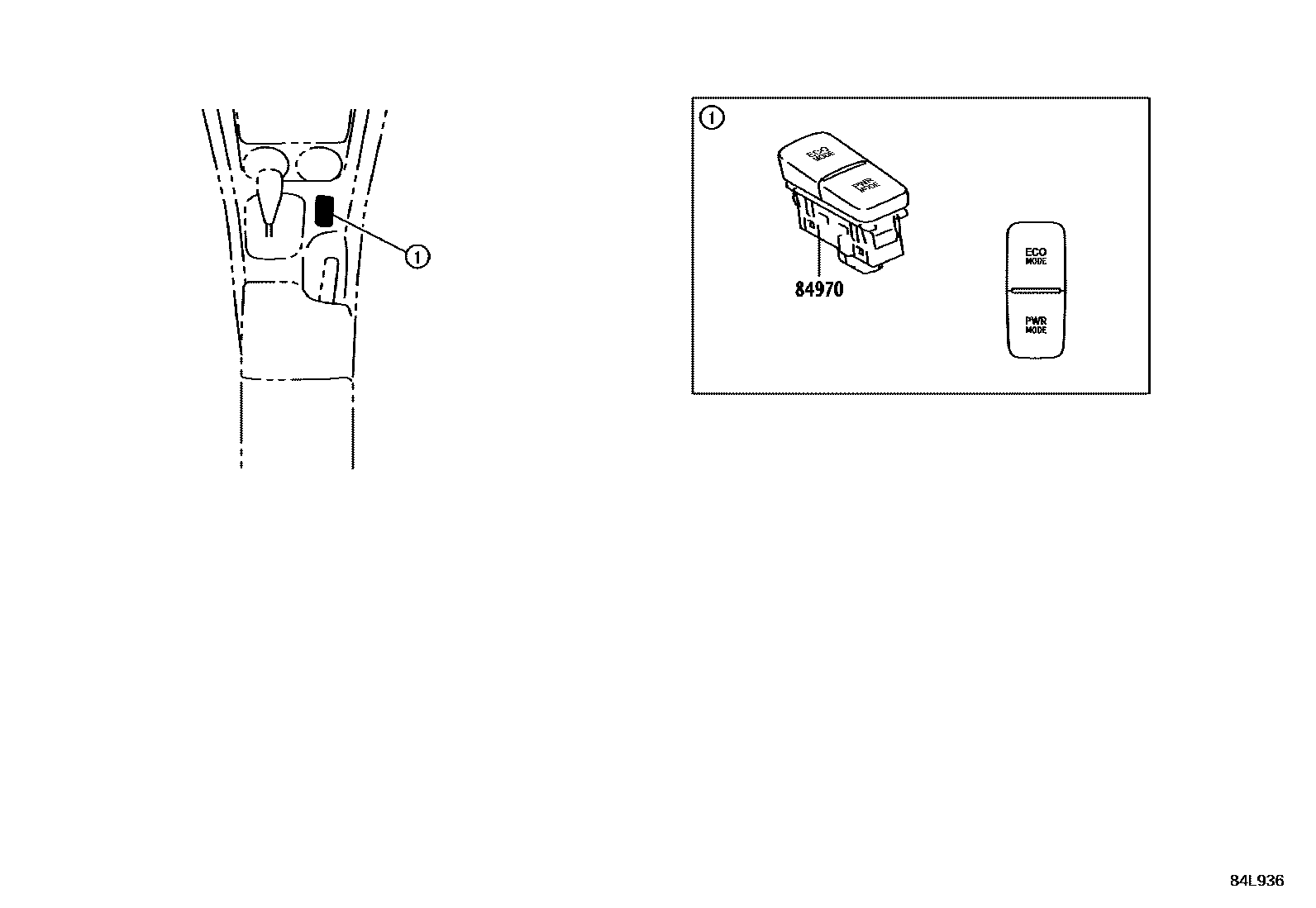

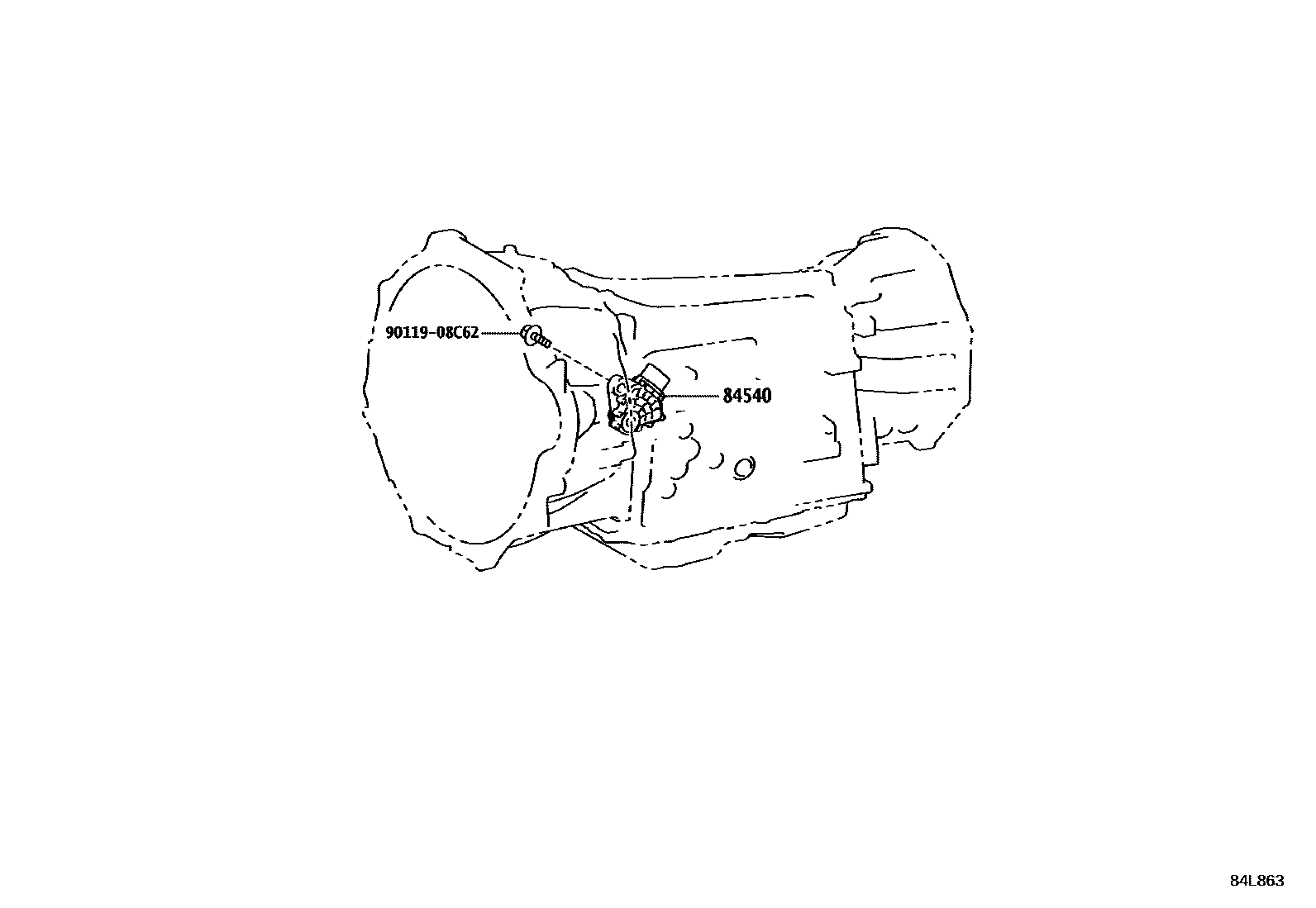

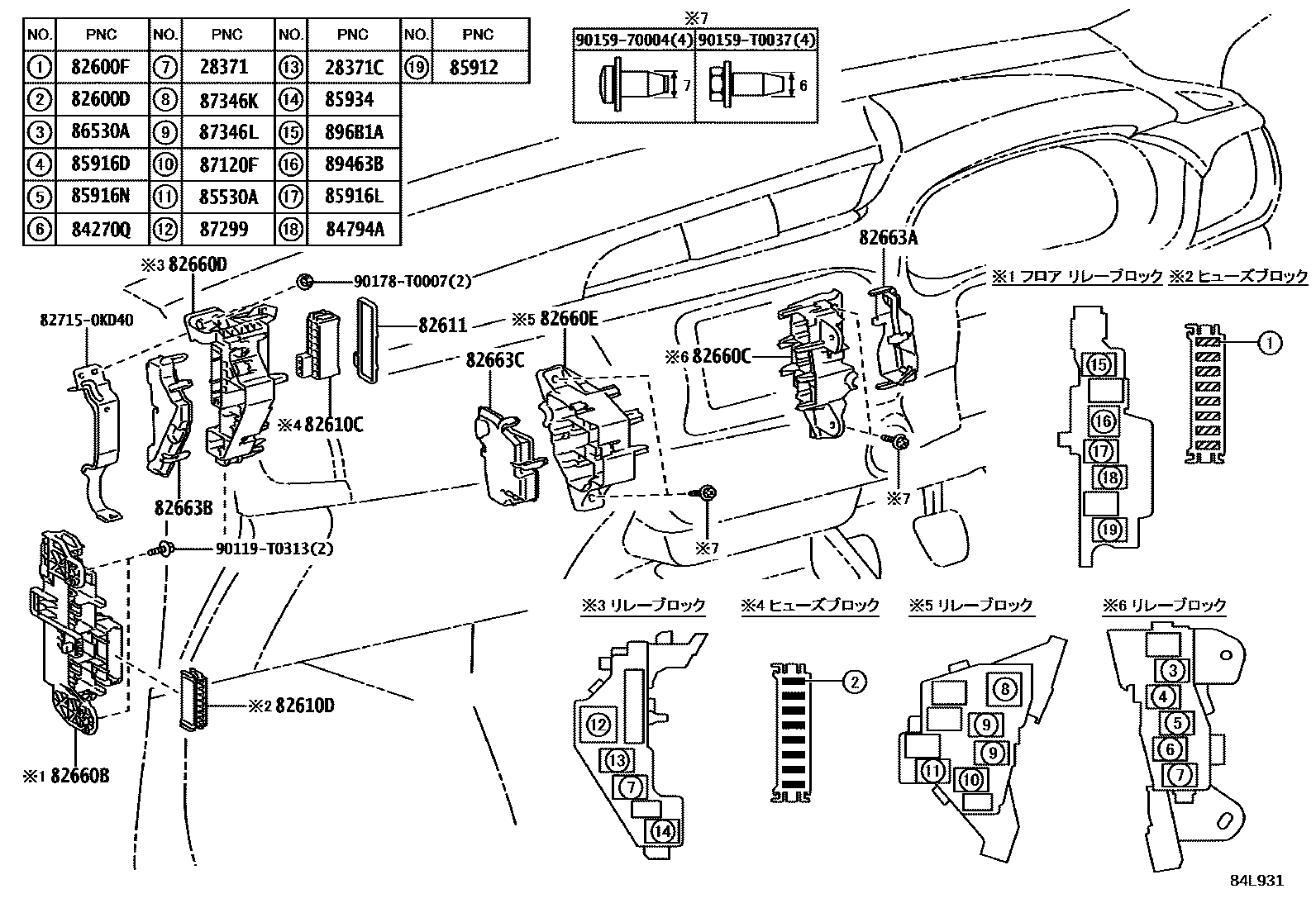

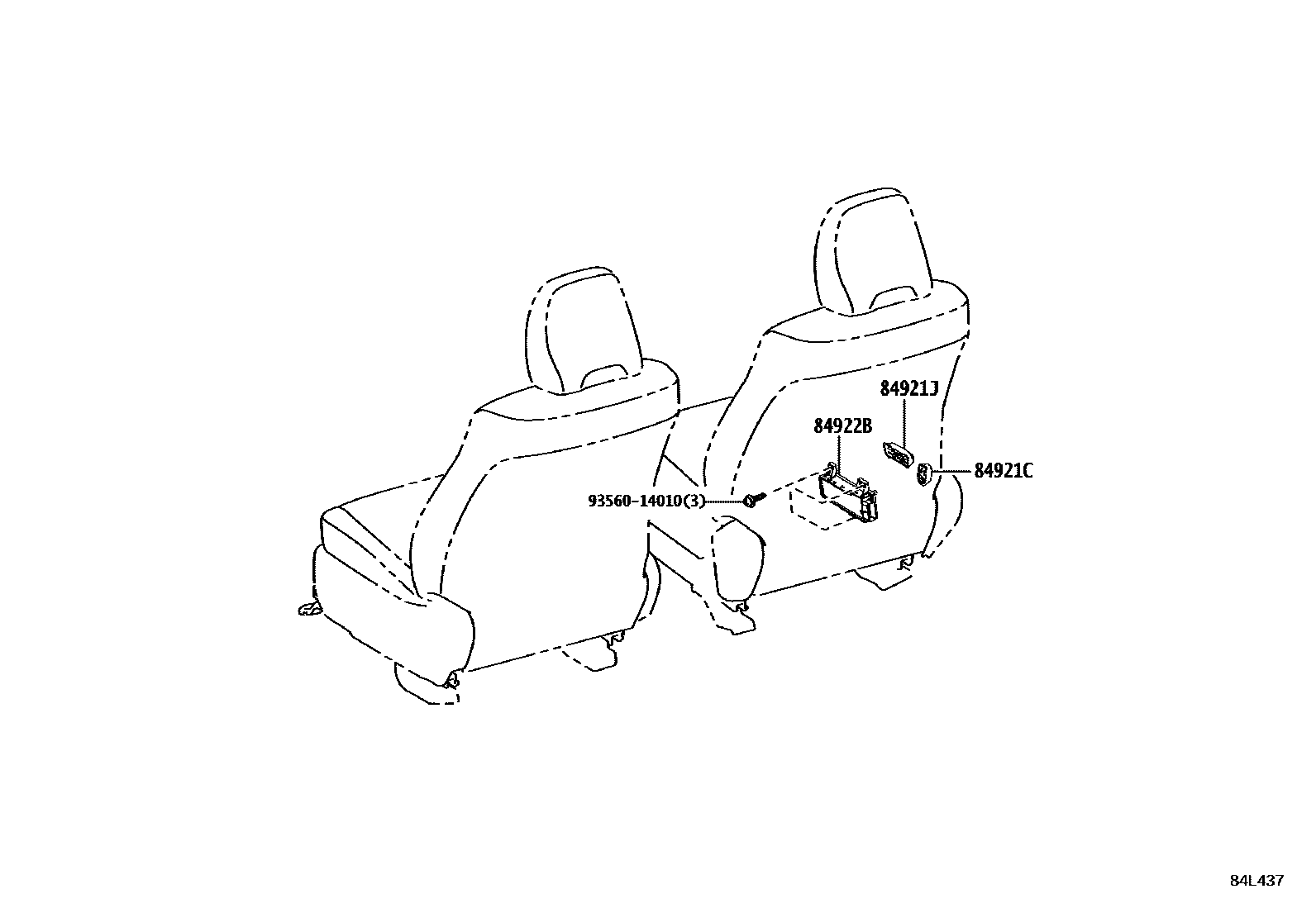

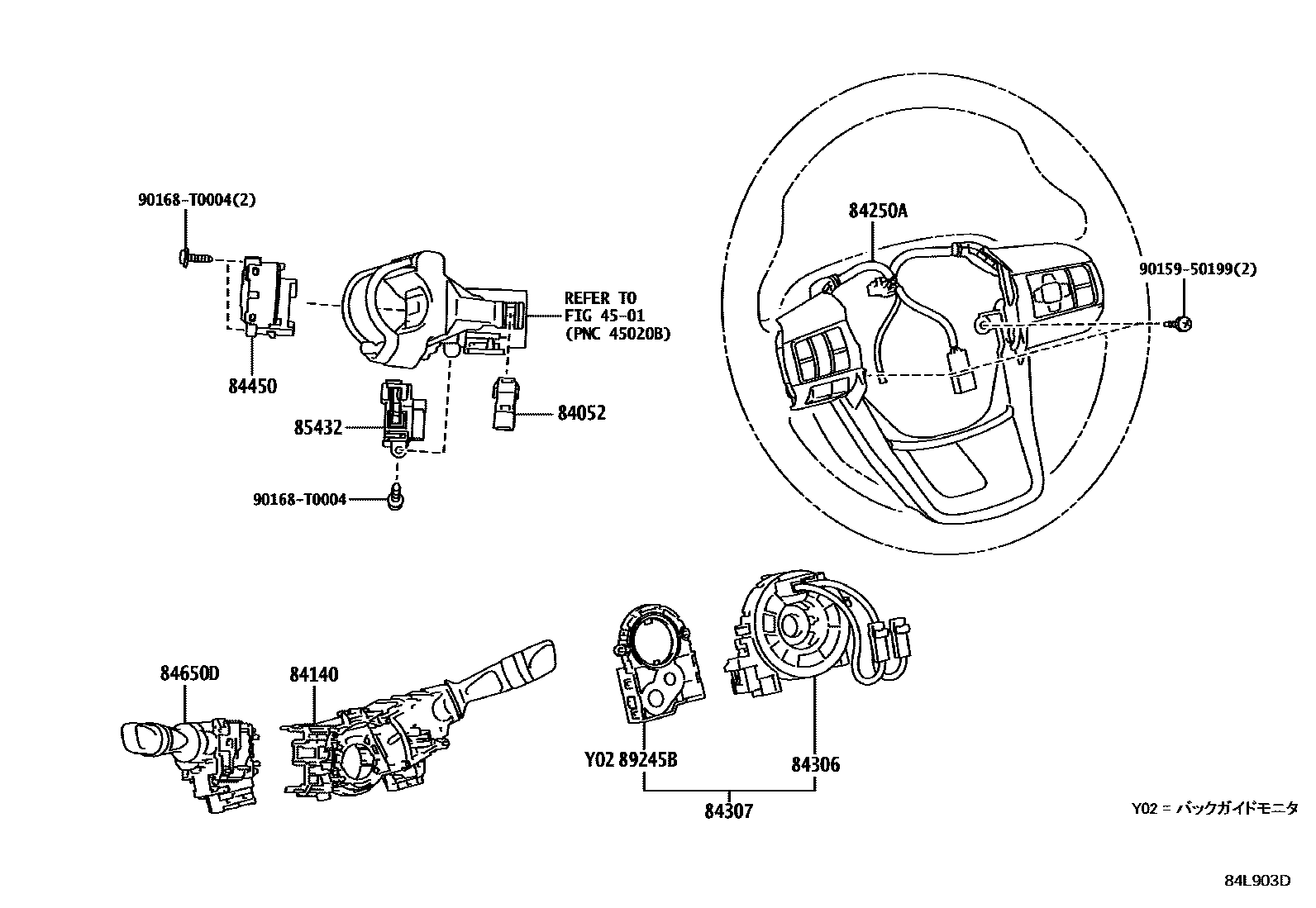

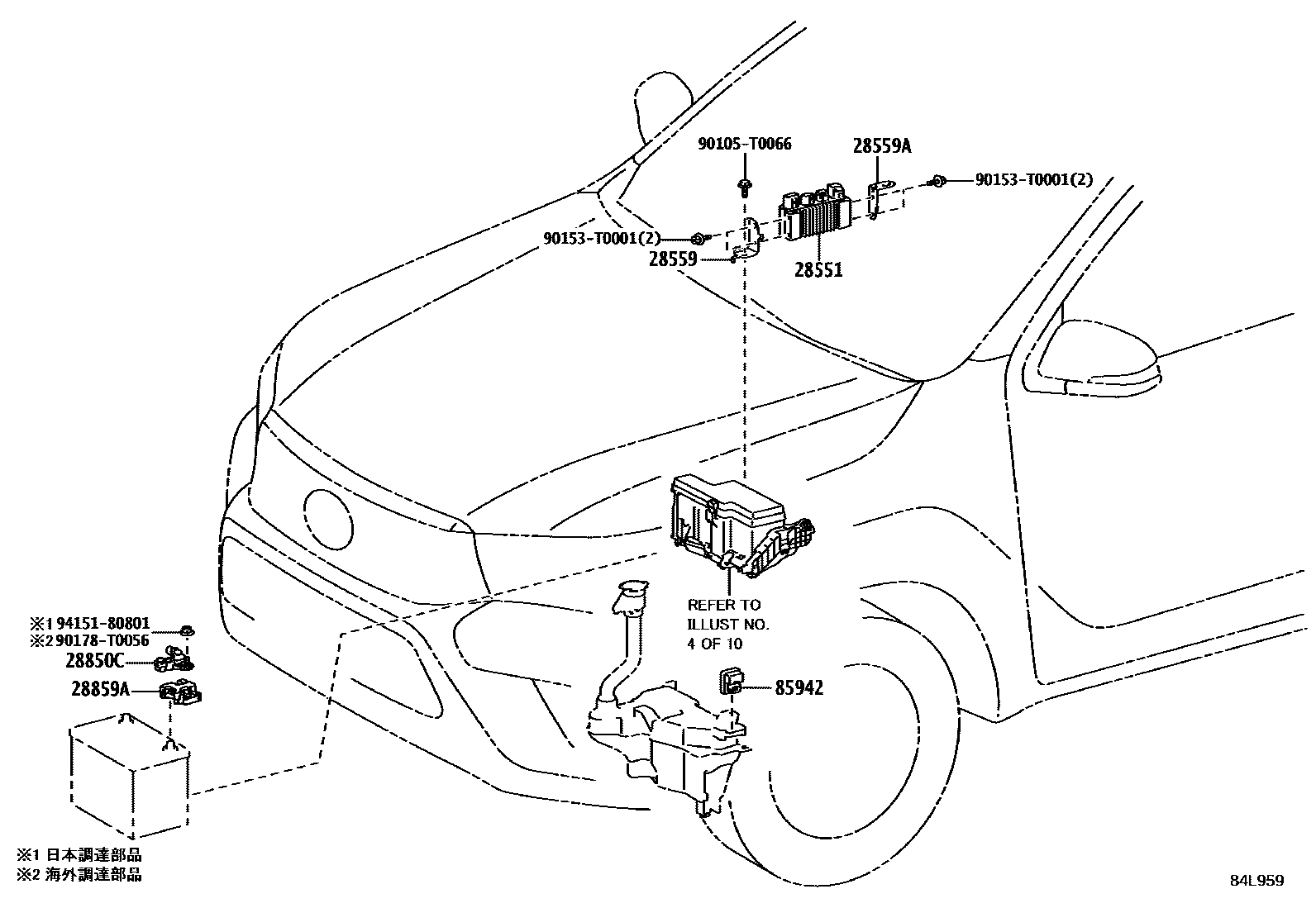

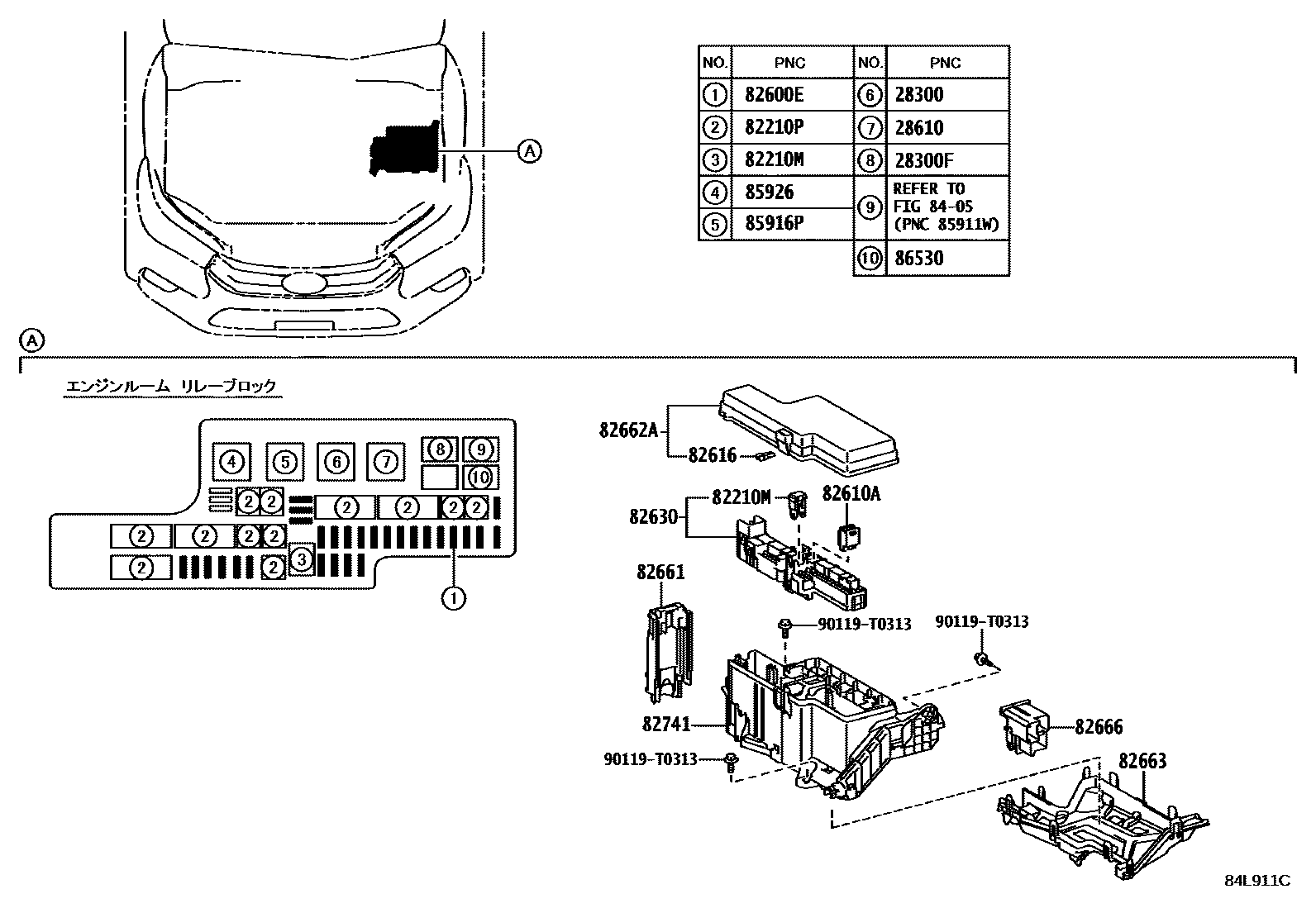

Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 11 images and 110 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-30050 |
| 28300F | Toyota part | 28300-0L011 · 28300-21020 |
| 28371 | No. 1 ignition relay | 90987-02027 · 90987-T2001 |
| 28371C | No. 2 ignition relay | 90987-02027 · 90987-T2001 |
| 28551 | glow plug controller | 28551-0E010 · 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-0L010 · 28559-0L050 · 28559-0L090 |
| 28559A | Glow plug controller bracket No. 2 | 28559-0L020 · 28559-0L060 · 28559-0L100 |
| 28610 | Glow plug relay assembly | 90987-02025 · 90987-T2002 |
| 28850C | Toyota part | 28850-0Y010 |
| 28859A | Toyota part | 28859-0L010 |
| 82210M | fuse | 90982-08286 |
| 82210N | Instrument panel fuse | 90982-08294 · 90982-08295 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-0K030 |
| 82610C | Fuse box assembly | 82610-0K010 |
| 82610D | Fuse box assembly | 82610-0K010 |
| 82611 | fuse box cover | 82611-0K060 |
| 82616 | fuse puller | 82616-58010 |
| 82630 | Fuse holder assembly | 82630-0K020 |
| 82660B | Relay assembly | 82660-0K161 |
| 82660C | Relay assembly | 82660-0K050 |
| 82660D | Relay assembly | 82660-0K070 |
| 82660E | Relay assembly | 82660-0K090 |
| 82661 | No. 1 relay box cover | 82661-0K050 |
| 82662A | No. 1 relay box upper cover | 82662-0K550 |
| 82663 | Relay box lower cover | 82663-0K020 |
| 82663A | No. 2 relay box lower cover | 82663-0K050 |
| 82663B | No. 3 relay box lower cover | 82663-0K070 |
| 82663C | No. 4 relay box lower cover | 82663-0K090 |
| 82666 | Connector holder | 82666-0K150 |
| 82672A | Junction box cover | 82672-0K050 |
| 82673A | Junction box bracket | 82673-0K030 |
| 82673B | Junction box bracket | 82673-0K020 |
| 82730 | Instrument panel junction box assembly | 82730-0K500 · 82730-0K540 |
| 82741 | Engine room relay box | 82741-0K020 |
| 83320 | Fuel gauge sensor assembly | 83320-0K181 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83650 | fuse | 90986-01005 |
| 83910G | clock assembly | 83910-0K040 |
| 83950M | Warning light assembly | 83950-0K081 |
| 84052 | Unlock warning switch assembly | 84052-0K020 |
| 84140 | Headlight dimmer switch assembly | 84140-0K860 |
| 84152 | Headlight beam height adjustment switch | 84152-0K060 |
| 84223A | transfer case position switch | 84223-0K010 |
| 84233 | Door control light switch assembly (for front door) | 84231-0K060 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0K060 |
| 84270M | Diesel particulate reduction switch assembly | 84270-0K050 |
| 84270Q | headlight relay | 90987-02027 · 90987-T2001 |
| 84306 | Spiral cable sub-assembly | 84308-0D020 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0K090 |
| 84340 | brake light switch assembly | 84340-09380 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84450 | Ignition or starter switch assembly | 84450-02040 |
| 84540 | Neutral start switch assembly | 84540-60050 |
| 84550 | Parking brake switch assembly | 84550-02030 |
| 84650D | Toyota part | 84652-0K240 · 84652-0K241 |
| 84794A | Front wiper de-icer relay | 90987-T2001 |
| 84810 | Electric window lift switch assembly | 84810-0D300 · 84810-0K080 |
| 84810D | Rear electric window lift switch assembly | 84810-0D300 · 84810-0K080 |
| 84820 | Electric window lift main switch assembly | 84040-0K011 · 84820-0D590 |
| 84870A | Exterior rearview mirror switch assembly | 84872-0K010 · 84872-0K030 |
| 84922B | Front right electric seat switch | 84922-06150 |
| 84970 | Combination switch assembly | 84970-0K020 |
| 84970E | No. 2 combination switch assembly | 84970-0K260 |
| 84970F | Toyota part | 84970-0K200 · 84970-0K220 |
| 84988H | Downhill assist control switch | 84988-0K030 |
| 85432 | Key interlock solenoid valve | 85432-0D010 |
| 85530 | No. 1 power socket assembly | 85530-0K040 |
| 85530A | power outlet relay | 90987-T2001 |
| 85912 | defogger relay | 90080-87009 |
| 85916D | fog light relay | 90987-02027 · 90987-T2001 |
| 85916L | Rear fog light relay | 90987-02027 · 90987-T2001 |
| 85916N | Tail light relay | 90987-02027 · 90987-T2001 |
| 85916P | headlight relay | 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-T2002 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85942 | Headlight washer control relay | 85942-53020 |
| 86530 | Speaker relay assembly | 90987-T2001 |
| 86530A | Horn relay | 90987-02027 · 90987-T2001 |
| 87120F | Viscous Heater Relay | 90987-T2001 |
| 87290 | Heater switch assembly | 87290-71010 |
| 87299 | heater relay | 90987-T2003 |
| 87346K | PTC heater relay | 90987-T2002 |
| 87346L | PTC heater relay | 90987-T2001 |
| 89111 | Network gateway ECU | 89100-71011 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221B | Toyota part | 89221-F0G20 · 89221-F0G30 |
| 89245B | steering sensor | 8924B-0D020 |
| 89425 | Exhaust gas temperature sensor | 89425-71070 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-71080 |
| 89425B | No. 3 exhaust gas temperature sensor | 89425-71090 |
| 89425C | No. 4 exhaust gas temperature sensor | 89425-71060 |
| 89439D | No. 1 sensor bracket | 8946A-60020 |
| 89439J | Toyota part | 8946A-71020 |
| 89463A | Nitrogen oxide sensor | 89463-71010 · 89463-71040 |
| 89463B | Toyota part | 90987-02030 · 90987-T2009 |
| 8946A | Toyota part | 8946A-71010 |
| 89481B | Differential pressure sensor | 89481-71010 |
| 89491 | Engine oil level sensor | 89491-26190 |
| 89533 | Four-wheel drive control ECU | 89533-71102 · 89533-71121 |
| 89611 | push button start switch | 89611-0K011 |
| 89650 | Power steering ECU assembly | 89650-71020 |
| 89677A | Toyota part | 89677-71010 |
| 89678A | Toyota part | 89678-0K010 |
| 896B1 | Toyota part | 896B1-71040 |
| 896B1A | Toyota part | 90987-02027 · 90987-T2001 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-71100 |
