Toyota HILUX 后组合灯 — Figure 8111

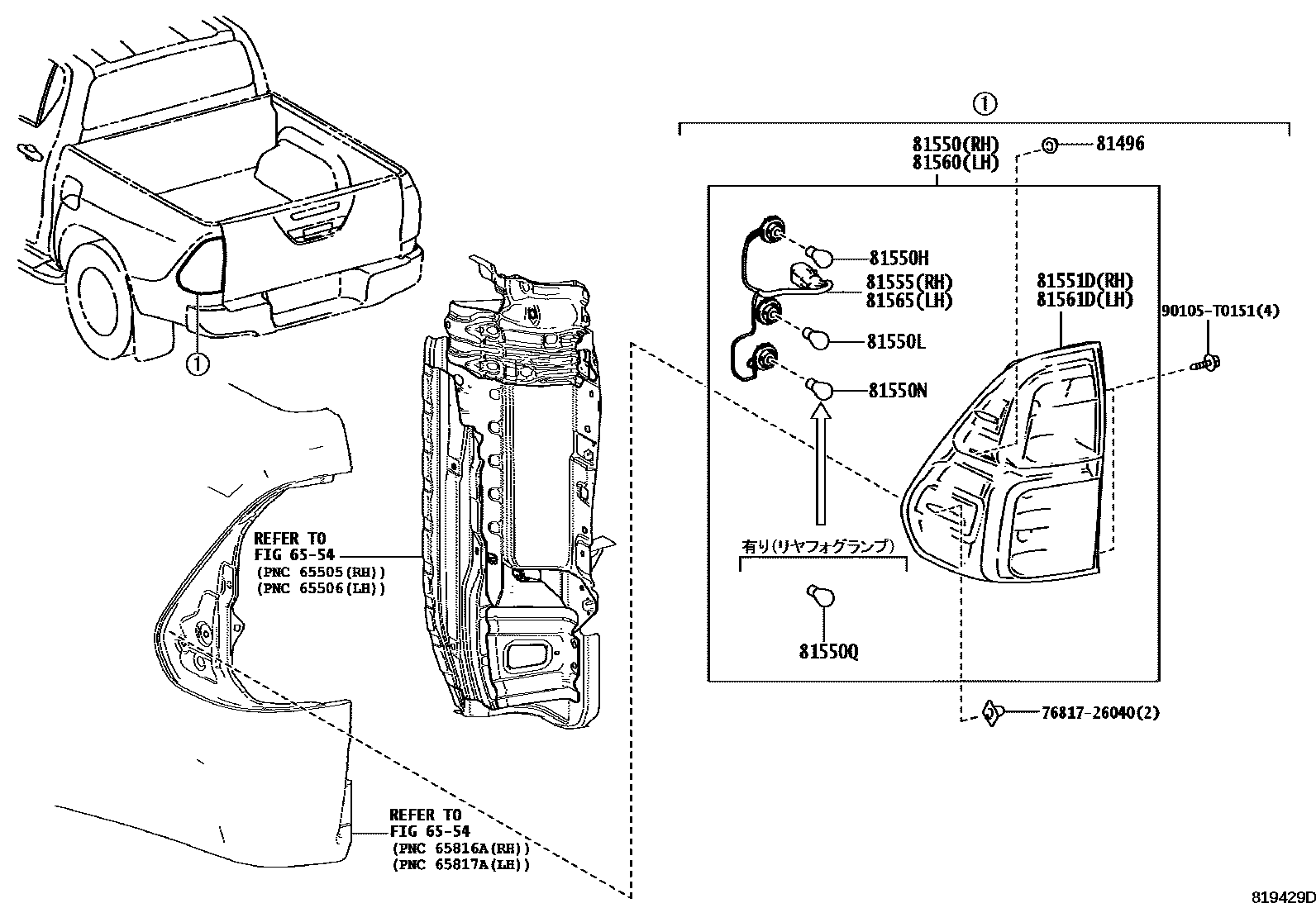

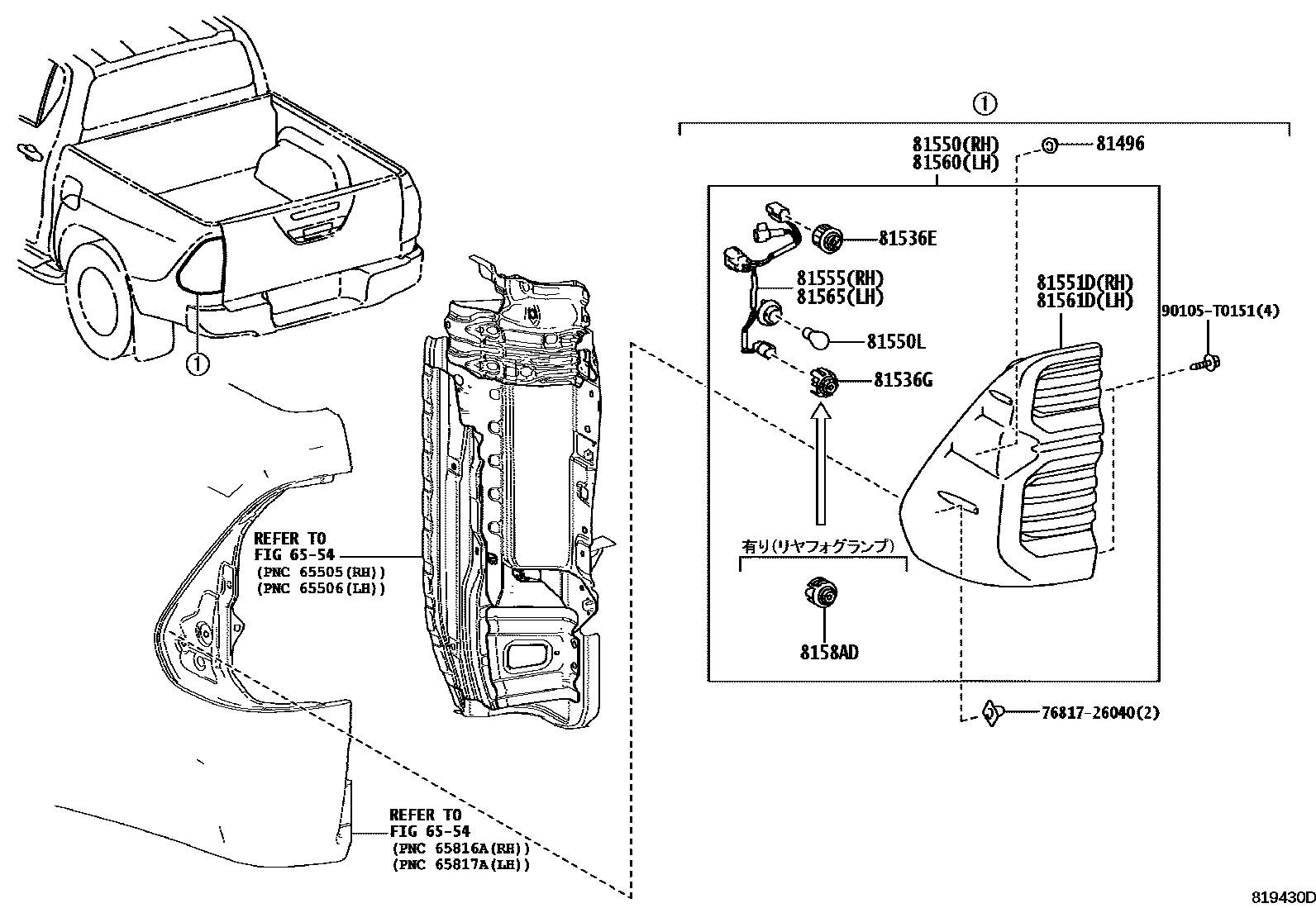

Toyota HILUX EPC diagram 8111, 后组合灯, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0D040 · 81496-52020 |
| 81536E | Toyota part | 81536-15120 |
| 81536G | Toyota part | 8158A-12260 |
| 81550 | Right rear combination light assembly | 81550-0K440 · 81550-0K570 |
| 81550H | Tail and brake light bulbs | 90981-13094 |
| 81550L | Rear turn signal light bulb | 90981-15028 |
| 81550N | reversing light bulb | 90981-13093 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13093 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0K440 · 81551-0K570 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0K270 · 81555-0K440 |
| 81560 | Left rear combination light assembly | 81560-0K430 · 81560-0K570 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0K430 · 81561-0K570 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0K260 · 81555-0K430 |
| 8158AD | Toyota part | 8158A-0D610 |
