Toyota HILUX 燃油箱和燃油管 — Figure 7751

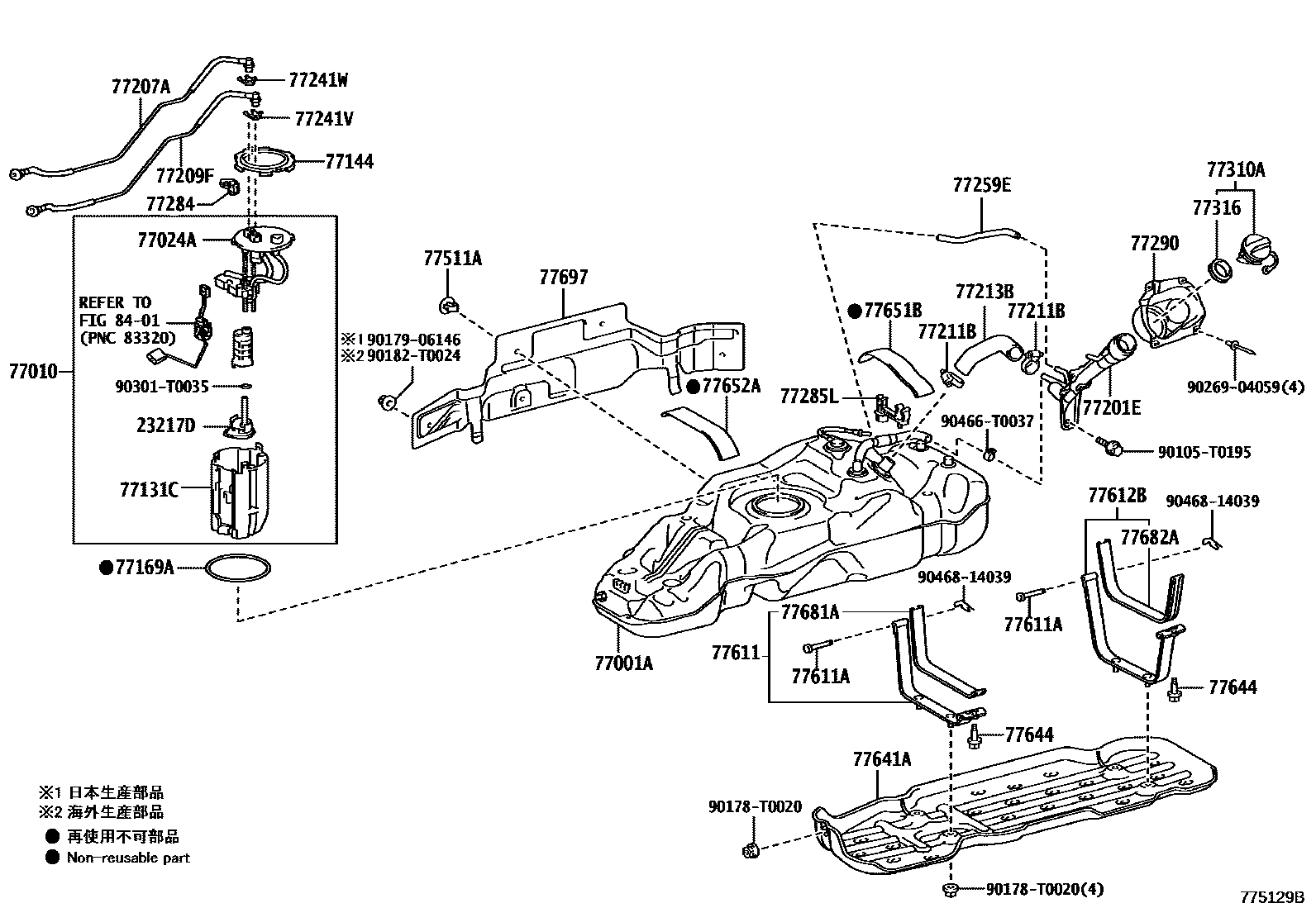

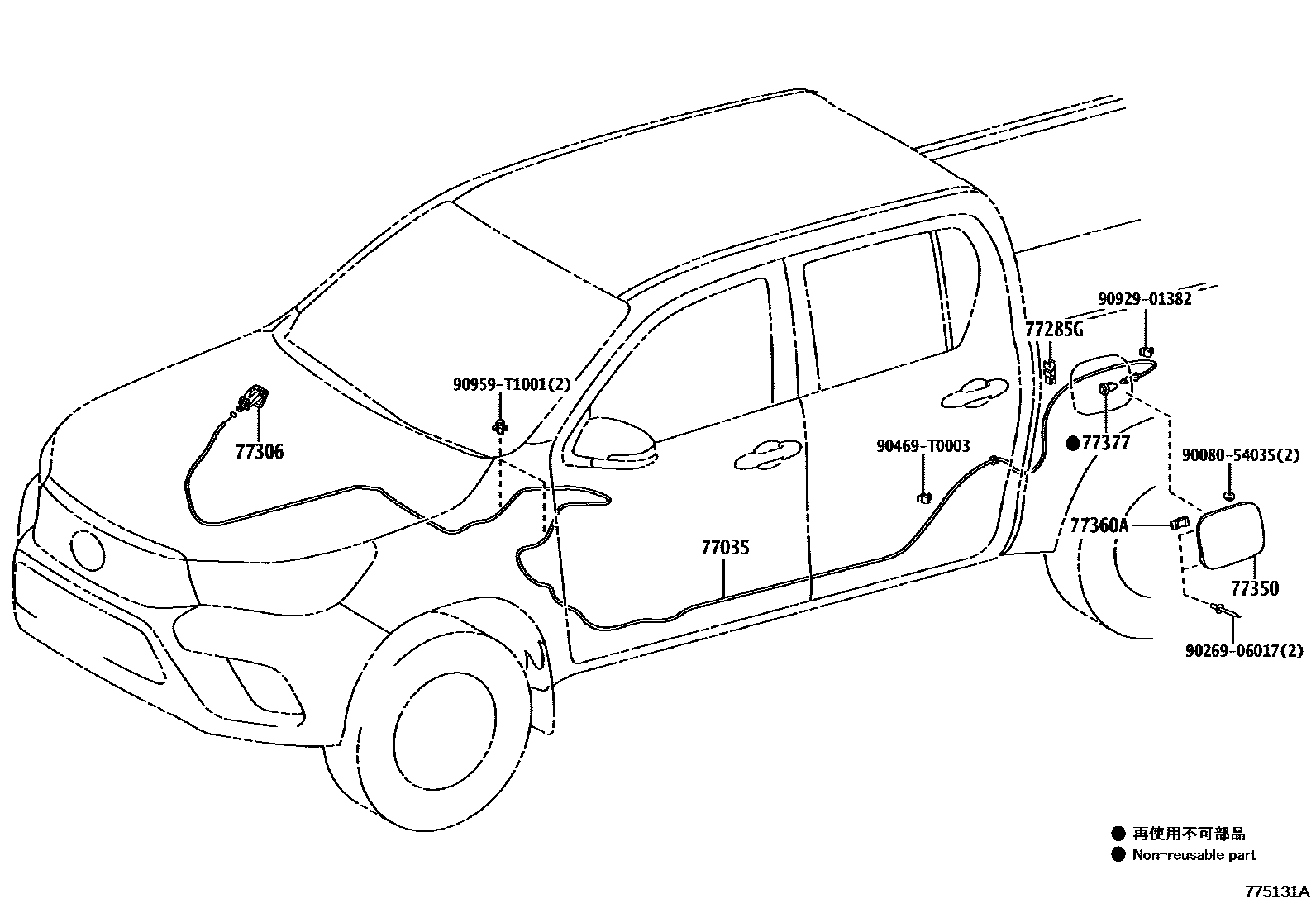

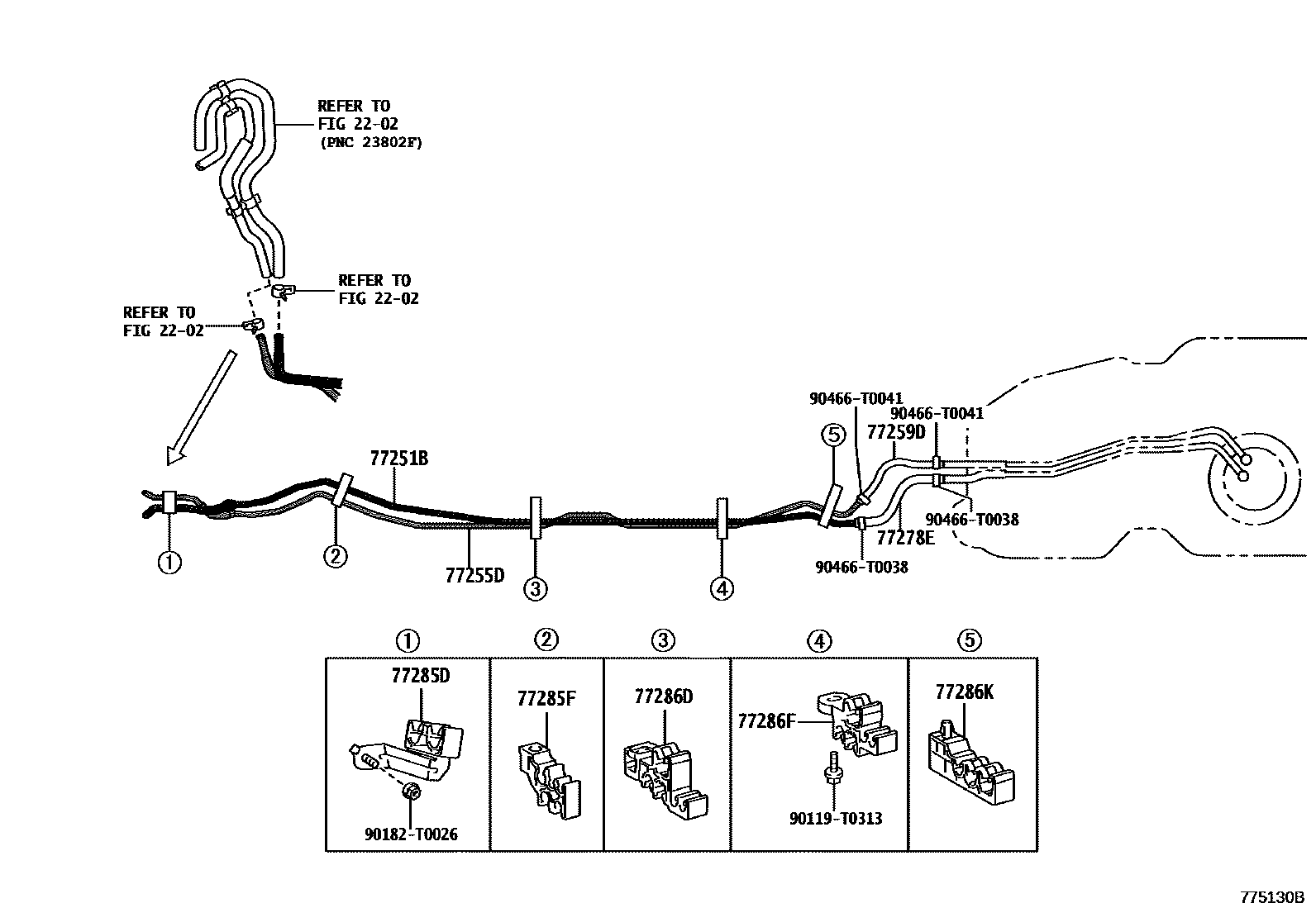

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0L020 |
| 77001A | Fuel tank sub-assembly | 77001-0K470 |
| 77010 | Fuel tank vent pipe assembly | 77010-0K201 |
| 77024A | Fuel absorber sub-assembly | 77024-0K190 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0K500 |
| 77131C | No. 1 auxiliary fuel tank | 77131-0K200 |
| 77144 | Fuel pump instrument fixture | 77144-0K040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K040 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-KK090 |
| 77207A | Fuel return pipe sub-assembly | 77204-0K140 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0K200 |
| 77211B | Clamp (for fuel filler tube) | 90460-46005 |
| 77213B | Fuel tank to filler pipe hose | 77213-KK010 |
| 77241V | Pipe joint clip | 77241-0K020 |
| 77241W | Pipe joint clip | 77241-0K010 |
| 77251B | main fuel pipe | 77251-KK110 |
| 77255D | fuel return pipe | 77255-KK150 |
| 77259D | No. 1 fuel hose | 77259-71060 |
| 77259E | fuel hose | 77259-KK070 |
| 77278E | fuel hose | 95338-10022 |
| 77284 | Fuel pipe clamp | 77289-0K050 |
| 77285D | No. 1 fuel pipe clamp | 77285-0K160 |
| 77285F | No. 1 fuel pipe clamp | 77285-0K230 |
| 77285G | No. 1 fuel pipe clamp | 77285-0K190 |
| 77285L | No. 1 fuel pipe clamp | 77285-0K250 |
| 77286D | No. 2 fuel pipe clamp | 77286-0K170 |
| 77286F | No. 2 fuel pipe clamp | 77286-0K150 |
| 77286K | No. 2 fuel pipe clamp | 77286-0K220 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-0K040 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0K100 |
| 77310A | Fuel tank cap assembly | 77300-0K020 |
| 77316 | fuel tank cap gasket | 77316-0K020 |
| 77350 | Fuel filler cap assembly | 77350-KK020 |
| 77360A | Toyota part | 77360-0K010 |
| 77377 | Fuel filler cap lock retainer | 77377-0D080 |
| 77511A | fuel tank bracket | 77644-0K010 |
| 77611 | fuel tank strap | 77601-71010 · 77601-KK100 |
| 77611A | Pin (for fuel tank strap) | 77653-0K041 |
| 77612B | No. 2 fuel tank strap | 77602-71010 · 77602-KK080 |
| 77641A | No. 1 fuel tank protective shell | 77641-KK010 |
| 77644 | fuel tank bolt | 77644-35030 |
| 77651B | fuel tank liner | 77651-0K080 |
| 77652A | No. 2 fuel tank liner | 77652-0K140 |
| 77681A | Fuel tank strap seat | 77681-71010 · 77681-KK060 |
| 77682A | No. 2 fuel tank strap seat | 77682-71010 · 77682-KK060 |
| 77697 | No. 1 fuel tank insulation pad | 77697-0K130 |
