Toyota HILUX 座椅和座椅滑轨 — Figure 7151

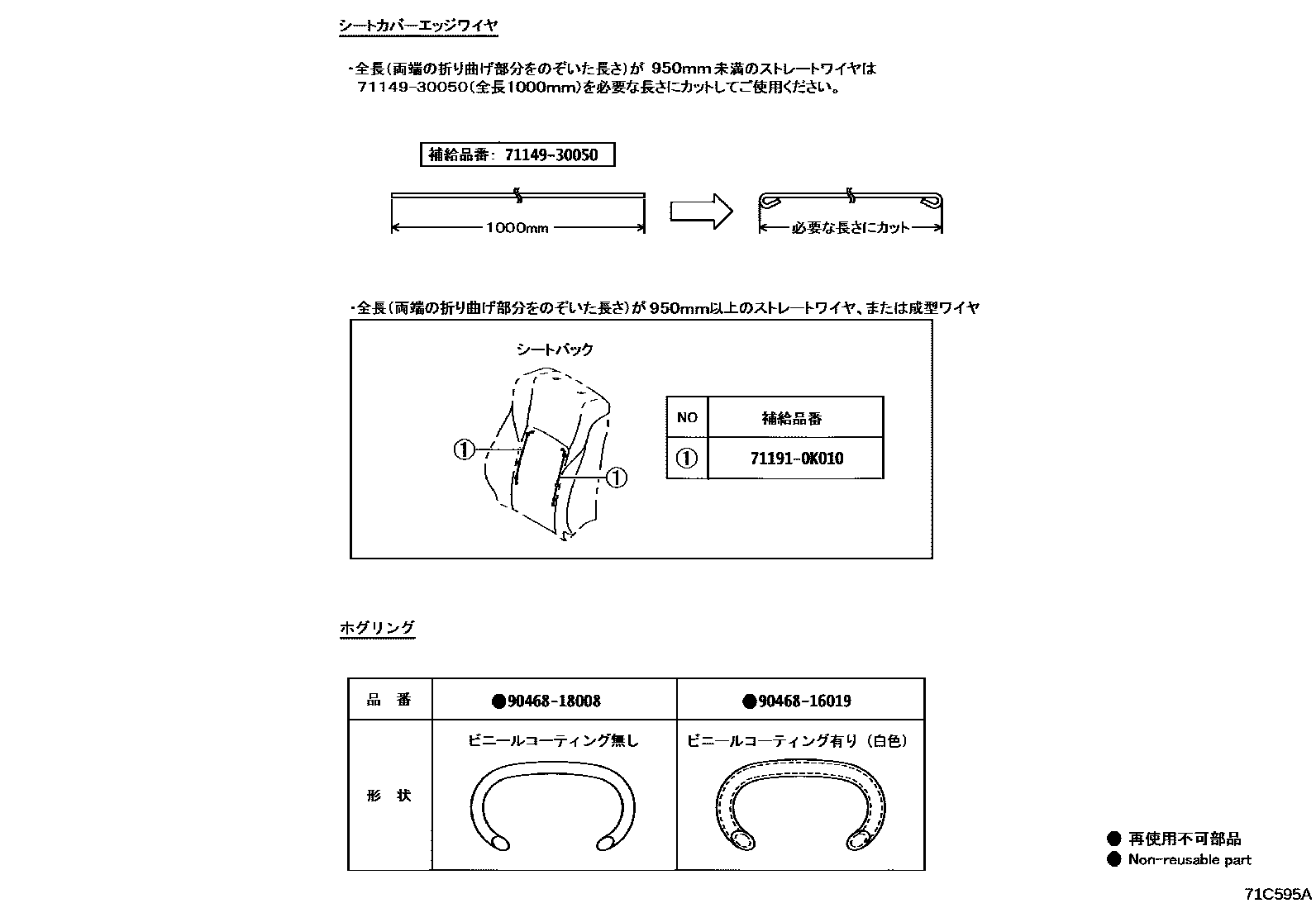

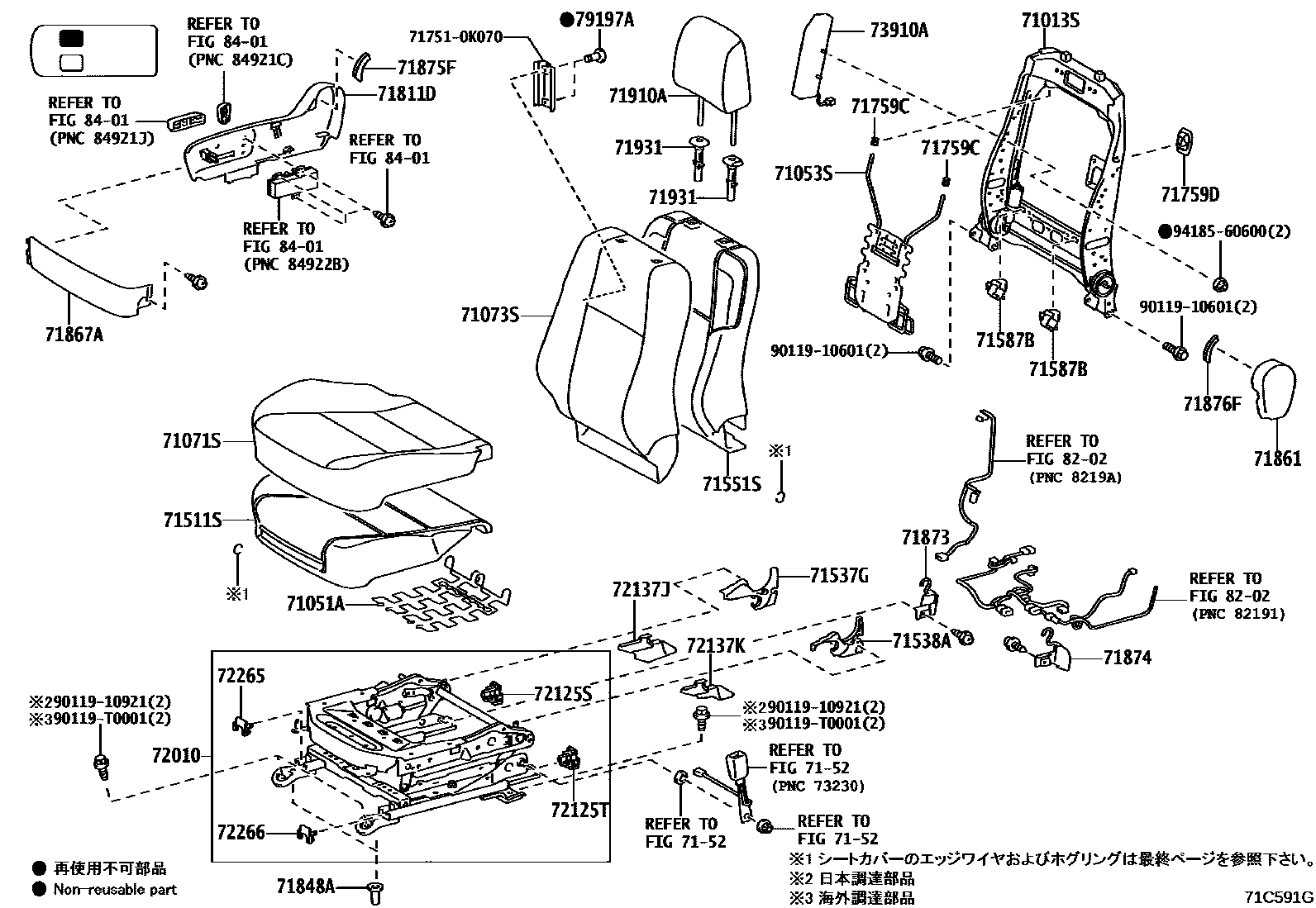

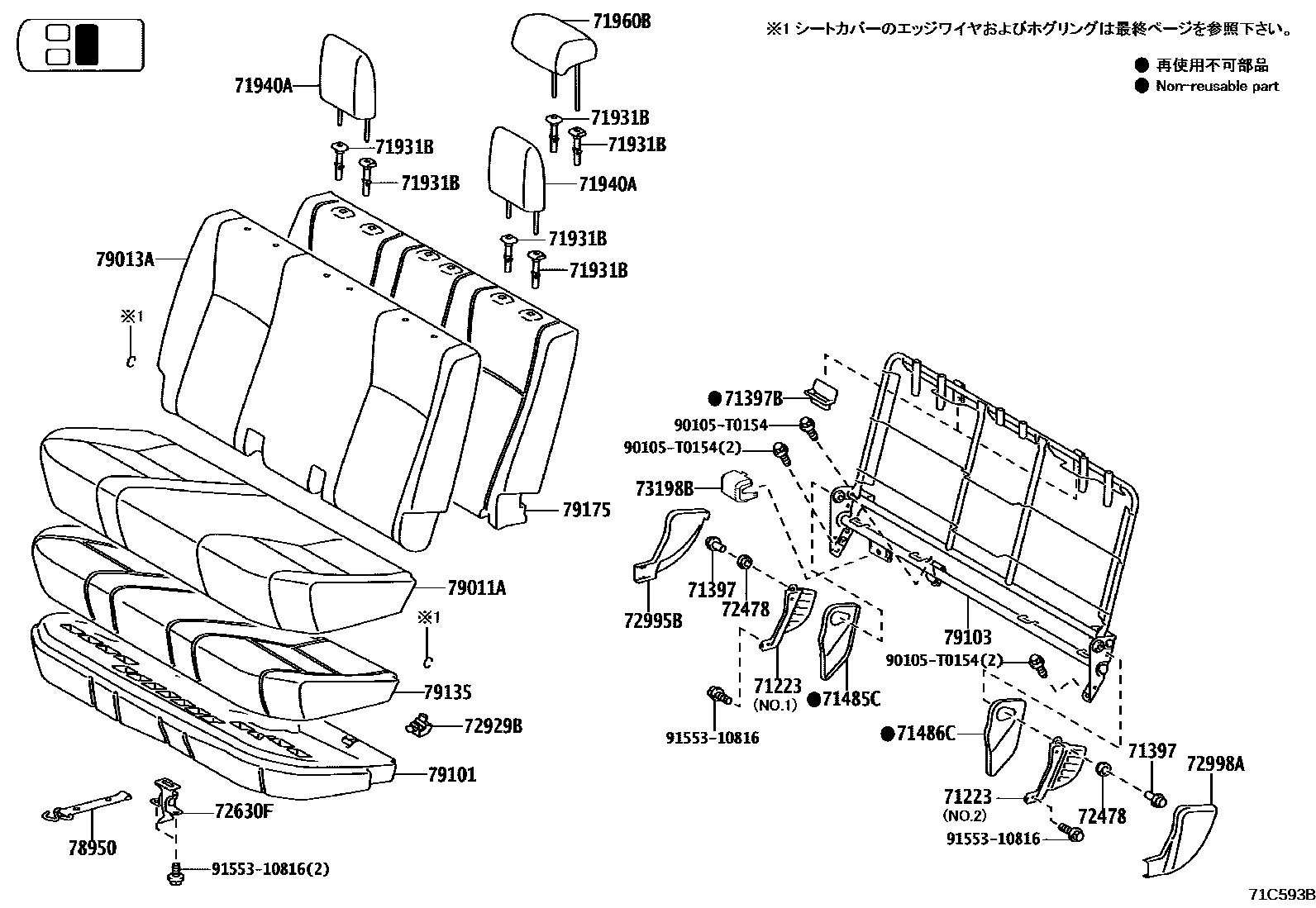

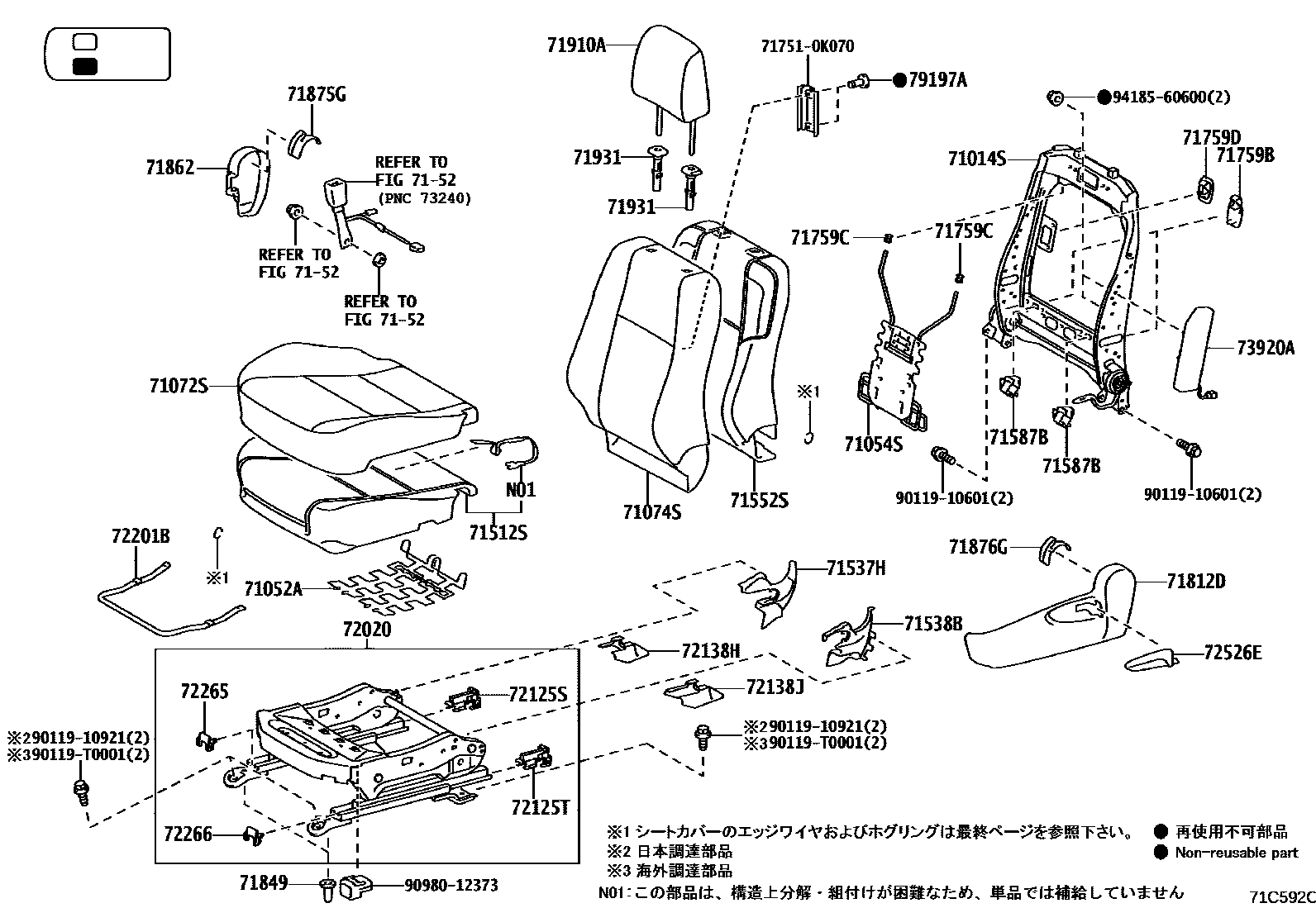

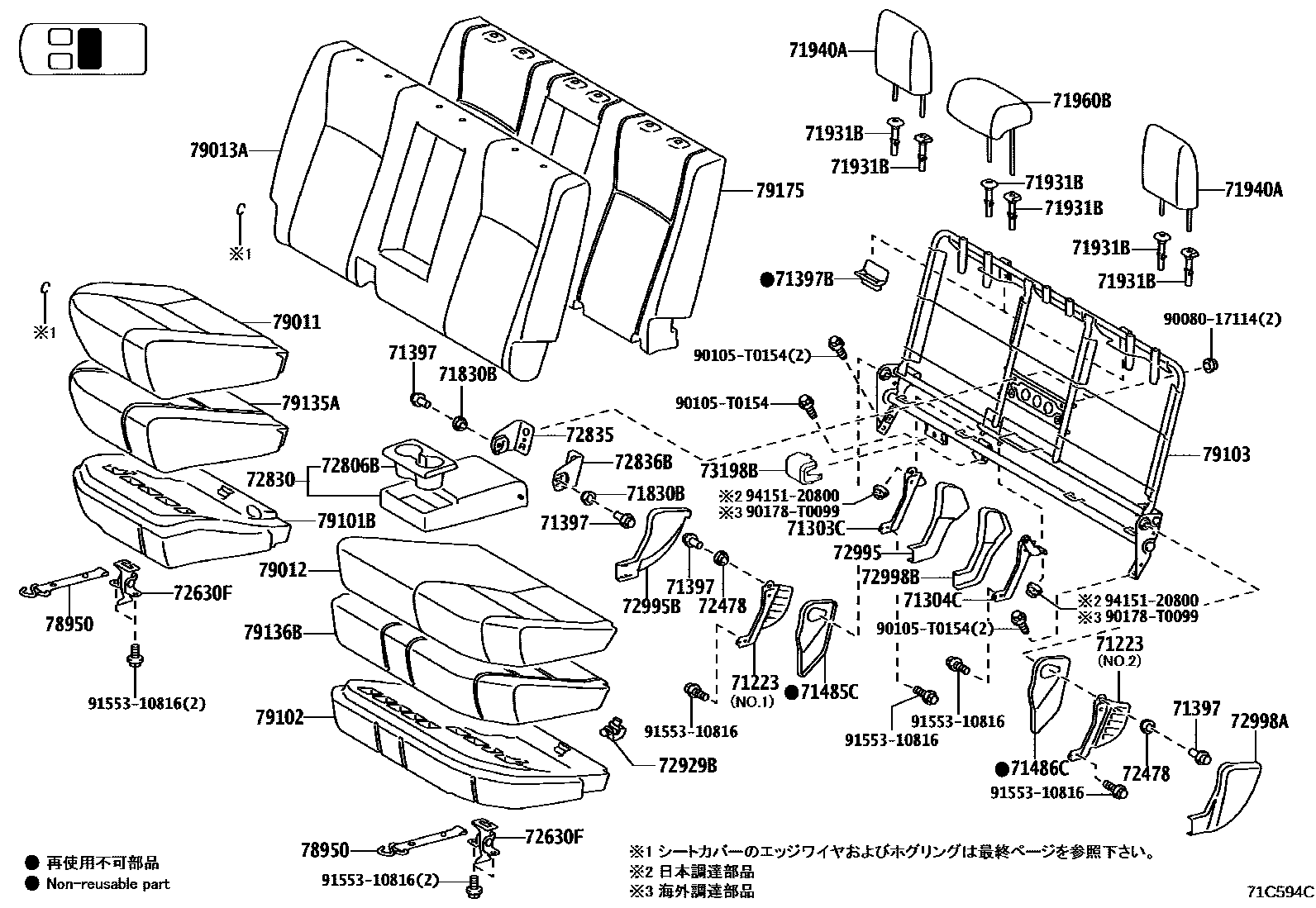

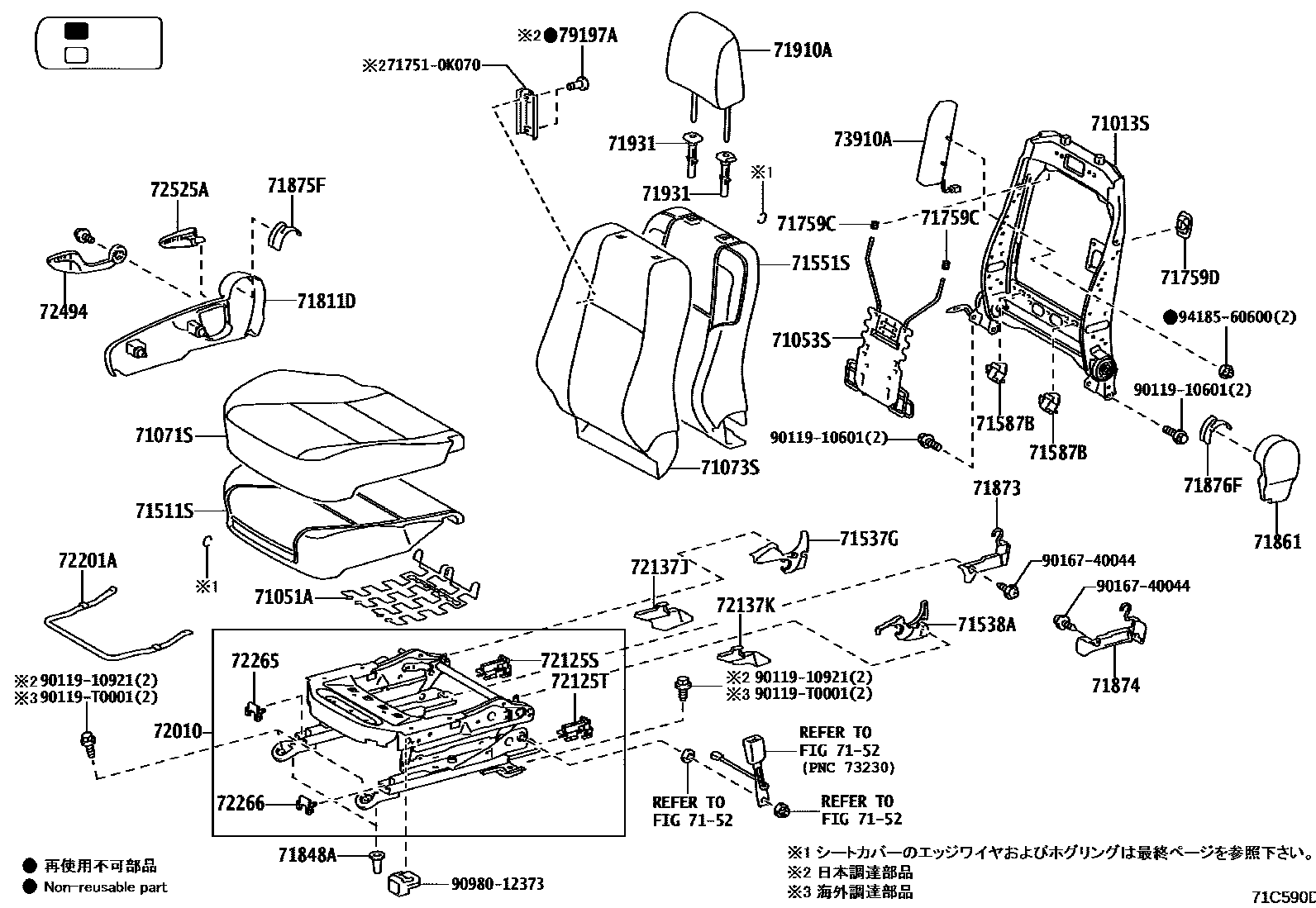

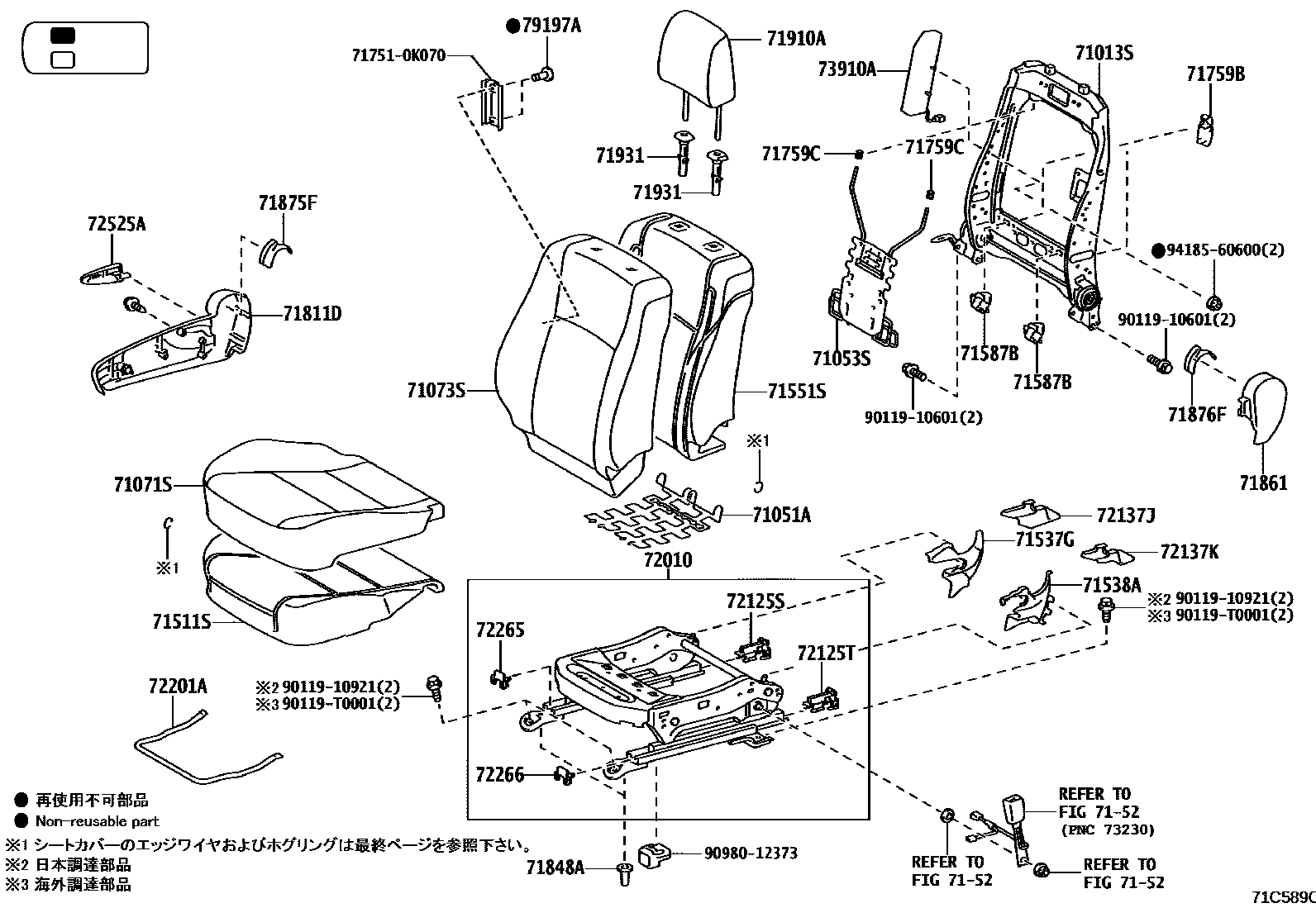

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 7 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0K400 · 71013-0K420 · 71013-0K440 |
| 71014S | Front left seat back frame sub-assembly | 71014-0K340 · 71014-0K360 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06070 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06070 |
| 71053S | Front right seat back spring sub-assembly | 71053-0K030 |
| 71054S | Front left seat back spring sub-assembly | 71053-0K030 |
| 71223 | Rear seat cushion side bracket | 71223-0K090 · 71224-0K100 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71304-0K090 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-0K090 |
| 71397 | Rear seat block | 71397-0K090 |
| 71397B | Rear right seat backrest fixer | 71398-KK010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0K131 · 71511-0K141 · 71511-0K591 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0K031 · 71502-0K231 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0K230 · 71551-0K270 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0K160 · 71552-0K200 |
| 71587B | Front seat back edge protective cover | 71587-0K030 |
| 71759B | Front seat back hook | 71759-0K140 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 |
| 71830B | Bushing (for rear seat armrest) | 90386-12029 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-06510 · 71873-06520 |
| 71874 | Front left seat cushion lower guard | 71874-06480 · 71874-06490 |
| 72010 | Front right seat adjuster assembly | 72010-0K080 · 72010-0K090 · 72010-0K100 |
| 72020 | Front left seat adjuster assembly | 72020-0K060 |
| 72125S | Toyota part | 72125-0D030 · 72265-0K010 |
| 72125T | Toyota part | 72125-0D030 · 72265-0K010 |
| 72201A | Right seat slide rail handle sub-assembly | 72211-0D160 |
| 72201B | Left seat slide rail handle sub-assembly | 72211-0D160 |
| 72265 | Right seat rail upper rail cover | 72265-0D080 |
| 72266 | Left seat rail upper rail cover | 72265-0D080 |
| 72478 | height adjuster bushing | 72478-0K010 |
| 72630F | Rear No. 2 seat lock assembly | 72650-0K271 |
| 72835 | Rear right seat armrest | 72835-0K030 |
| 72836B | Rear left seat armrest | 72836-0K030 |
| 72929B | Rear seat cushion strap fasteners | 72929-0K010 |
| 73198B | Rear seat bracket cover | 73198-KK010 |
| 73910A | Front right seat airbag assembly | 73910-0K050 |
| 73920A | Front left seat airbag assembly | 73920-0K050 |
| 79101 | No. 1 seat cushion frame sub-assembly | 79101-0K570 |
| 79101B | Right No. 1 seat cushion frame sub-assembly | 79101-0K600 |
| 79102 | Left No. 1 seat cushion frame sub-assembly | 79102-0K550 |
| 79103 | No. 1 seat back frame sub-assembly | 79010-0K200 · 79010-0K230 |
| 79135 | Seat No. 1 cushion cushion | 71503-0K090 |
| 79135A | Right seat No. 1 seat cushion cushion | 71503-0K060 |
| 79136B | Seat cushion, seat No. 1, left | 71504-0K030 |
| 79175 | Seat 1 back cushion | 79175-0K270 · 79175-0K290 |
| 79197A | Toyota part | 79197-0K010 |
