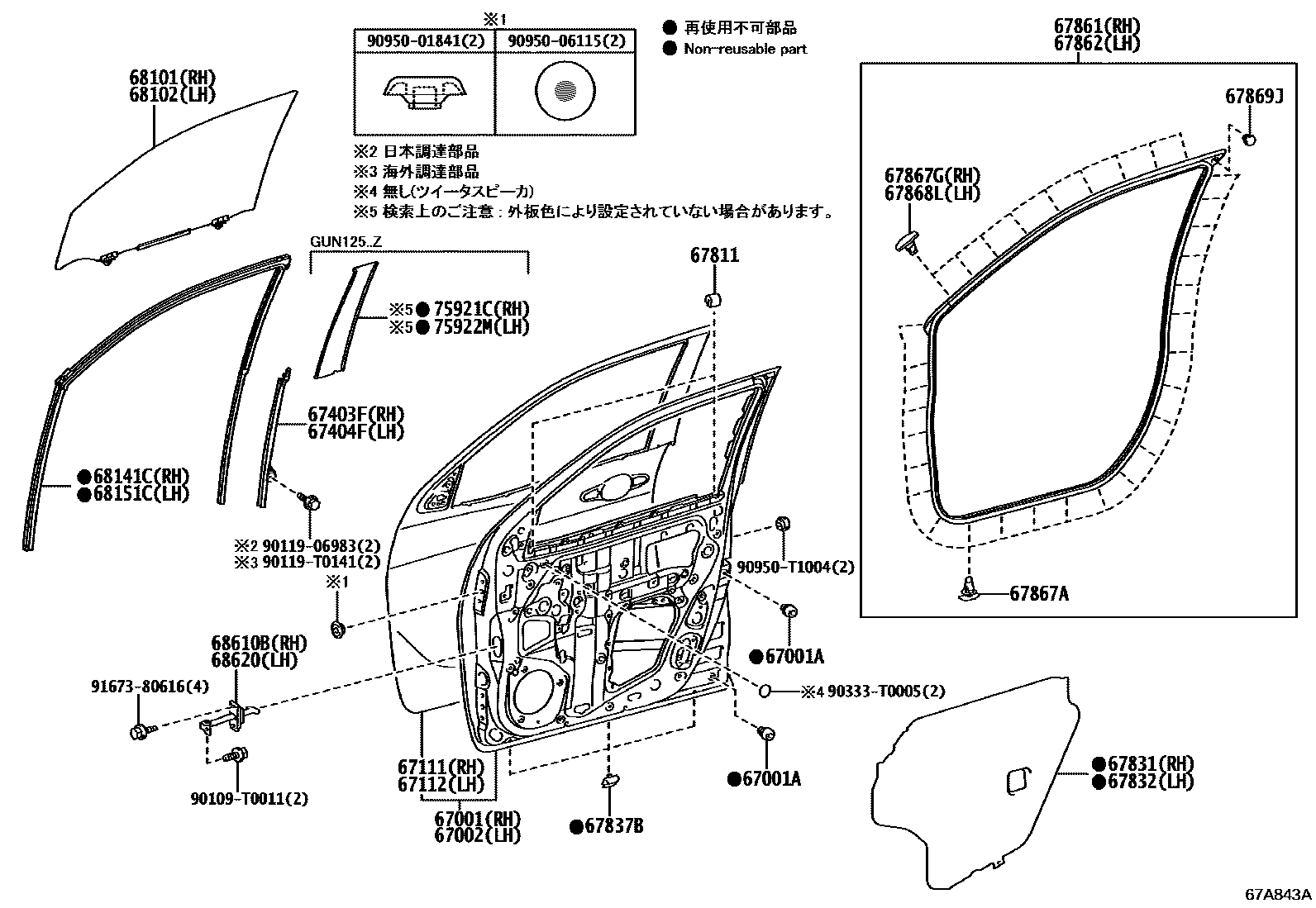

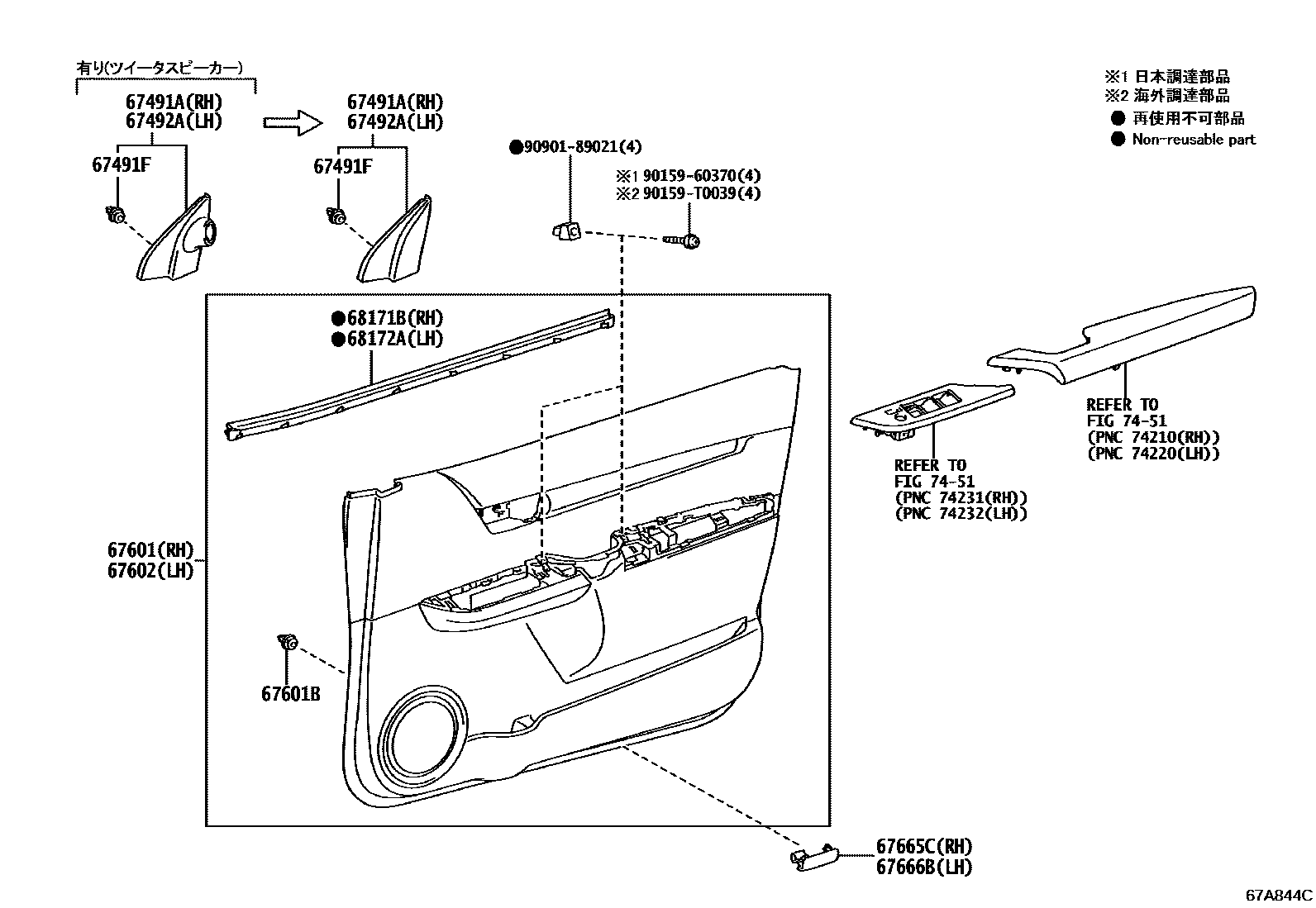

Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-KK010 |
| 67001A | Front door panel cushion | 90541-09131 |
| 67002 | Left front door panel sub-assembly | 67002-KK010 |
| 67111 | Outer right front door panel | 67111-KK010 |
| 67112 | Outer left front door panel | 67112-KK010 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0K070 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0K070 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-0K150 · 67491-0K160 |
| 67491F | Catch (for door trim panel) | 90467-T0019 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-0K150 · 67492-0K160 |
| 67601B | Catch (for front door trim panel) | 90467-T0019 |
| 67665C | Right front door trim reflector | 67665-0K010 |
| 67666B | Left front door trim reflector | 67665-0K010 |
| 67811 | Front door silencer pad | 69759-0K030 |
| 67831 | Right front door access hole cover | 67831-0K120 |
| 67832 | Left front door access hole cover | 67832-0K120 |
| 67837B | Front door dust seal retainer | 67837-0K092 |
| 67861 | Right front door seal | 67861-0K260 · 67861-0K261 |
| 67862 | Left front door seal | 67862-0K260 · 67862-0K261 |
| 67867A | Door seal strip clip (for front door) | 67867-0C010 · 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52030 |
| 67868L | Left door seal strip fixing | 67867-52020 |
| 67869J | Front door seal strip clip | 90467-06084 |
| 68101 | Right front door glass sub-assembly | 68101-0K272 |
| 68102 | Left front door glass sub-assembly | 68102-0K272 |
| 68141C | Right front door glass lift channel | 68141-0K070 |
| 68151C | Left front door glass lift channel | 68151-0K070 |
| 68171B | Right front door glass inner sealing strip | 68171-0K080 |
| 68172A | Left front door glass inner sealing strip | 68172-0K080 |
| 68610B | Right front door opening limiter assembly | 68610-0K091 |
| 68620 | Left front door opening limiter assembly | 68610-0K091 |
| 75921C | No. 1 right side light-shielding film | 75921-0K030 |
| 75922M | No. 1 left shading film | 75922-0K030 |
