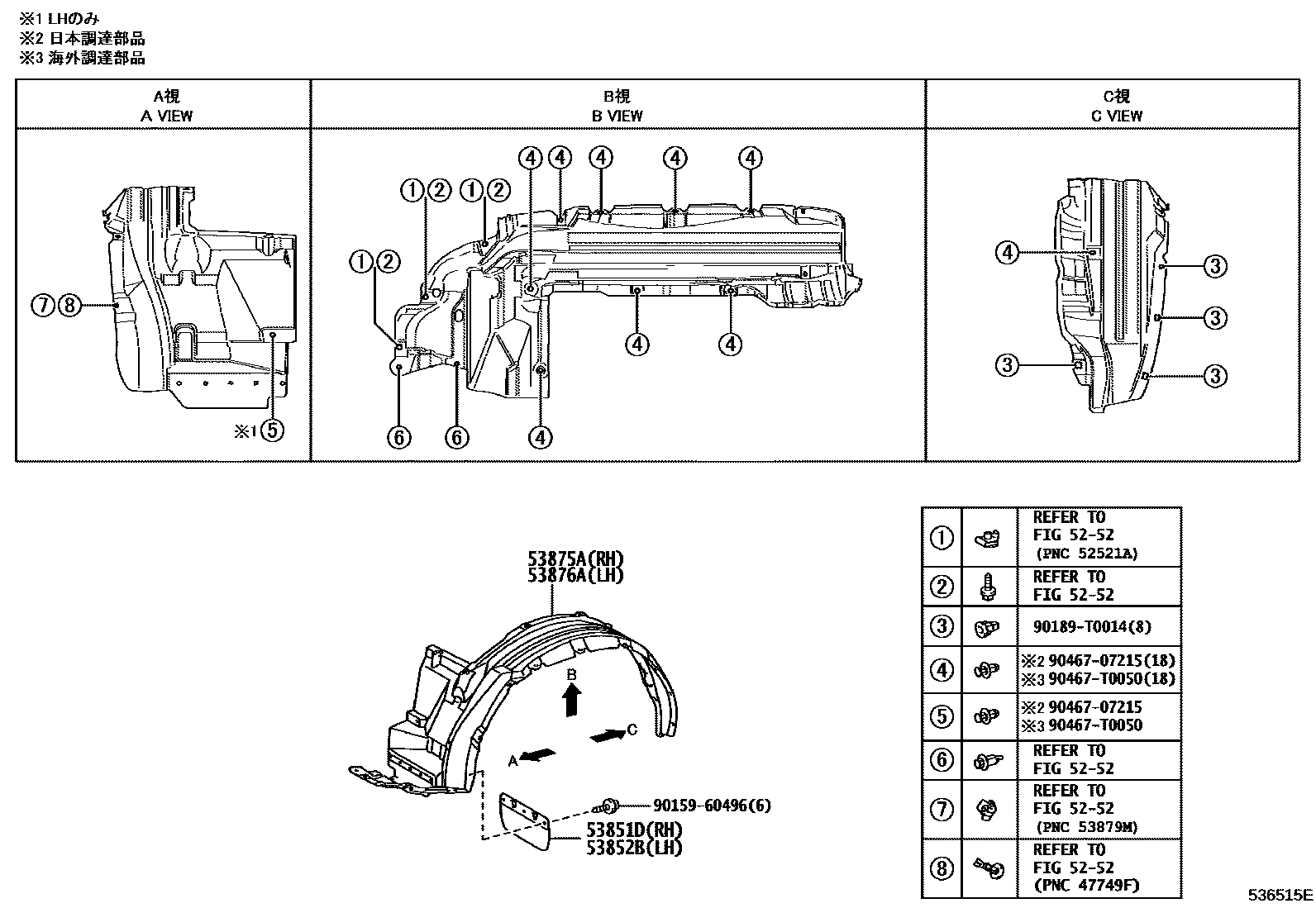

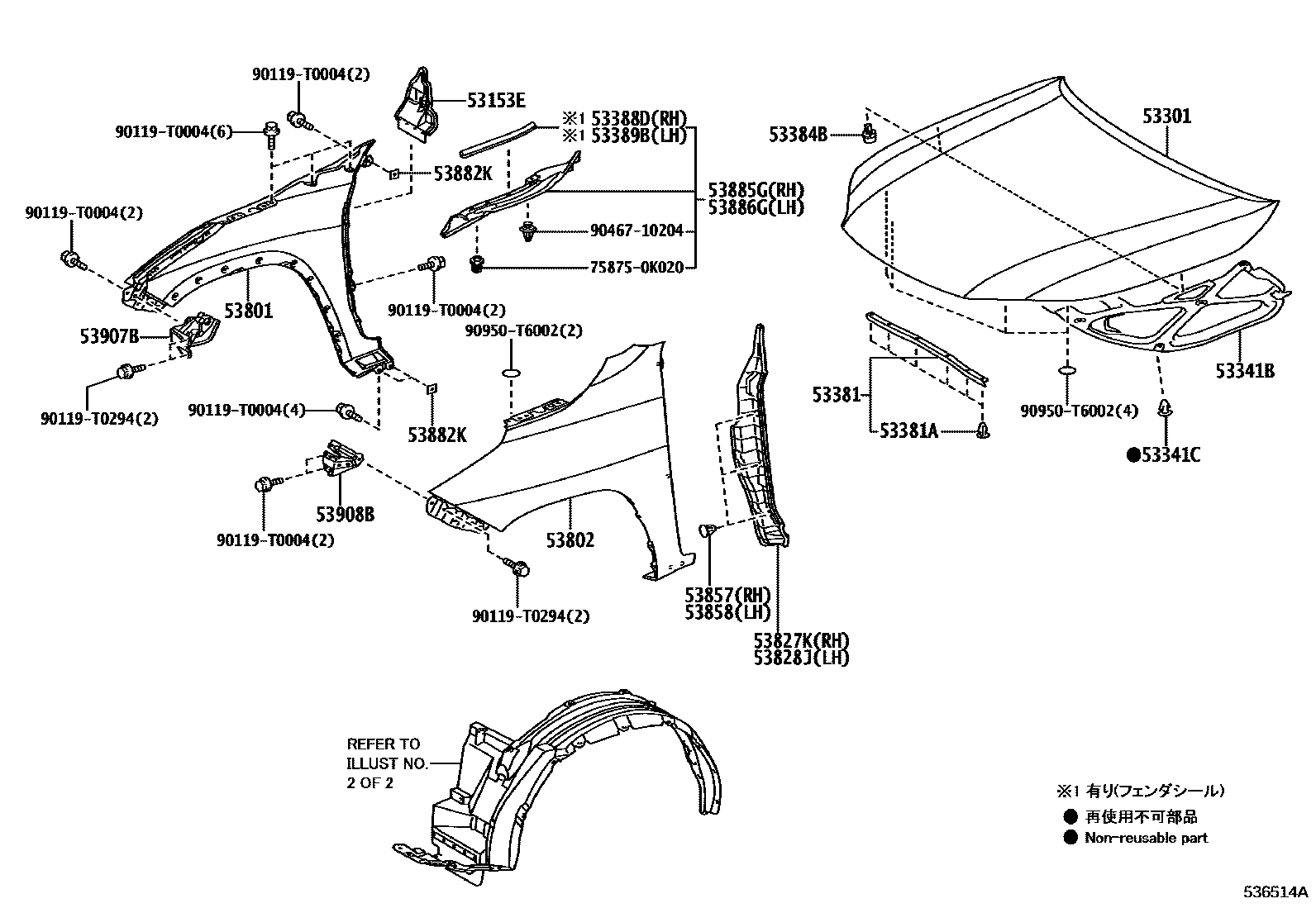

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153E | front side deflector | 53153-0K010 |
| 53301 | Engine cover sub-assembly | 53301-KK050 |
| 53341B | engine cover gasket | 53341-0K250 |
| 53341C | Clip (for engine cover gasket) | 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-0K080 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-T0013 |
| 53384B | Engine cover center cushion | 53384-0K040 |
| 53388D | Engine cover to right front fender seal | 53388-0K010 |
| 53389B | Engine cover to left front fender seal | 53388-0K010 |
| 53801 | Right front fender sub-assembly | 53811-KK030 |
| 53802 | Left front fender sub-assembly | 53802-KK030 |
| 53827K | Right front fender side panel protector | 53827-0K080 |
| 53828J | Left front fender side panel protector | 53828-0K080 |
| 53851D | Right front fender outer panel pad | 53851-0K080 |
| 53852B | Left front fender exterior panel pad | 53851-0K080 |
| 53857 | Right front fender external panel fixing piece | 53857-06030 · 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-06030 · 53857-47011 |
| 53875A | Right front fender lining | 53805-0K320 |
| 53876A | Left front fender lining | 53806-0K320 |
| 53882K | front fender seal | 53882-33060 |
| 53885G | Right fender fender seal sub-assembly | 53807-0K100 · 53807-0K110 |
| 53886G | Left fender fender seal | 53808-0K100 · 53808-0K110 |
| 53907B | Right front end plate extension sub-assembly | 53907-KK020 |
| 53908B | Left front end plate extension sub-assembly | 53908-KK030 |
