Toyota HILUX 前保险杠及附件 — Figure 5252

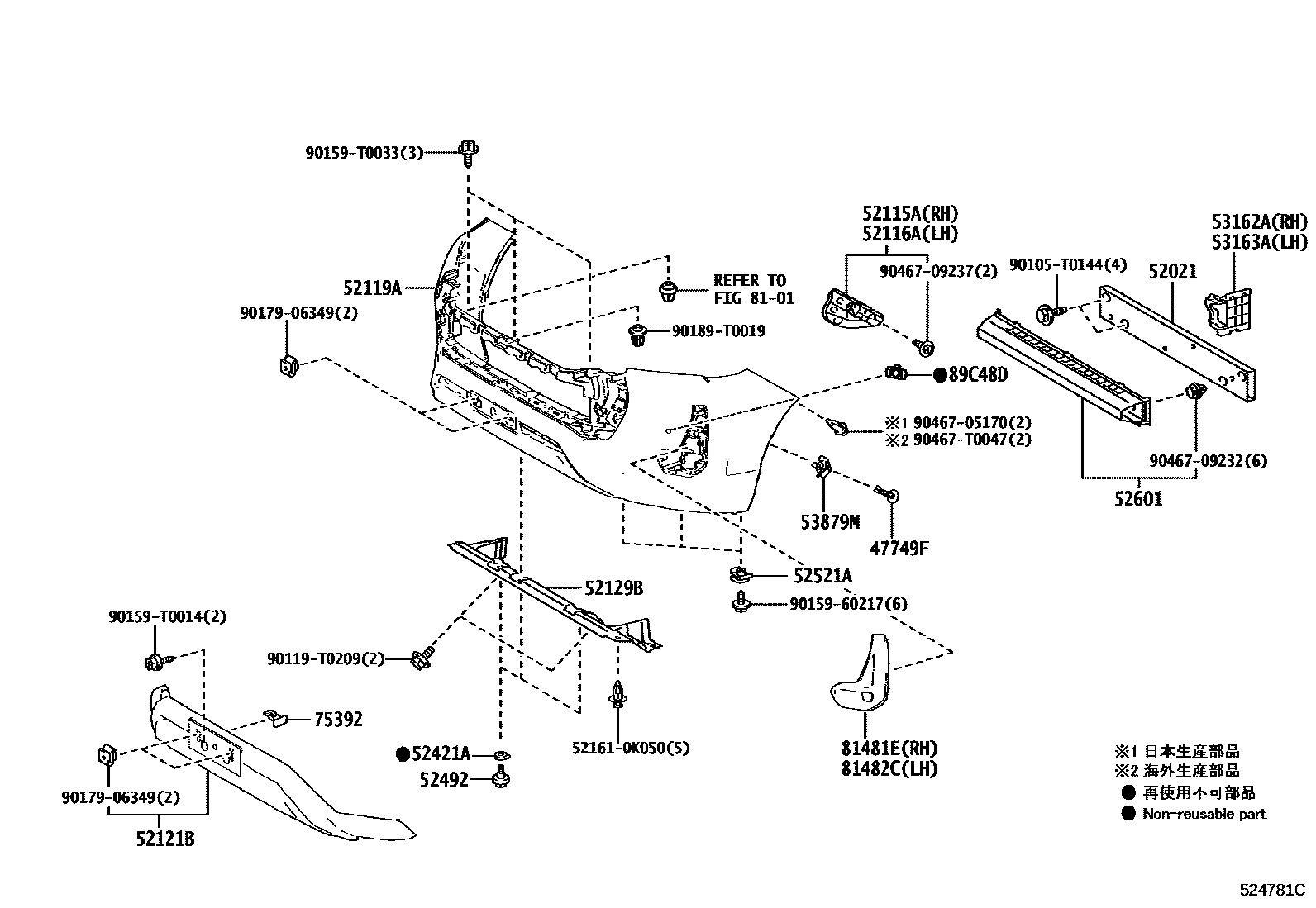

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | Toyota part | 47749-50090 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-KK010 |
| 52115A | Front bumper right side bracket | 52115-0K180 |
| 52116A | Front bumper left bracket | 52116-0K180 |
| 52121B | Front license plate mounting bracket | 52121-0K010 |
| 52129B | Front bumper lower cover | 52129-KK010 |
| 52421A | front bumper lining | 52421-60191 |
| 52492 | Bumper lining bolt No. 2 | 52491-60010 |
| 52521A | Clip (for front bumper mount) | 90467-05114 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-0K140 |
| 53162A | Toyota part | 53162-KK010 |
| 53163A | Toyota part | 53163-KK010 |
| 53879M | Front fender lining fixing parts | 53879-50020 |
| 75392 | External protective strip fixings | 75392-0K010 |
| 81481E | Right fog light cover | 52127-0K860 · 52127-0K870 |
| 81482C | Left fog light cover | 52128-0K860 · 52128-0K870 |
| 89C48D | Toyota part | 89348-0K020 |
