Toyota HILUX 后桥壳和差速器 — Figure 4101

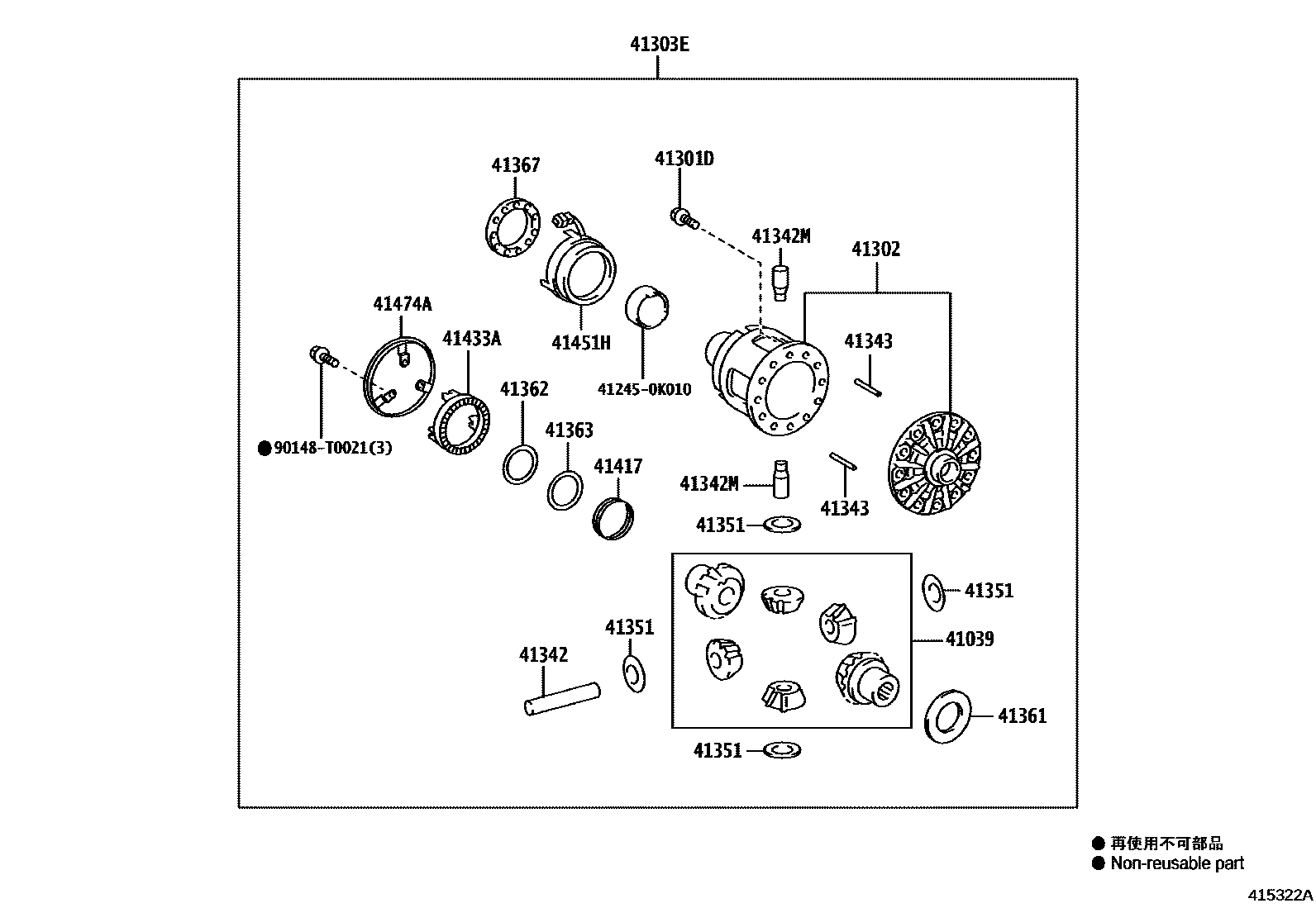

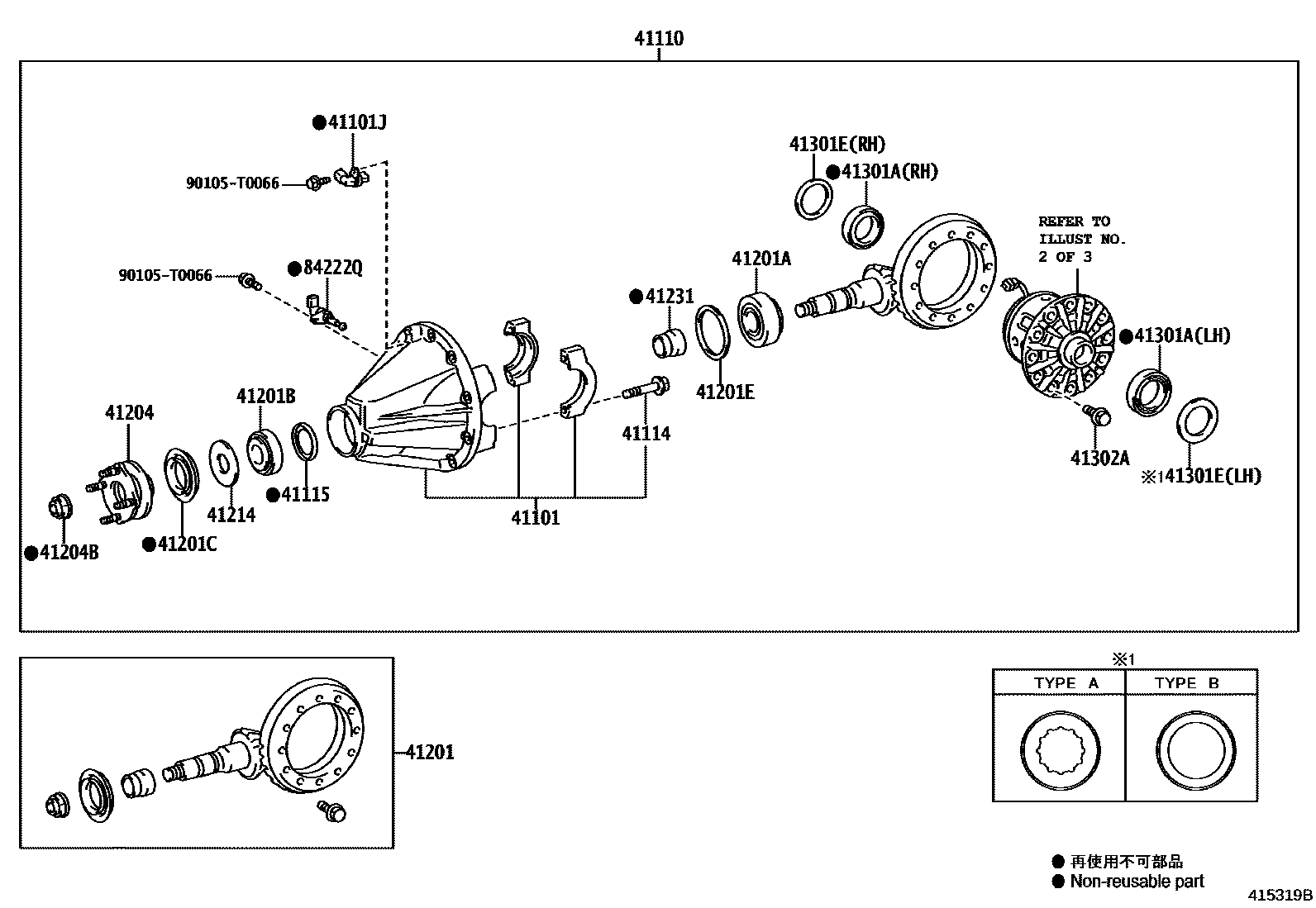

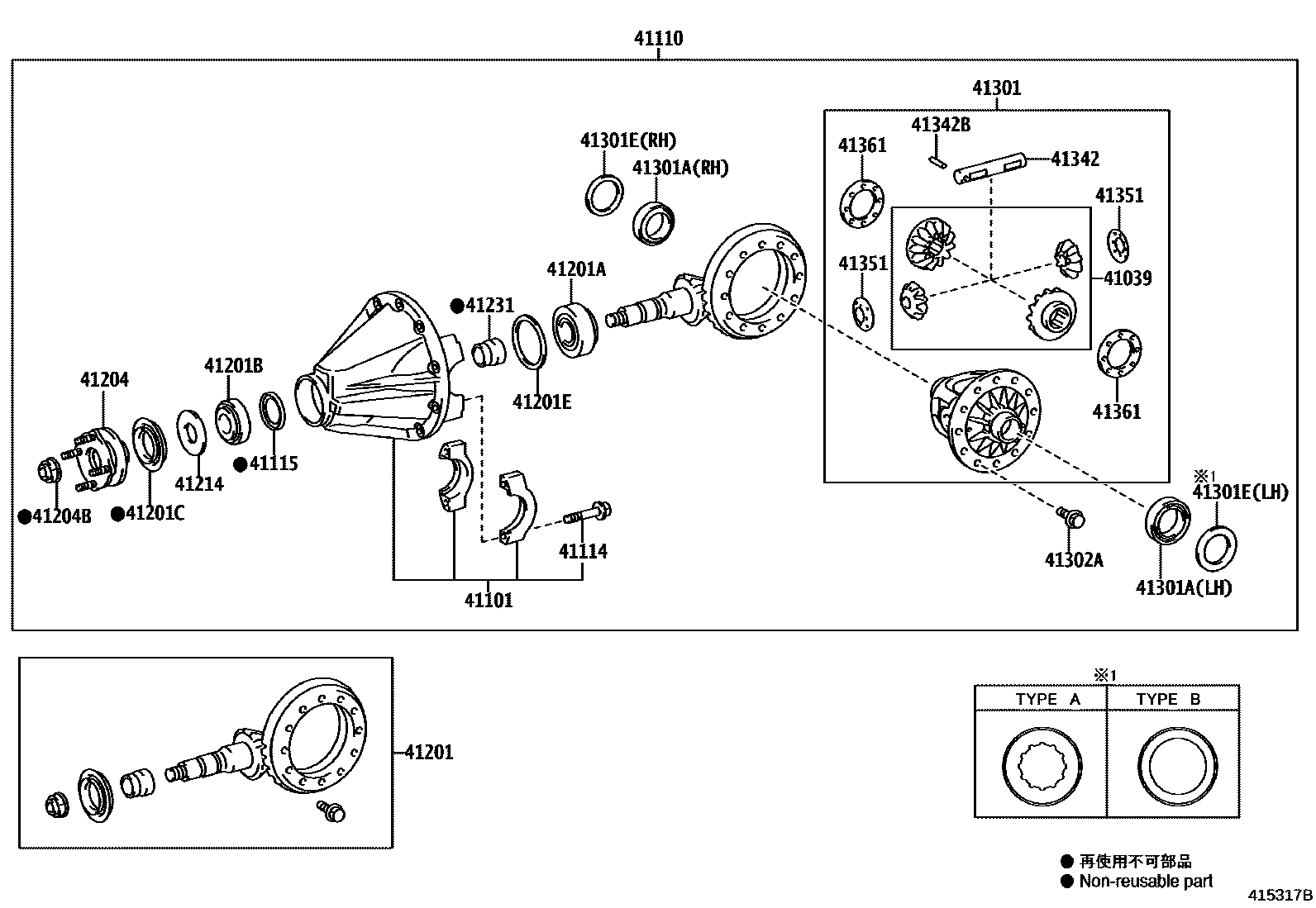

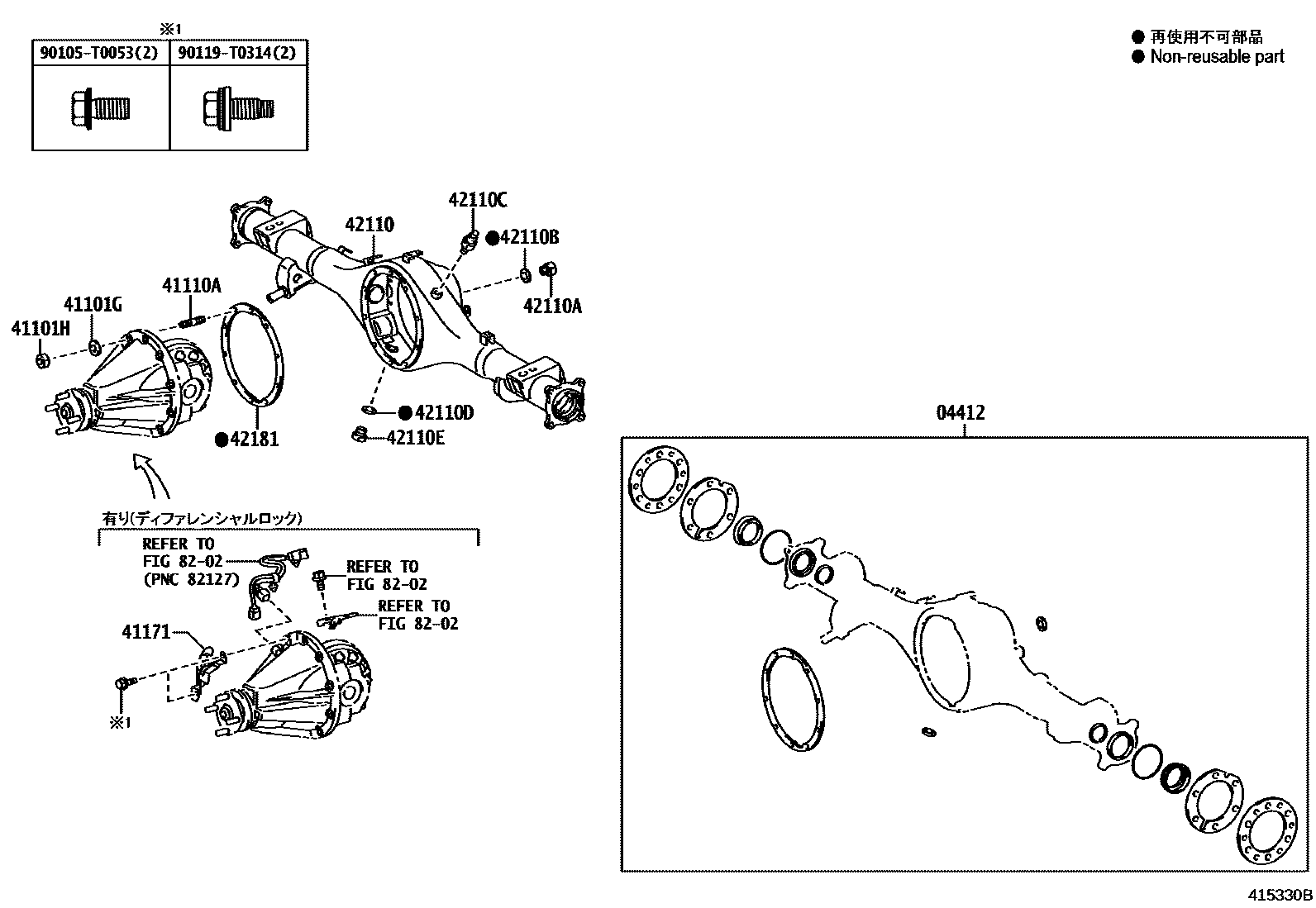

Toyota HILUX EPC diagram 4101, 后桥壳和差速器, with 4 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-0K540 |
| 41039 | rear differential gear assembly | 41039-0K010 · 41039-71070 |
| 41101 | Rear differential bracket sub-assembly | 41101-0K070 · 41101-0K080 |
| 41101G | Toyota part | 94621-11000 |
| 41101H | Toyota part | 90170-T0017 |
| 41101J | Toyota part | 82824-0K060 |
| 41110 | Rear differential bracket assembly | 41110-0K590 · 41110-0K640 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-10074 |
| 41114 | Rear differential bearing cap bolts | 90109-T0030 |
| 41115 | Differential oil reservoir ring | 41115-0K020 |
| 41171 | Rear differential protector | 41171-0K010 |
| 41201 | Rear differential final drive gear assembly | 41201-09B80 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90366-T0065 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90366-T0062 |
| 41201C | Oil seal (for rear differential case) | 90311-T0065 |
| 41201E | Front adjustment shim (for rear differential drive pinion spacer) | 90564-78001 · 90564-78002 · 90564-78003 · 90564-78004 · 90564-78005 · 90564-78006 · 90564-78007 · 90564-78008 · 90564-78009 · 90564-78010 · 90564-78011 · 90564-78012 · 90564-78013 · 90564-78014 · 90564-78015 · 90564-78016 · 90564-78017 · 90564-78018 · 90564-78019 · 90564-78020 · 90564-78021 · 90564-78022 · 90564-78023 · 90564-78024 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-0K110 |
| 41204B | Nut (for rear driving pinion) | 90179-22029 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-0K040 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-71010 |
| 41301 | Rear differential housing sub-assembly | 41301-0K120 |
| 41301A | Bearings (for rear differential housing) | 90366-T0068 · 90366-T0071 |
| 41301D | Screws (for rear differential case) | 90151-T0004 |
| 41301E | Gasket (for differential case) | 90201-52001 · 90201-52003 · 90564-46014 · 90564-46015 · 90564-46016 · 90564-46017 · 90564-46044 · 90564-46045 · 90564-46046 · 90564-46047 · 90564-46048 · 90564-46049 · 90564-46050 · 90564-46051 · 90564-46053 · 90564-46054 · 90564-46055 · 90564-46056 · 90564-46057 · 90564-46058 · 90564-46059 · 90564-46060 · 90564-46061 · 90564-46062 · 90564-46063 · 90564-46064 · 90564-46065 · 90564-46066 · 90564-46067 · 90564-46068 · 90564-46069 · 90564-59044 · 90564-59045 · 90564-59046 · 90564-59047 · 90564-59048 · 90564-59049 · 90564-59050 · 90564-59051 · 90564-59052 · 90564-59053 · 90564-59054 · 90564-59055 · 90564-59056 · 90564-59057 · 90564-59058 · 90564-59059 · 90564-59060 · 90564-59061 · 90564-59062 · 90564-59063 · 90564-59064 · 90564-59065 · 90564-59066 · 90564-59067 · 90564-59068 · 90564-59069 · 90564-59070 · 90564-59071 · 90564-59072 · 90564-59073 · 90564-59074 · 90564-59075 · 90564-59076 · 90564-59077 · 90564-59078 · 90564-59079 · 90564-59080 · 90564-59081 · 90564-59082 · 90564-59083 · 90564-59084 · 90564-59085 · 90564-59086 · 90564-59087 · 90564-59088 · 90564-59089 · 90564-59090 · 90564-59091 · 90564-59092 · 90564-59093 · 90564-59094 · 90564-59095 · 90564-59096 · 90564-59097 · 90564-59098 · 90564-59099 · 90564-59100 · 90564-59101 · 90564-59102 · 90564-59103 · 90564-59104 · 90564-59105 · 90564-59106 |
| 41302 | Rear differential housing sub-assembly | 41302-0K020 |
| 41302A | Bolt (for rear differential case) | 90105-T0268 |
| 41303E | Toyota part | 41303-0K010 |
| 41342 | Rear differential planetary gear shaft | 41342-0K070 · 41342-0K080 |
| 41342B | Direct sales (for rear differential planetary gear shaft) | 90250-T0006 |
| 41342M | No. 2 rear differential planetary gear shaft | 41342-0K090 |
| 41343 | Rear differential planetary gear pin | 41343-0K010 |
| 41351 | Rear differential planetary gear thrust washer | 41351-0K040 · 41351-0K050 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-0K110 · 41361-0K300 · 41361-0K310 · 41361-0K320 · 41361-0K330 · 41361-0K340 · 41361-0K350 · 41361-0K360 · 41361-0K370 · 41361-0K380 · 41361-0K390 · 41361-0K400 · 41361-0K410 |
| 41362 | No. 2 rear differential half gear thrust washer | 41361-0K420 · 41361-0K430 · 41361-0K440 · 41361-0K450 |
| 41363 | No. 3 rear differential half gear thrust washer | 41361-0K450 |
| 41367 | Toyota part | 41367-0K010 |
| 41417 | Toyota part | 41417-0K020 |
| 41433A | Toyota part | 41433-0K010 |
| 41451H | Toyota part | 41451-0K010 |
| 41474A | Toyota part | 41474-0K010 |
| 42110 | Rear axle housing assembly | 42110-KK110 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42181 | Rear differential case gasket | 42181-KK010 |
| 84222Q | Toyota part | 84222-0K010 |
