Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 107 PNC and OE references.

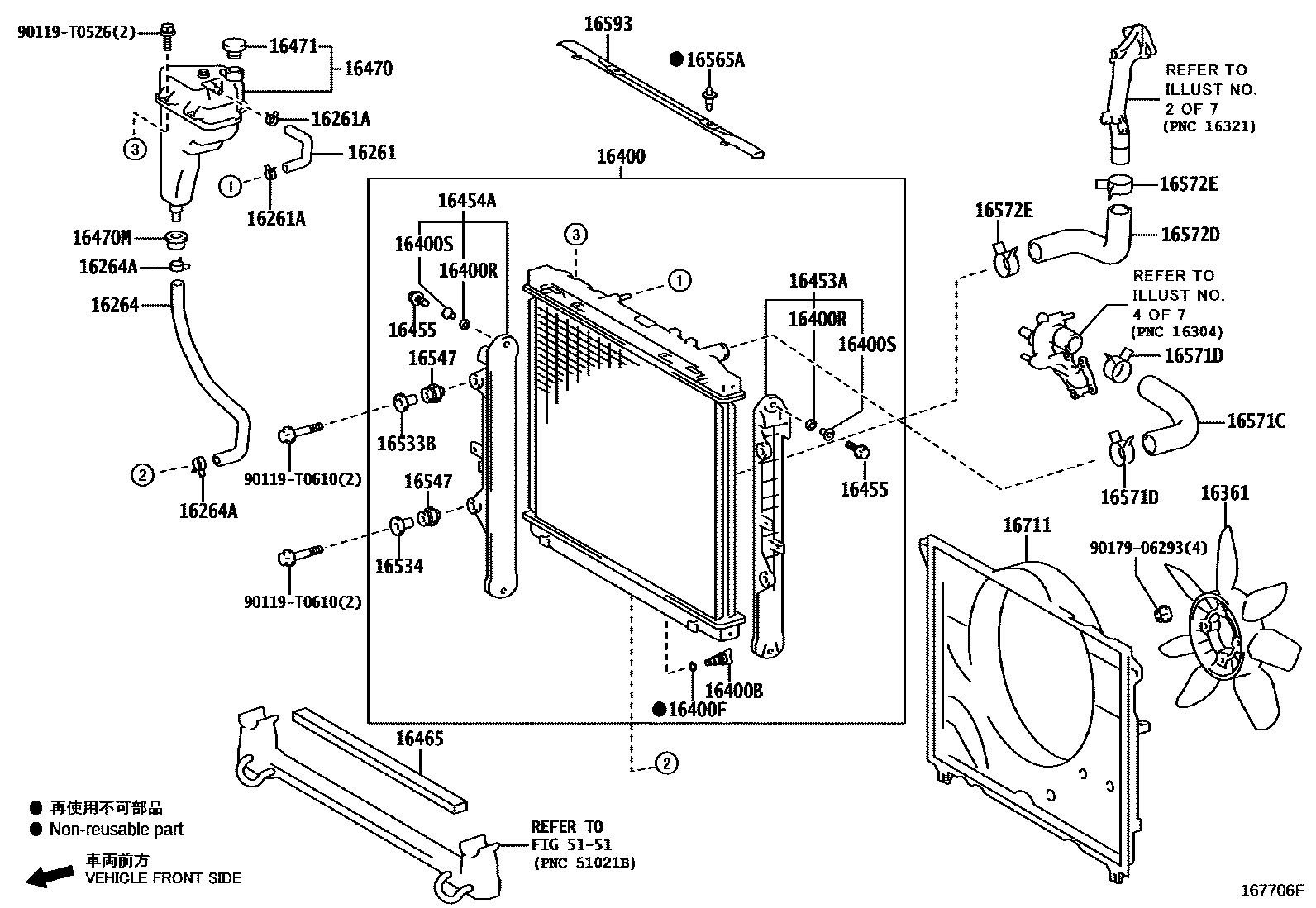

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167706F
RADIATOR & WATER OUTLET — 167706F (202006 – 999999)

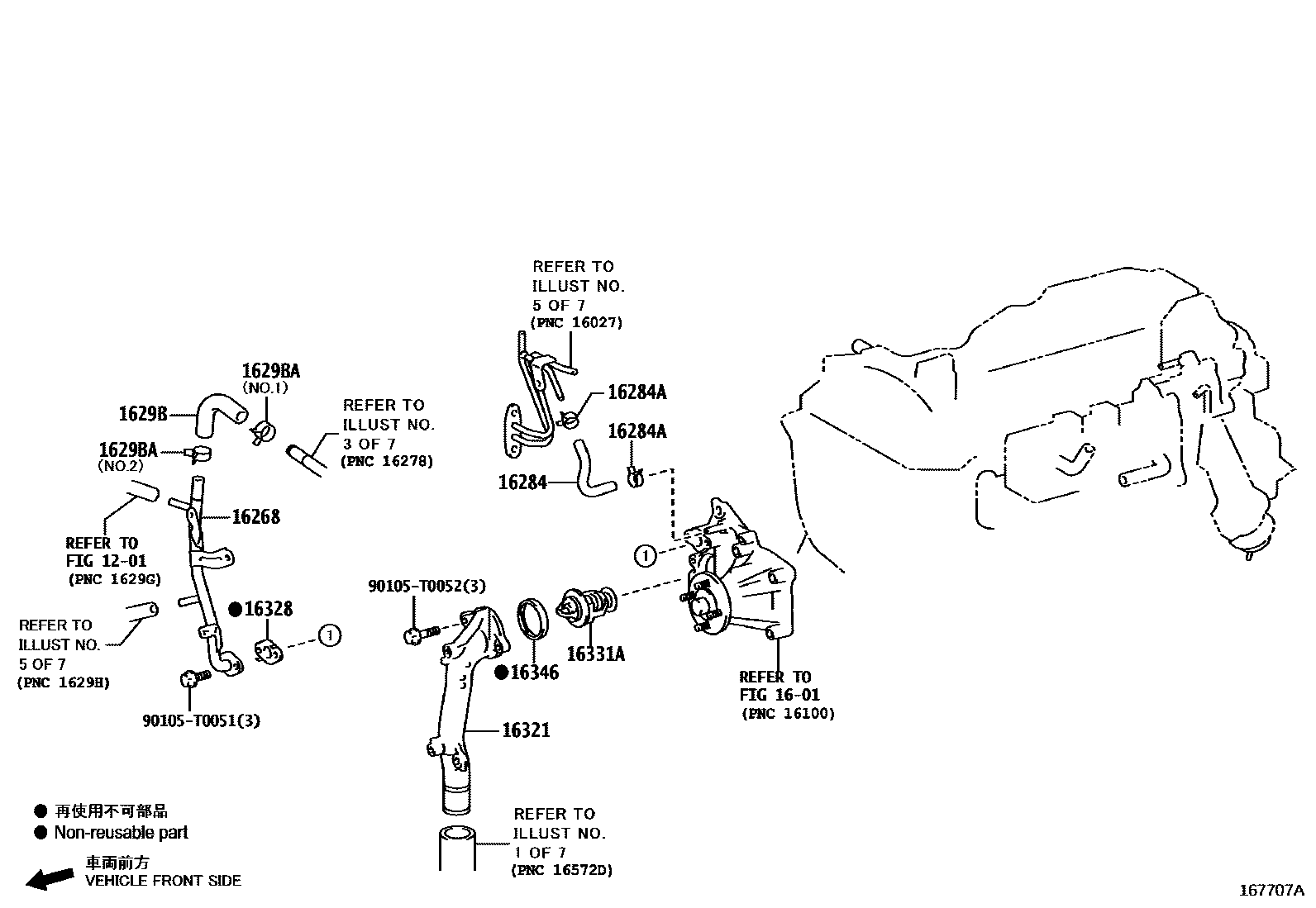

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167707A
RADIATOR & WATER OUTLET — 167707A (202006 – 999999)

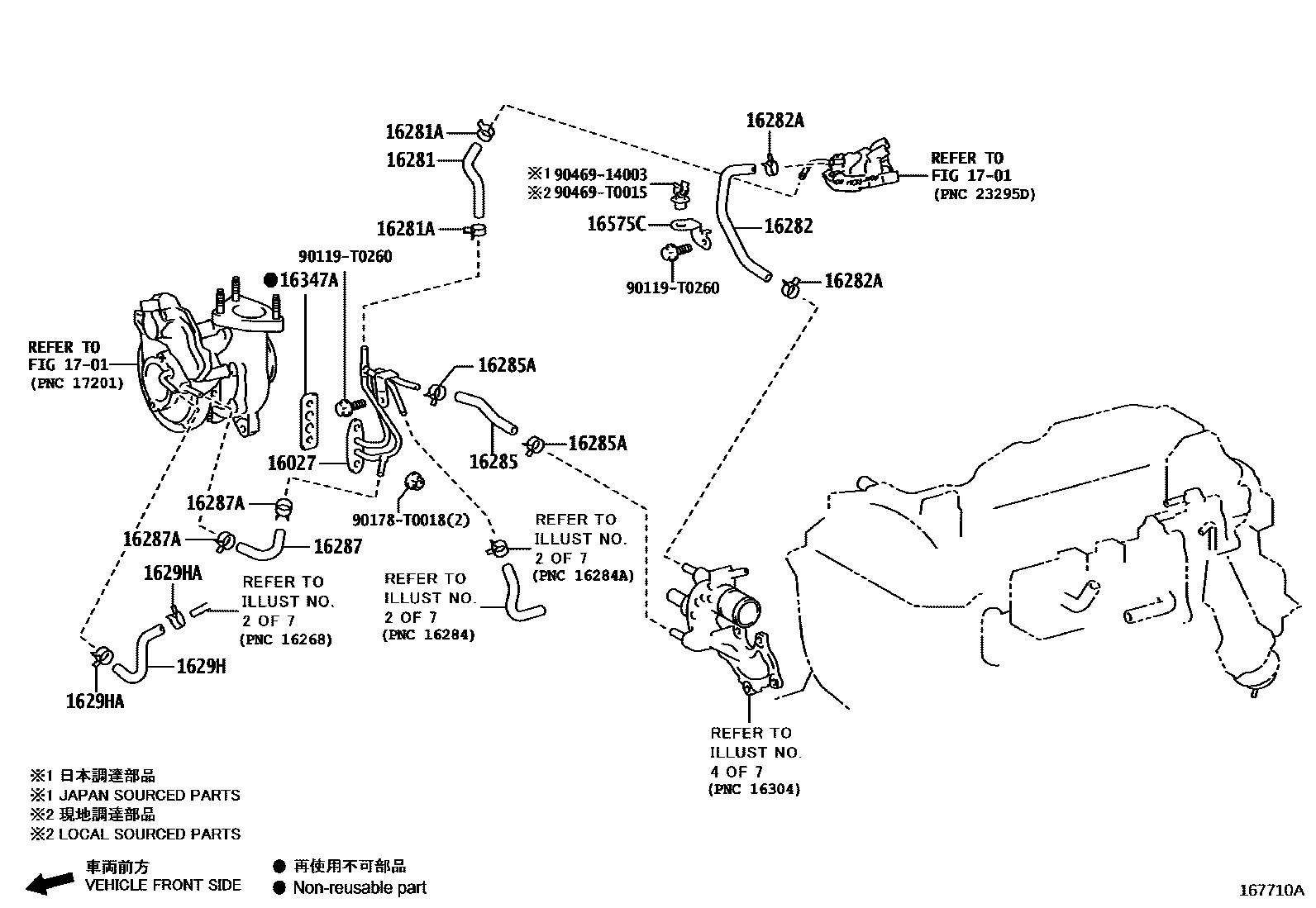

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167710A
RADIATOR & WATER OUTLET — 167710A (202006 – 999999)

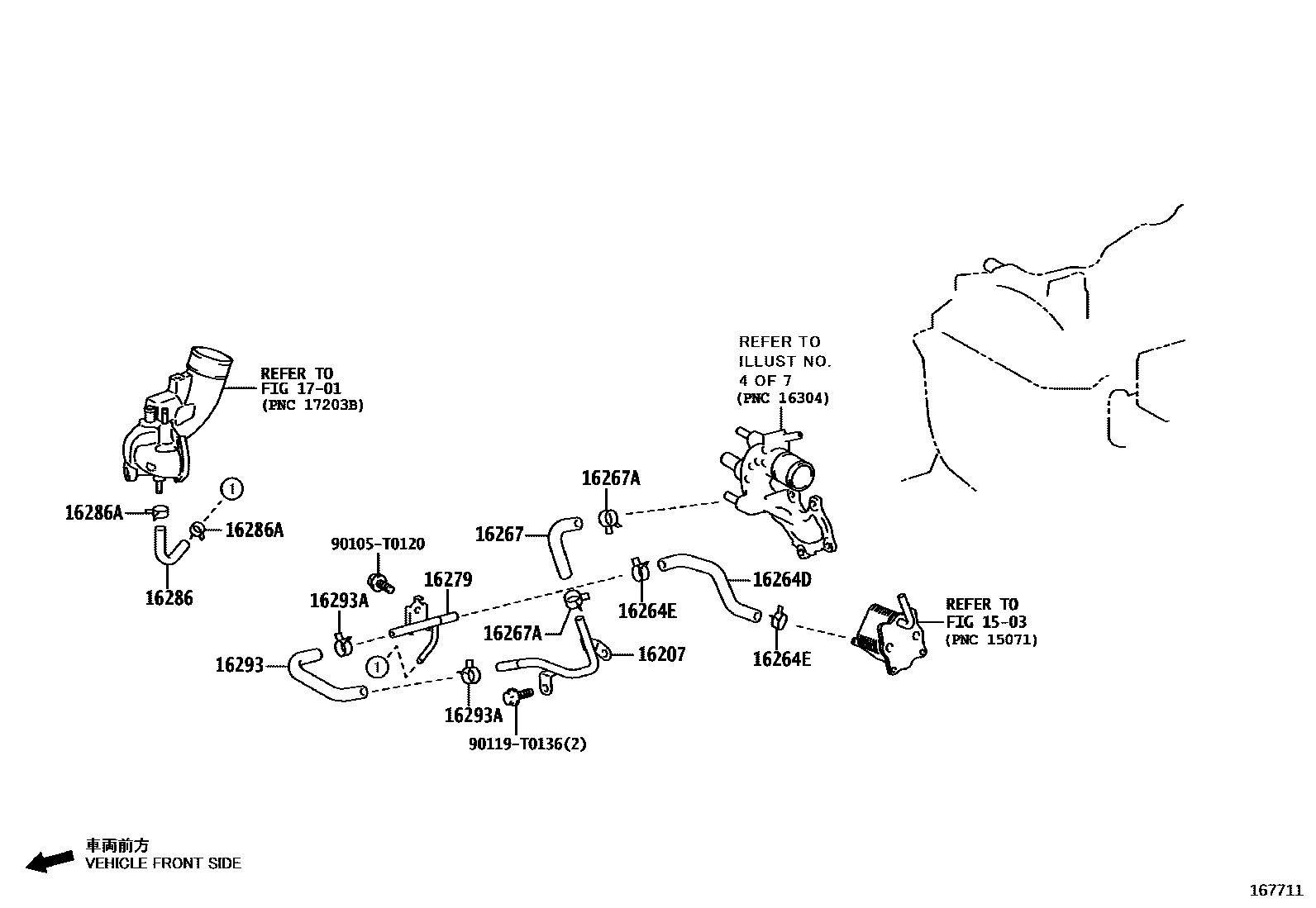

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167711
RADIATOR & WATER OUTLET — 167711 (202006 – 999999)

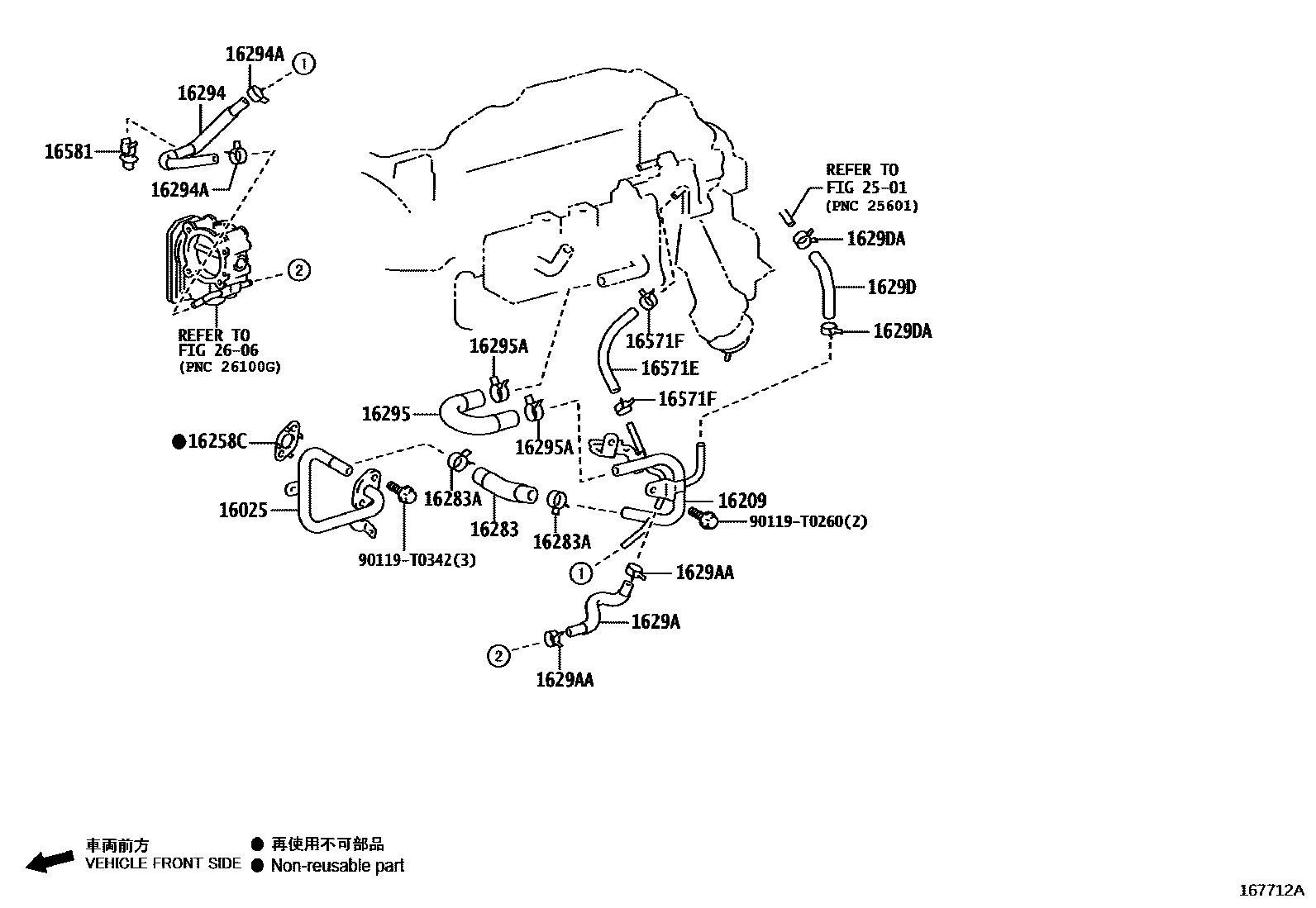

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167712A
RADIATOR & WATER OUTLET — 167712A (202006 – 999999)

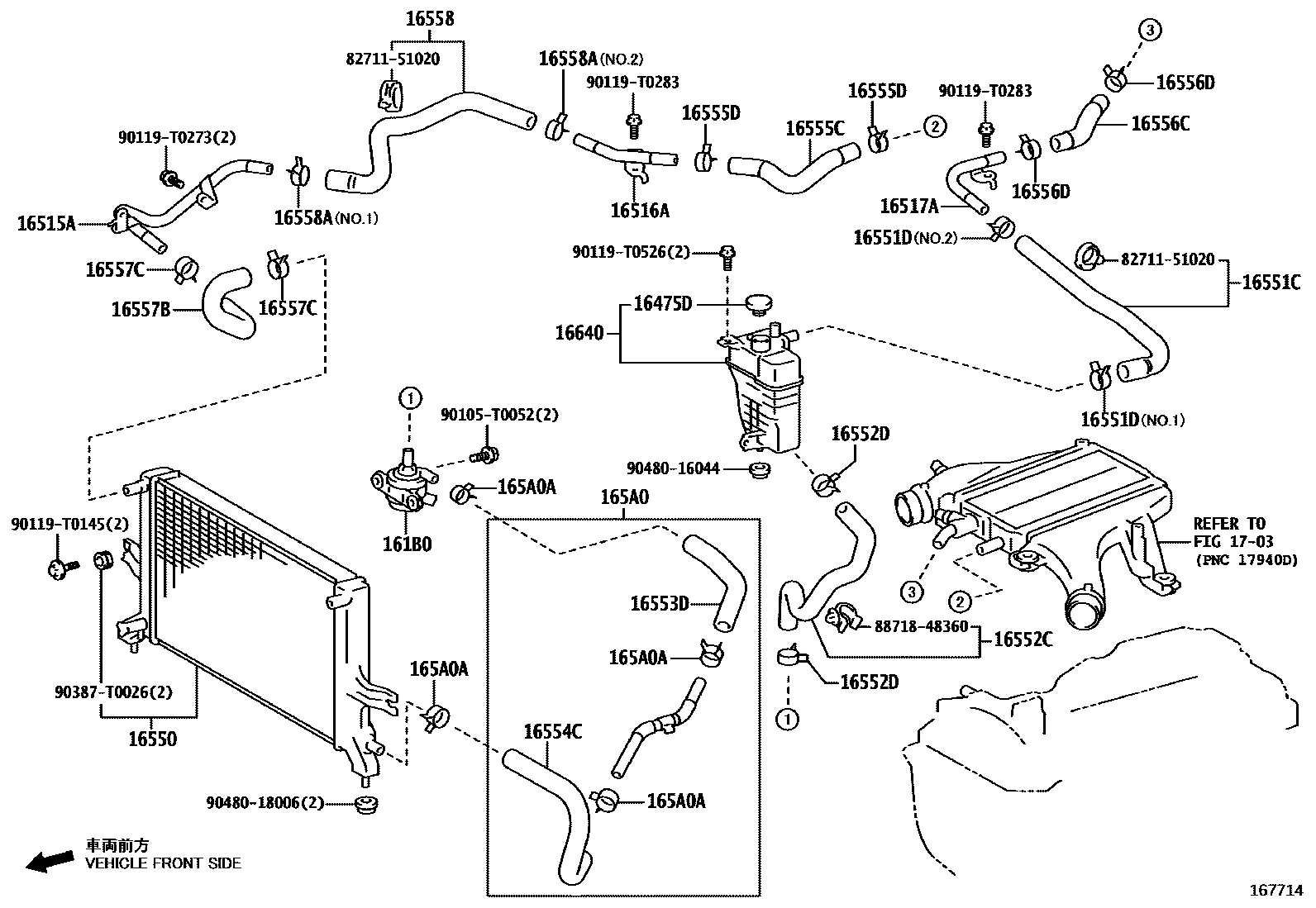

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167714
RADIATOR & WATER OUTLET — 167714 (202006 – 999999)

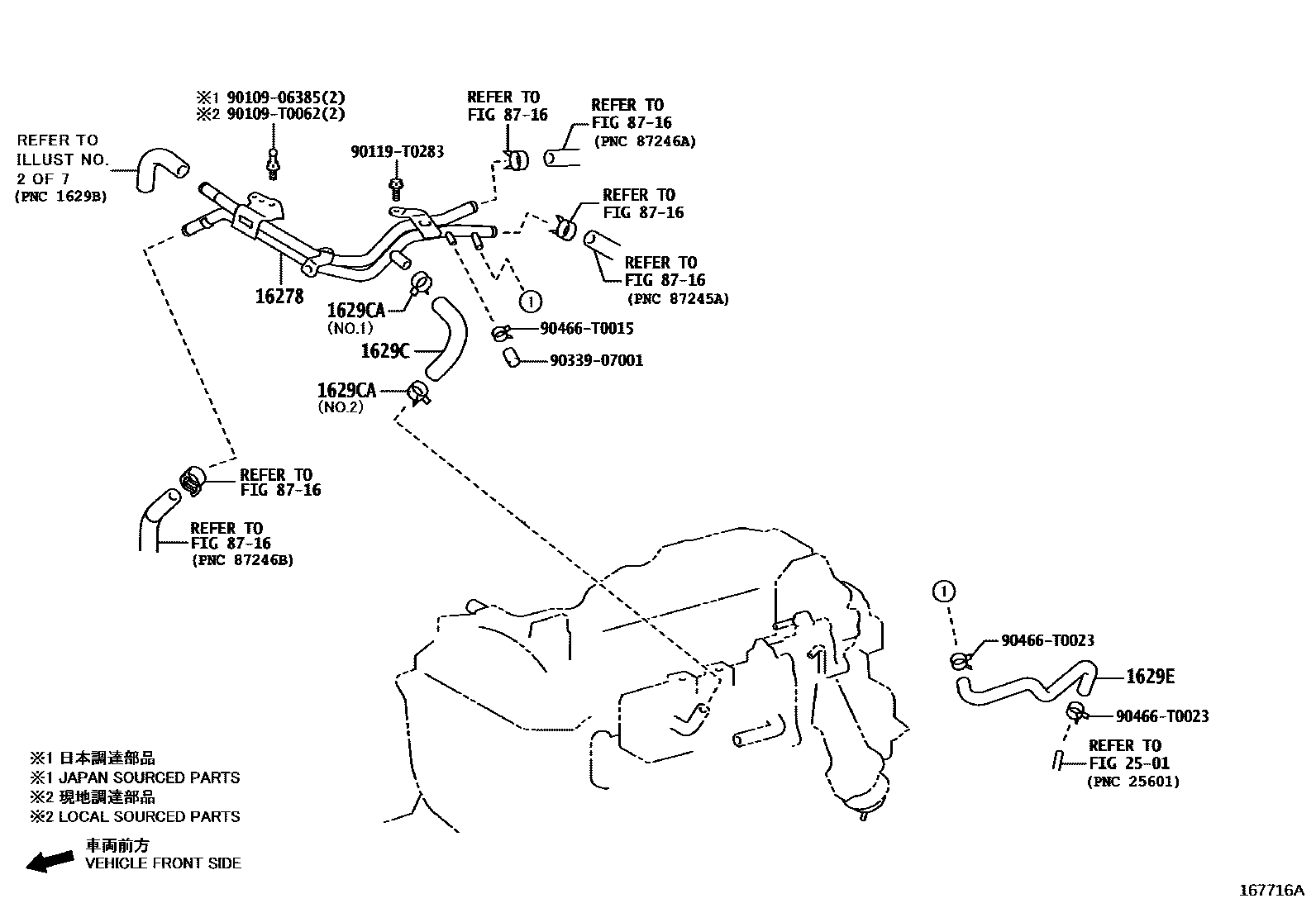

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167716A
RADIATOR & WATER OUTLET — 167716A (202006 – 999999)

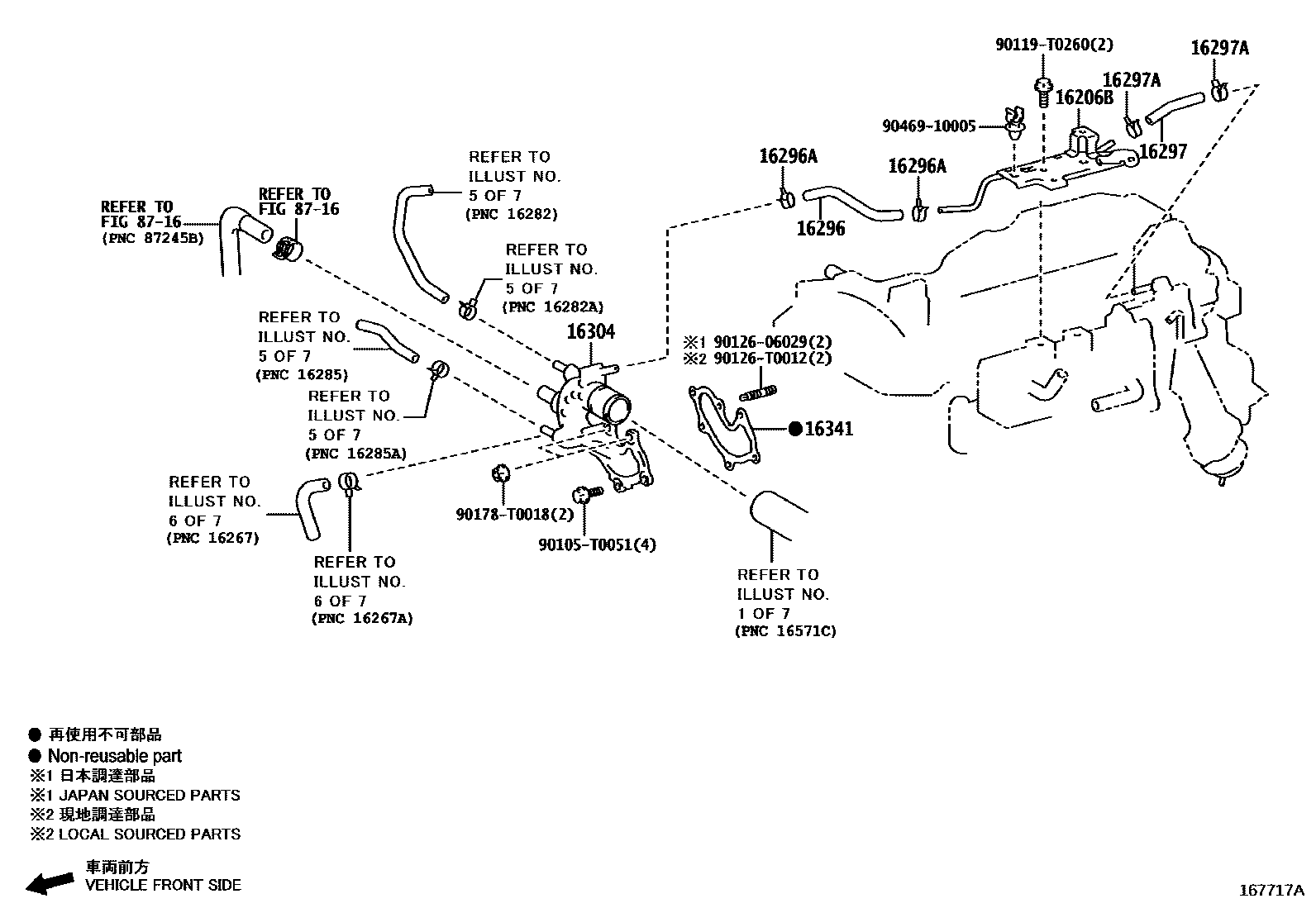

Toyota HILUX RADIATOR & WATER OUTLET EPC diagram — 167717A
RADIATOR & WATER OUTLET — 167717A (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
16025No. 5 water bypass pipe sub-assembly16025-0E010
16027No. 1 turbine water pipe sub-assembly16027-0E080
161B0Toyota part161B0-47010
16206BNo. 3 water bypass pipe sub-assembly16208-0E050
16207No. 2 water bypass pipe sub-assembly16207-0E011
16209No. 4 water bypass pipe sub-assembly16209-0E040 · 16209-0E100
16258CGasket (for water bypass pipe)16258-0E010
16261HOSE, WATER BY-PASS16261-0L121
16261ACLAMP OR CLIP, WATER BY-PASS HOSE96136-51901
16264HOSE, WATER BY-PASS, NO.216264-0L110
16264ACLAMP OR CLIP, WATER BY-PASS HOSE NO.290466-T0031
16264DHOSE, WATER BY-PASS, NO.216264-0E010 · 16264-0E011
16264ECLIP, WATER BY-PASS HOSE NO.290466-T0017 · 96136-42101
16267HOSE, WATER BY-PASS, NO.316267-0E010
16267ACLAMP OR CLIP, WATER BY-PASS HOSE NO.390466-T0017 · 96136-42101
16268PIPE, WATER BY-PASS, NO.116268-0E050
16278PIPE, WATER BY-PASS, NO.216278-0E041
16279No. 3 water bypass pipe16279-0E020
16281HOSE, WATER BY-PASS, NO.416281-0E010
16281ACLAMP OR CLIP, WATER BY-PASS HOSE NO.490466-T0059 · 96137-41501
16282HOSE, WATER BY-PASS, NO.516282-0E010
16282AClip or clip (for No. 5 water bypass hose)90466-T0059 · 96137-41501
16283HOSE, WATER BY-PASS, NO.616283-0E010
16283ACLAMP OR CLIP, WATER BY-PASS HOSE NO.690466-T0020 · 96136-42501
16284Turbine Water Hose No. 116284-0E010
16284AClamp (for No. 1 turbine water hose)90466-T0059 · 96137-41501
16285Turbine Water Hose No. 216285-0E010
16285AClamp (for No. 2 turbine water hose)90466-T0059 · 96137-41501
16286No. 3 turbine water hose16286-0E010
16286AClamp (for No. 3 turbine water hose)90466-T0015
16287No. 4 turbine water hose16287-0E010
16287AClamp (for No. 4 turbine water hose)90466-T0059 · 96137-41501
16293No. 10 water bypass hose16293-0E011
16293AClamp (for No. 10 water bypass hose)90466-T0017 · 96136-42101
16294HOSE, WATER BY-PASS, NO.1116294-0E010
16294AToyota part90466-T0015
16295HOSE, WATER BY-PASS, NO.716295-0E010
16295ACLIP, WATER BY-PASS HOSE NO.790466-T0020 · 96136-42501
16296HOSE, WATER BY-PASS, NO.816296-0E010
16296ACLIP, WATER BY-PASS HOSE NO.890466-T0015
16297No. 9 water bypass hose16297-0E010
16297AClamp (for No. 9 water bypass hose)90466-T0015
1629AToyota part1629A-0E010
1629AAToyota part90466-T0015
1629BToyota part1629B-0E010
1629BAToyota part90466-T0020 · 96136-42501
1629CToyota part1629C-0E030
1629CAToyota part90466-T0020 · 96138-42501
1629DToyota part1629D-0E010 · 1629D-0E011
1629DAToyota part90466-T0042
1629EToyota part1629E-0E020
1629HToyota part1629H-0E010
1629HAToyota part90466-T0015 · 90466-T0059 · 96137-41501
16304Water outlet sub-assembly16304-0E030
16321water inlet16321-0E010
16328Inlet pipe gasket16328-0E010
16331Athermostat90916-03118
16341GASKET, WATER OUTLET16341-0E010
16346thermostat gasket16346-0K010
16347ALiners (for turbine water pipes)16347-0E010
16361Fan16361-0L020
16400Radiator assembly16400-0L363
16400BRadiator drain switch screw plug16417-0C180
16400FSeal (for radiator drain switch)16492-0L060
16400RBushing (for radiator)16444-0L060
16400SCollar (for radiator)16445-0C180
16453AToyota part16453-0L430
16454AToyota part16454-0L361
16455Radiator side support plate bolts91651-B0820
16465Radiator seal88619-0K010
16470Radiator reservoir assembly16470-0L083
16470Mgasket90480-T0004
16471Liquid storage tank cover sub-assembly16475-28140
16475DToyota part16475-28140
16515AToyota part16516-0E020
16516AToyota part16516-0E010
16517AToyota part16517-0E010
16533BRadiator bracket No. 116533-0L010
16534Radiator bracket No. 216534-0L010
16547Radiator bracket bushing No. 116547-0L010
16550Toyota part16550-0E010
16551CToyota part16551-0E010
16551DToyota part90466-T0017 · 90466-T0031
16552CToyota part16552-0E010
16552DToyota part90466-T0031
16553DToyota part16553-0E010
16554CToyota part16554-0E010
16555CToyota part16555-0E010
16555DToyota part90466-T0017
16556CToyota part16556-0E010
16556DToyota part90466-T0017
16557BToyota part16555-0E020
16557CToyota part90466-T0031
16558Toyota part16556-0E020
16558AToyota part90466-T0017 · 90466-T0031
16571CRadiator hose No. 116571-0L150
16571DNo. 1 radiator hose clip90466-T0024
16571FClamps or clips (for water hoses)90466-T0015
16572DRadiator hose No. 216572-0L150
16572ENo. 2 radiator hose clip90466-T0024
16575CNo. 1 water hose clamp bracket16575-0E010
16581Hose clamp (for water hose)16581-0E010
16593Radiator deflector No. 116593-0L040
165A0Toyota part165A0-0E010
165A0AToyota part90466-T0031
16640Toyota part16640-0E010
16711fan cover16711-0E010
