Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718

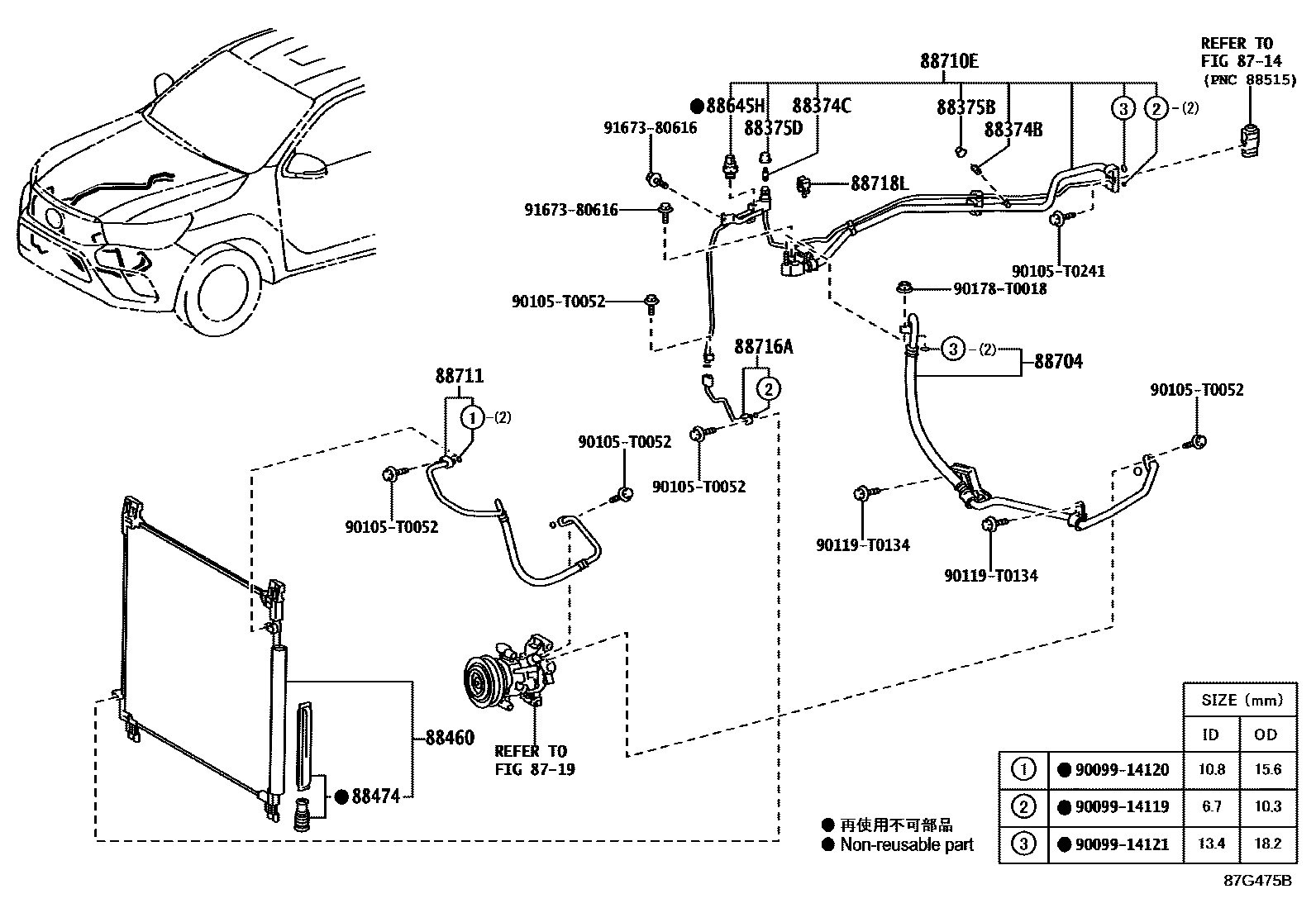

Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0K350 |
| 88474 | cooler dryer | 88474-12020 |
| 88645H | No. 1 pressure switch | 88645-0K030 |
| 88704 | Oil suction hose sub-assembly | 88704-0KF50 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0KK60 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0KB50 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0KQ80 |
| 88718L | Pipe clamp | 88718-0KF20 |
