Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 10 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

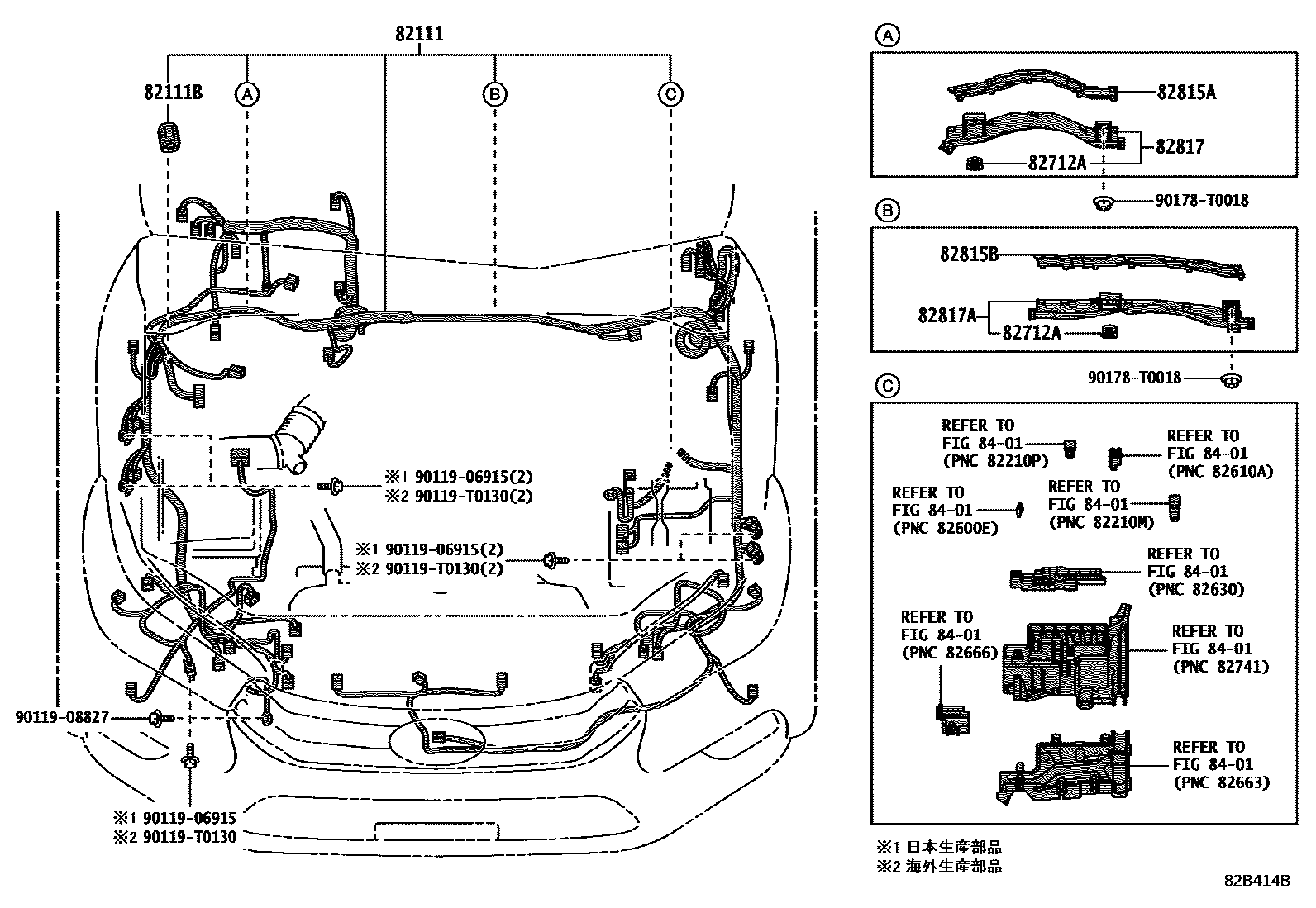

| 82111 | Engine room main wiring harness | 82111-KKB40 · 82111-KKB41 · 82111-KKB42 · 82111-KKB50 · 82111-KKG60 · 82111-KKG61 · 82116-KKJ40 · 82116-KKL40 · 82116-KKX10 |
| 82111B | condenser | 90980-04206 |

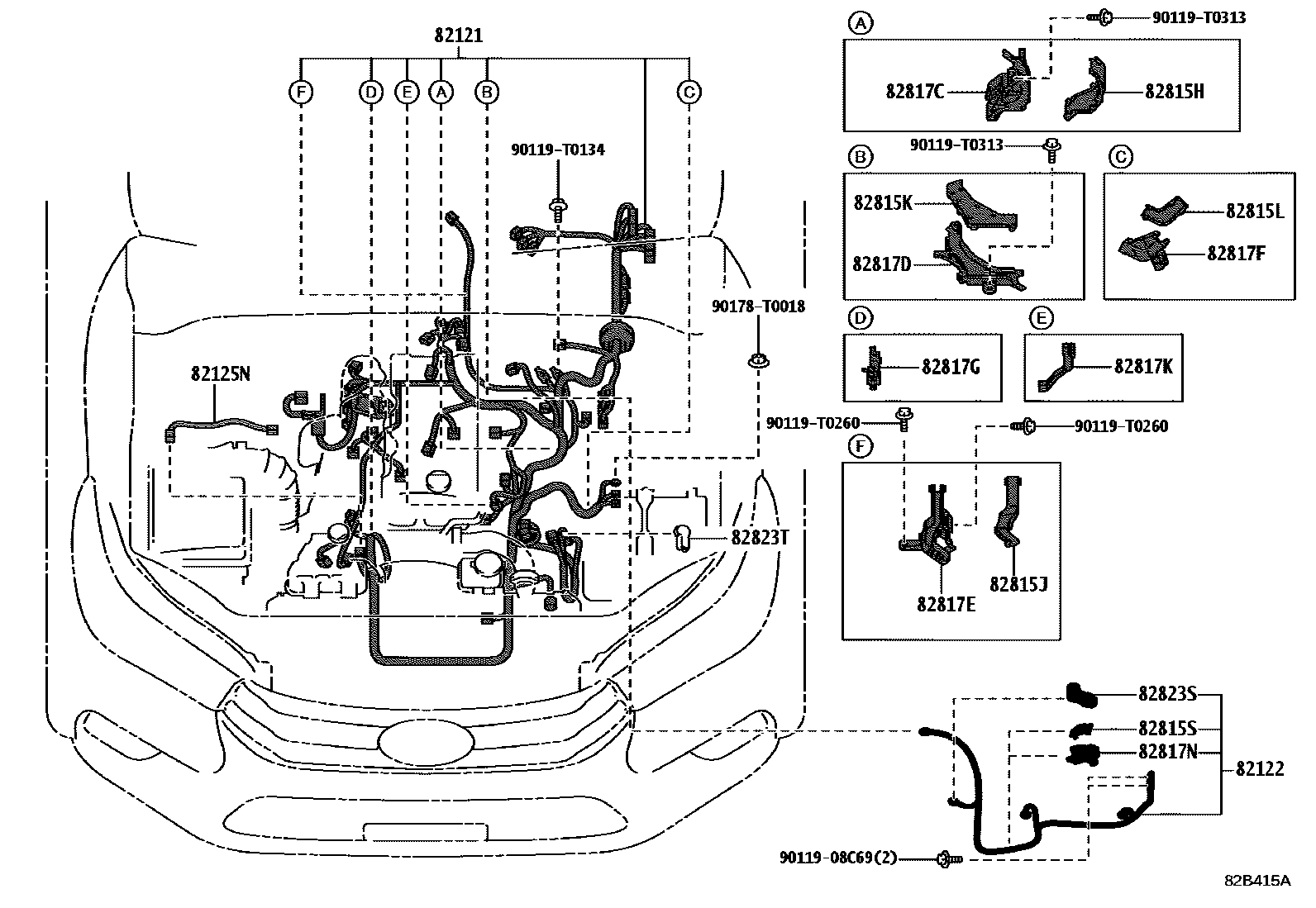

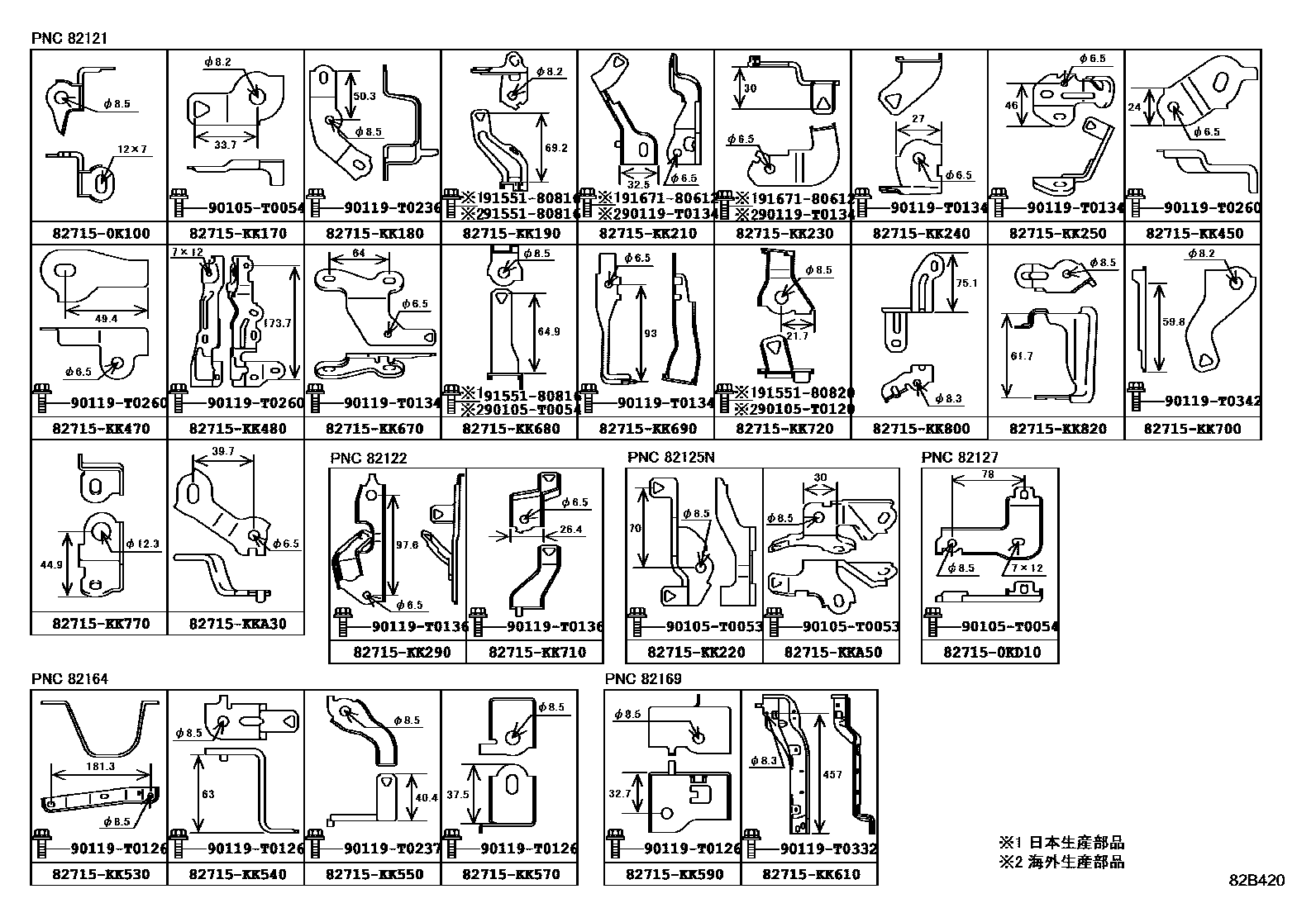

| 82121 | Engine wiring harness | 82121-KK770 · 82121-KK771 · 82121-KK772 |
| 82122 | Engine No. 2 wiring harness | 82122-KK100 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K010 |

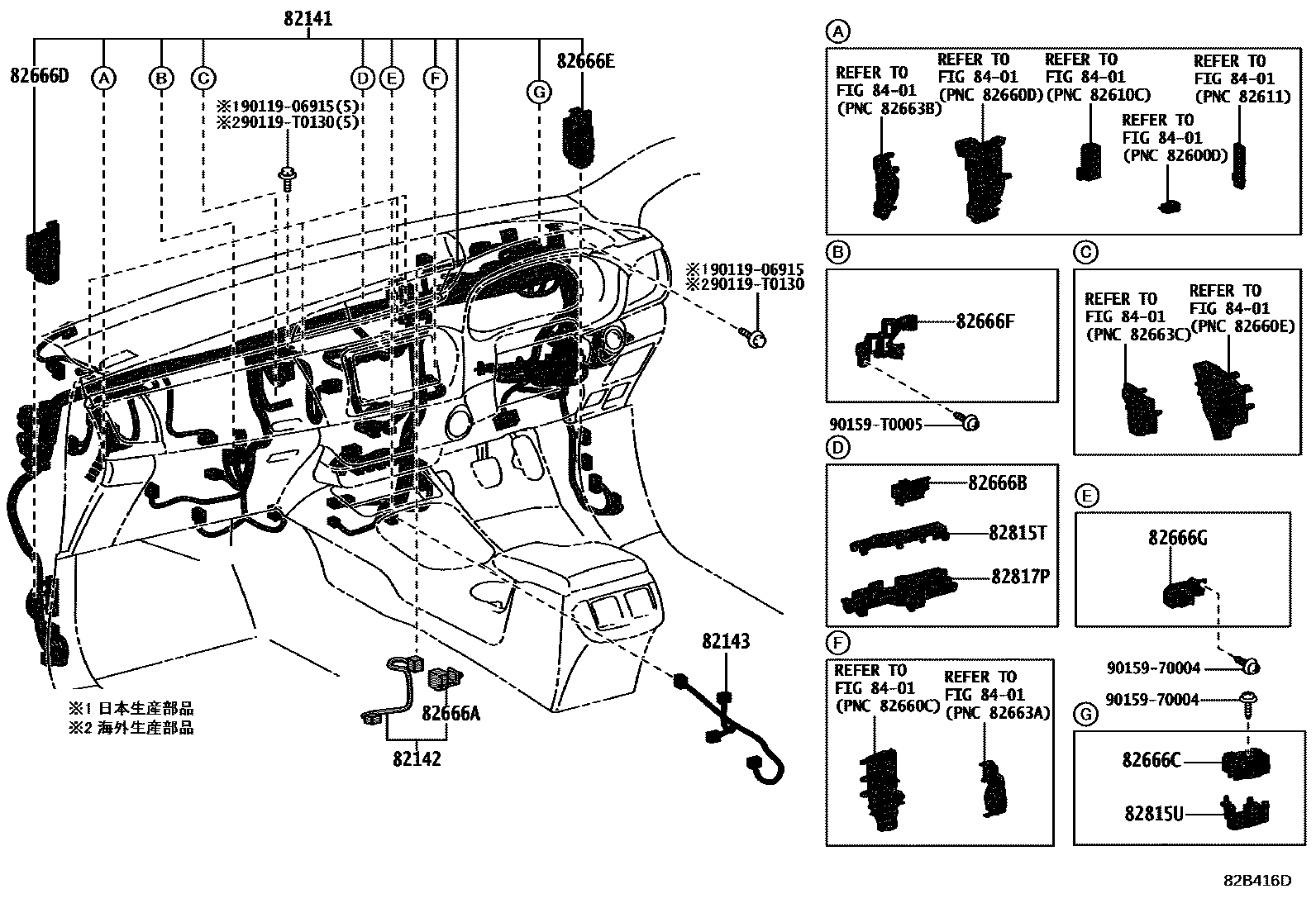

| 82141 | Dashboard wiring harness | 82118-KKQ20 · 82118-KKQ21 · 82118-KKQ30 · 82118-KKQ31 · 82118-KKQ32 · 8214A-KKJ50 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KK090 · 82142-KK091 · 82142-KK140 · 82142-KK141 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KK030 · 82143-KK040 |

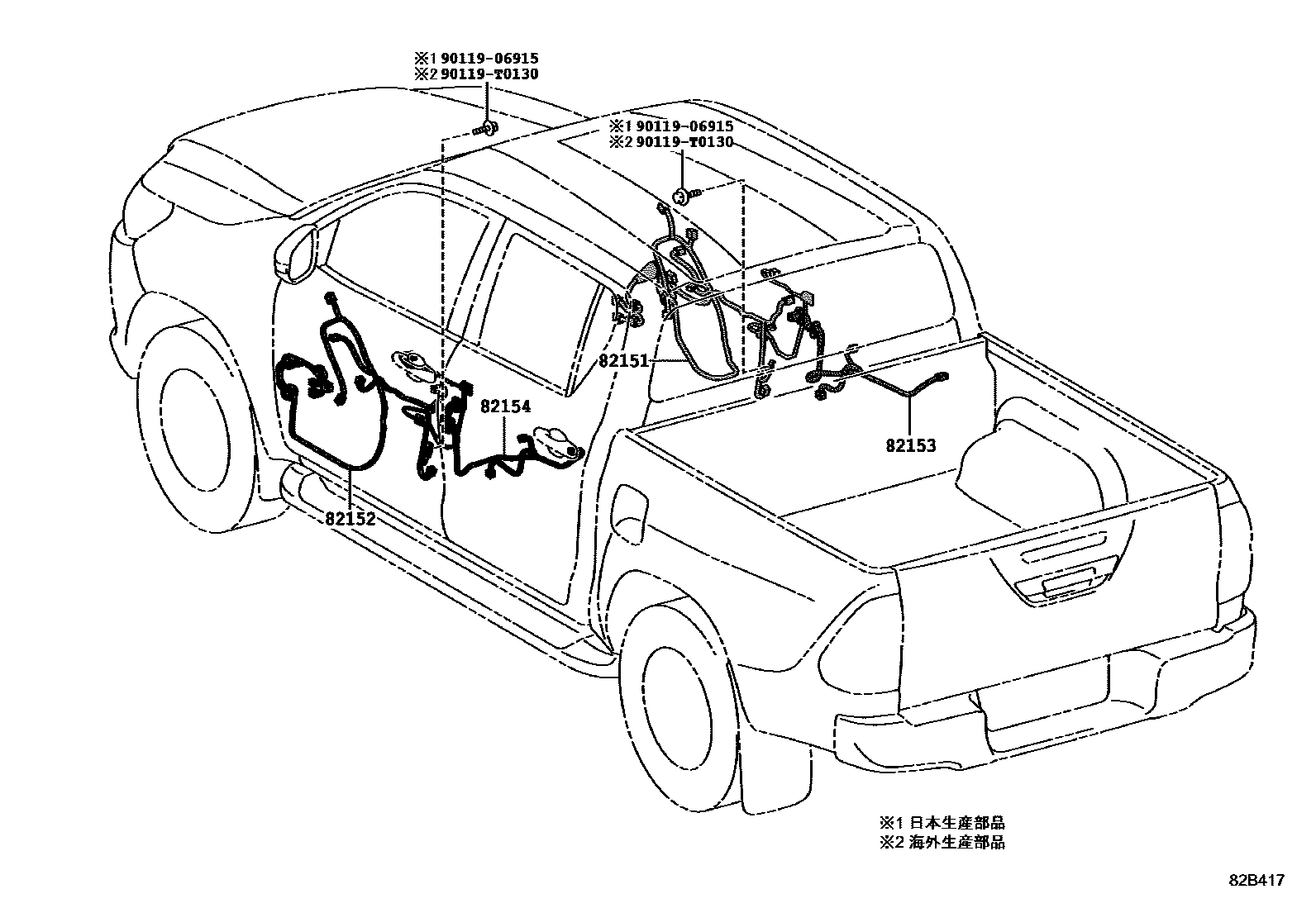

| 82151 | Right front door wiring harness | 82151-KKD60 · 82151-KKD61 · 82151-KKD70 · 82151-KKD71 |
| 82152 | Left front door wiring harness | 82152-KK610 · 82152-KK611 · 82152-KK620 · 82152-KK621 |
| 82153 | Rear door wiring harness No. 1 | 82153-KK151 · 82153-KK160 · 82153-KK190 · 82153-KK200 |
| 82154 | Rear door wiring harness No. 2 | 82154-KK010 · 82154-KK020 · 82154-KK151 · 82154-KK160 |

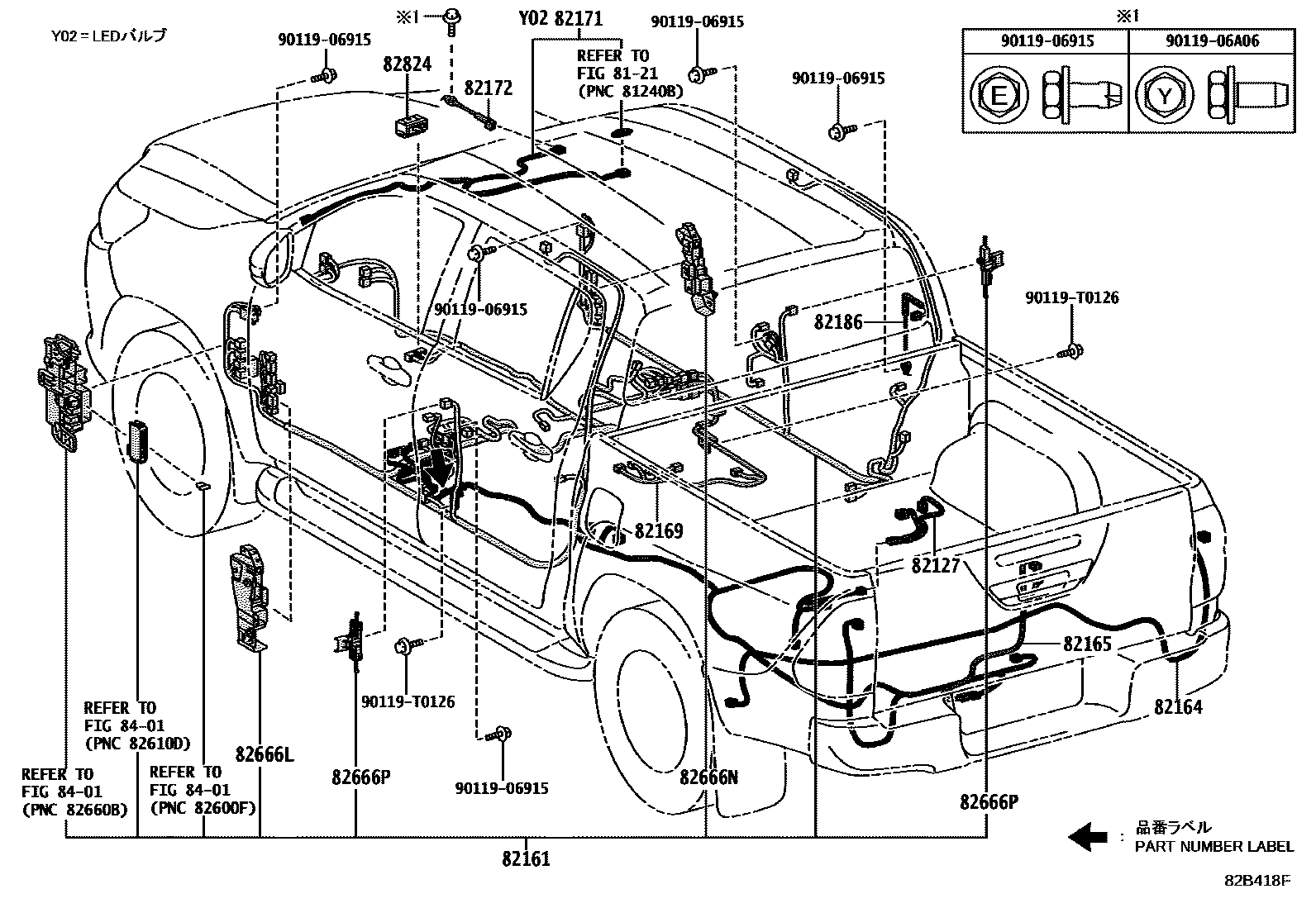

| 82161 | floor wiring harness | 82199-KKA50 · 82199-KKA51 · 82199-KKT70 · 82199-KKT71 |
| 82164 | Frame wiring harness set | 82164-KK430 · 82164-KK431 · 82164-KK432 · 82164-KK450 · 82164-KK451 · 82164-KK452 · 82164-KK460 · 82164-KK461 · 82164-KK462 · 82164-KK470 · 82164-KK471 · 82164-KK472 · 82164-KK880 · 82164-KK881 · 82164-KK890 · 82164-KK891 · 82164-KKA00 · 82164-KKA01 · 82164-KKA10 · 82164-KKA11 |
| 82165 | No. 2 frame wiring harness | 82165-KK060 · 82165-KK061 |
| 82169 | No. 3 frame wiring harness | 82169-KK020 · 82169-KK021 |
| 82171 | Roof No. 1 wiring harness | 82171-KK190 · 82171-KK370 · 82171-KK371 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK060 |

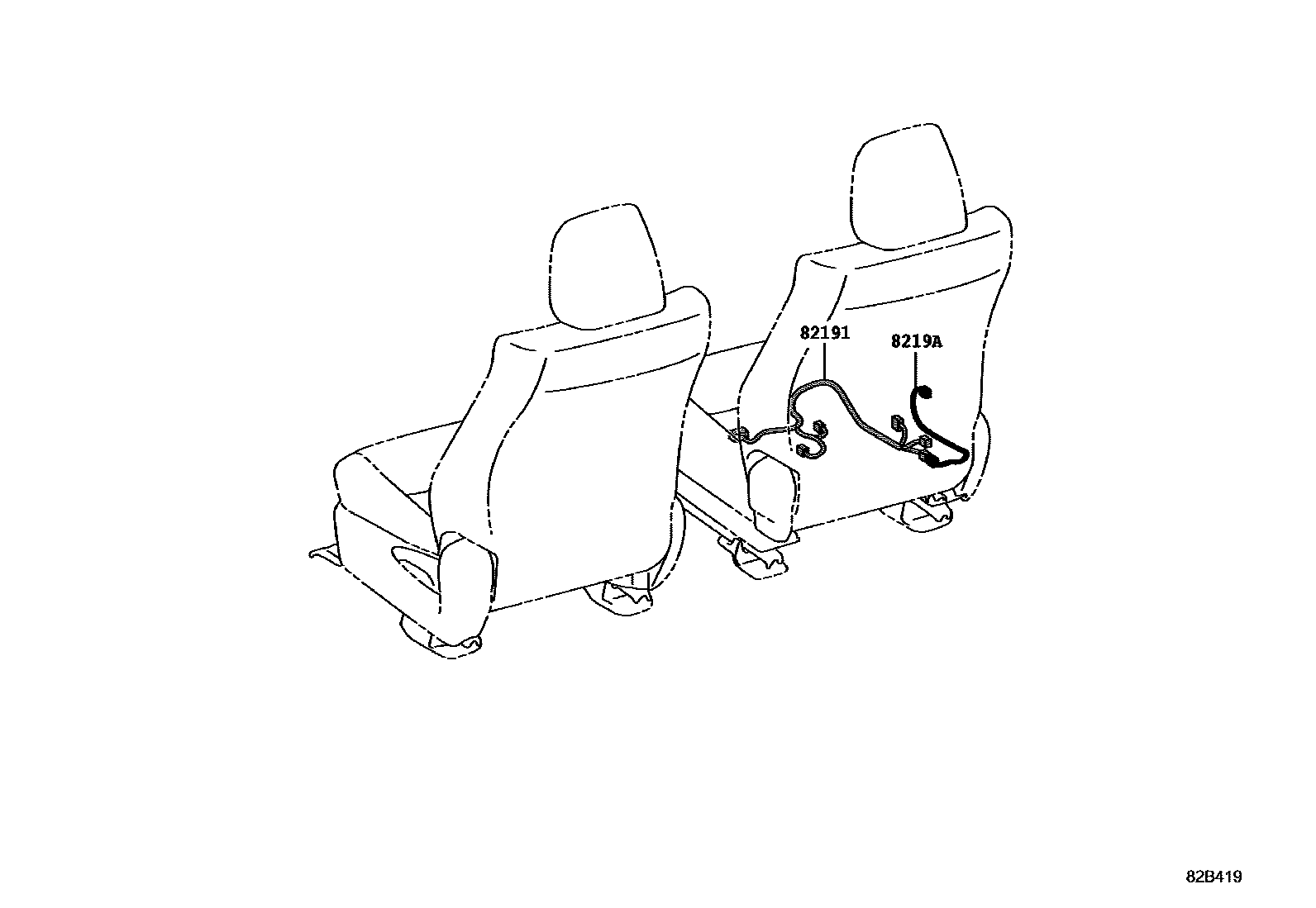

| 82191 | Front right seat wiring harness | 82191-0K120 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0K050 |

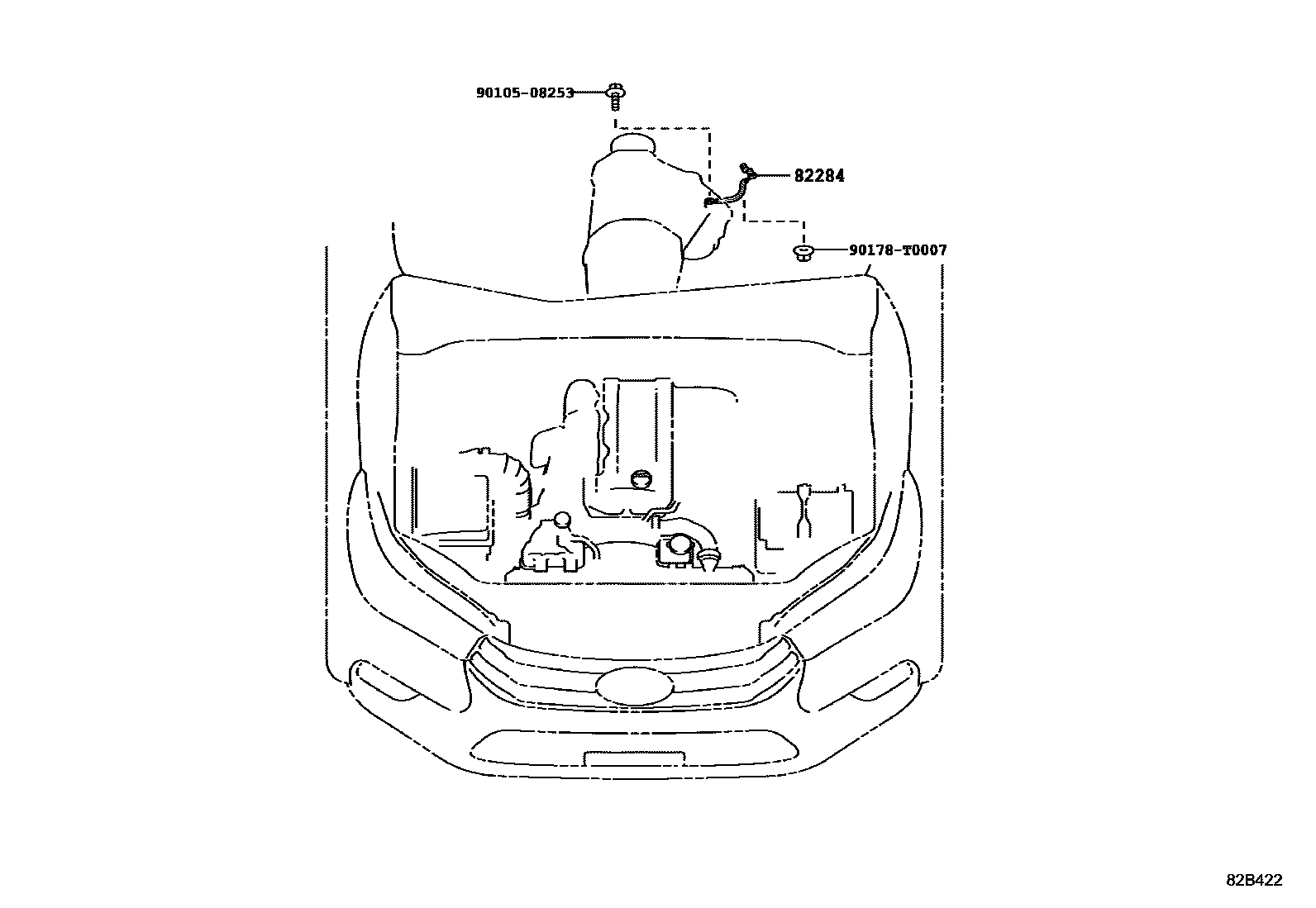

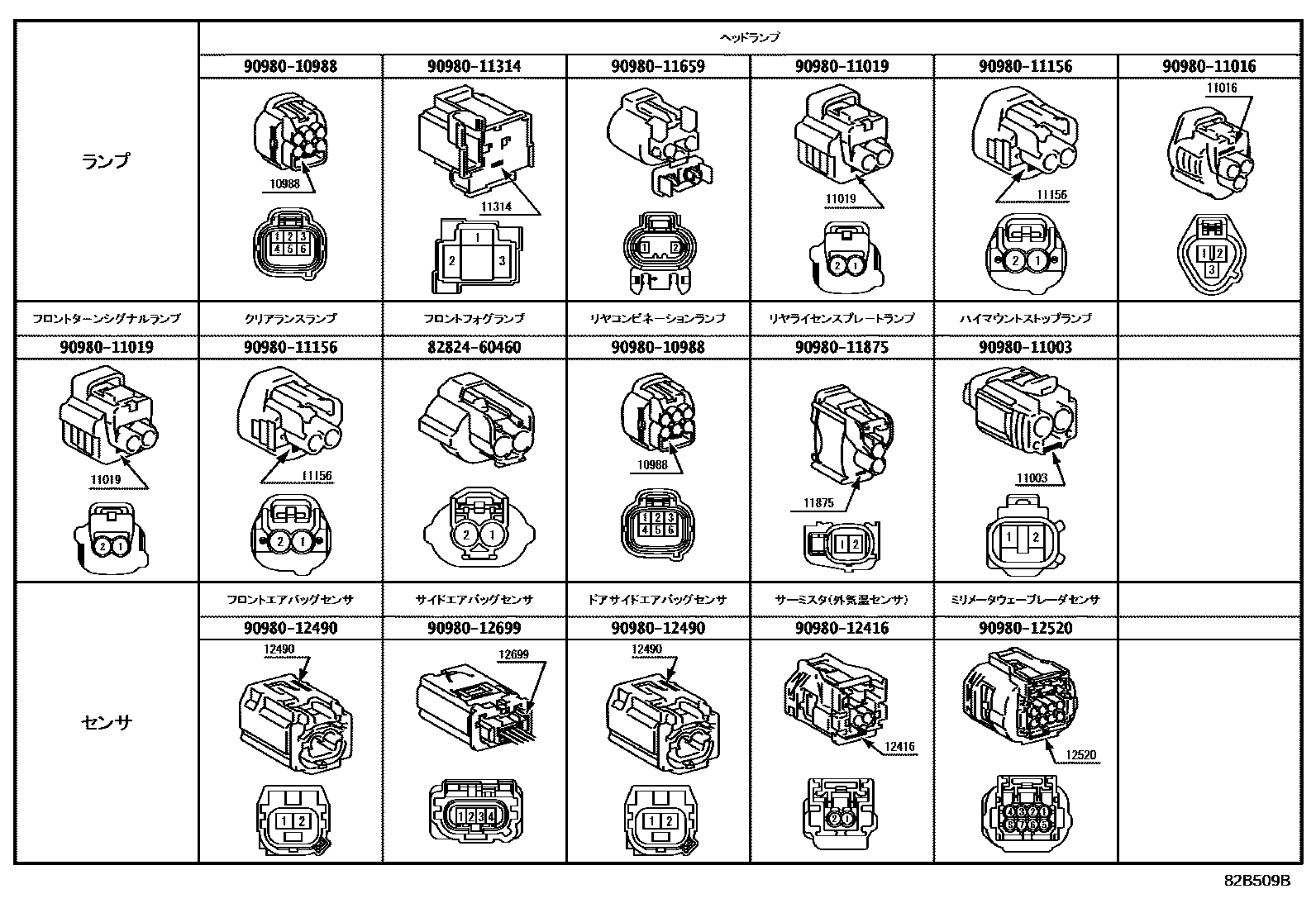

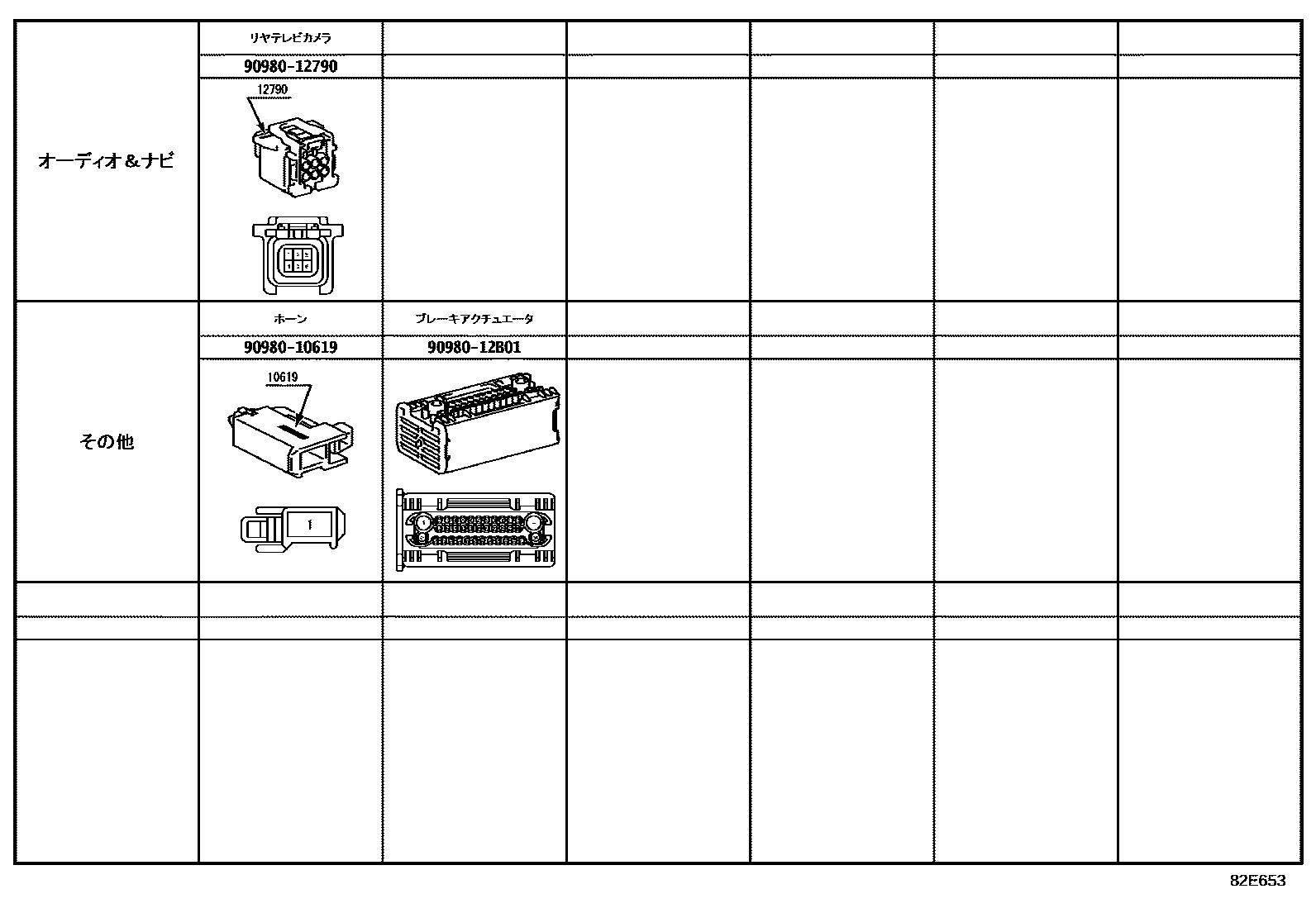

| 82284 | Ground wire | 82284-KK030 |
| 82666A | Connector holder No. 2 | 82666-0K200 · 82666-0K370 |
| 82666B | No. 3 connector holder | 82666-0K160 |
| 82666C | No. 4 connector holder | 82666-0K180 |
| 82666D | No. 5 connector holder | 82666-0K210 |
| 82666E | No. 6 connector holder | 82666-0K220 |
| 82666F | No. 7 connector holder | 82666-0K240 |
| 82666G | No. 8 connector holder | 82666-0K300 |
| 82666L | No. 9 connector holder | 82666-0K250 |
| 82666N | No. 10 connector holder | 82666-0K260 |
| 82666P | No. 11 Connector Block | 82666-0K280 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K550 |
| 82815H | Wiring harness protector cover | 82815-0K270 |
| 82815J | No. 7 wire harness protector cover | 82815-0K350 |
| 82815K | No. 8 wire harness protector cover | 82815-0K280 |
| 82815L | No. 9 wire harness protector cover | 82815-0K510 |
| 82815S | No. 15 wire harness protector cover | 82815-0K400 |
| 82815T | No. 16 wire harness protector cover | 82815-0K420 |
| 82815U | No. 17 wire harness protector cover | 82815-0K480 |
| 82817 | No. 1 wire harness protection device | 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K550 |
| 82817C | No. 4 wire harness protection device | 82817-0K270 |
| 82817D | No. 5 wire harness protection device | 82817-0K280 |
| 82817E | No. 6 wire harness protection device | 82817-0K350 |
| 82817F | No. 7 wire harness protection device | 82817-0K510 |
| 82817G | No. 8 wire harness protection device | 82817-0K300 |
| 82817K | No. 10 wire harness protection device | 82817-0K310 |
| 82817N | No. 13 wire harness protection device | 82817-0K400 |
| 82817P | No. 14 wire harness protection device | 82817-0K420 |
| 82823S | Toyota part | 82823-30100 |
| 82823T | Toyota part | 82823-22050 |
| 82824 | Harness connector | 90980-12448 |
