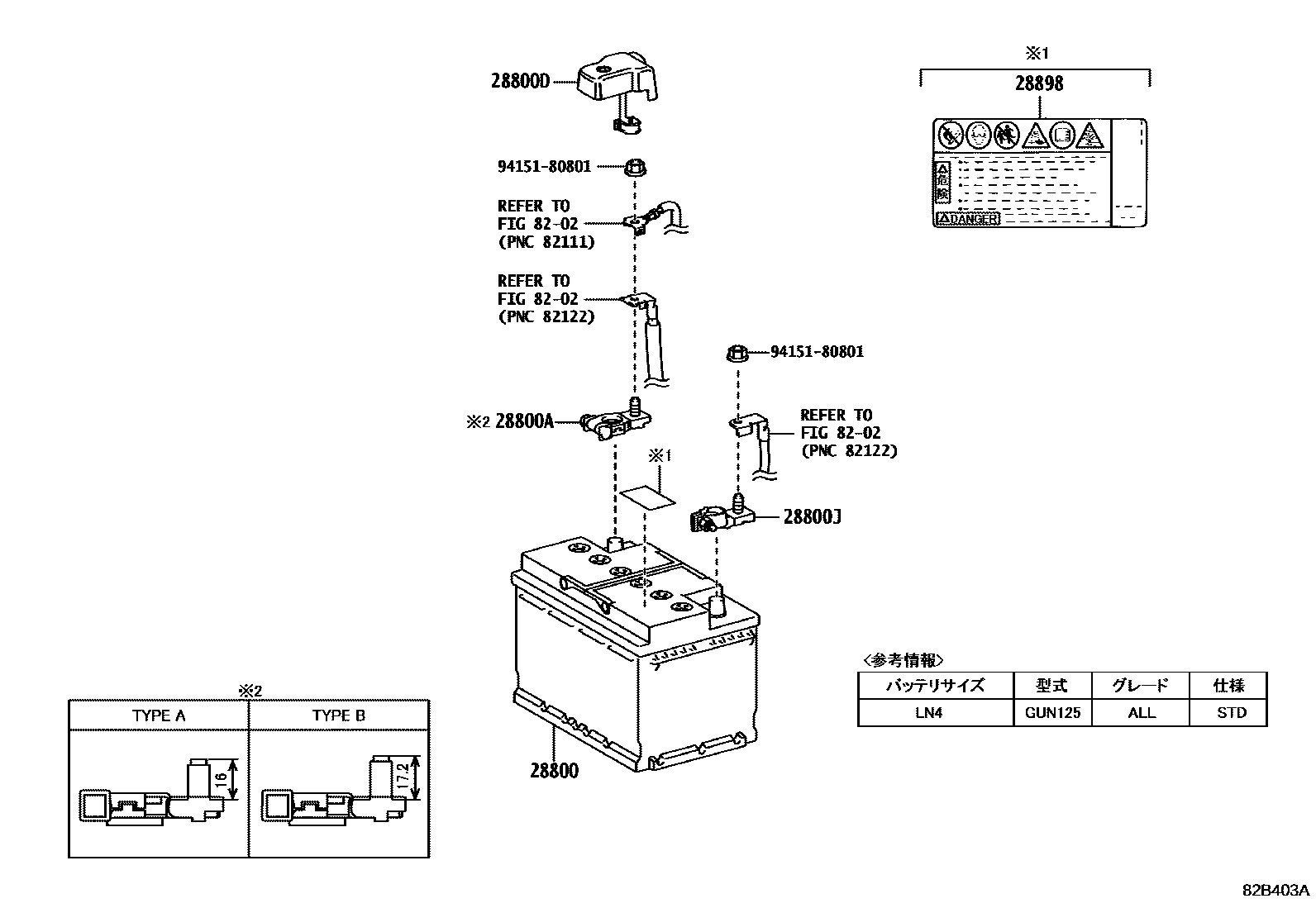

Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201
Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0L510 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-0K160 |
| 28800J | battery negative terminal | 90982-06059 |
| 28898 | battery plates | 28897-50020 |
