Toyota HILUX Headlamp — Figure 8101

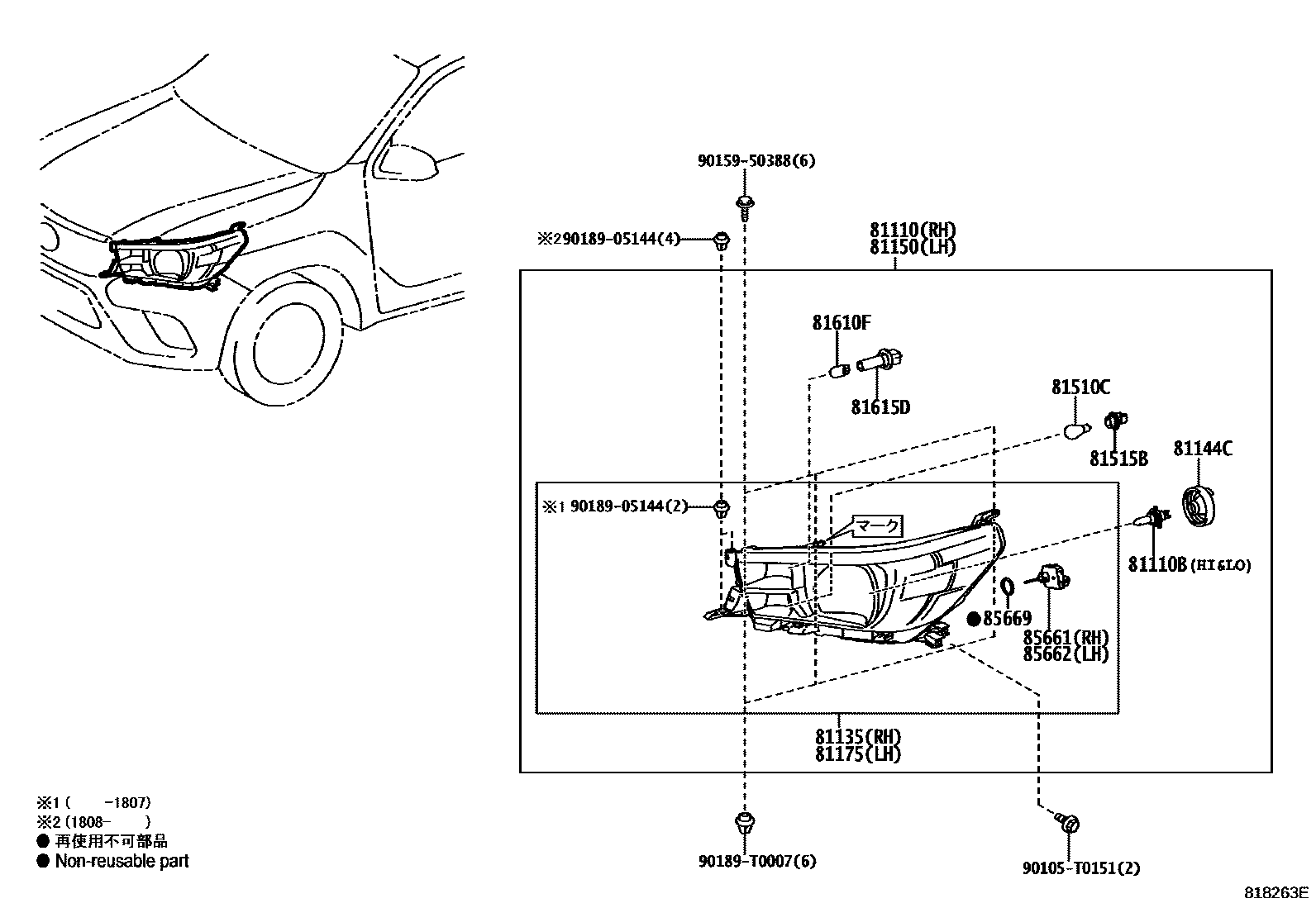

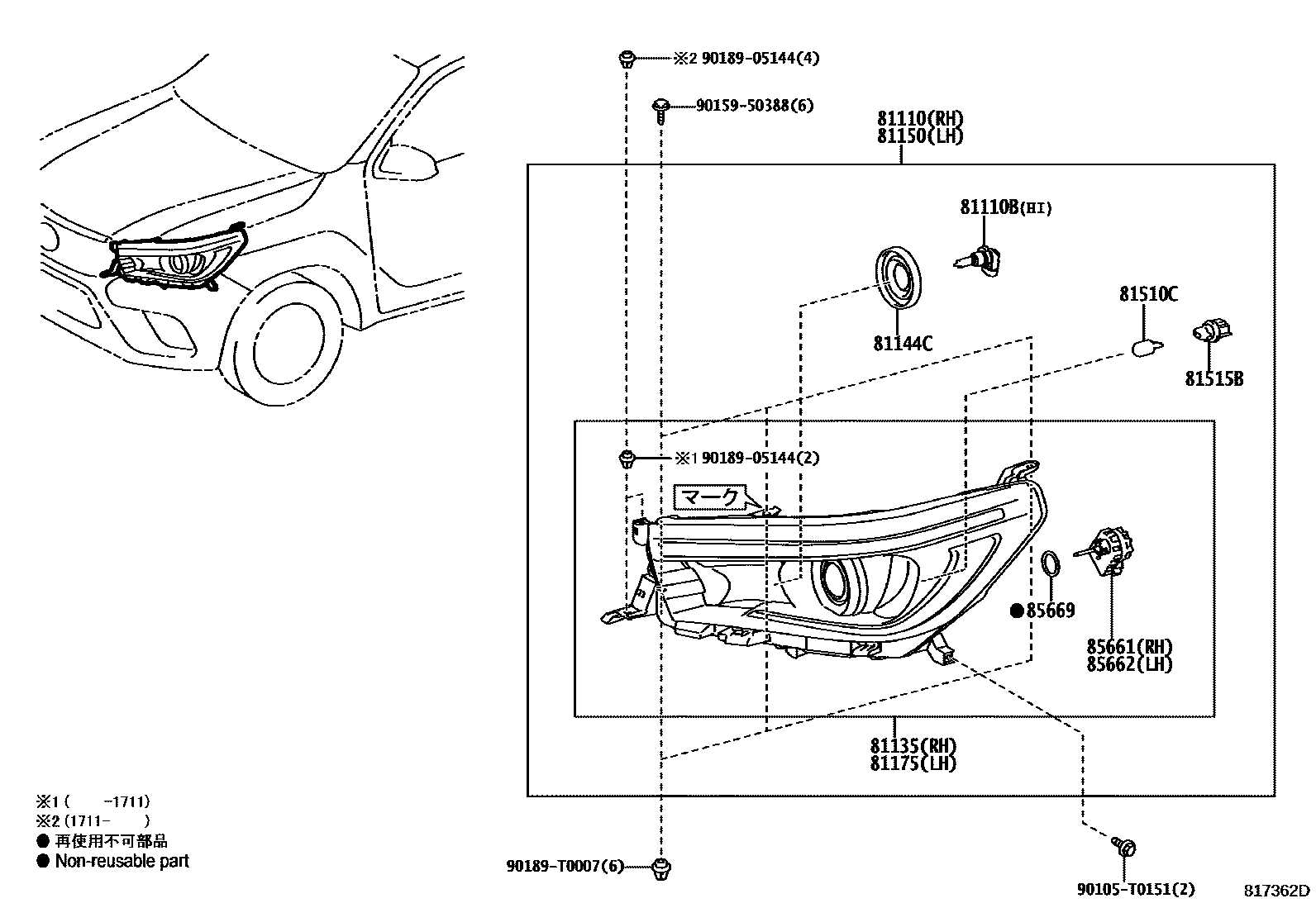

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0K700 · 81110-0K702 · 81110-0KC11 · 81110-0KC12 · 81110-0KE70 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 · 90981-13099 |
| 81135 | Right headlight assembly | 81130-0KC11 · 81130-0KC12 · 81140-0K700 · 81140-0K702 · 81140-0KE70 |
| 81144C | Headlight lamp holder cover | 90075-65006 · 90075-65019 |
| 81150 | Left headlight assembly | 81150-0K700 · 81150-0K702 · 81150-0KC11 · 81150-0KC12 · 81150-0KE70 |
| 81175 | Left headlight assembly | 81070-0K700 · 81070-0K702 · 81070-0KE70 · 81170-0KC11 · 81170-0KC12 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 · 90981-15028 |
| 81515B | Front turn signal lamp holder | 90075-60028 · 90075-60069 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-02040 · 85661-0D020 |
| 85662 | Left headlight beam height adjustment motor | 85661-02040 · 85661-0D020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
