Toyota HILUX 防护条 — Figure 7552

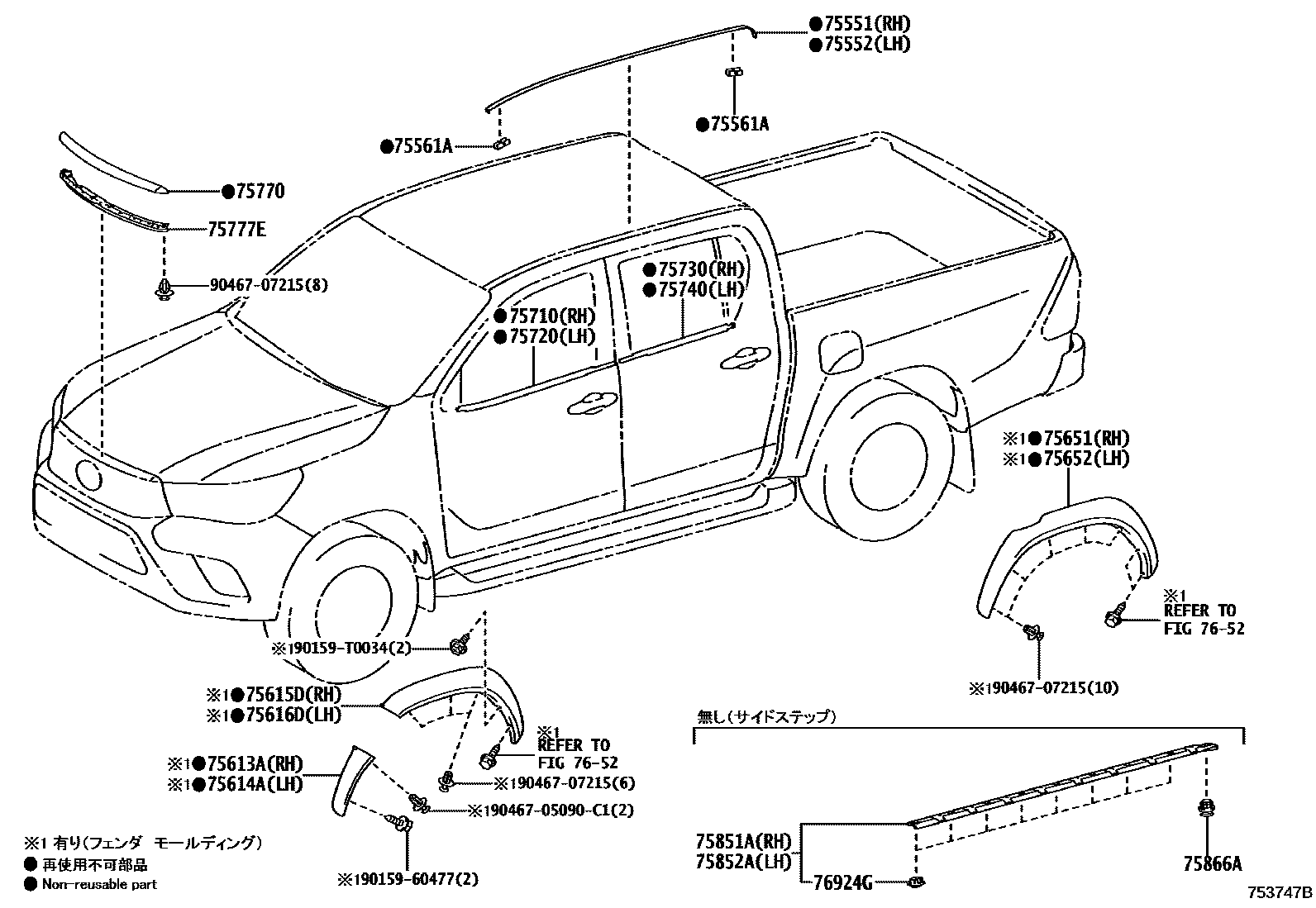

Toyota HILUX EPC diagram 7552, 防护条, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K160 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K160 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75613A | Right front fender front protective strip | 75613-YQ010 |
| 75614A | Left front fender front protective strip | 75614-YQ010 |
| 75615D | Right front fender rear protective strip | 75615-YQ010 |
| 75616D | Left front fender rear protective strip | 75616-YQ010 |
| 75651 | Right side outer protective strip | 75651-YQ010 |
| 75652 | Left side outer protective strip | 75652-YQ010 |
| 75710 | Right front door waistline protection strip assembly | 68160-0K010 · 68160-0K070 |
| 75720 | Left front door waistline protection strip assembly | 68210-0K010 · 68210-0K070 |
| 75730 | Right rear door waistline protection strip assembly | 68180-0K010 · 68180-0K120 |
| 75740 | Left rear door waistline protection strip assembly | 68230-0K010 · 68230-0K120 |
| 75770 | Engine cover front protective strip assembly | 75770-0K310 · 75770-0K311 · 75770-0K340 · 75770-0K341 · 75770-YP010 |
| 75777E | Engine cover front protective strip liner | 53393-0K010 |
| 75851A | Right front door sill panel protective strip | 75851-0K010 |
| 75852A | Left front door sill panel protective strip | 75852-0K010 |
| 75866A | Door sill panel protective strip fixings | 76923-52021 |
| 76924G | Door sill panel protective strip fixings | 76924-0K010 |
