Toyota HILUX 徽标和铭牌 — Figure 7551

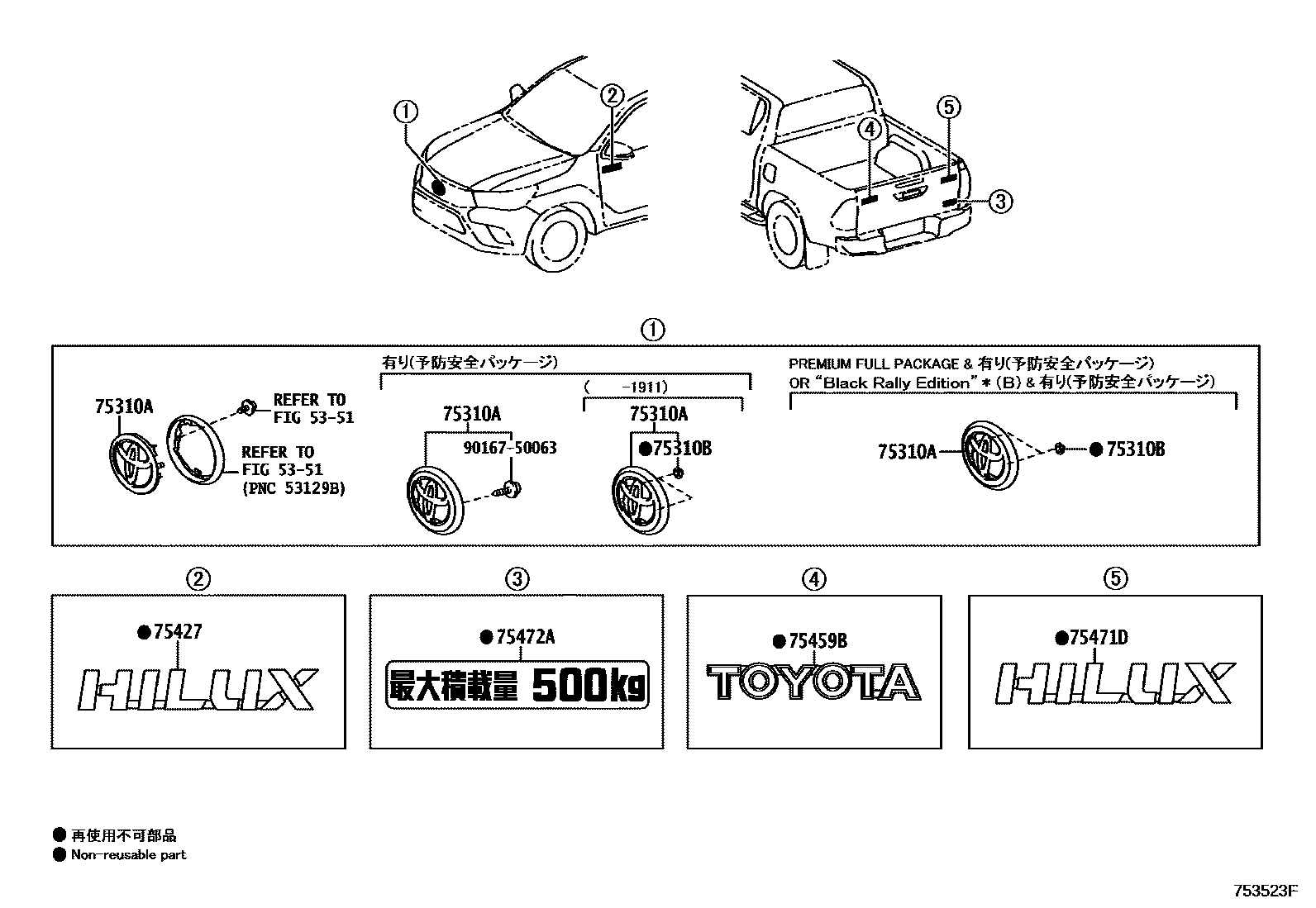

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 53127-0K290 · 53127-0K310 · 53127-0K490 · 53127-0K510 · 53141-71010 · 75310-0K010 |
| 75310B | Toyota part | 90183-06031 · 90183-06044 |
| 75427 | front door nameplate | 75427-0K060 |
| 75459B | No. 2 back door mark | 75469-0K040 |
| 75471D | rear nameplate | 75427-0K110 |
| 75472A | No. 2 nameplate on rear body | 75472-60030 |
