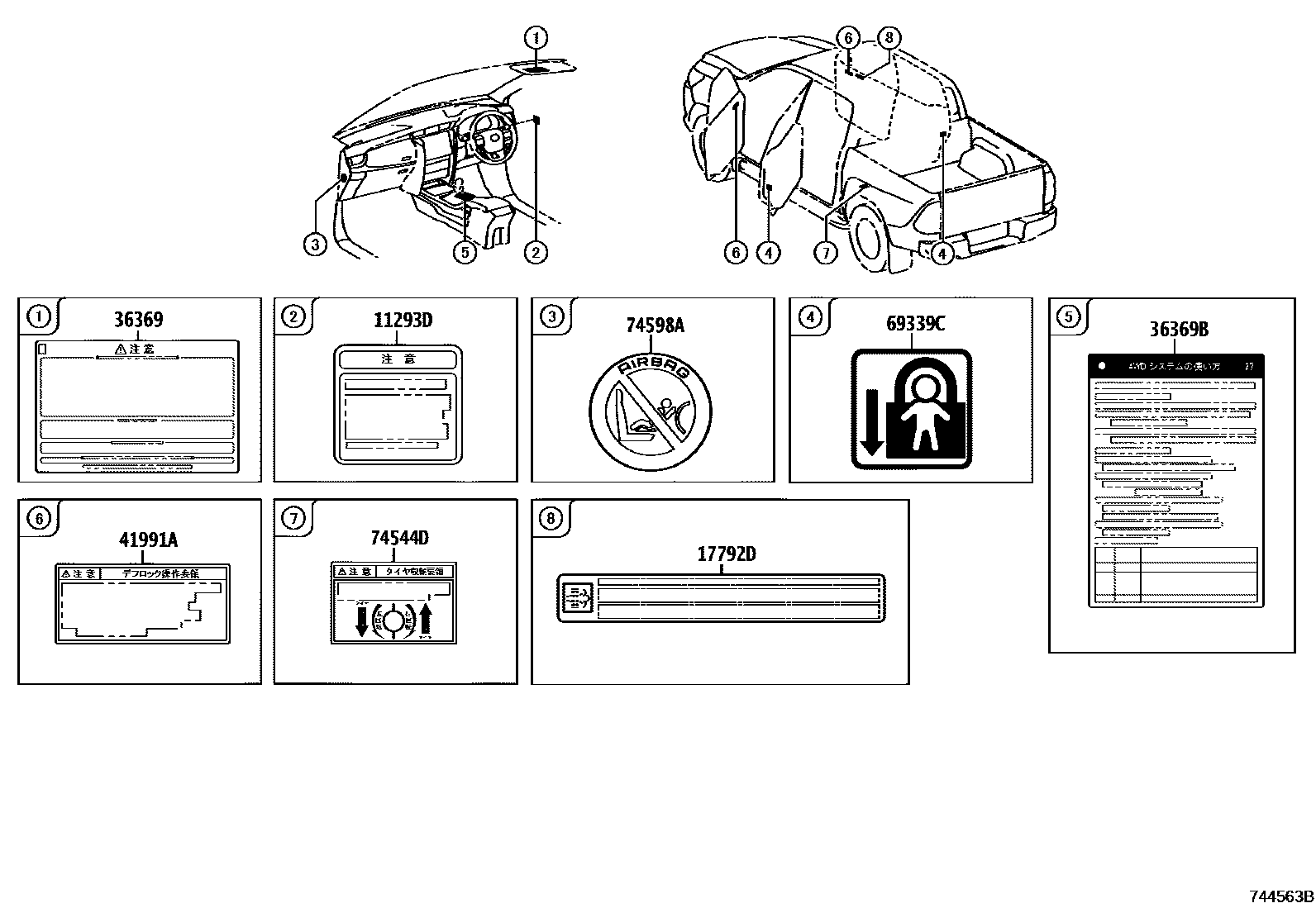

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E020 |
| 11293D | engine warning label | 11293-11270 |
| 11296D | Engine maintenance information label | 11296-0E010 |
| 17792D | Emission control device information label | 17792-30011 · 17792-30020 |
| 36369 | Transfer case information label | 36369-0K550 |
| 36369B | Transfer case information label | 36369-0K560 |
| 41991A | warning nameplate | 41991-0K090 · 41991-0K100 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74515C | Anti-theft warning information label | 74515-0K020 |
| 74544D | Tire carrier warning nameplate | 74544-36050 |
| 74559B | fuel information label | 74559-14030 |
| 74561A | fuel consumption information label | 74561-52220 |
| 74562B | Emission information label | 74562-26470 |
| 74596A | Side air bag warning label | 74596-0K010 |
| 74598A | Passenger air bag warning label | 74598-02040 |
| 74751 | tire pressure information label | 42661-0KL10 · 42661-0KL40 |
| 88723H | Cooler maintenance warning label | 88723-30181 |
