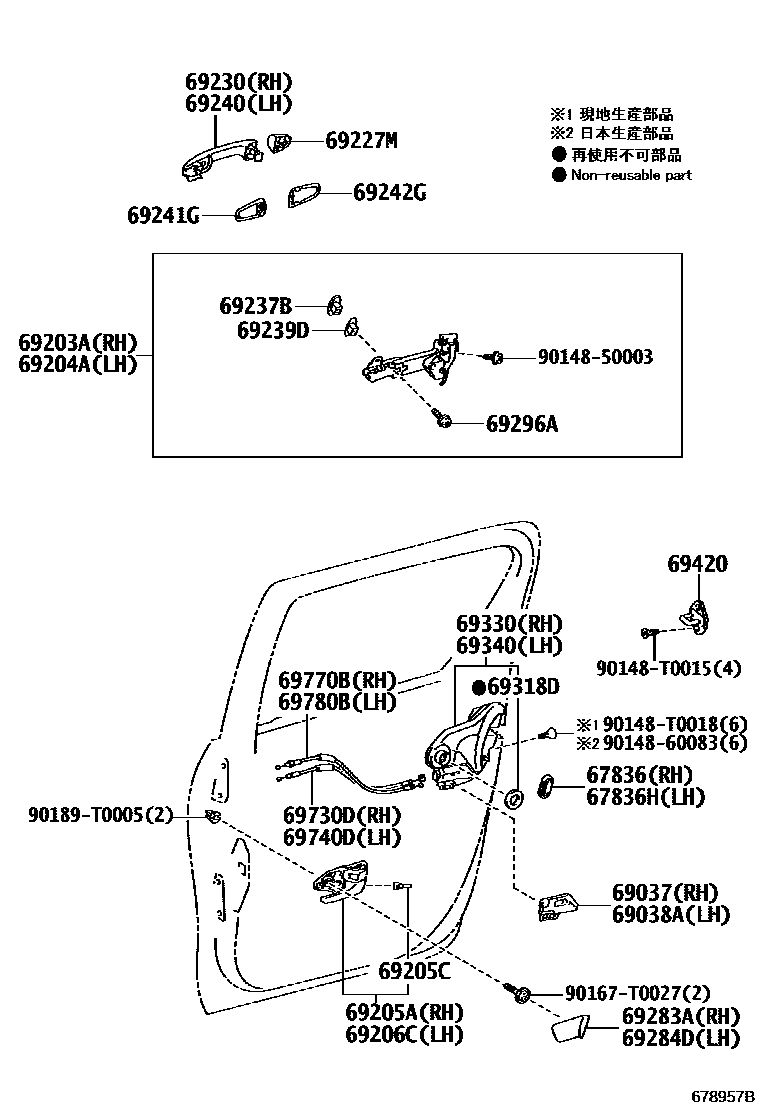

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-02030 |
| 67836H | Left rear door lock child restraint cover | 67836-02030 |
| 69037 | Toyota part | 69037-02040 |
| 69038A | Toyota part | 69038-02040 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0K092 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0K092 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227M | Rear door outer handle cover | 69227-0K120 · 69227-0K200 · 69227-0K210 |
| 69230 | Right rear door outer handle assembly | 69210-0K200 · 69210-0K210 · 69210-0K330 |
| 69237B | Toyota part | 69237-0E010 · 69237-0K040 |
| 69239D | Toyota part | 69239-0K080 |
| 69240 | Left rear door outer handle assembly | 69210-0K200 · 69210-0K210 · 69210-0K330 |
| 69241G | Rear door front exterior handle pad | 69241-0K041 |
| 69242G | Rear door rear outer handle pad | 69242-0K030 |
| 69296A | Car door inner handle screws | 69296-0M010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-0K080 · 69050-0K110 |
| 69340 | Left rear door lock assembly | 69060-0K090 · 69060-0K120 |
| 69420 | Rear door lock plate assembly | 69410-0K070 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0K170 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0K170 |
| 69770B | Right rear door inner lock cable assembly | 69770-0K150 |
| 69780B | Left rear door inner lock cable assembly | 69770-0K150 |
