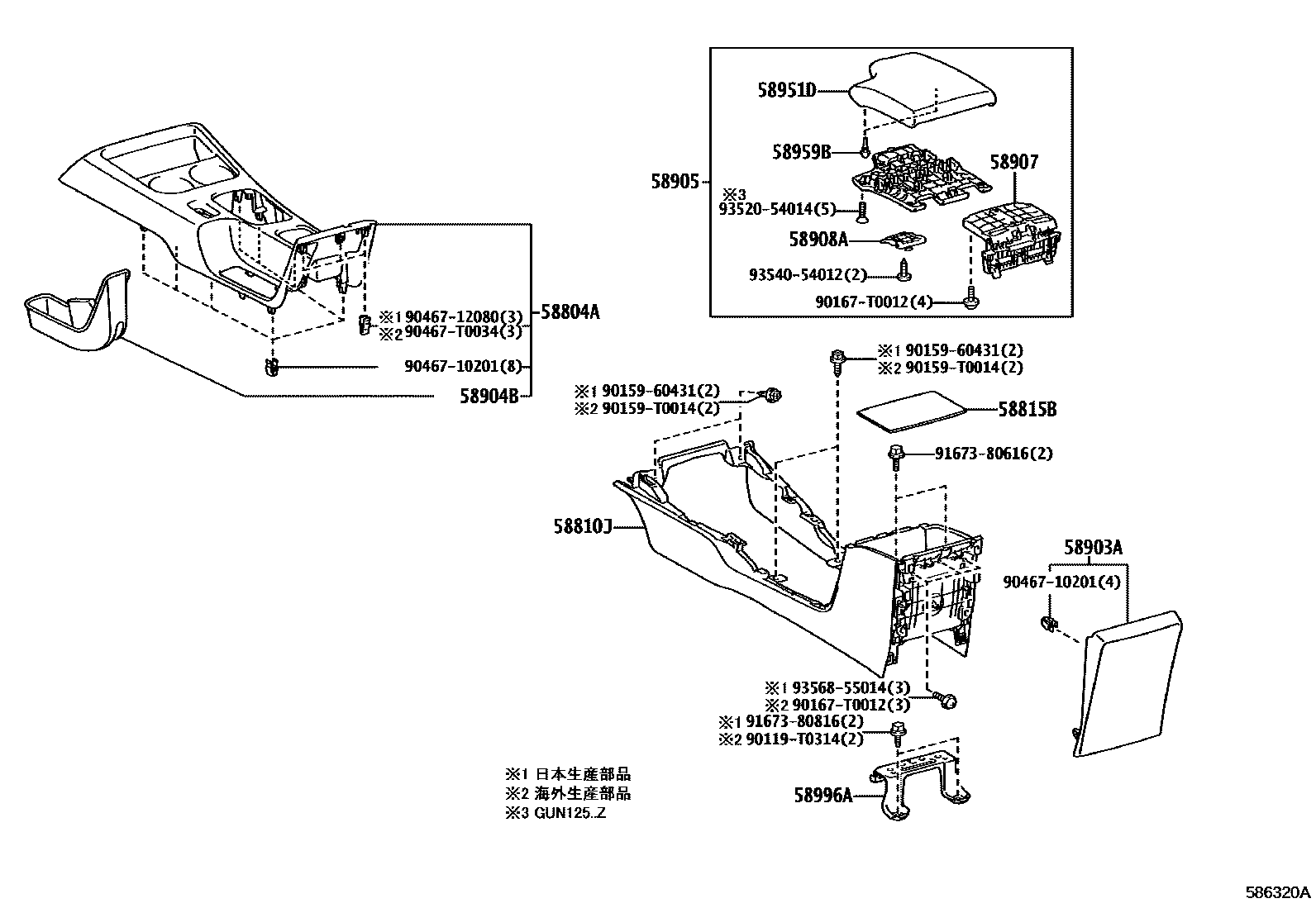

Toyota HILUX 中央扶手箱和支架 — Figure 5855
Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58810J | Armrest box assembly | 58810-KK250 |
| 58815B | Armrest box felt pad | 58815-KK010 |
| 58908A | Armrest box lid lock assembly | 58908-KK010 |
| 58959B | Armrest box cover cushion | 90541-T0008 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-KK020 |
