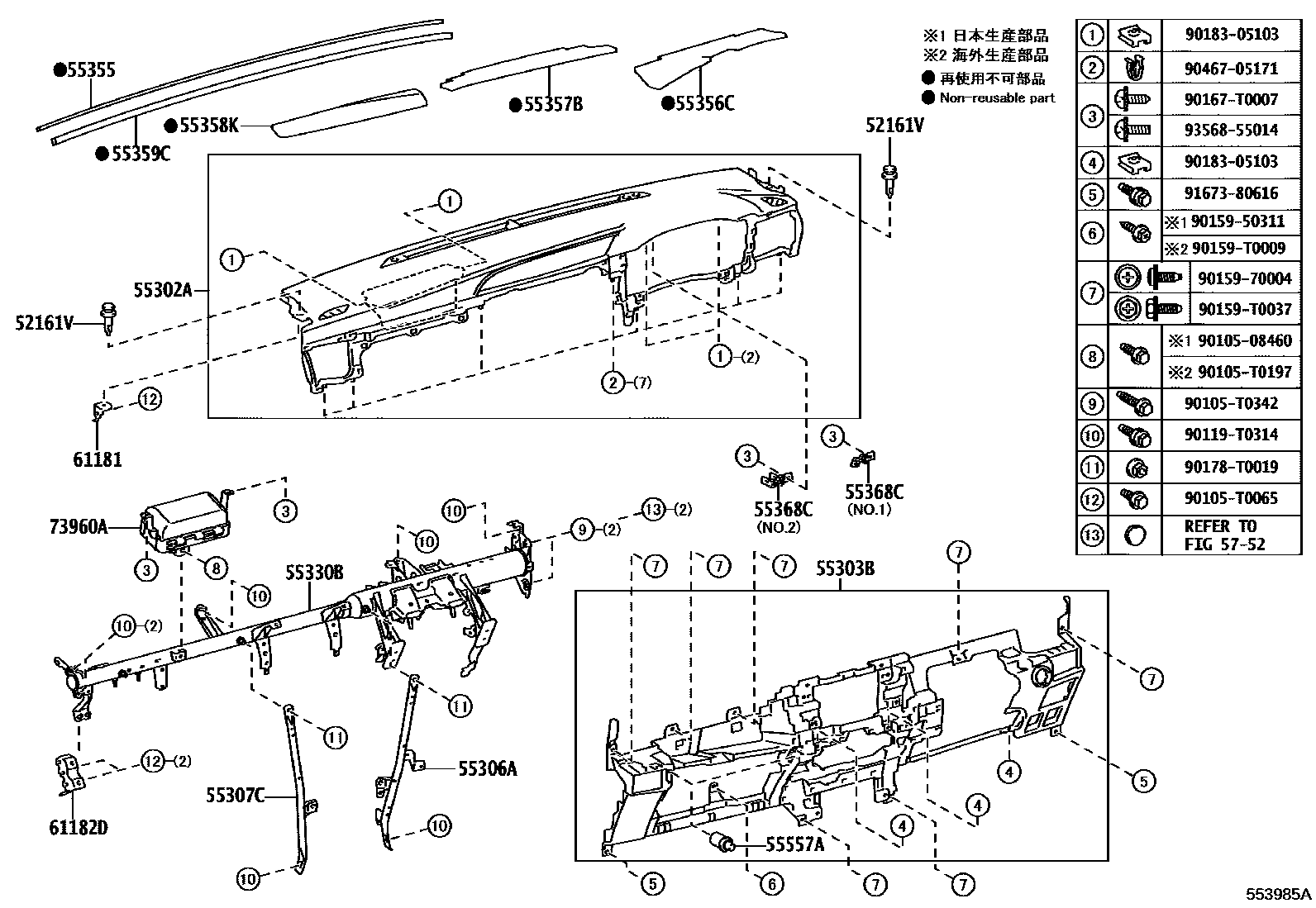

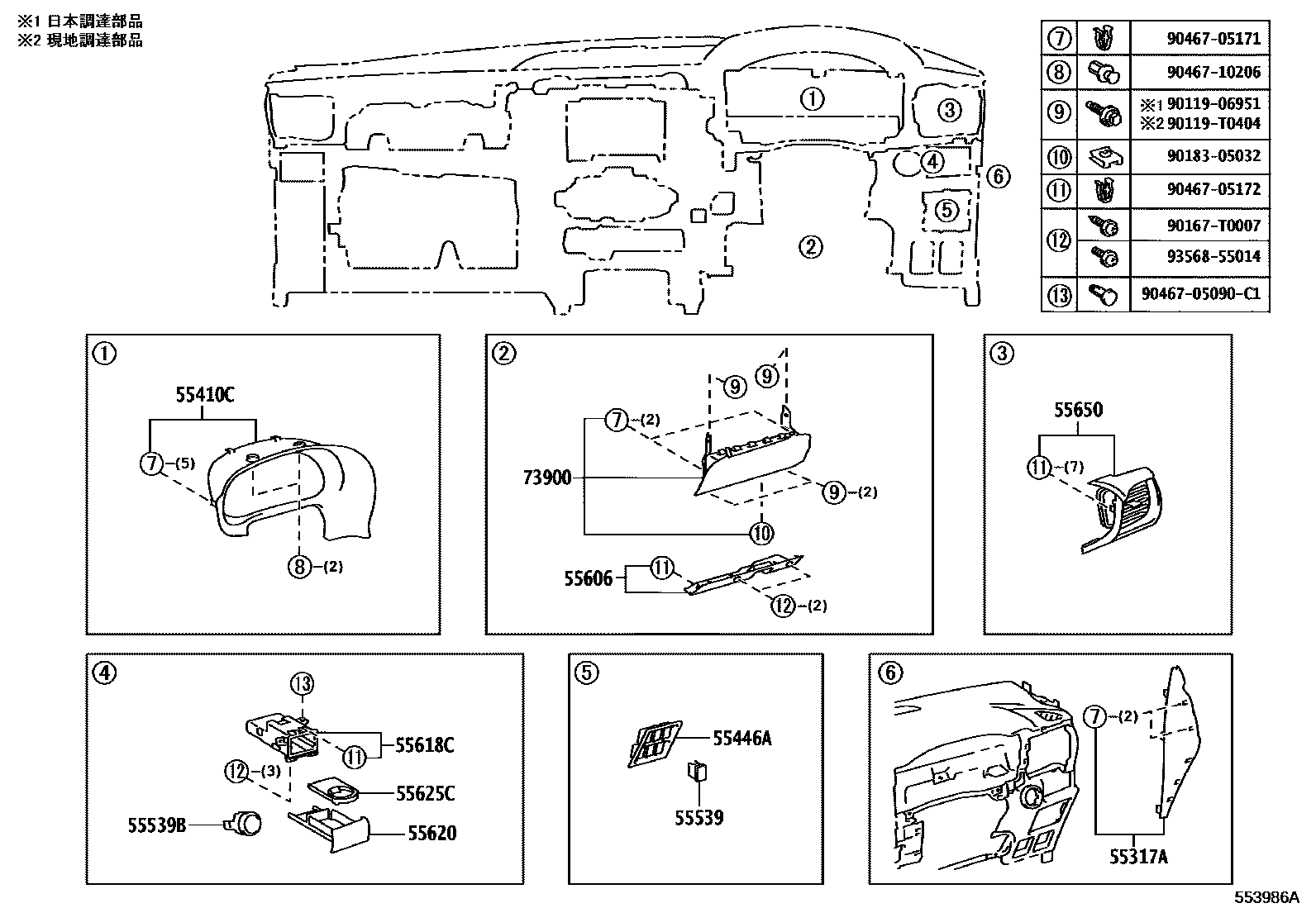

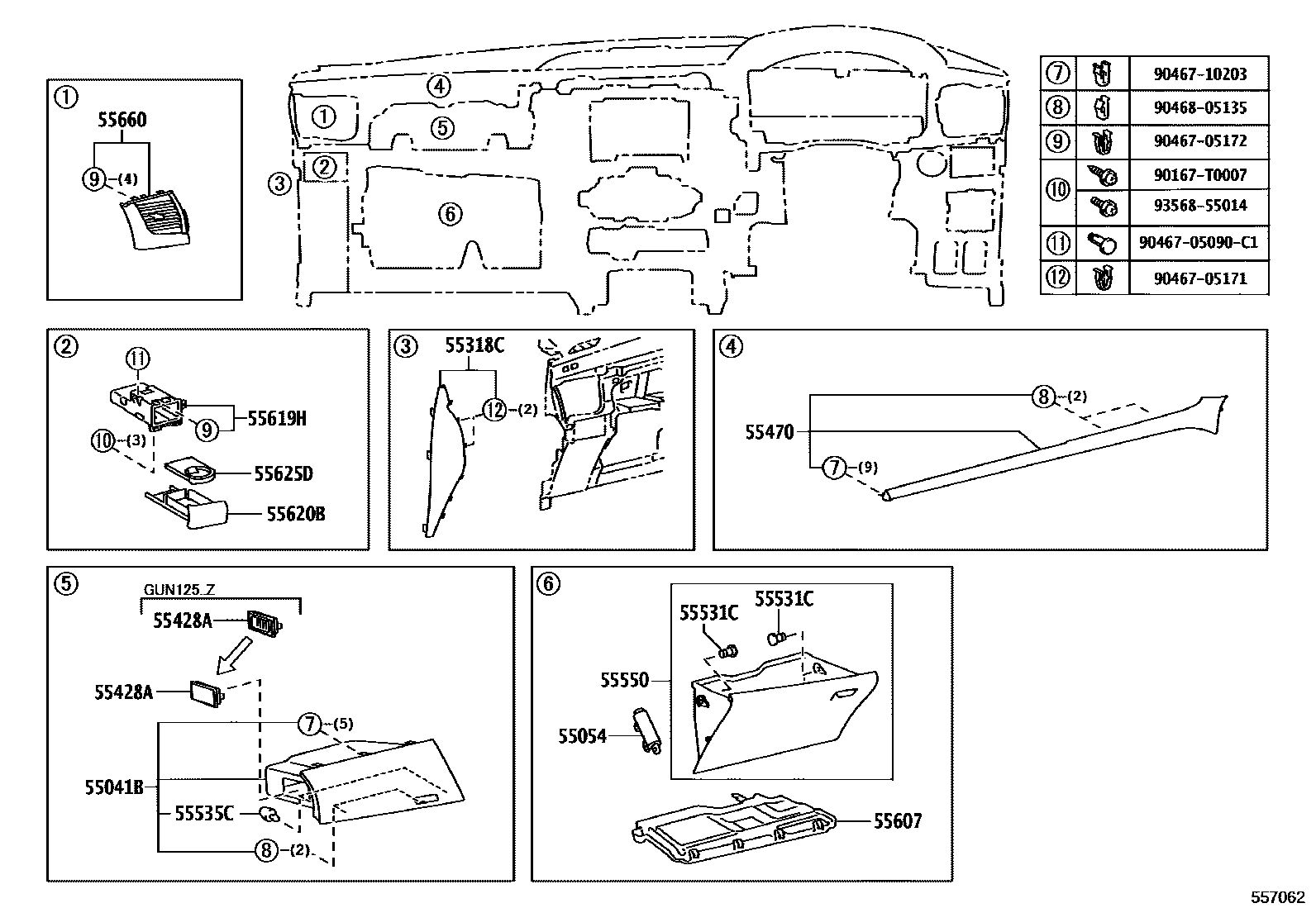

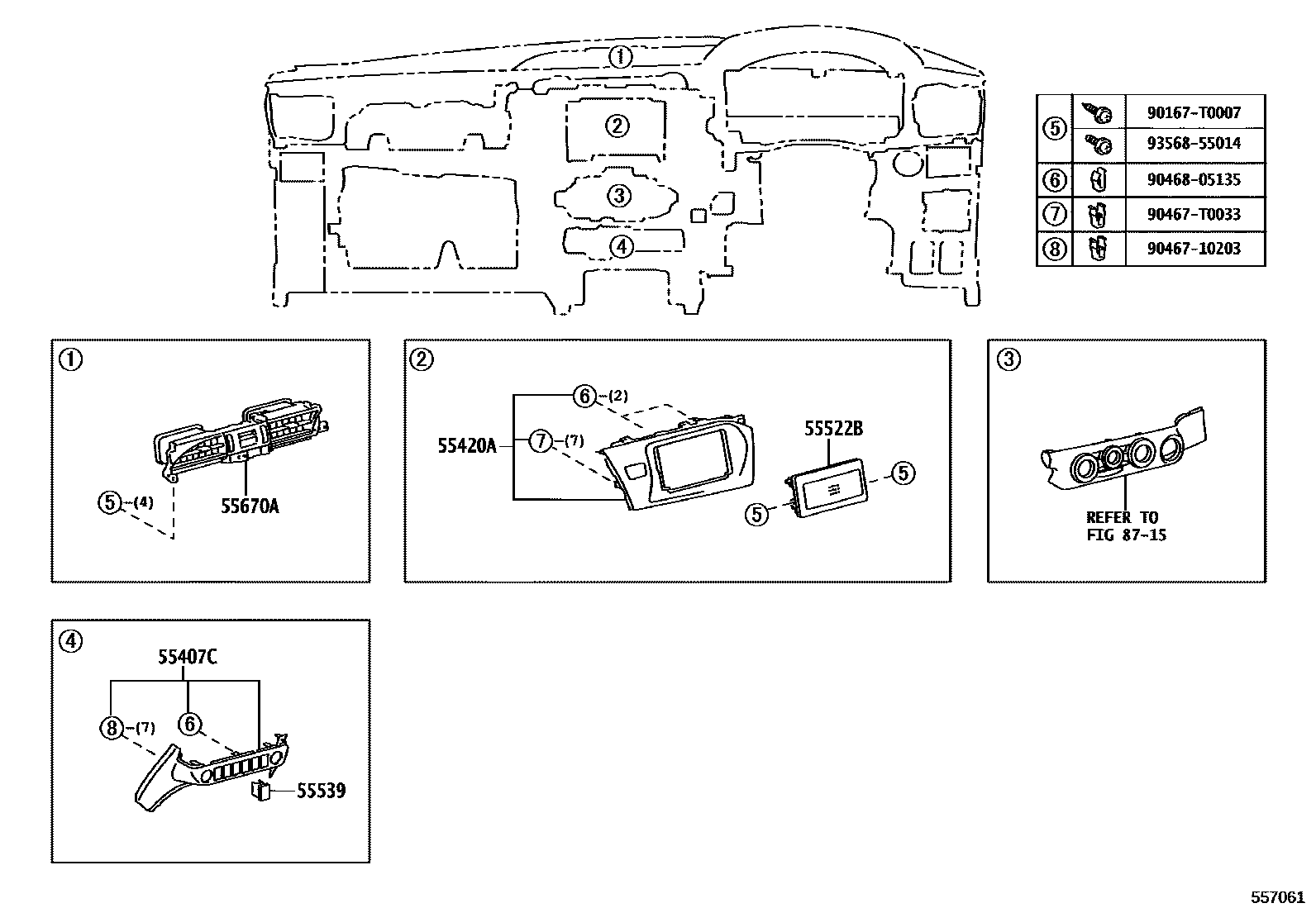

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | Toyota part | 52161-0K040 · 52161-16010 |
| 55054 | Glove box cover stopper sub-assembly | 55054-0K030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-KK030 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-KK030 |
| 55330B | Instrument panel reinforcement assembly | 55330-KK090 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-KK020 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-KK010 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-KK030 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-KK030 |
| 55359C | Dashboard No. 5 Cushion Pad | 55359-KK030 |
| 55368C | Instrument mounting bracket | 55368-KK010 · 55368-KK020 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-KK210 |
| 55428A | Glove box cover side cover | 55503-KK010 · 55549-KK010 |
| 55470 | Instrument cluster decorative panel decorative parts assembly | 55470-KK010 · 55470-KK020 · 55470-YP010 |
| 55522B | Radio tuner opening cover | 55522-0K010 |
| 55531C | Glove box cover limit pin | 55531-KK030 |
| 55535C | Glove box cover cushion | 55557-60050 |
| 55539B | No. 2 spare switch hole cover | 55539-KK010 |
| 55557A | Glove box cover limit pad | 55557-0K020 · 55557-0K030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-KK010 · 55607-KK030 · 55607-KK050 |
| 55618C | Toyota part | 55618-KK030 |
| 55619H | Toyota part | 55618-KK050 |
| 55625C | Dashboard cup holder tray | 55625-KK030 |
| 55625D | Dashboard cup holder tray | 55625-KK050 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-KK050 · 55650-KK060 · 55650-YP020 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-KK050 · 55660-KK070 · 55660-YP010 |
| 55670A | Instrument panel central air register assembly | 55670-KK050 · 55670-KK090 |
| 61181 | Dashboard side bracket | 61181-KK030 |
| 61182D | Dashboard side bracket | 61126-KK010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0K010 |
