Toyota HILUX radiator grille — Figure 5351

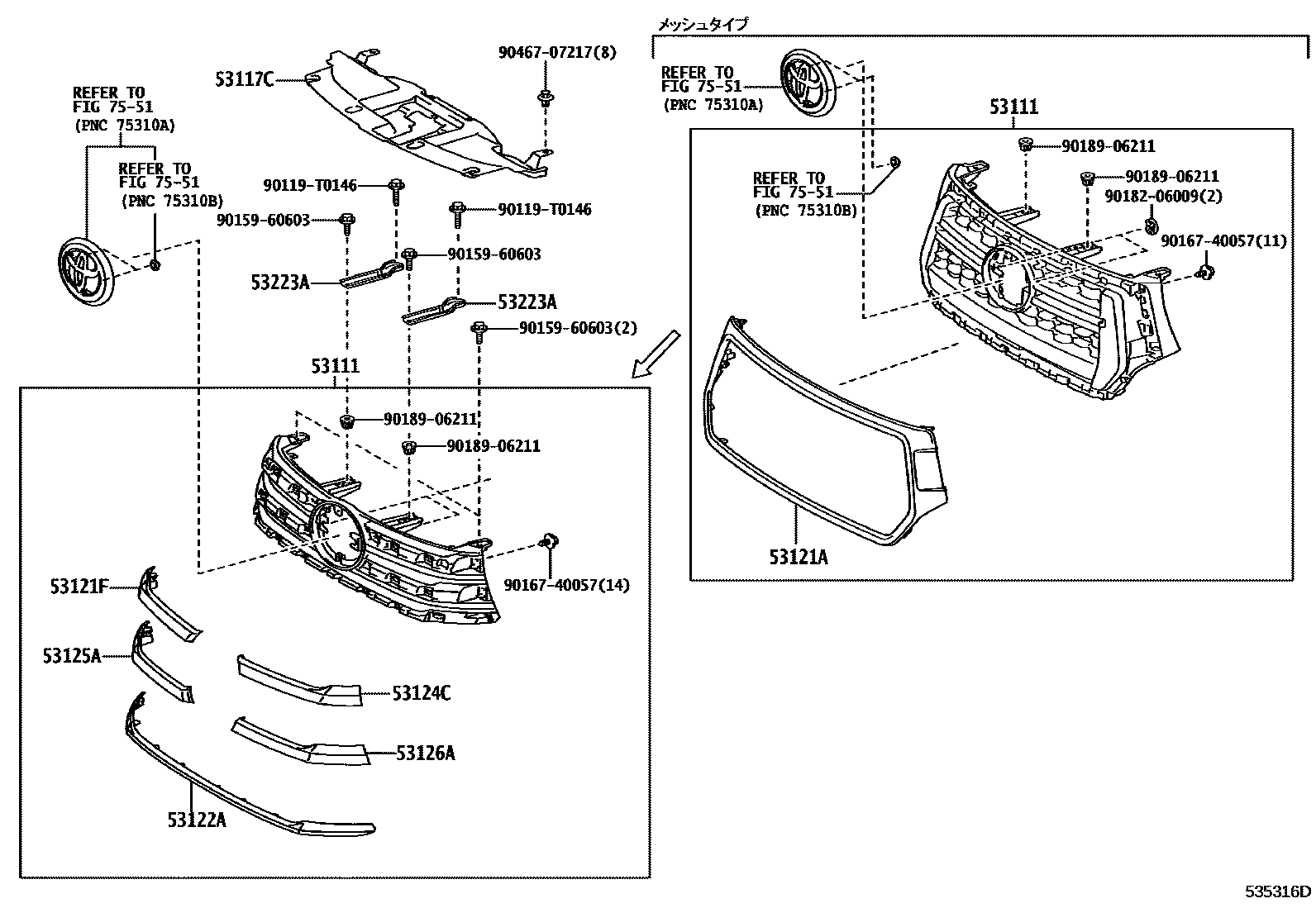

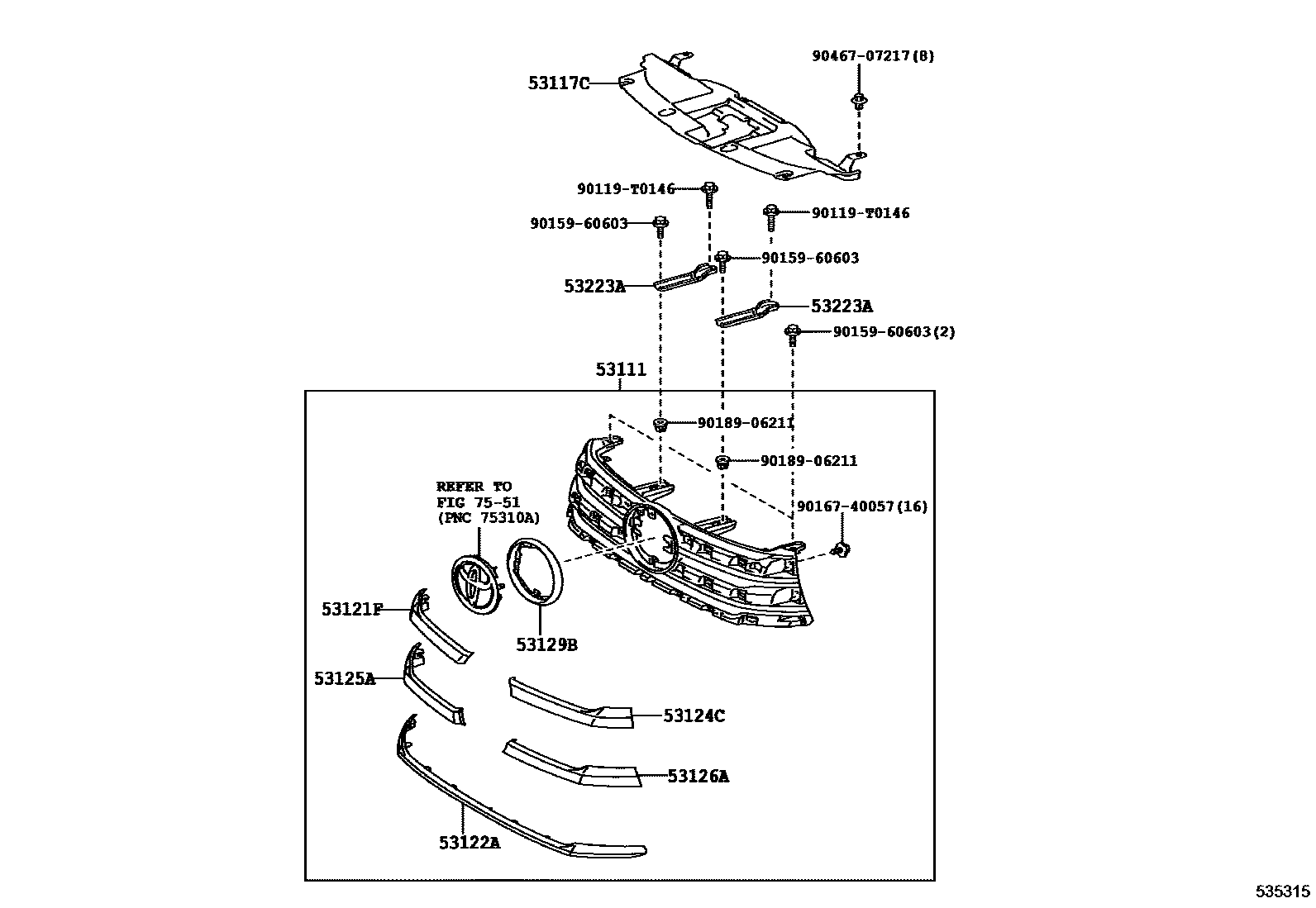

Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53100-0K480 · 53100-0K902 · 53100-0K906 · 53100-0K908 · 53100-YP110 · 53100-YP901 · 53100-YP902 · 53100-YP905 |
| 53117C | Radiator grille fixing No. 1 | 53117-0K040 |
| 53121A | Radiator grille protection strip | 53121-YP040 · 53121-YP070 |
| 53121F | Radiator grille upper right protective strip | 53125-0K040 · 53125-0K210 |
| 53122A | Radiator grille lower protective strip | 53122-0K230 · 53122-0K410 |
| 53124C | Radiator grille upper left protective strip | 53126-0K040 · 53126-0K210 |
| 53125A | Radiator grille right center protective strip | 53123-0K060 · 53123-0K240 |
| 53126A | Radiator grille left middle protective strip | 53124-0K060 · 53124-0K240 |
| 53129B | Radiator grille No. 9 protective strip | 53127-0K110 |
| 53223A | Radiator grille mounting bracket | 53115-0K080 |
