Toyota HILUX 前保险杠及附件 — Figure 5252

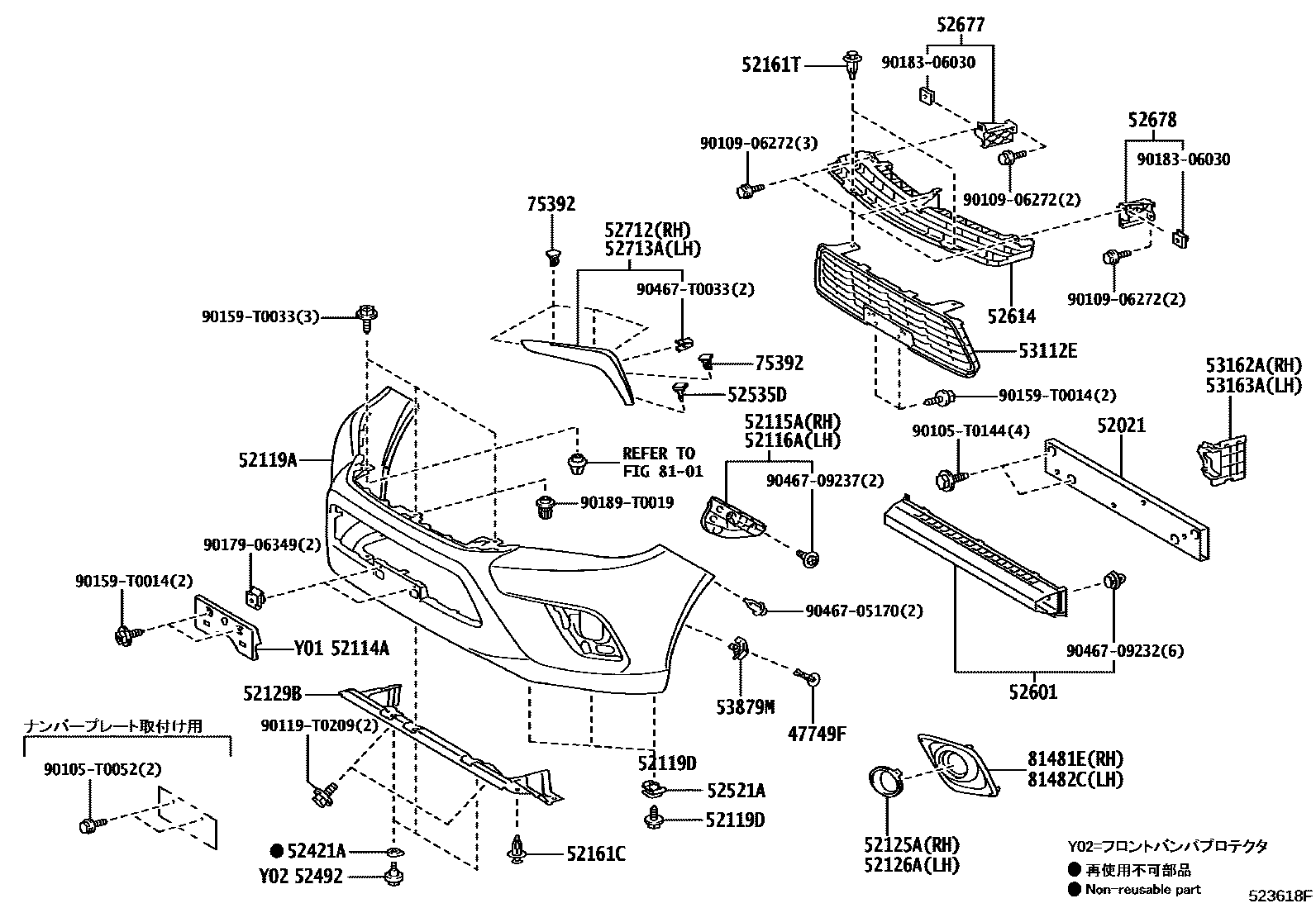

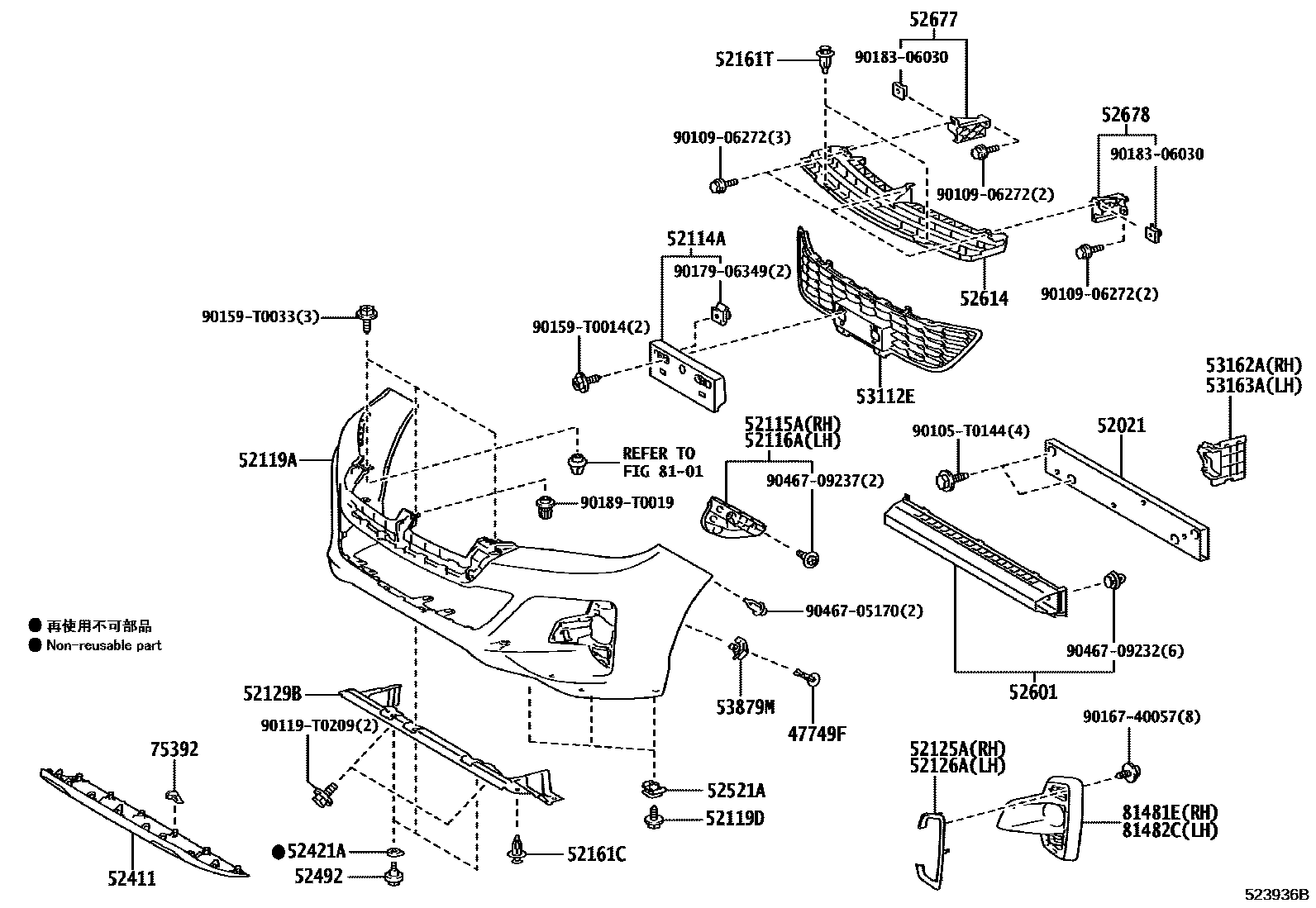

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | Toyota part | 47749-50090 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-KK010 |
| 52114A | Front bumper extension mounting bracket | 52114-0K010 · 52114-0K011 · 52114-YP050 |
| 52115A | Front bumper right side bracket | 52115-0K180 |
| 52116A | Front bumper left bracket | 52116-0K180 |
| 52119D | Toyota part | 90159-60217 |
| 52125A | Right fog light mounting bracket | 52125-0K030 · 52125-YP030 · 52125-YP050 |
| 52126A | Left fog light mounting bracket | 52126-0K030 · 52126-YP030 · 52126-YP050 |
| 52129B | Front bumper lower cover | 52129-KK010 |
| 52161C | front bumper insert | 52161-0K050 |
| 52161T | front bumper insert | 52161-0K040 |
| 52411 | Front bumper anti-collision bar | 52411-YP010 · 52411-YP020 |
| 52421A | front bumper lining | 52421-60191 |
| 52492 | Bumper lining bolt No. 2 | 52491-60010 |
| 52521A | Clip (for front bumper mount) | 90467-05114 |
| 52535D | Front bumper side fixing bracket | 52535-28020 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-0K010 · 52601-0K100 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0K010 |
| 52677 | Front bumper No. 2 right side bracket | 52675-0K010 |
| 52678 | Front bumper No. 2 left side bracket | 52676-0K010 |
| 52712 | Front bumper right side protective strip | 52712-0K060 · 52712-0K070 |
| 52713A | Front bumper left protective strip | 52713-0K060 · 52713-0K070 |
| 53112E | No. 1 radiator lower grille | 53112-0K120 · 53112-YP080 |
| 53162A | Toyota part | 53162-KK010 |
| 53163A | Toyota part | 53163-KK010 |
| 53879M | Front fender lining fixing parts | 53879-50020 |
| 75392 | External protective strip fixings | 75392-0K010 |
| 81481E | Right fog light cover | 52127-0K170 · 52127-YP100 |
| 81482C | Left fog light cover | 52128-0K170 · 52128-YP100 |
