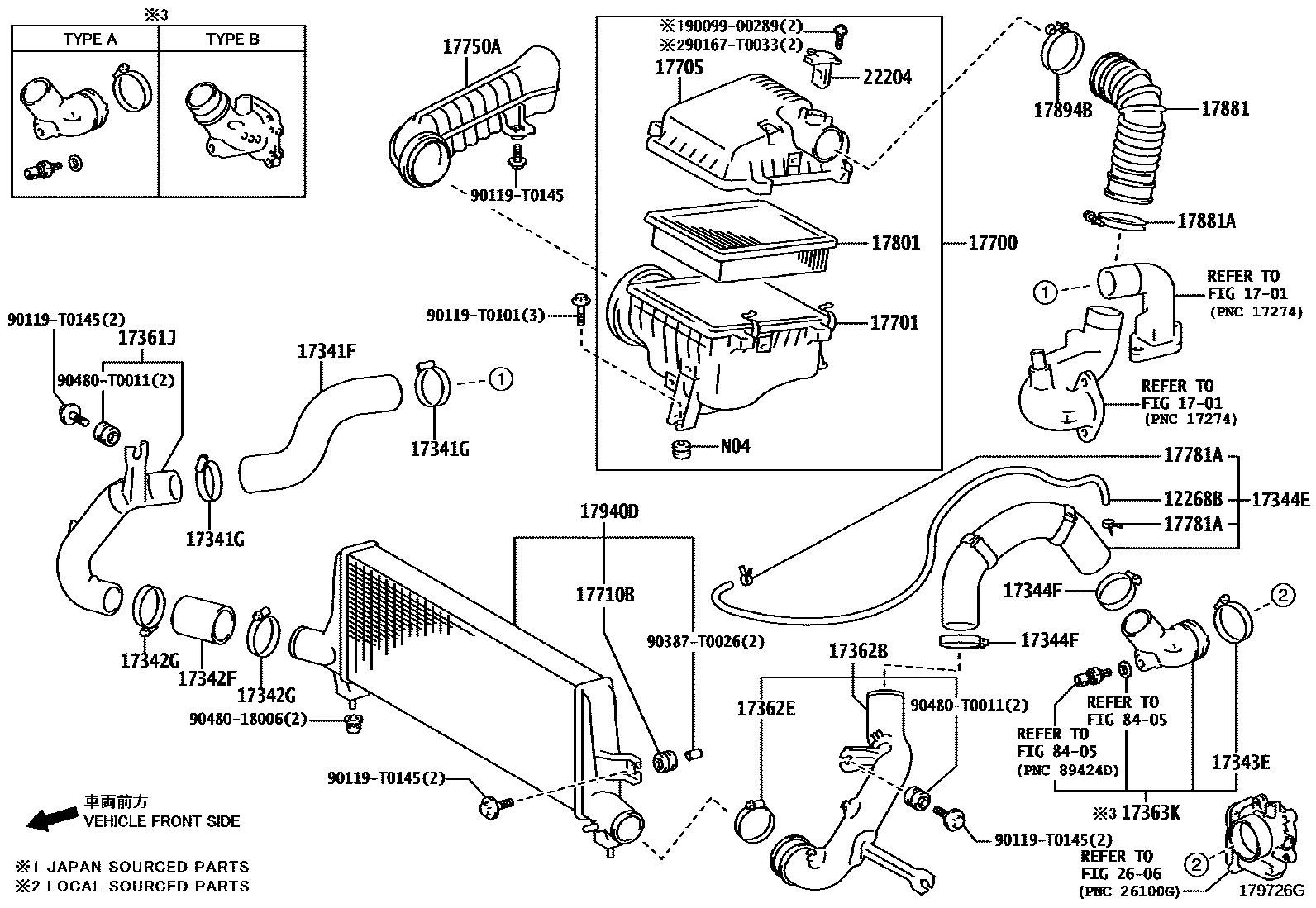

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12268B | Oil return hose | 12268-0L020 |
| 17341F | Air hose No. 1 | 17341-0L020 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-65012 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-0L020 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-65012 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-80006 |
| 17344E | No. 4 air hose | 17344-0L020 |
| 17344F | Hose clamp (for size 4 air hose) | 90460-65012 |
| 17361J | Air tube No. 1 | 17361-0L021 |
| 17362B | No. 2 air pipe | 17362-0L020 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-67008 |
| 17363K | No. 3 air pipe (for intercooler) | 17363-0L020 · 17861-0E010 |
| 17700 | air filter assembly | 17700-0L350 |
| 17701 | Air filter housing sub-assembly | 17701-0C170 |
| 17705 | Air filter cover sub-assembly | 17705-0L290 |
| 17710B | gasket | 90480-T0011 |
| 17750A | Air filter air inlet assembly | 17750-0L060 |
| 17781A | hose clamp | 90466-07002 |
| 17801 | Air filter element sub-assembly | 17801-0L040 |
| 17881 | No. 1 air cleaner hose | 17881-0E020 · 17881-0L120 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0005 |
| 17894B | Hose clamp (for intake resonator No. 2) | 90460-T0020 |
| 17940D | Intercooler assembly | 17940-0L110 |
| 22204 | Intake air flow meter assembly | 22204-30030 |
