Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

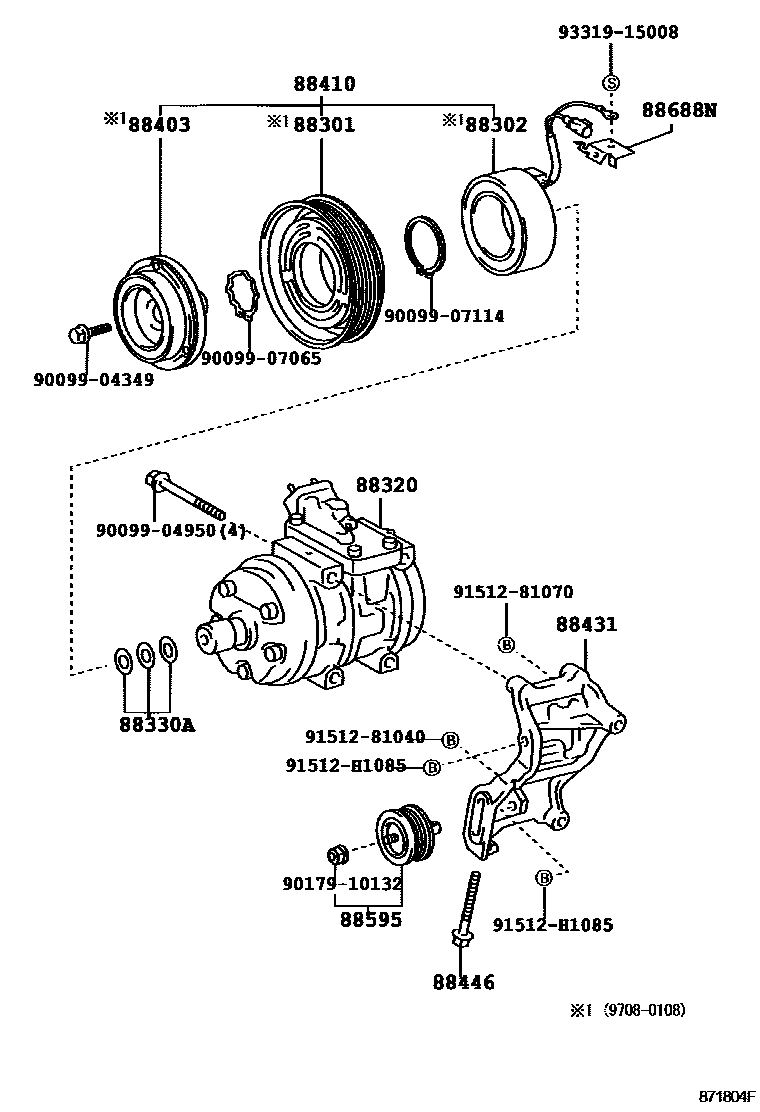

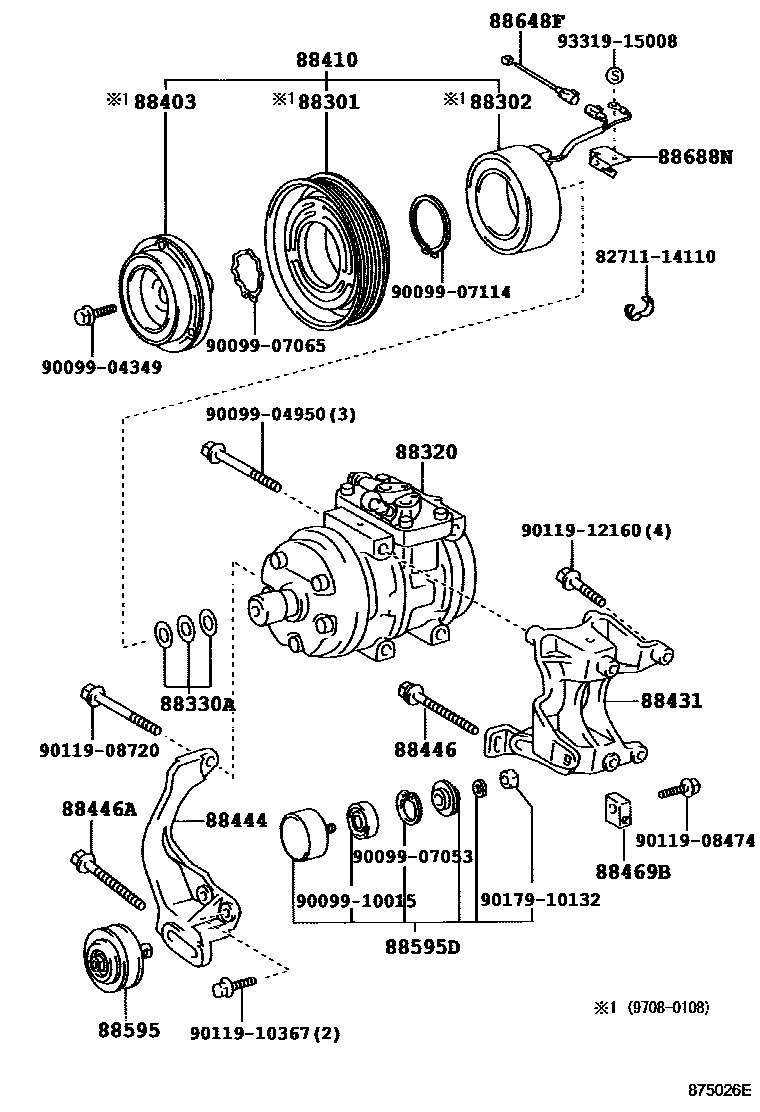

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12150 · 88412-30430 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-2A030 |
| 88320 | Cooler Compressor Assembly | 88320-35620 · 88320-35640 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-22480 · 88410-34040 |
| 88431 | Compressor No. 1 mounting bracket | 88431-35200 · 88431-60180 |
| 88444 | Idler gear bracket | 88444-60070 |
| 88446 | Idler gear bolt | 88446-35010 · 88446-60020 |
| 88446A | No. 2 idler pulley bolt | 88446-35030 |
| 88469B | collar | 88469-30280 |
| 88595 | Cooler compressor idler pulley | 88440-35030 · 88440-35080 |
| 88595D | Idler gear assembly | 88440-26070 |
| 88648F | Electromagnetic clutch wiring harness | 88648-35250 · 88648-35300 |
| 88688N | cooler bracket | 88688-25200 · 88688-2D770 |
