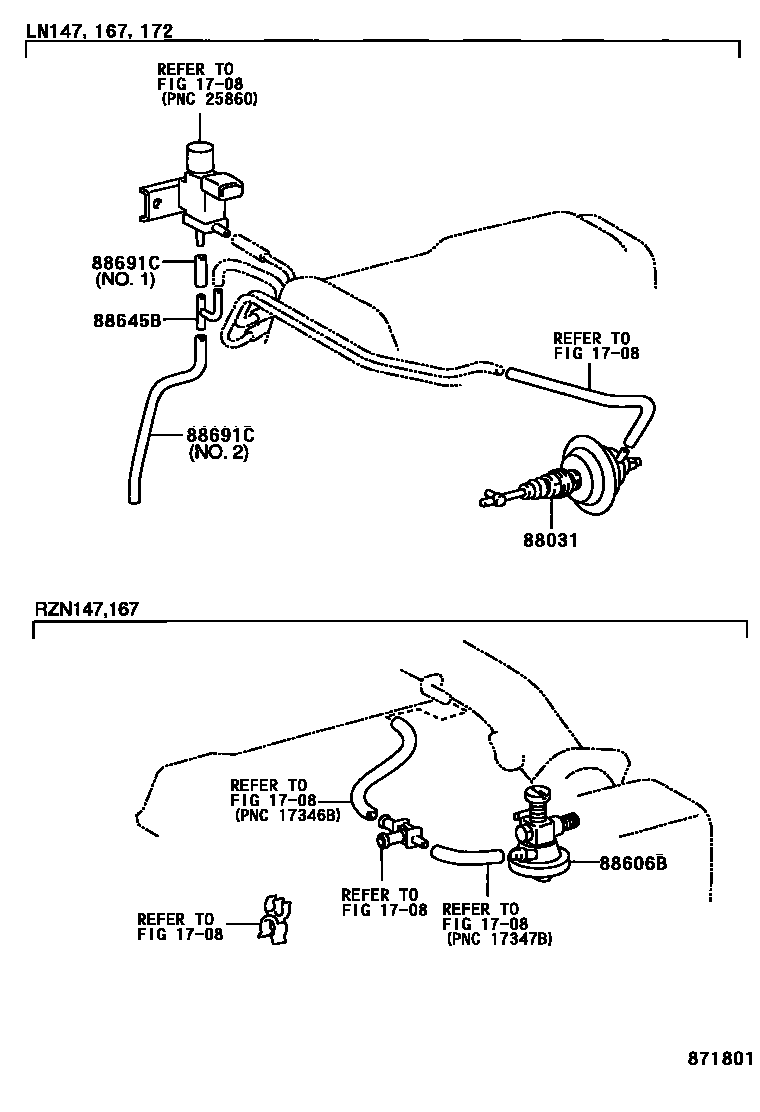

Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717
Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-35130 |
| 88606B | Cooler diaphragm sub-assembly | 88606-26030 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04008 |
