Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

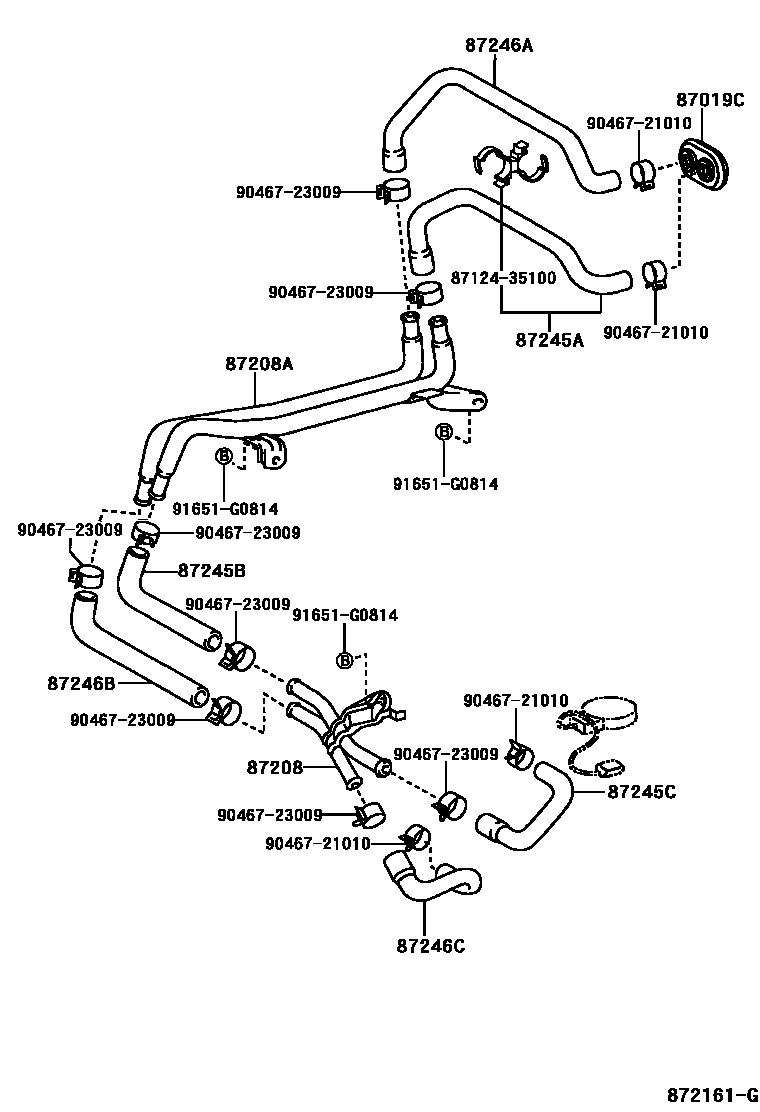

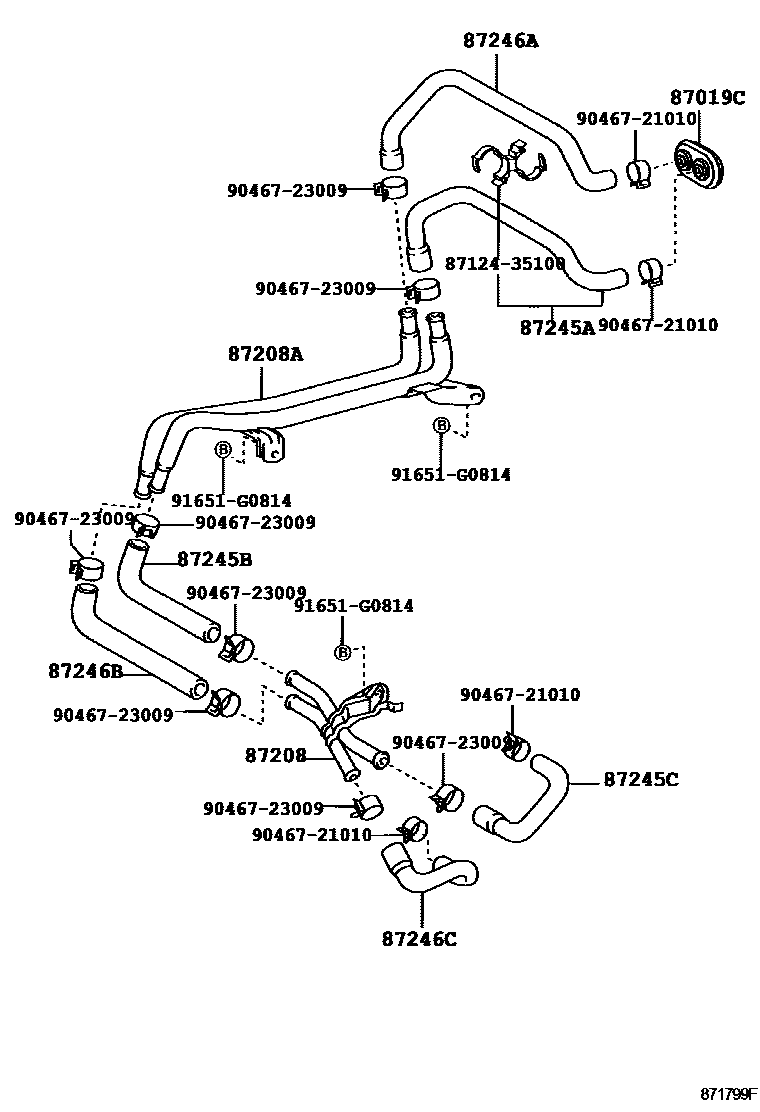

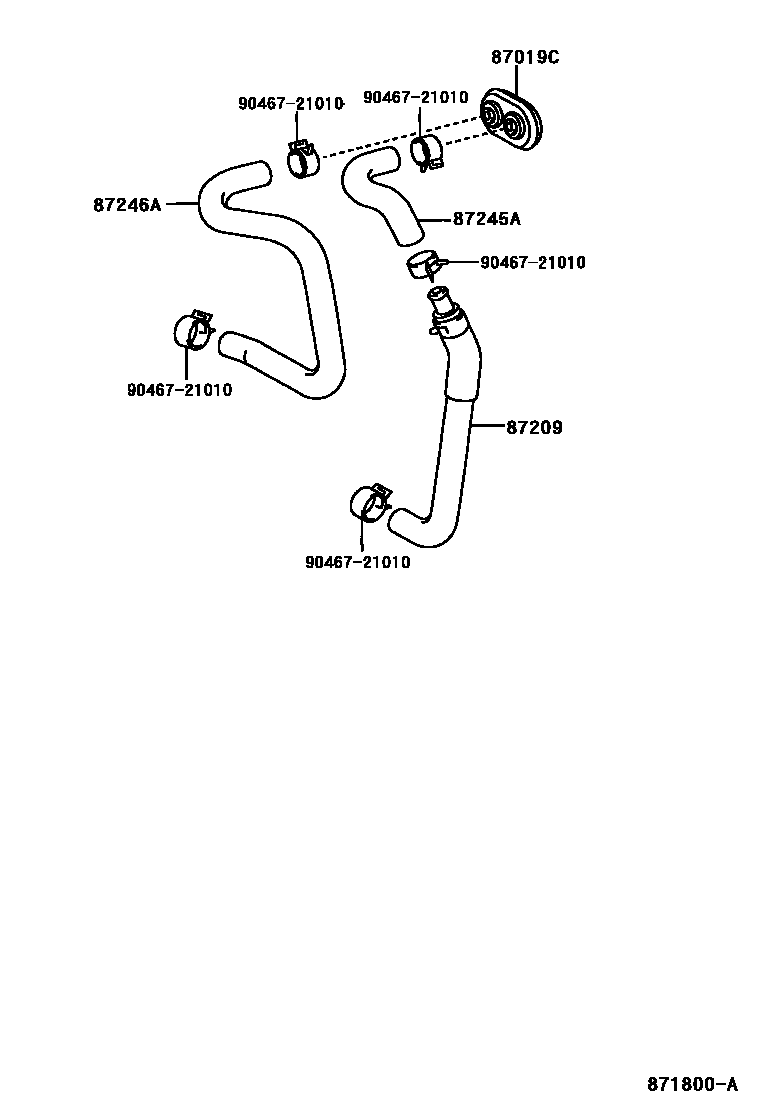

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01405 |
| 87208 | Heater water pipe sub-assembly | 87208-35280 · 87208-35310 |
| 87208A | Heater water pipe sub-assembly A | 87208-35290 · 87208-35300 |
| 87209 | Water hose sub-assembly | 87209-35350 |
| 87245A | Heater water inlet hose A | 87245-35840 · 87245-3D060 · 87246-35010 |
| 87245B | Heater water inlet hose B | 87254-35010 |
| 87245C | Heater water inlet hose C | 87244-35010 |
| 87246A | Heater outlet hose A | 87245-35890 · 87245-3D010 · 87246-35020 · 87246-35040 |
| 87246B | Heater outlet hose B | 87242-35010 |
| 87246C | Heater outlet hose C | 87243-35010 |
