Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

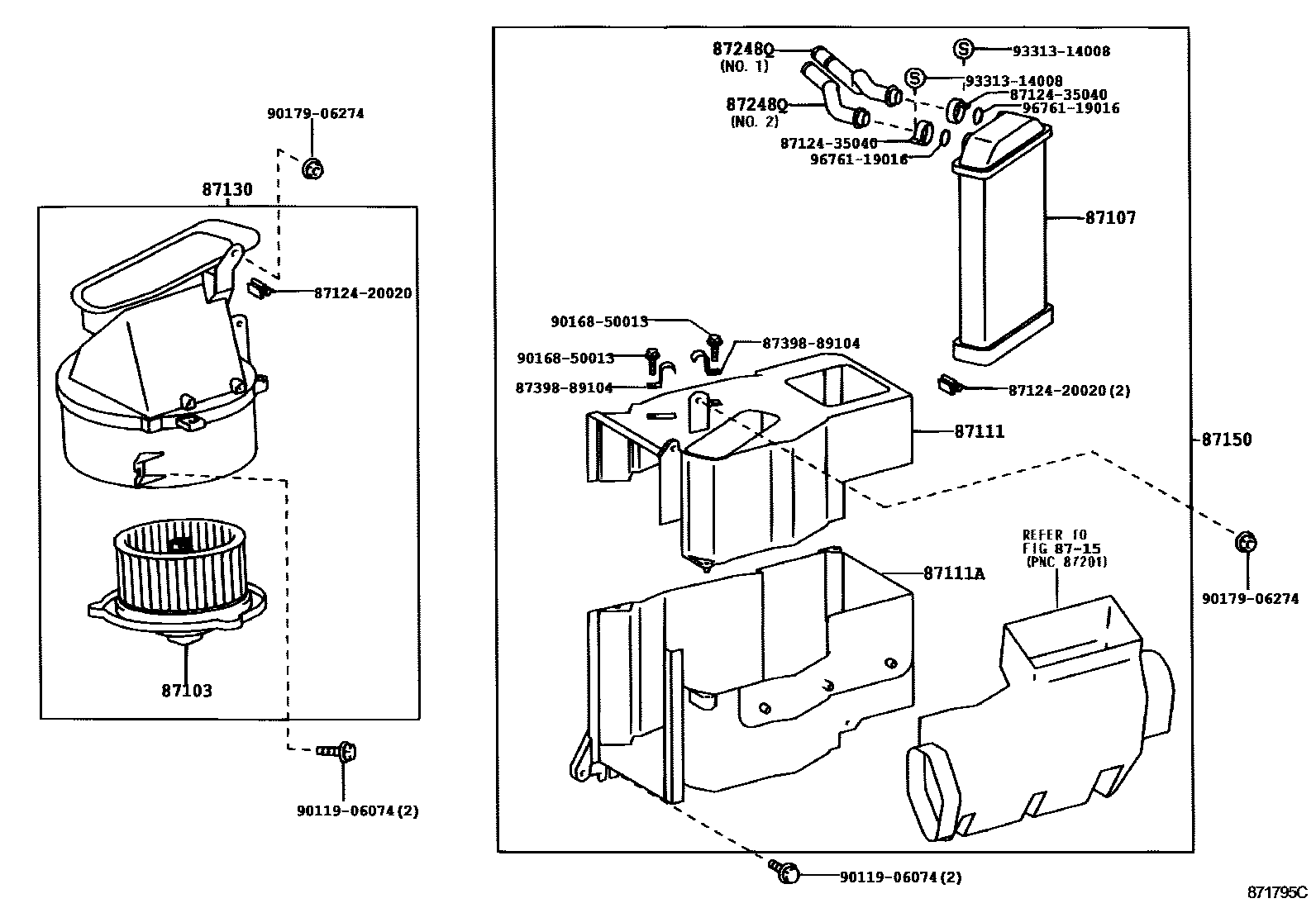

Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-35010 · 87103-35030 |
| 87107 | Heater radiator device sub-assembly | 87107-35070 · 87107-35080 |
| 87111 | heater shell | 87111-35220 |
| 87111A | heater shell | 87111-35230 |
| 87130 | Front heater blower assembly | 87130-35080 · 87130-35090 |
| 87150 | Heater radiator assembly | 87150-35150 · 87150-35180 |
| 87248Q | Front heater radiator water pipe | 87156-35090 · 87156-35100 |
