Toyota HILUX 后视镜 — Figure 8701

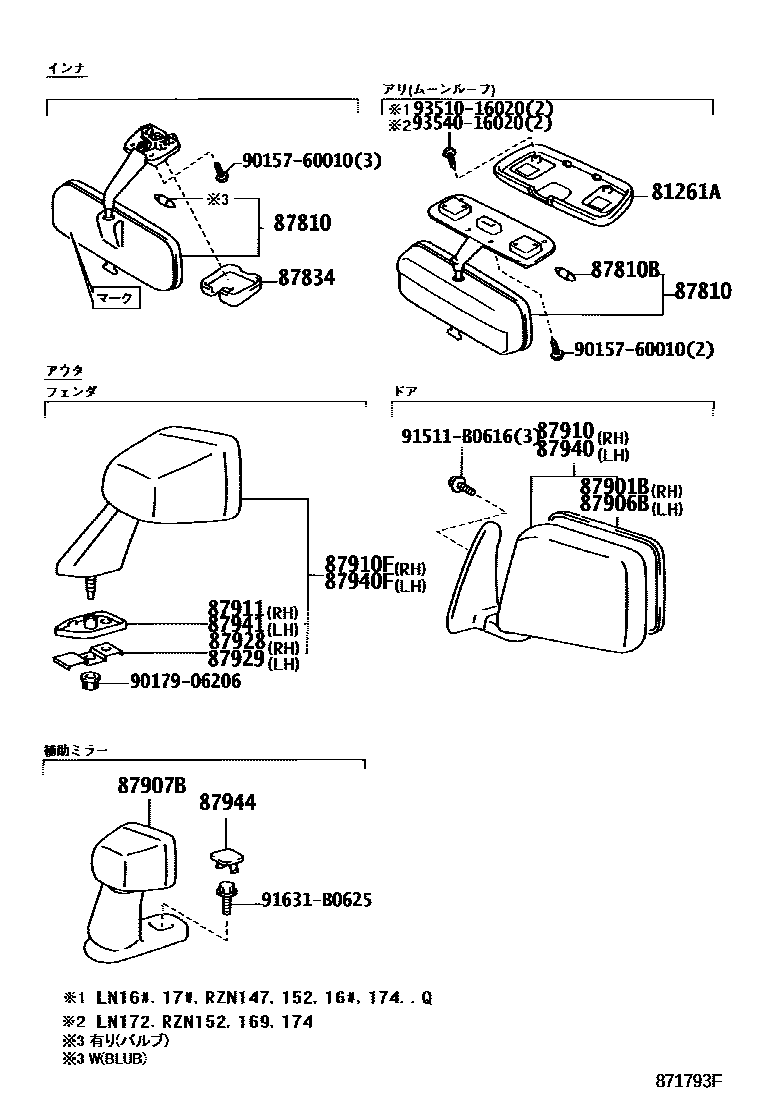

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-89104 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-35540 · 87931-35610 · 87931-3D030 · 87931-3D040 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-35510 · 87961-35570 · 87961-35830 · 87961-35840 |
| 87910 | Right exterior rearview mirror assembly | 87910-35540 · 87910-35610 · 87910-3D030 · 87910-3D040 |
| 87910F | Right fender rearview mirror assembly | 87910-35530 |
| 87911 | Right exterior mirror pad | 87911-35030 |
| 87928 | Right exterior rearview mirror fixing | 87928-35030 |
| 87929 | Left exterior rearview mirror fixing | 87928-35040 |
| 87940 | Left exterior rearview mirror assembly | 87940-35510 · 87940-35570 · 87940-35830 · 87940-35840 |
| 87940F | Left fender rearview mirror assembly | 87940-35500 |
| 87941 | Left exterior mirror pad | 87941-35030 |
