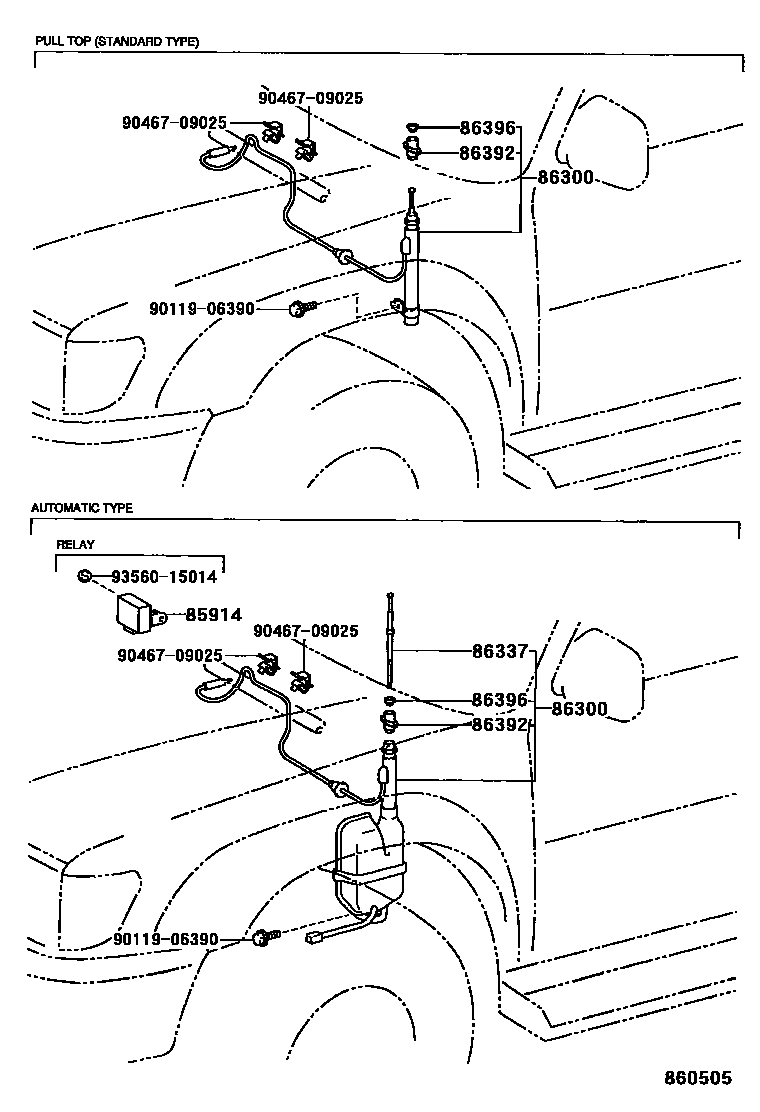

Toyota HILUX antenna — Figure 8604
Toyota HILUX EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-35010 |
| 86300 | Antenna assembly with fixing parts | 86300-35120 · 86300-35130 |
| 86337 | Sealing rods and sealing tubes with cables | 86337-35100 |
| 86392 | Antenna decorative parts | 86392-35010 · 86392-35020 |
| 86396 | Antenna nut | 86396-16020 · 86396-89102 |
