Toyota HILUX 扬声器 — Figure 8602

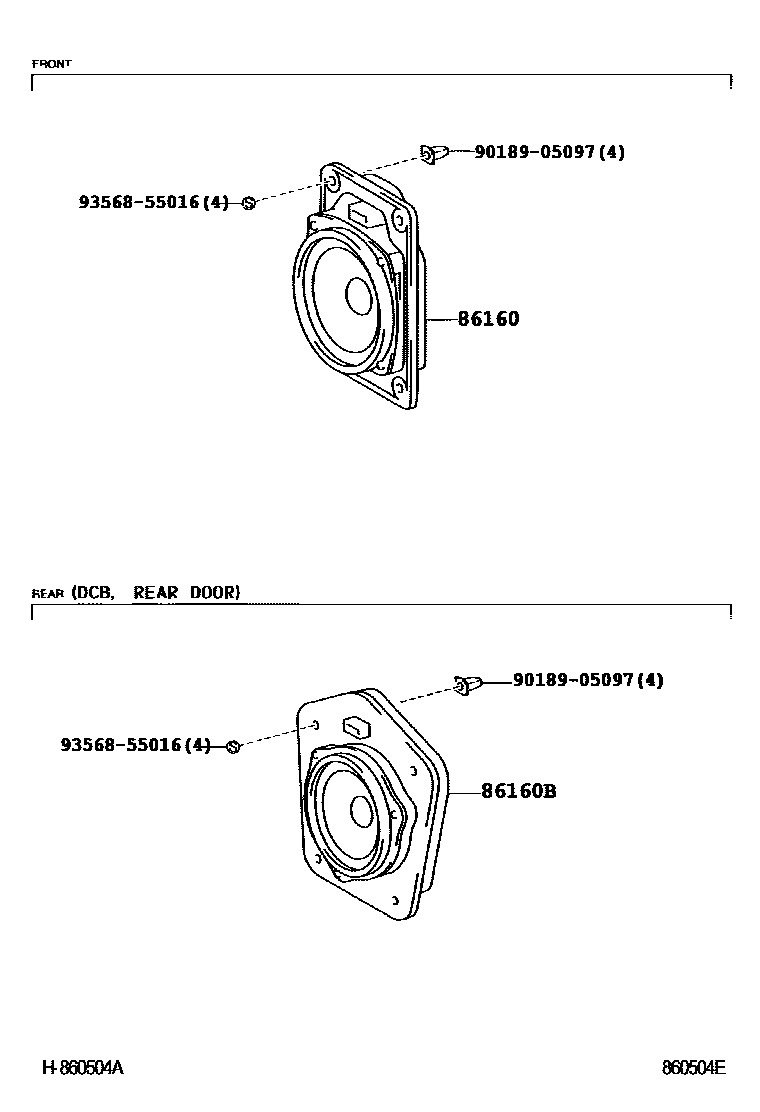

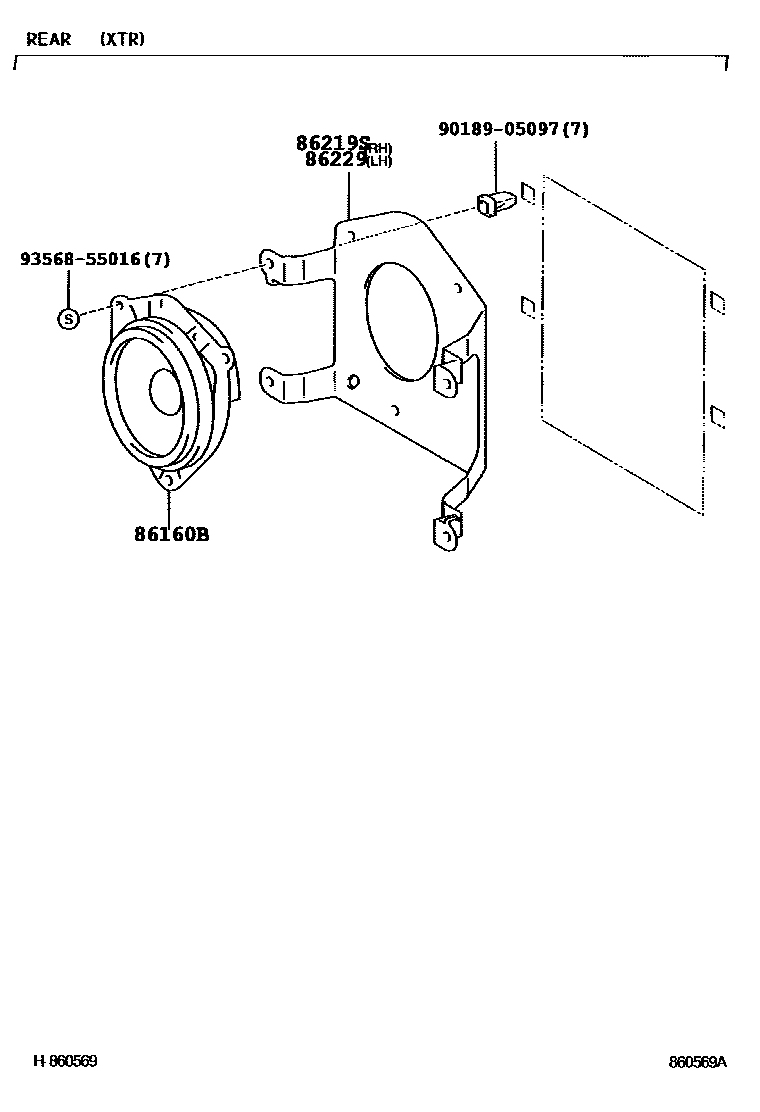

Toyota HILUX EPC diagram 8602, 扬声器, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-35160 · 86160-35170 |
| 86160B | Rear speaker assembly | 86160-22860 · 86160-35110 |
| 86219S | Right stereo speaker bracket | 86219-35030 |
| 86229 | Left stereo speaker bracket | 86229-35010 |
