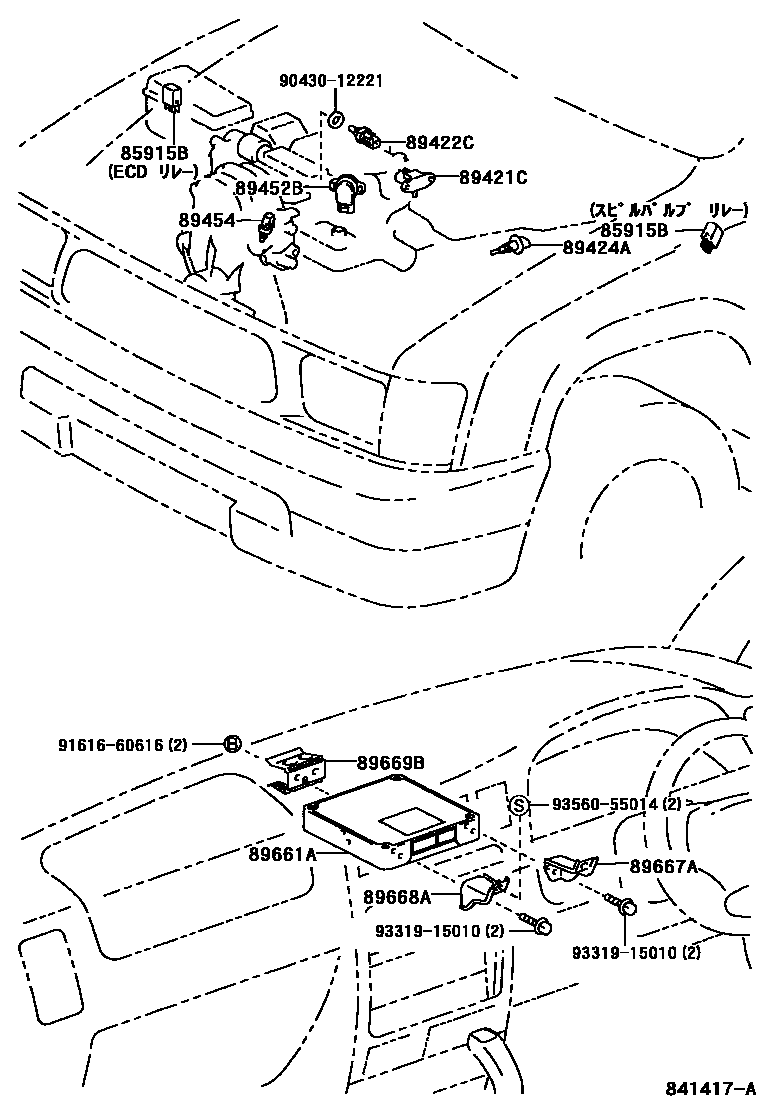

Toyota HILUX 电子控制柴油机(ECD) — Figure 8405
Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 90987-02012 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-60030 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-12010 |
| 89452B | Throttle position sensor | 89452-28090 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89661A | Engine control ECU | 89661-3D510 |
| 89667A | No. 1 engine control ECU bracket | 89667-35110 |
| 89668A | No. 2 engine control ECU bracket | 89668-35140 |
| 89669B | No. 3 engine control ECU bracket | 89669-35070 |
