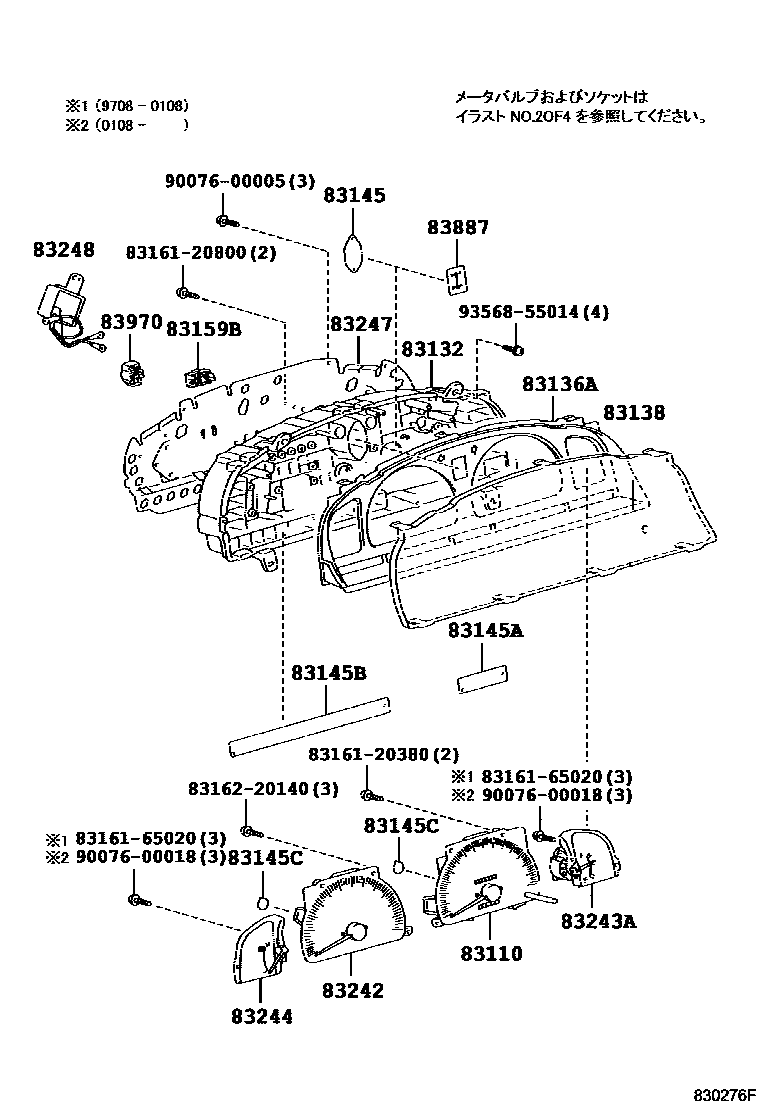

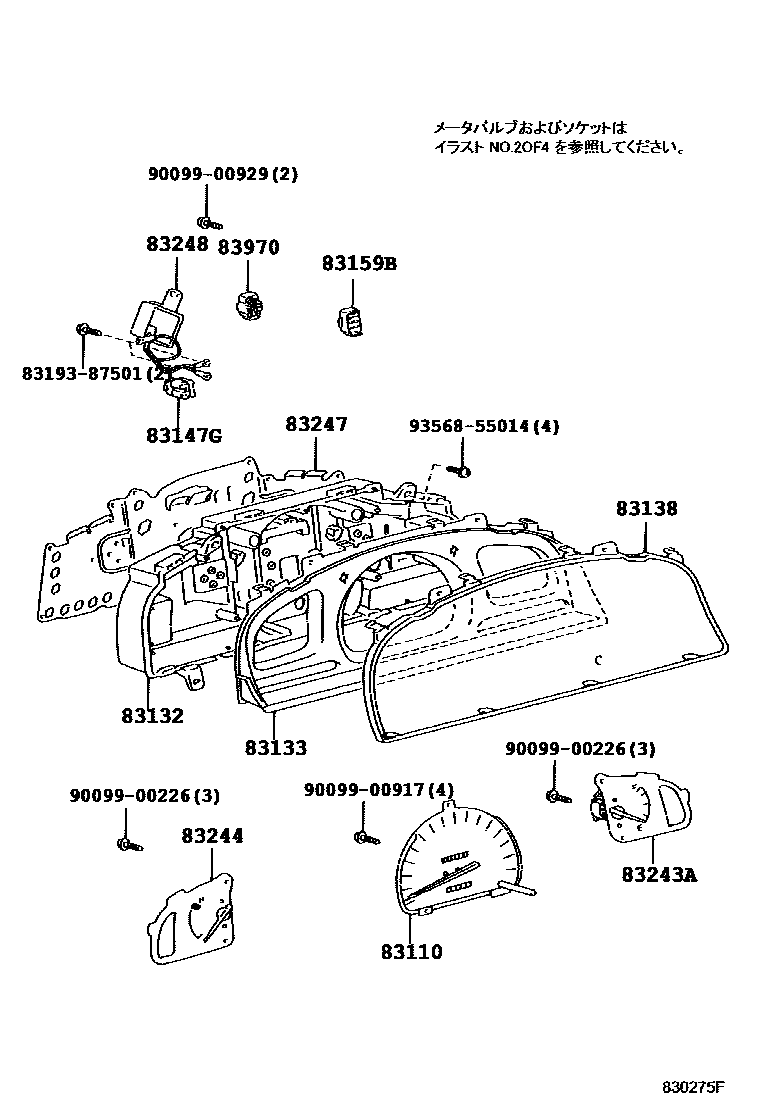

Toyota HILUX 仪表 — Figure 8301
Toyota HILUX EPC diagram 8301, 仪表, with 6 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

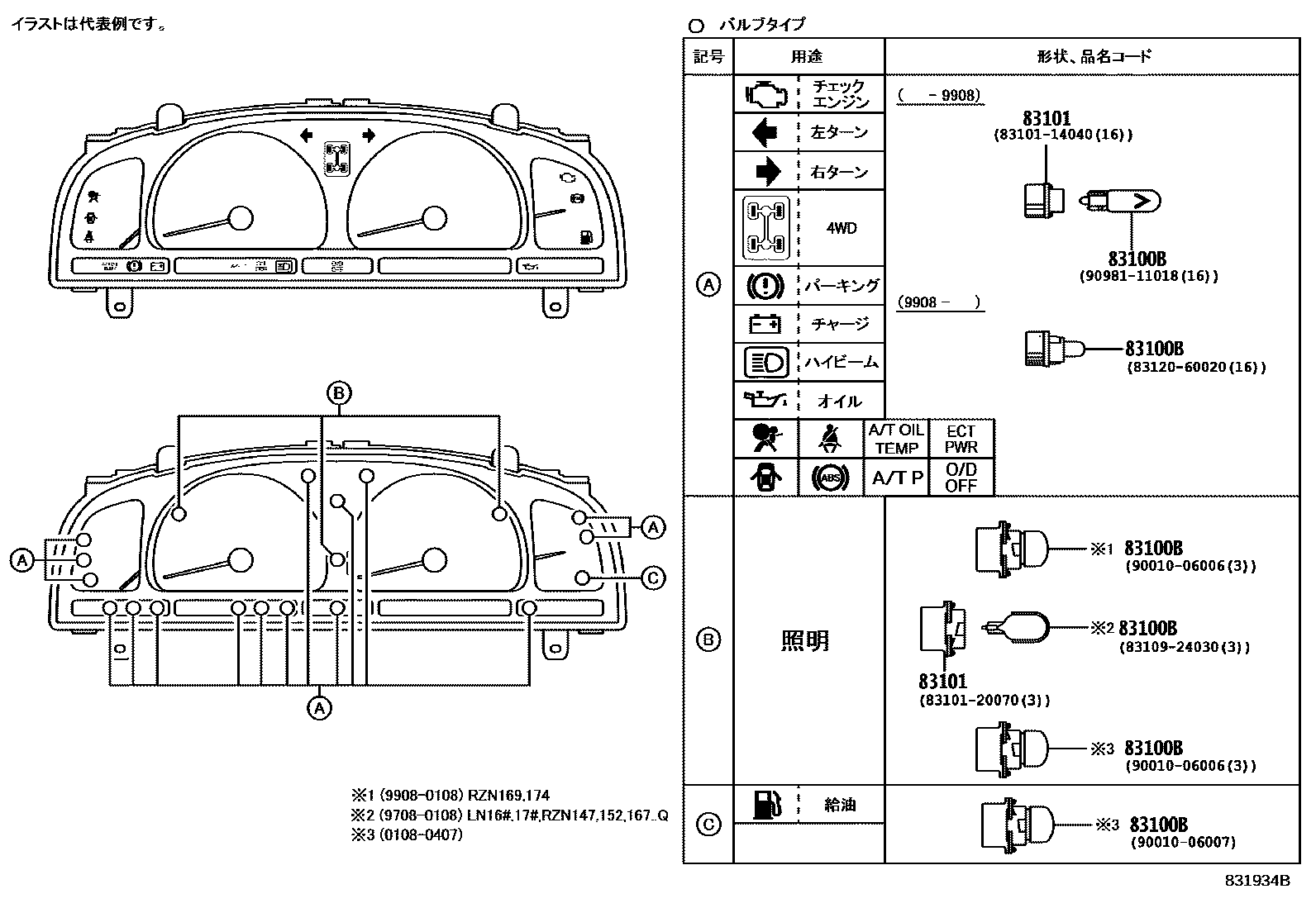

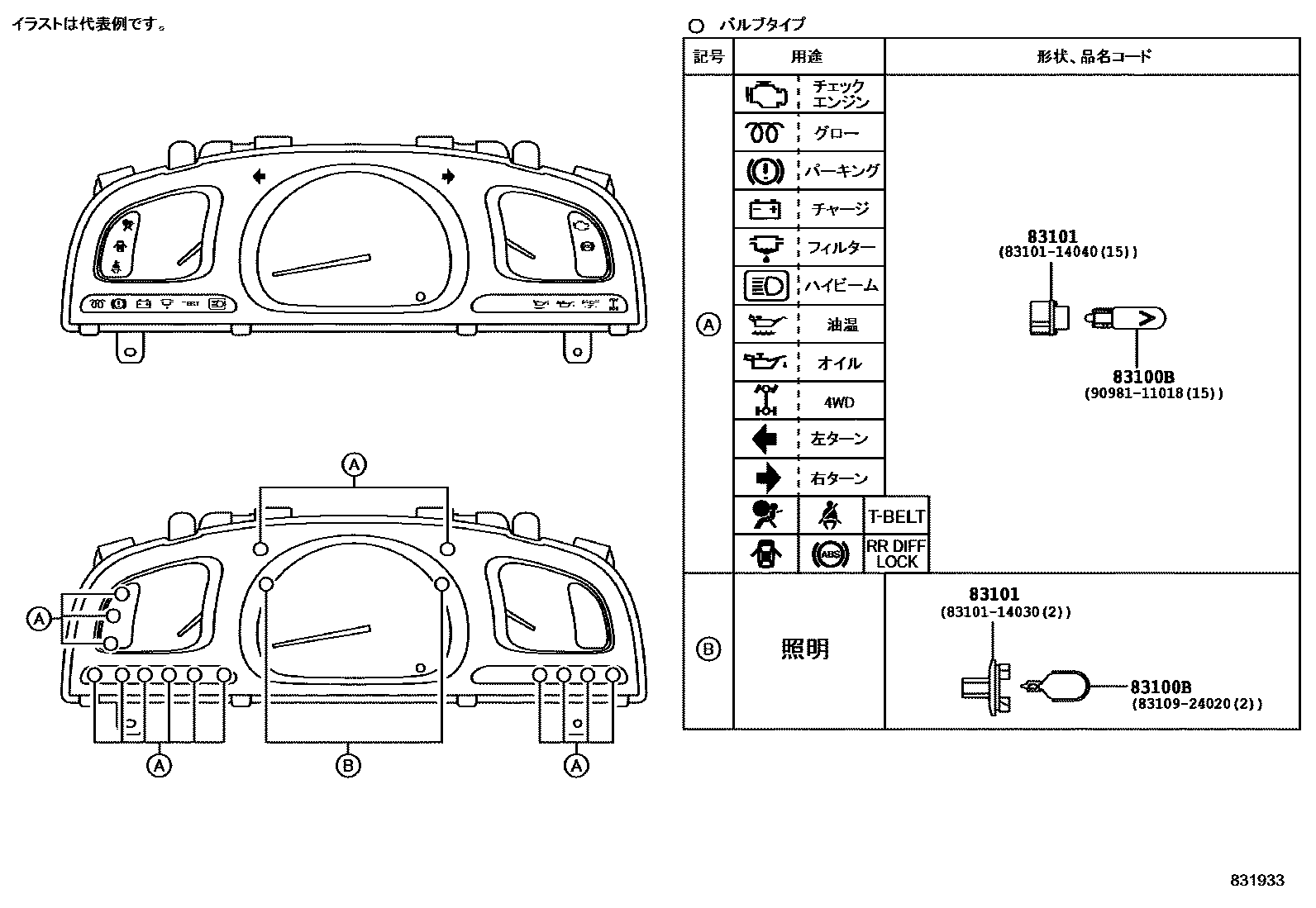

| 83100B | Combination instrument bulb No. 1 | 83109-24020 · 83109-24030 · 83120-60020 · 90010-06006 · 90010-06007 · 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-20070 |
| 83110 | Speedometer assembly | 83220-35060 · 83220-35061 · 83220-35070 · 83220-35071 · 83220-35200 · 83220-35210 · 83220-35490 · 83220-35550 · 83220-35610 · 83220-35660 |
| 83132 | Instrument cluster housing | 83841-35380 · 83841-35390 · 83841-35470 · 83841-35580 |
| 83133 | Combined instrument panel No. 1 | 83811-35380 |
| 83136A | Instrument combination cover | 83851-35580 · 83851-35590 |
| 83138 | speedometer glass | 83852-35380 · 83852-35580 |
| 83145 | Instrument No. 1 lampshade | 83831-35580 · 83831-35590 · 83831-35700 · 83831-35710 · 83831-35800 |
| 83145A | Instrument No. 2 lampshade | 83832-35580 |
| 83145B | Instrument No. 3 lampshade | 83832-35590 |
| 83145C | Instrument No. 4 lampshade | 83833-26010 |
| 83147G | Instrument combination connector | 83147-28010 |
| 83159B | Instrument relay assembly | 83159-22370 |
| 83180 | Speed detector assembly | 83180-35020 |
| 83242 | Engine tachometer assembly | 83881-35580 · 83881-35700 · 83881-35710 · 83881-3G030 · 83881-3G140 |
| 83243A | Fuel gauge sub-assembly | 83882-35380 · 83882-35580 · 83882-3D110 · 83882-3D750 · 83882-3G030 |
| 83244 | Water temperature meter sub-assembly | 83883-35380 · 83883-35580 · 83883-3D110 · 83883-3D750 · 83883-3G030 |
| 83247 | Instrument circuit board | 83861-35390 · 83861-35470 · 83861-35580 · 83861-35590 · 83861-35700 · 83861-35710 · 83861-3D450 · 83861-3G030 · 83861-3G040 · 83861-3G140 |
| 83248 | speed warning bell | 86650-12030 |

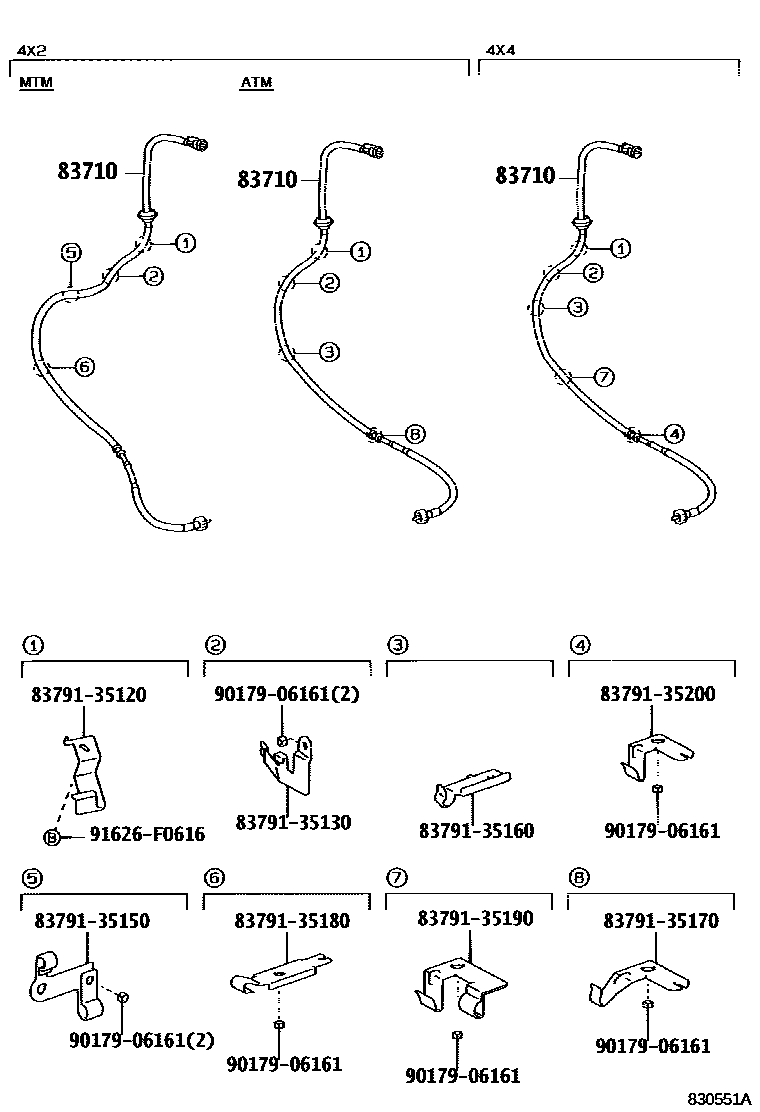

| 83710 | No. 1 speedometer transmission cable assembly | 83710-35540 · 83710-35560 · 83710-35570 · 83710-35580 · 83710-35590 · 83710-35680 · 83710-35690 |
| 83887 | No. 1 instrument cluster prism plate | 83887-35590 |
| 83910 | clock assembly | 83910-26020 |
| 83970 | Reversing warning buzzer assembly | 83970-12020 · 83970-20010 |
