Toyota HILUX 后组合灯 — Figure 8111

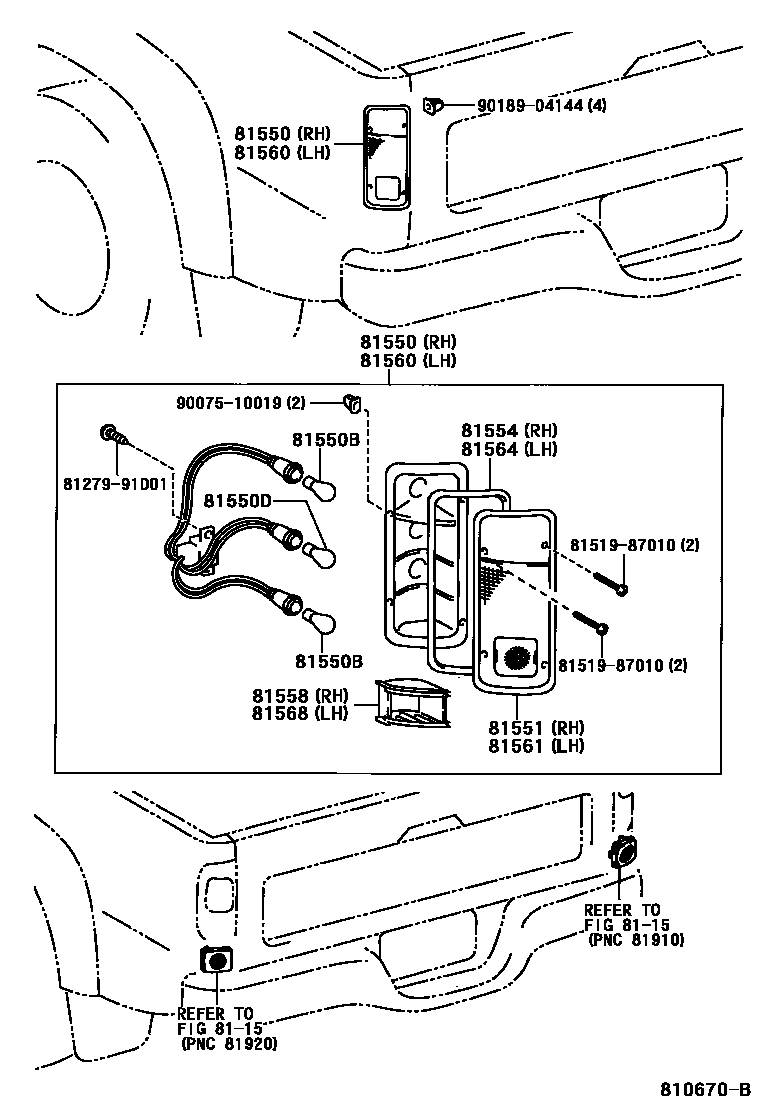

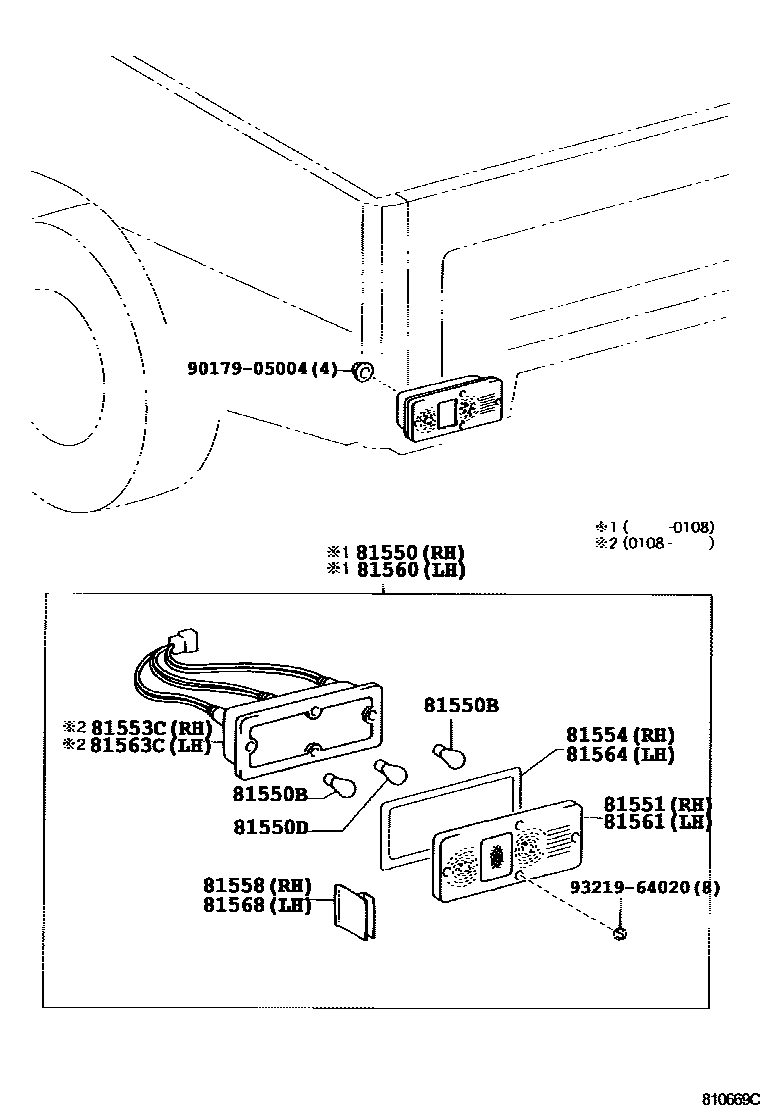

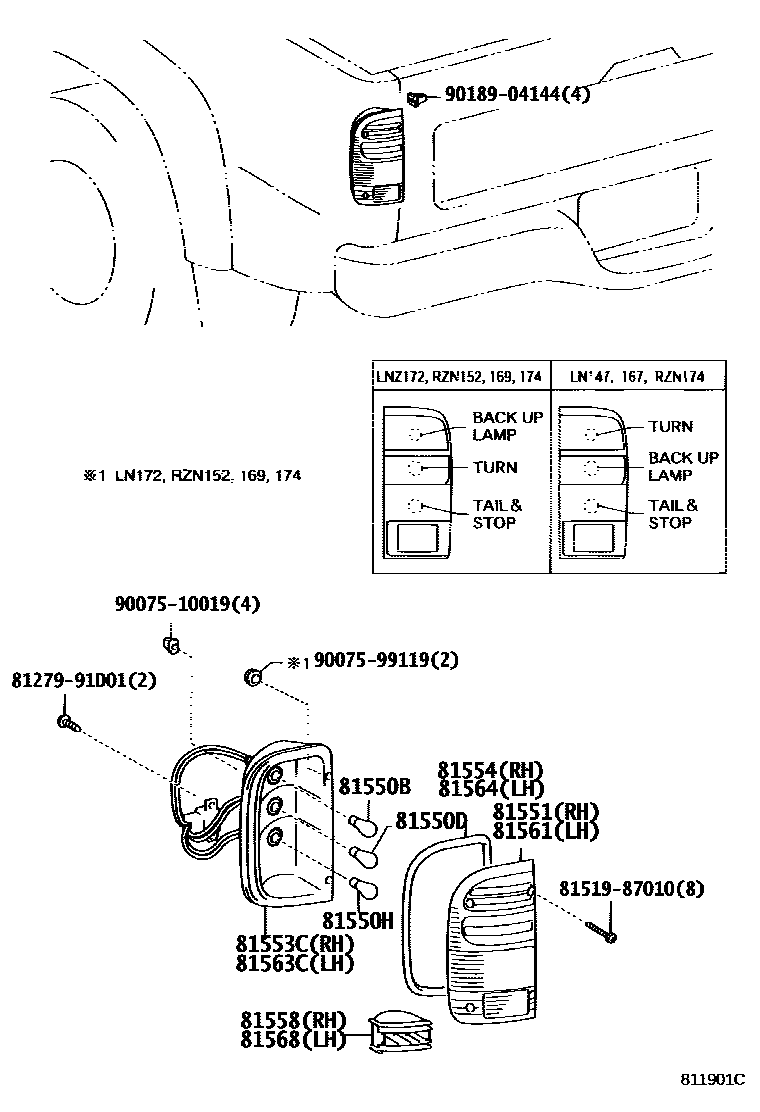

Toyota HILUX EPC diagram 8111, 后组合灯, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-35130 · 81550-35150 · 81550-89152 |
| 81550B | Bulb (for rear combination lights) | 90981-11059 · 90981-15009 · 99132-11210 · 99132-11230 · 99132-21210 |
| 81550D | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81550H | Tail and brake light bulbs | 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-25060 · 81551-35130 · 81551-35150 · 81551-35280 · 81551-35290 |
| 81553C | Right rear combination light body | 81553-35250 · 81553-35280 · 81553-89152 |
| 81554 | Right rear combination lamp body gasket | 81552-25060 · 81554-35130 |
| 81558 | No. 1 right rear combination light lampshade | 81557-25060 · 81557-35130 · 81557-35280 |
| 81560 | Left rear combination light assembly | 81560-35130 · 81560-35150 · 81560-89152 |
| 81561 | Left rear combination lamp shade | 81561-25040 · 81561-35130 · 81561-35150 · 81561-35240 · 81561-35250 |
| 81563C | Left rear combination light body | 81563-35210 · 81563-35240 · 81563-89152 |
| 81564 | Left rear combination lamp body gasket | 81554-35130 · 81562-25040 |
| 81568 | No. 1 left rear combination light lampshade | 81557-25060 · 81567-35130 · 81567-35240 |
