Toyota HILUX 前转向灯 — Figure 8103

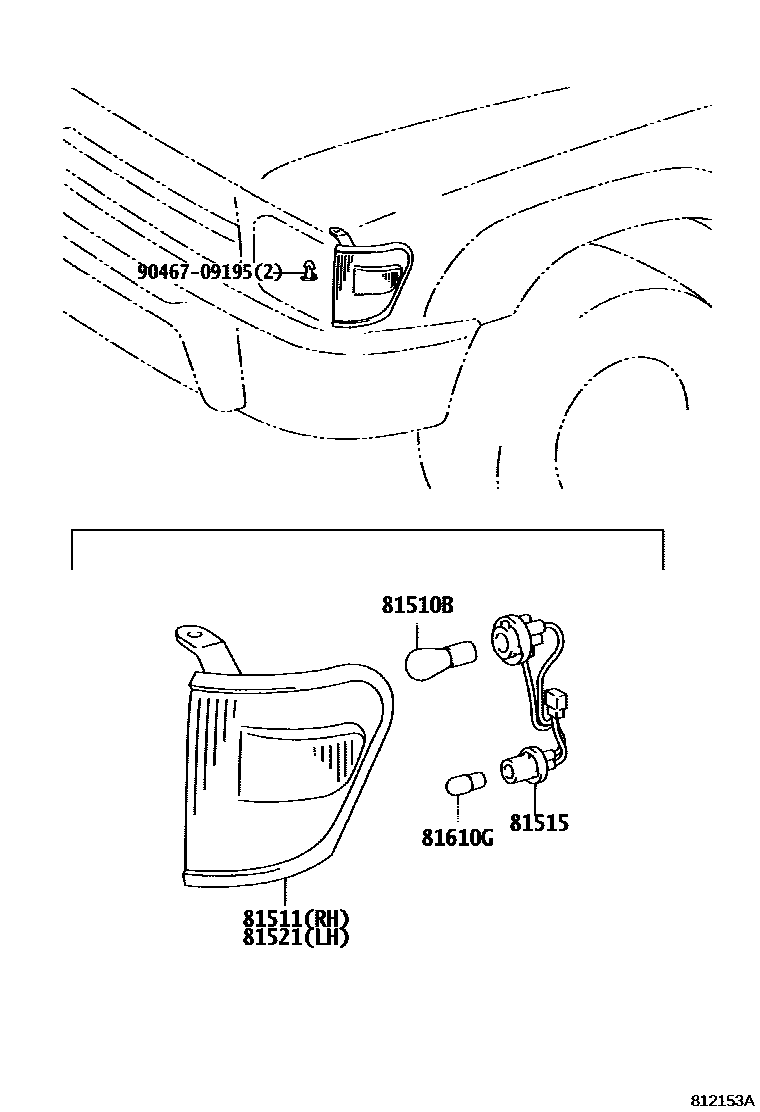

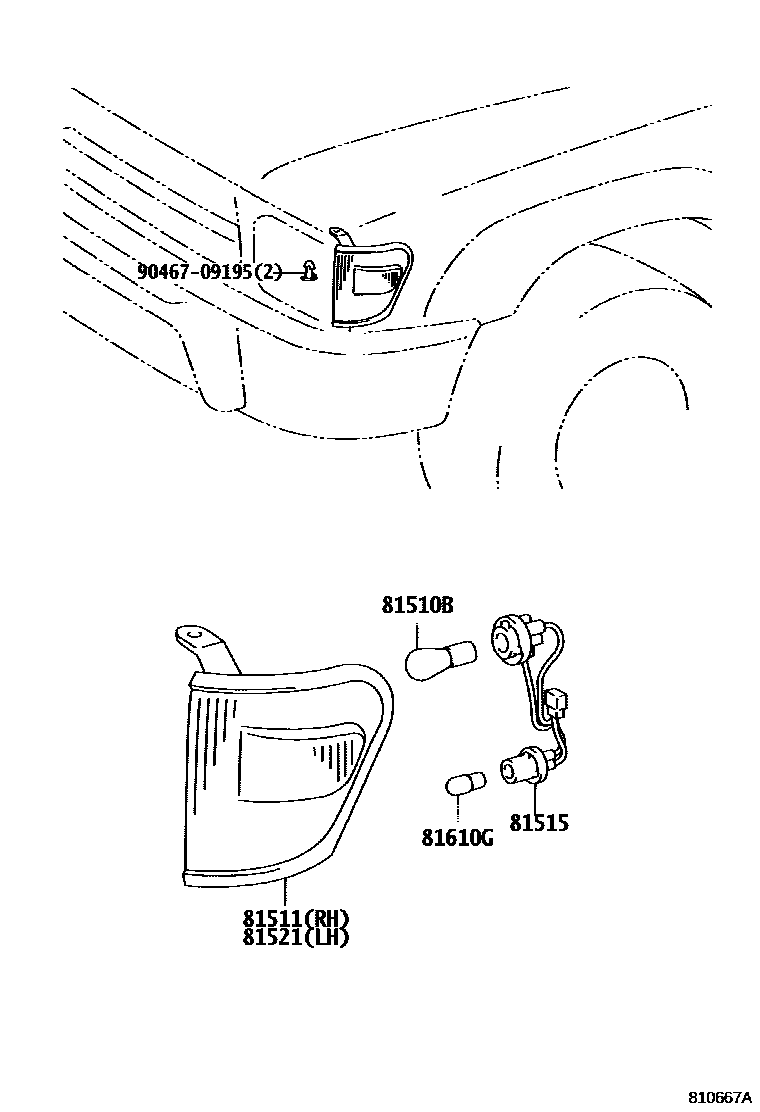

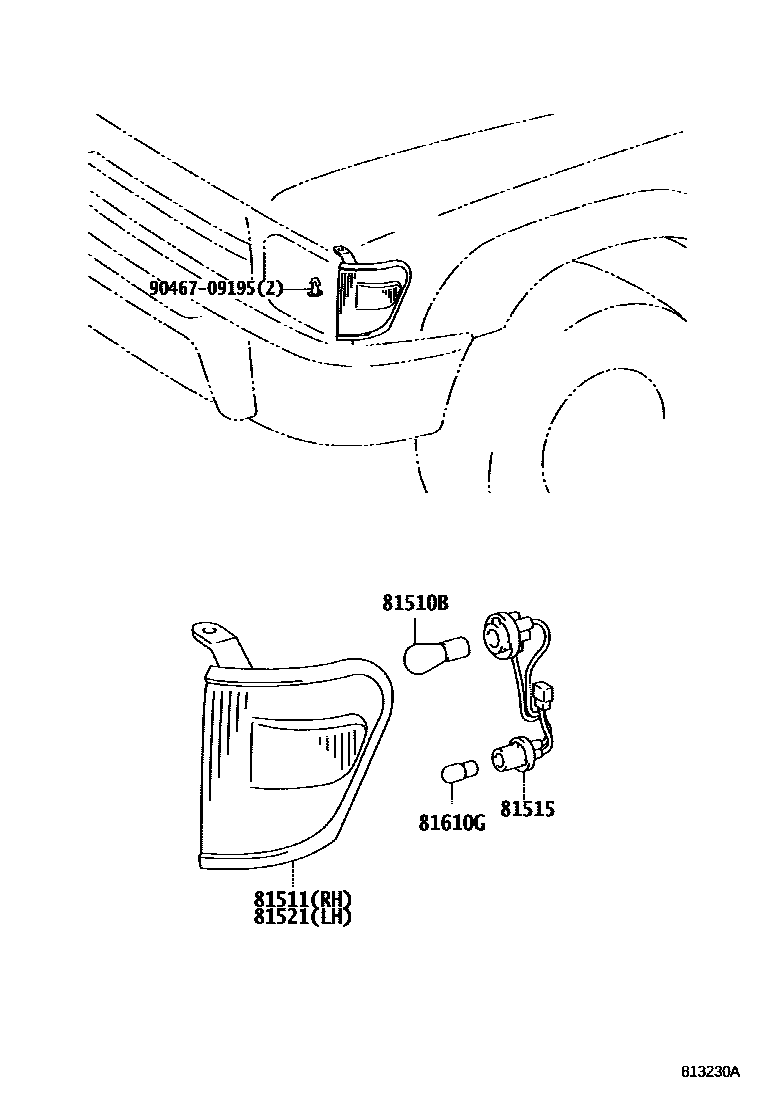

Toyota HILUX EPC diagram 8103, 前转向灯, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510B | Bulb (for front turn signal lamp) | 90981-13043 · 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-35140 · 81511-35141 · 81511-35161 · 81511-35170 · 81511-35171 · 81511-35220 · 81511-35221 · 81511-35290 · 81511-35330 |
| 81515 | Front turn signal light body wiring harness sub-assembly | 81515-35150 · 81515-35290 |
| 81521 | Left front turn signal lamp cover | 81521-35060 · 81521-35061 · 81521-35151 · 81521-35160 · 81521-35161 · 81521-35210 · 81521-35211 · 81521-35280 · 81521-35320 |
| 81610G | Light bulb (for width indicator light) | 99132-12050 |
