Toyota HILUX accelerator pedal connecting rod — Figure 7851

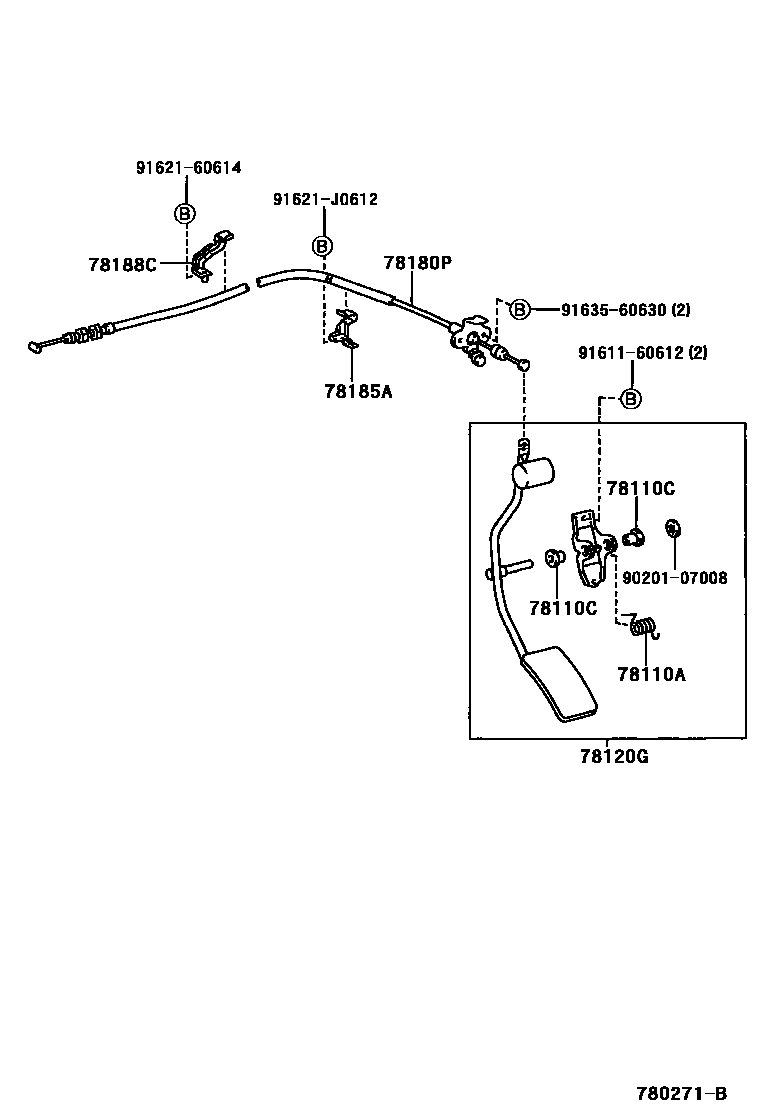

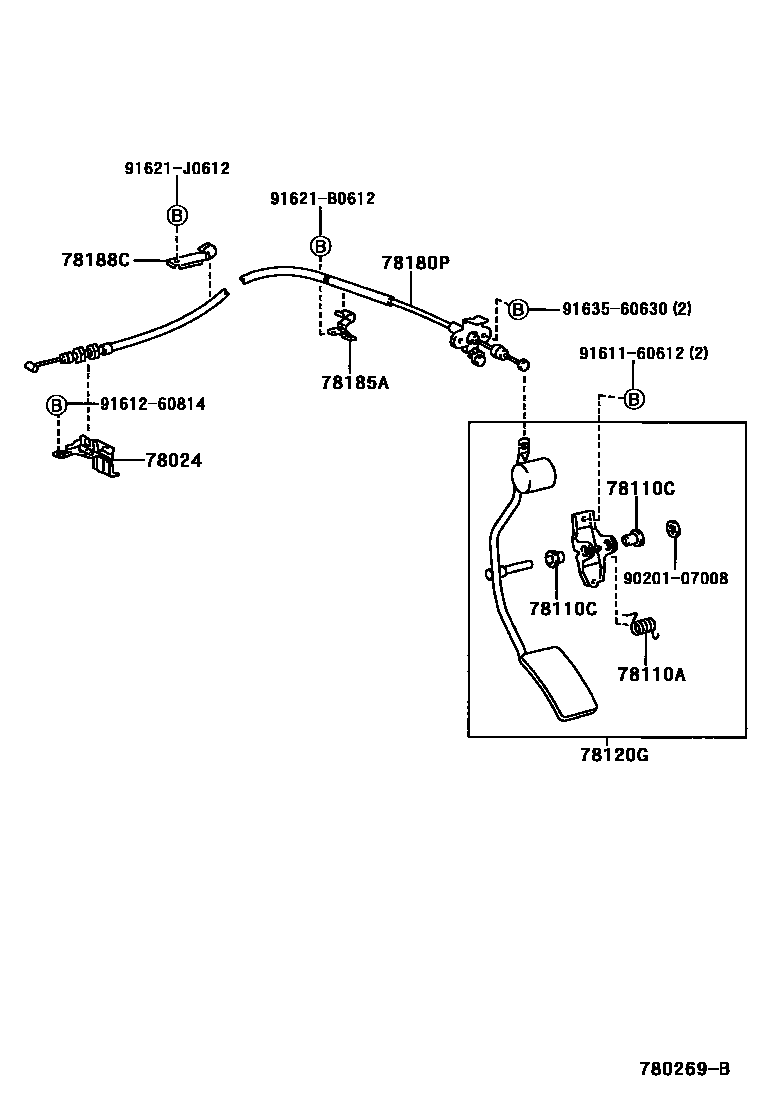

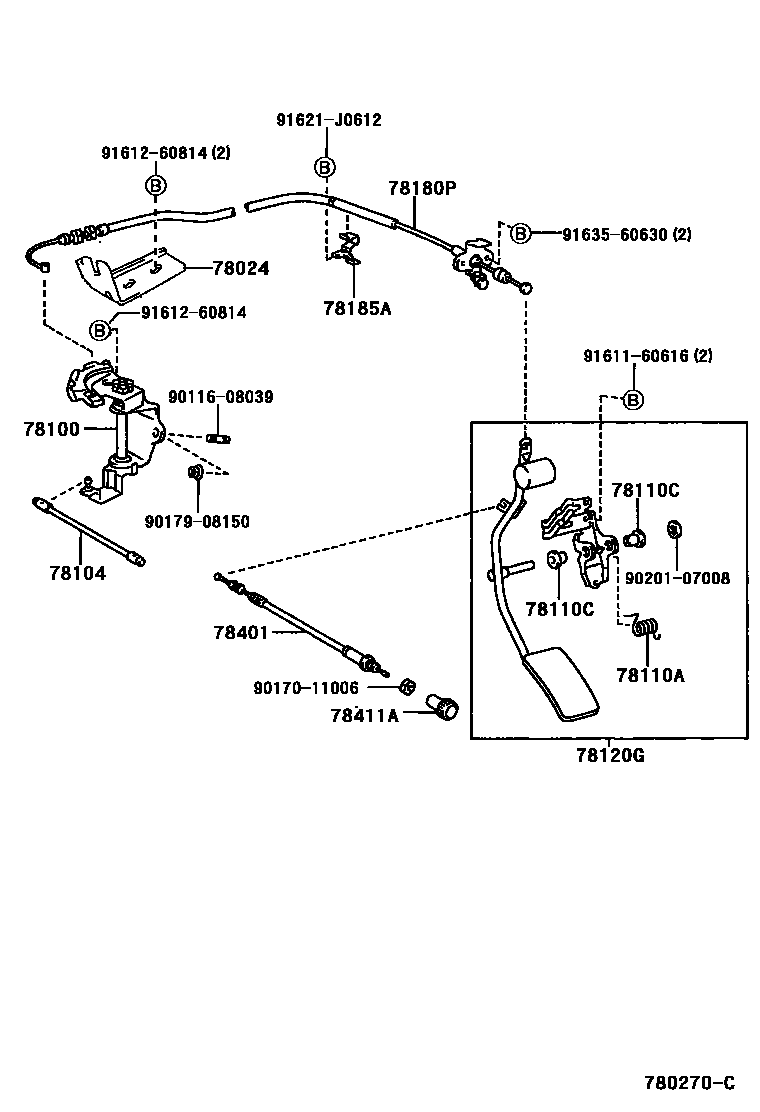

Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-22100 · 78024-26020 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-35071 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-22140 |
| 78110A | Spring (for accelerator pedal lever) | 90508-23075 · 90508-32031 · 90959-03085 · 90959-03088 · 90959-03089 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08063 |
| 78120G | Accelerator pedal lever assembly | 78120-35180 · 78120-35190 · 78120-35200 · 78120-35230 · 78120-35290 |
| 78180P | Accelerator pedal control cable assembly | 78180-35300 · 78180-35310 · 78180-35370 · 78180-35430 |
| 78185A | No. 2 accelerator pedal control cable clip | 78185-35070 · 78185-35080 · 78185-35090 · 78185-35100 |
| 78188C | No. 5 accelerator pedal control cable clip | 78188-35040 · 78188-35120 · 78188-35130 |
| 78401 | Throttle valve control cable sub-assembly | 78401-35090 |
| 78411A | Throttle control cable button | 78411-89105 |
