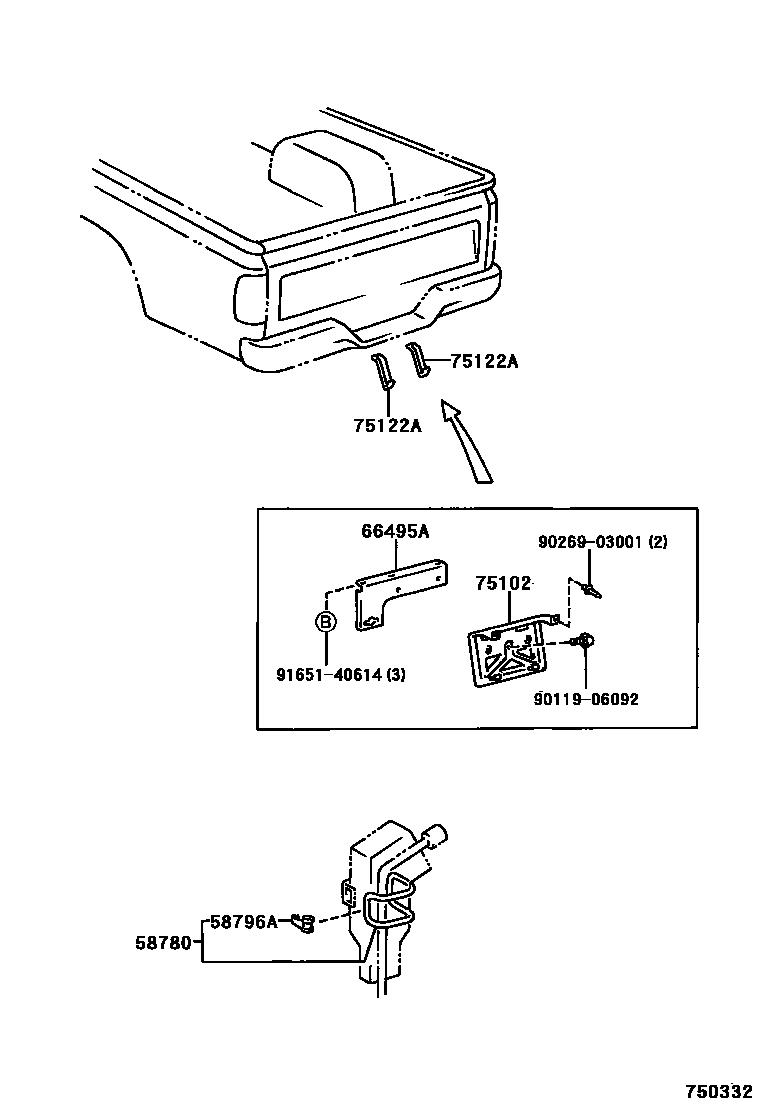

Toyota HILUX 工具箱和牌照支架 — Figure 7554
Toyota HILUX EPC diagram 7554, 工具箱和牌照支架, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58780 | Tool box strap assembly | 58780-89102 · 58780-89103 |
| 58796A | Jack clamp hook | 58796-20012 |
| 66495A | license plate hanger bracket | 66495-35010 |
| 75102 | Rear license plate bracket sub-assembly | 75102-89117 |
| 75122A | No. 2 rear license plate bracket | 75122-89106 |
