Toyota HILUX warning nameplate — Figure 7455

Toyota HILUX EPC diagram 7455, warning nameplate, with 1 images and 10 PNC and OE references.

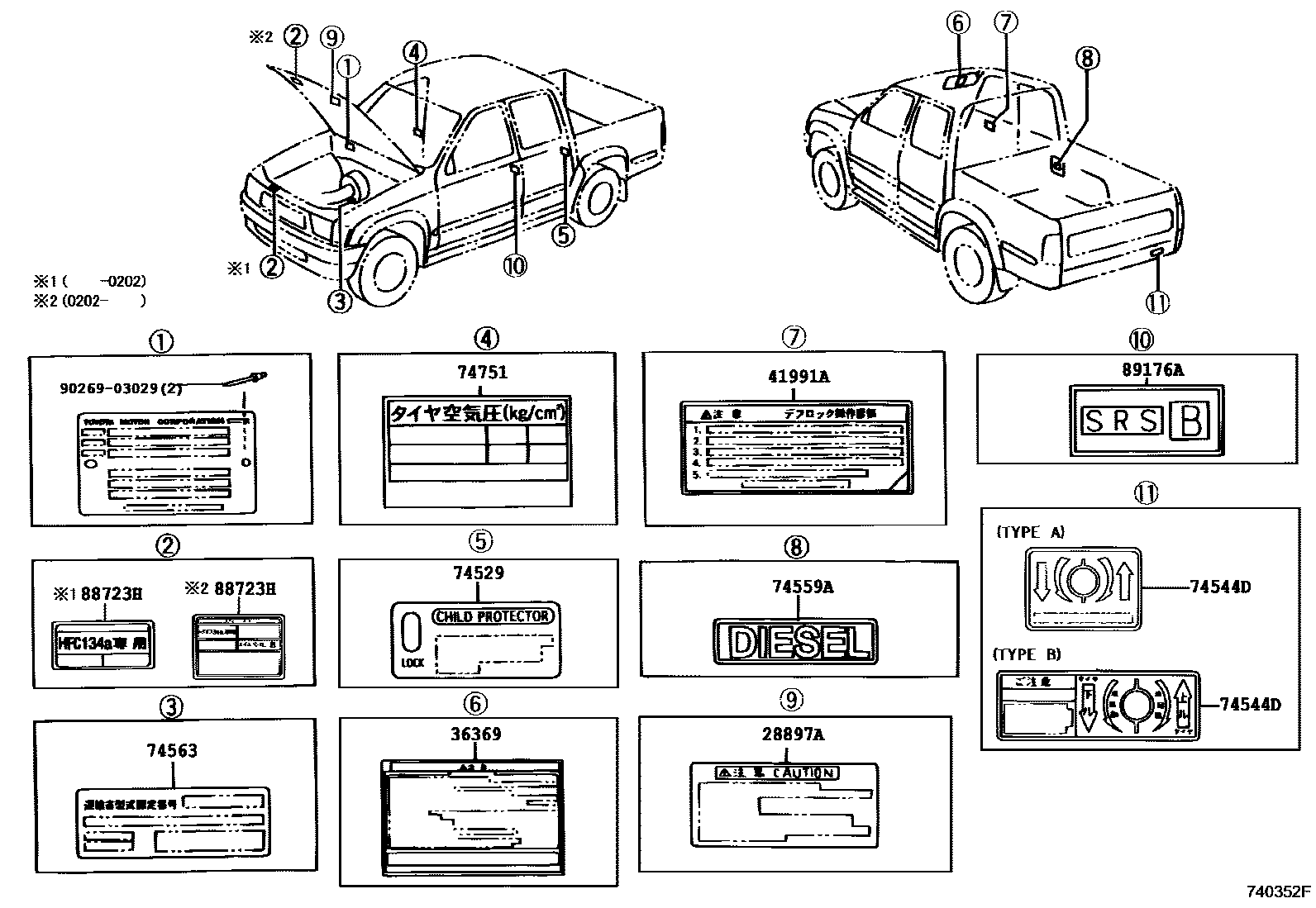

Toyota HILUX warning nameplate EPC diagram — 740352F
warning nameplate — 740352F (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
28897ABattery warning nameplate28897-54030
36369Transfer case information label36369-35460
41991Awarning nameplate41991-35010
74529Child safety or child restraint lock warning nameplate69339-12010
74544DTire carrier warning nameplate74544-35060 · 74544-35080 · 74544-35090 · 74544-35110
74559AFuel warning plate74559-89101
74563Emission control equipment identification plate74563-35130 · 74563-35160 · 74563-35170
74751tire pressure information label42661-35241 · 42661-35242 · 42661-35243 · 42661-35401 · 42661-35402 · 42661-35430 · 42661-35431 · 42661-35432 · 42661-35440 · 42661-35441 · 42661-35450 · 42661-35451 · 74552-35131 · 74552-35132
88723HCooler maintenance warning label88723-20030 · 88733-22040
89176AAir bag deployment information label89176-51010
