Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 4 images and 1 PNC and OE references.

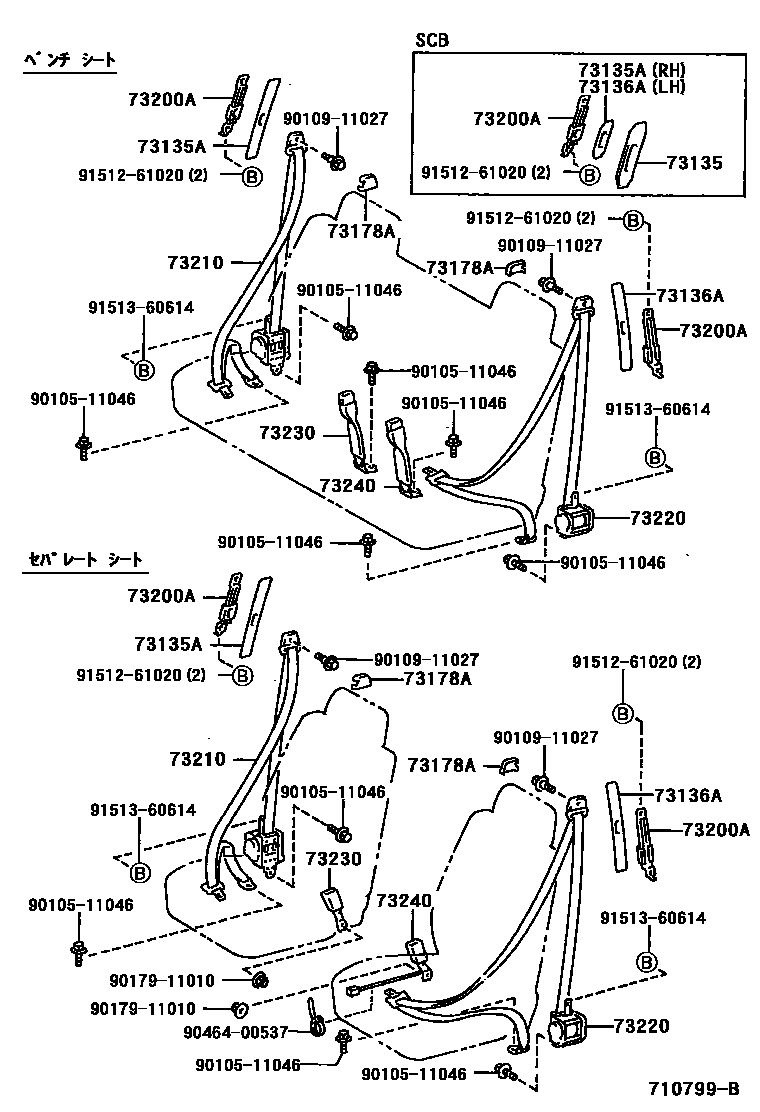

Toyota HILUX seat belt EPC diagram — 710799B — seat belt — 710799B (199708 – 999999)

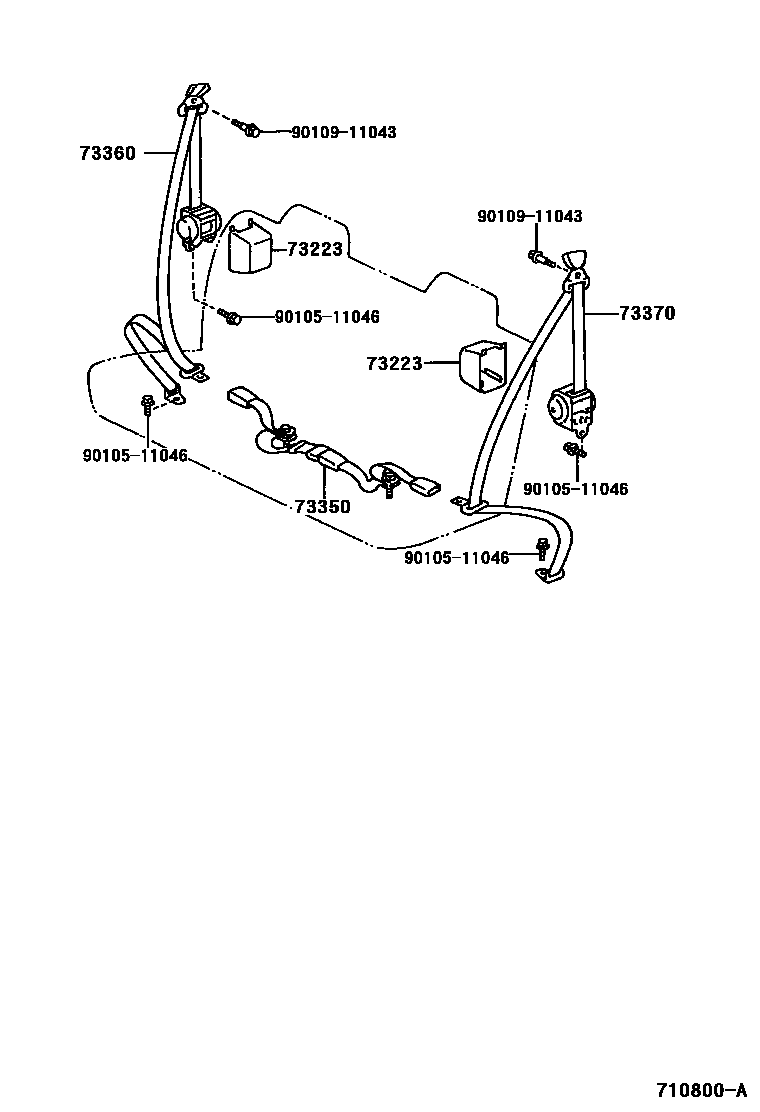

Toyota HILUX seat belt EPC diagram — 710800A — seat belt — 710800A (199708 – 999999)

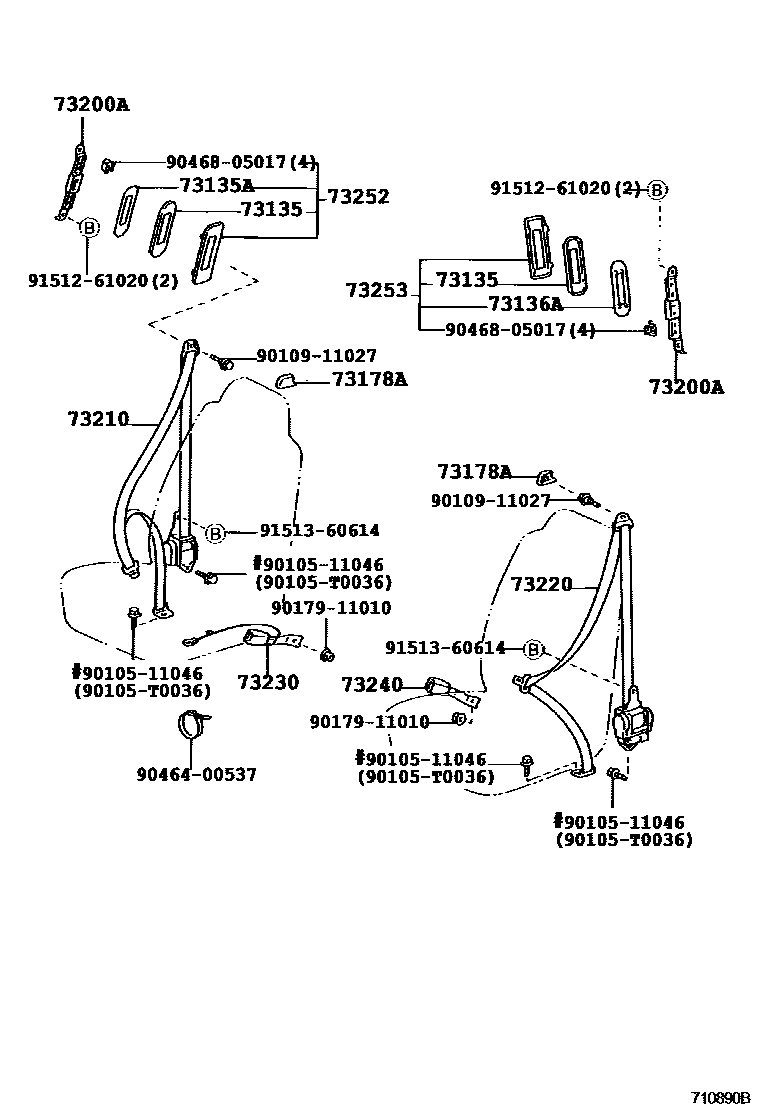

Toyota HILUX seat belt EPC diagram — 710890B — seat belt — 710890B (199711 – 999999)

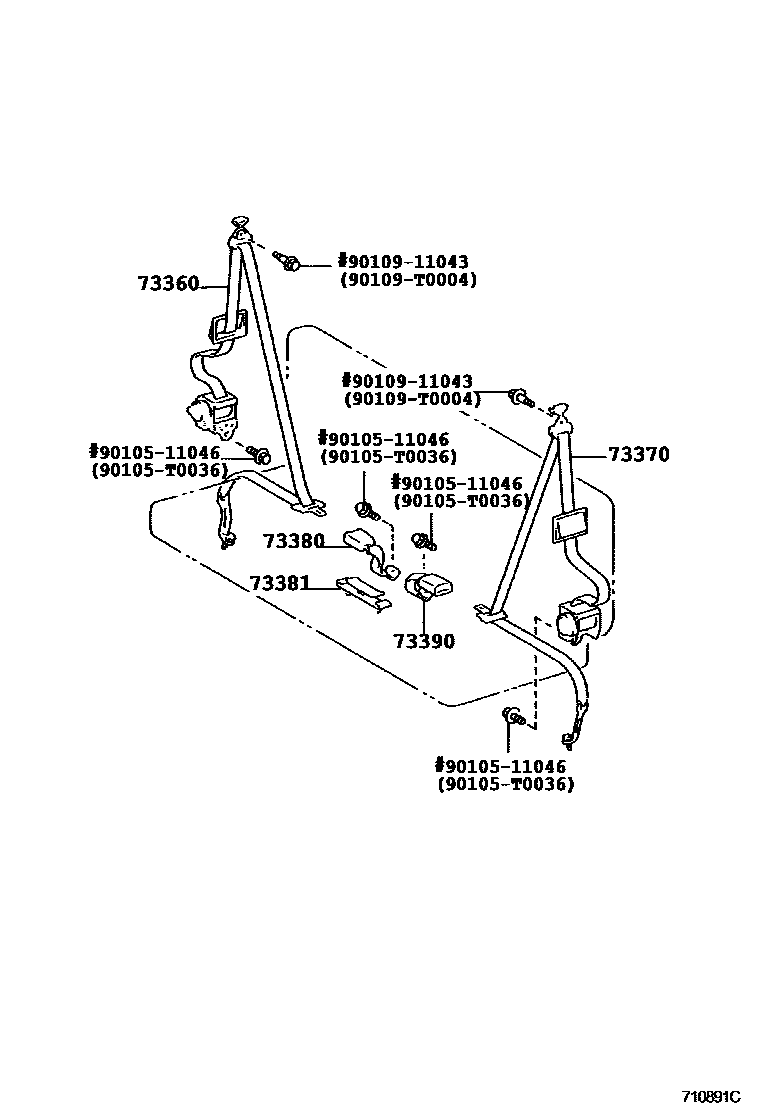

Toyota HILUX seat belt EPC diagram — 710891C — seat belt — 710891C (199711 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73200A	Front shoulder seat belt anchor adjuster assembly	73200-34030
