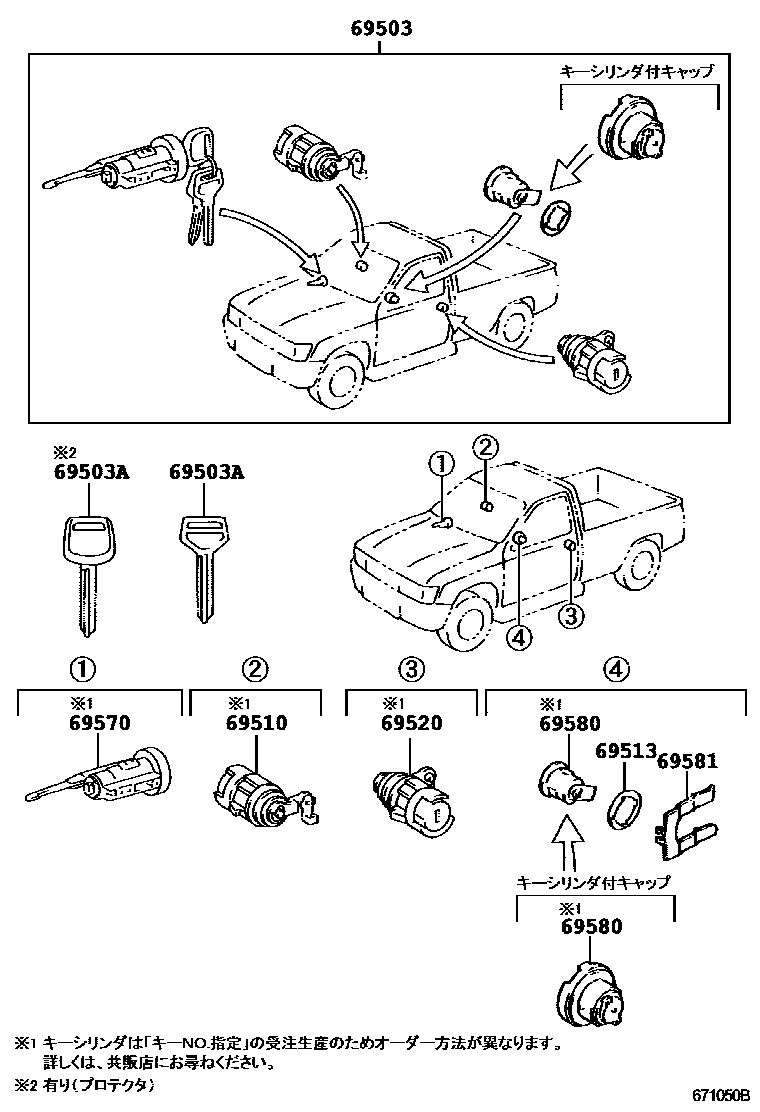

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-35540 · 69005-35600 · 69005-35601 · 69005-35610 · 69005-35620 · 69005-35790 · 69005-35800 · 69005-35810 · 69005-35820 |
| 69503A | external tooth key | 90999-00130 · 90999-00132 |
| 69510 | Right front door lock cylinder assembly | 69510-35090 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69520 | Left front door lock cylinder assembly | 69520-35060 |
| 69570 | Ignition switch lock cylinder assembly | 69570-35040 |
| 69580 | Fuel filler cap lock cylinder assembly | 69580-35020 · 69580-35021 · 77310-35090 · 77310-35100 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
