Toyota HILUX 后门板和后门玻璃 — Figure 6755

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 2 images and 26 PNC and OE references.

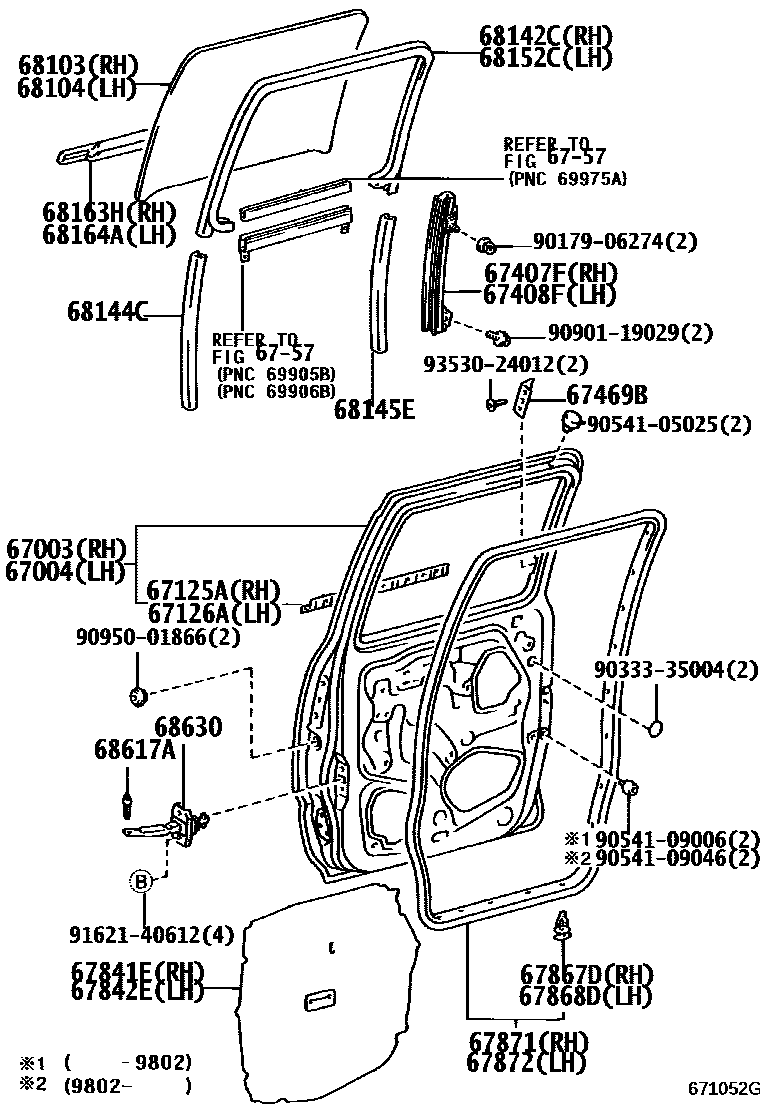

Toyota HILUX 后门板和后门玻璃 EPC diagram — 671052G
后门板和后门玻璃 — 671052G (199708 – 999999)

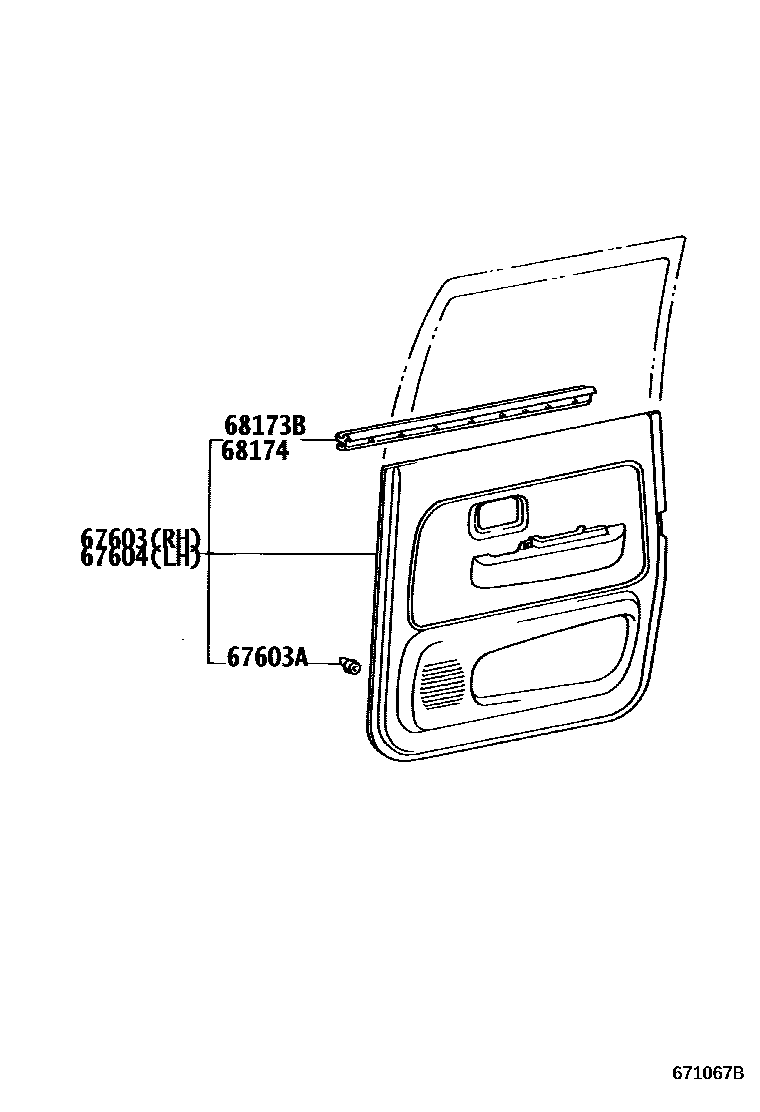

Toyota HILUX 后门板和后门玻璃 EPC diagram — 671067B
后门板和后门玻璃 — 671067B (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-35110
67004Left rear door panel sub-assembly67004-35110
67125ARight rear door outer panel reinforcement67125-35020
67126ALeft rear door outer panel reinforcement67125-35020
67407FRight rear door window rear lower frame sub-assembly67407-35020
67408FLeft rear door window rear lower frame sub-assembly67408-35020
67469BRear door window frame lower bracket67469-35020
67603AFixings (for rear door trim)67771-16120
67841ERight rear door access hole cover67841-35060 · 67841-35080
67842ELeft rear door access hole cover67841-35060 · 67842-35040
67867DRight rear door seal strip fixing67867-89103
67868DLeft rear door seal strip fixing67868-89101
67871Right rear door sealing strip67871-35040 · 67871-35041 · 67871-35050
67872Left rear door sealing strip67872-35040 · 67872-35041 · 67872-35050
68103Right rear door glass sub-assembly68113-35010
68104Left rear door glass sub-assembly68114-35010
68142CRight rear door glass lift slot68142-35020 · 68142-35021
68144CRear door glass front lower lift chute68144-35010 · 68144-35011 · 68153-35010 · 68153-35011
68145ERear door glass rear lower lift chute68145-35010 · 68145-35011
68152CLeft rear door glass lift slot68152-35020 · 68152-35021
68163HRight rear door glass outer sealing strip68163-35020 · 68163-35021
68164ALeft rear door glass outer sealing strip68164-35020 · 68164-35021
68173BRight rear door glass inner sealing strip68173-35020 · 68173-35021
68174Left rear door glass inner sealing strip68173-35020 · 68173-35021
68617ARear door opening limiter pin68617-12030 · 68617-20011
68630Rear door opening limiter assembly68630-35050
