Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 3 images and 28 PNC and OE references.

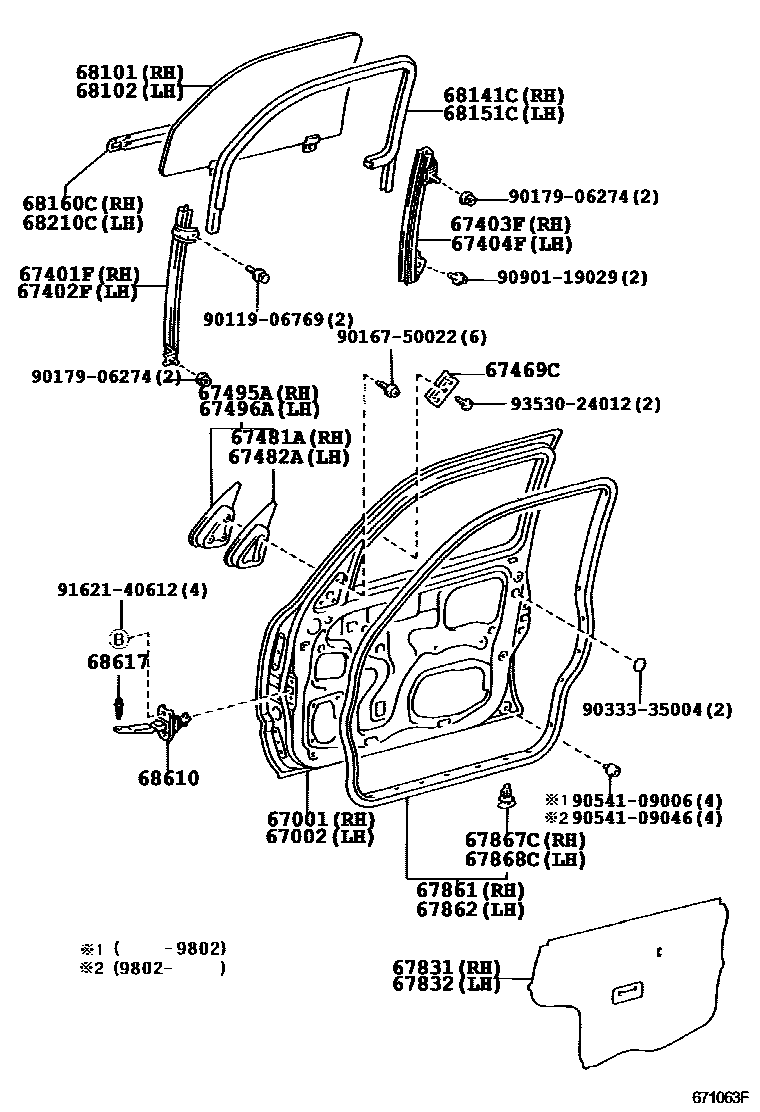

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-35340 · 67001-35530 |
| 67002 | Left front door panel sub-assembly | 67002-35470 · 67002-35500 · 67002-35560 · 67002-35580 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-35040 · 67401-35050 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-35050 · 67402-35060 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-35070 · 67403-35080 · 67403-35081 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-35070 · 67404-35080 · 67404-35081 |
| 67469C | Front door window frame lower bracket | 67469-35020 |
| 67481A | Right front door front lower door frame seal | 67481-35020 |
| 67482A | Left front door front lower door frame seal | 67482-35010 |
| 67495A | Right front door front lower door frame upper cover | 67091-35010 |
| 67496A | Left front door front lower door frame upper cover | 67092-35010 |

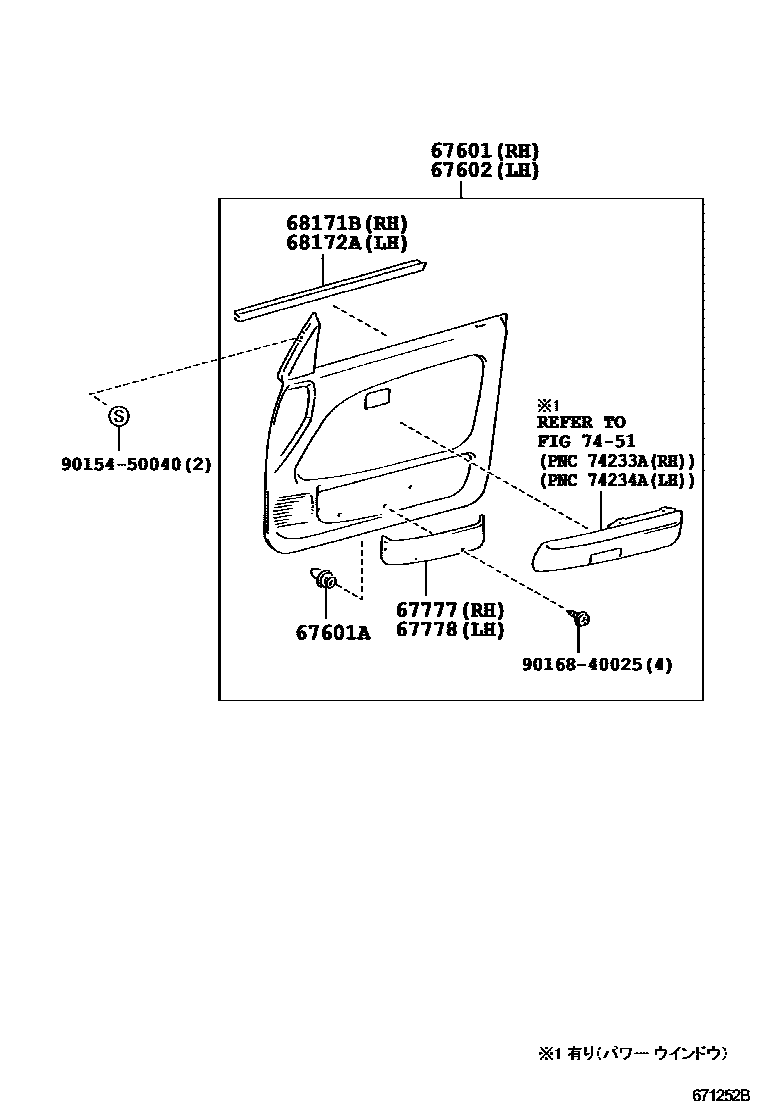

| 67601A | Fixings (for front door trim) | 67771-16120 · 67921-95501 · 90467-10161 |
| 67831 | Right front door access hole cover | 67831-35090 · 67831-35110 |
| 67832 | Left front door access hole cover | 67831-35080 · 67831-35100 · 67832-35050 · 67832-35060 |
| 67861 | Right front door seal | 67861-35050 · 67861-35051 · 67861-35060 · 67861-35061 · 67861-35070 · 67861-35080 |
| 67862 | Left front door seal | 67862-35040 · 67862-35041 · 67862-35050 · 67862-35051 · 67862-35060 · 67862-35070 |
| 67867C | Right front door seal strip fixing | 67867-89103 |
| 67868C | Left front door seal strip fixing | 67868-89101 |
| 68101 | Right front door glass sub-assembly | 68101-35120 · 68101-35130 |
| 68102 | Left front door glass sub-assembly | 68102-35120 · 68102-35130 |
| 68141C | Right front door glass lift channel | 68141-35030 · 68141-35031 · 68141-35050 |
| 68151C | Left front door glass lift channel | 68151-35030 · 68151-35031 · 68151-35050 |
| 68160C | Right front door glass outer sealing strip assembly | 68161-35020 · 68161-35021 · 68161-35040 · 68161-35041 |
| 68171B | Right front door glass inner sealing strip | 68171-35040 · 68171-35041 · 68171-35060 · 68171-35061 |
| 68172A | Left front door glass inner sealing strip | 68171-35040 · 68171-35041 · 68171-35060 · 68171-35061 |
| 68210C | Left front door glass outer sealing strip assembly | 68162-35020 · 68162-35021 · 68162-35040 · 68162-35041 |
| 68610 | Front door opening limiter assembly | 68610-35050 |
| 68617 | Front door opening limiter pin | 68617-12030 · 68617-20011 |
