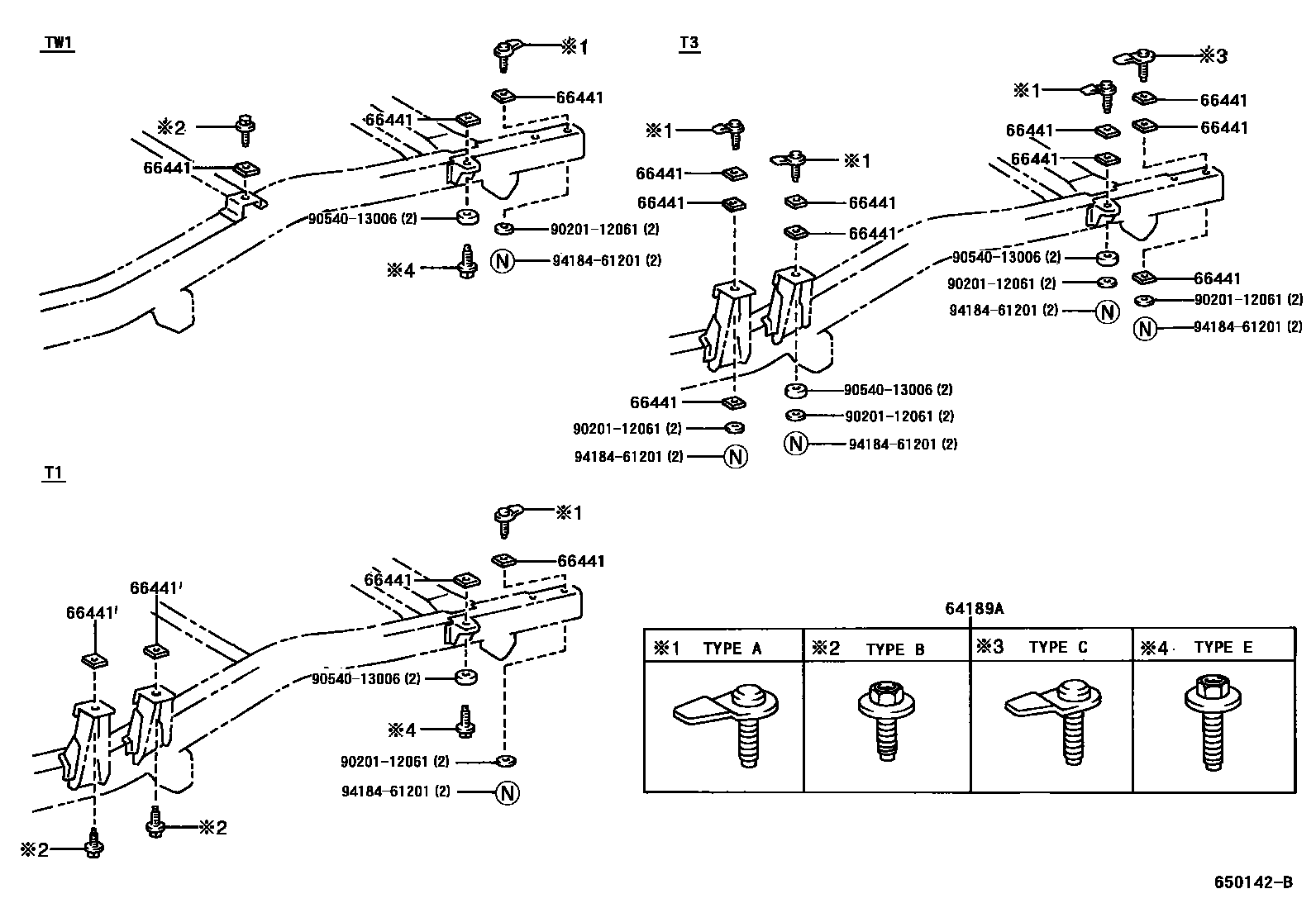

Toyota HILUX 后车身悬置 — Figure 6558
Toyota HILUX EPC diagram 6558, 后车身悬置, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64189A | Rear body mounting bolts | 64189-35010 · 64189-35040 · 64189-35050 · 64189-89104 |
| 66441 | No. 1 mounting gasket | 90950-04028 · 90950-04030 |
