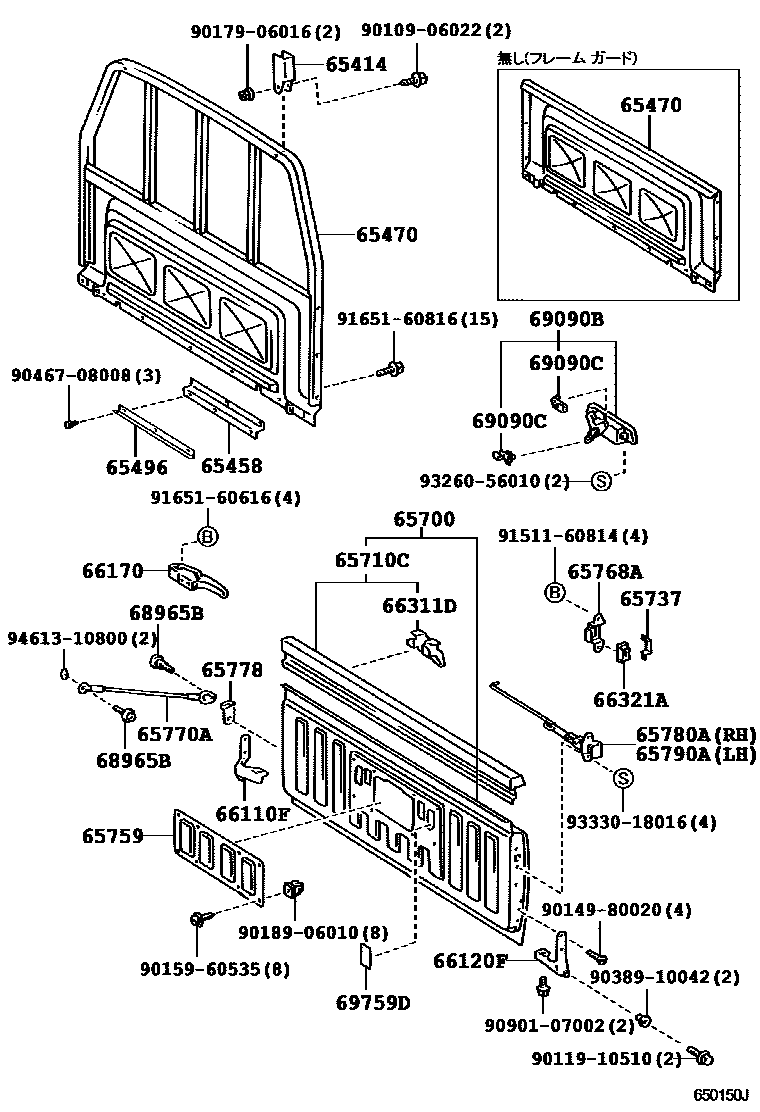

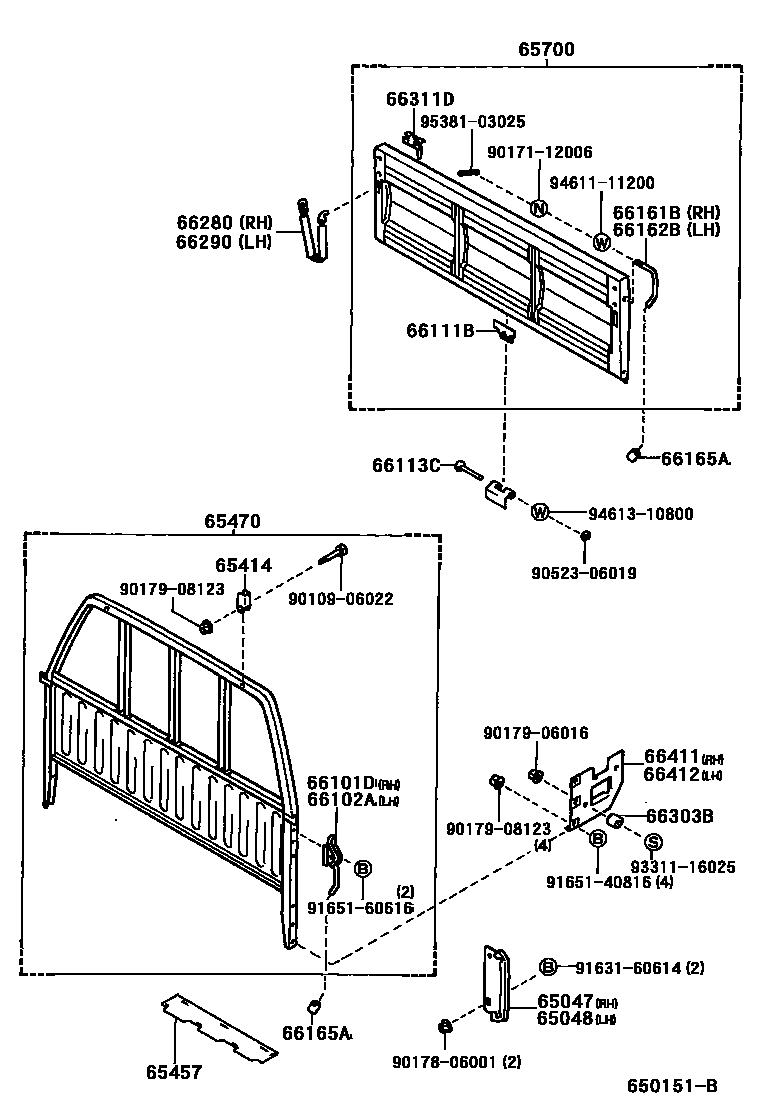

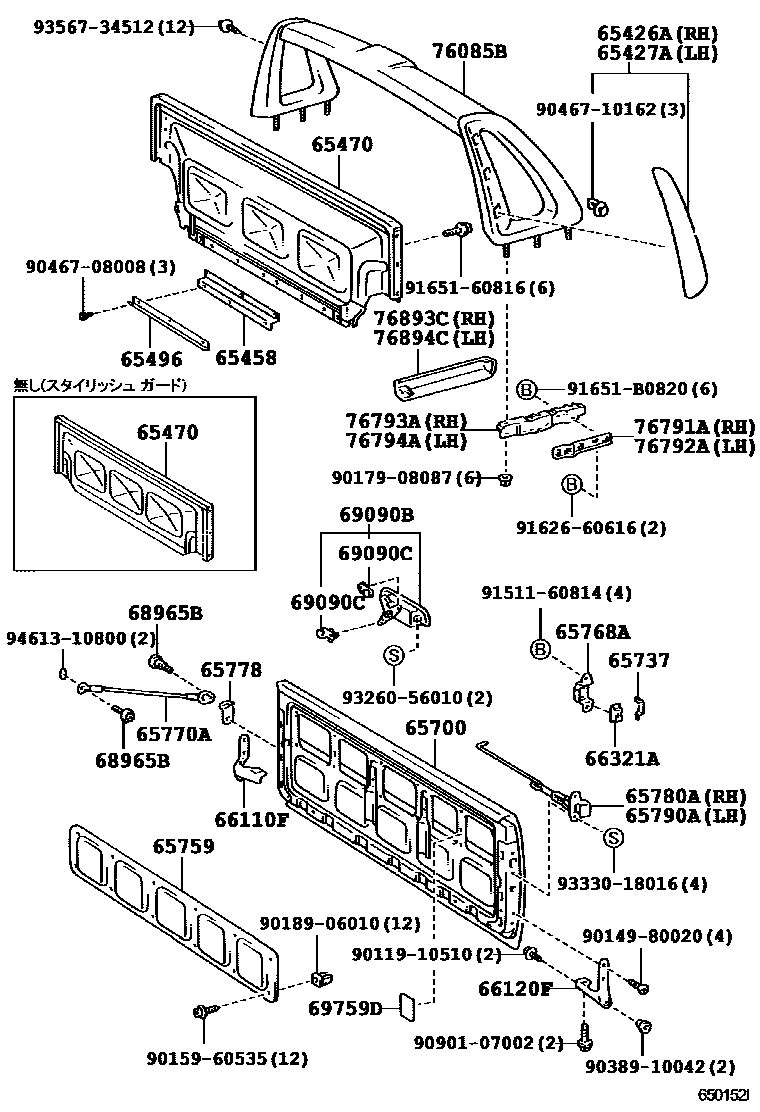

Toyota HILUX 后车身防护架和背门 — Figure 6553
Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65047 | Right side guardrail frame protection sub-assembly | 65047-35020 |
| 65048 | Left side guardrail frame protection sub-assembly | 65048-35020 |
| 65414 | guardrail frame stop | 65414-89102 |
| 65426A | Right rear body guardrail | 65426-35010 |
| 65427A | Left rear body guardrail | 65427-35010 |
| 65457 | Rear body dust baffle | 65457-89102 |
| 65458 | Rear body left dust baffle | 65458-35010 |
| 65470 | Top plate assembly | 65470-35050 · 65470-35100 · 65470-35110 · 65470-35120 · 65470-35160 · 65470-35170 · 65470-35180 · 65470-35190 |
| 65496 | No. 4 rear body guardrail frame seal | 64122-35010 |
| 65700 | Rear body back door assembly | 65700-35090 · 65700-35100 · 65700-35120 · 65700-35130 · 65700-89146 · 65700-89147 · 65700-89149 · 65700-89151 · 65700-89152 |
| 65710C | Back door top slide rail assembly | 65710-35010 · 65710-89114 · 65710-89115 |
| 65737 | Back door stopper | 65737-89105 |
| 65759 | Rear door access hole cover | 65759-89102 · 65759-89105 |
| 65768A | Back door latch | 65768-89102 |
| 65770A | Back door support rod assembly | 65770-35010 |
| 65778 | Back door support rod stop | 65778-35010 |
| 65780A | Back door right lock assembly | 65780-35030 |
| 65790A | Back door left lock assembly | 65780-35030 · 65790-35040 · 65790-35050 |
| 66101D | Railing lock bolt sub-assembly | 66101-87401 |
| 66102A | Railing lock bolt sub-assembly | 66102-87401 |
| 66110F | Back door right hinge assembly | 66110-89108 |
| 66111B | Rear door protruding hinge | 66111-87404 |
| 66113C | Railing hinge pin | 66113-89105 |
| 66120F | Back door left hinge assembly | 66120-89102 |
| 66161B | Rear door latch right handle | 66161-87403 |
| 66162B | Rear door latch left handle | 66162-87402 |
| 66165A | Railing latch handle cover | 66165-87402 |
| 66170 | Rear body back door lock bolt assembly | 66170-89106 |
| 66280 | Back door right chain assembly | 66280-95700 |
| 66290 | Back door left chain assembly | 66280-95700 |
| 66303B | Rubber buffer pad sub-assembly | 52208-89101 |
| 66311D | rope hook | 66311-87401 · 66311-89109 |
| 66321A | Railing rubber buffer block | 66321-89109 |
| 66411 | Right guardrail frame bracket | 66411-95701 |
| 66412 | Left guardrail frame bracket | 66412-95701 |
| 68965B | Back door support rod shaft | 68965-35010 |
| 69090B | Rear door handle assembly | 69090-89101 · 69090-89102 |
| 69090C | Rear door handle buckle | 69759-20100 · 69759-20110 |
| 69759D | Rear door lock link silencer | 69759-35020 |
| 76085B | Rear spoiler sub-assembly | 76085-35900 · 76085-35902 |
| 76791A | No. 1 right rear lower spoiler bracket | 76791-35010 |
| 76792A | No. 1 left rear spoiler bracket | 76792-35010 |
| 76793A | No. 2 right rear spoiler bracket | 76793-35010 |
| 76794A | No. 2 left rear spoiler bracket | 76794-35010 |
| 76893C | Right rear spoiler cover | 76893-35901 · 76893-35902 |
| 76894C | Left rear spoiler cover | 76894-35901 · 76894-35902 |
