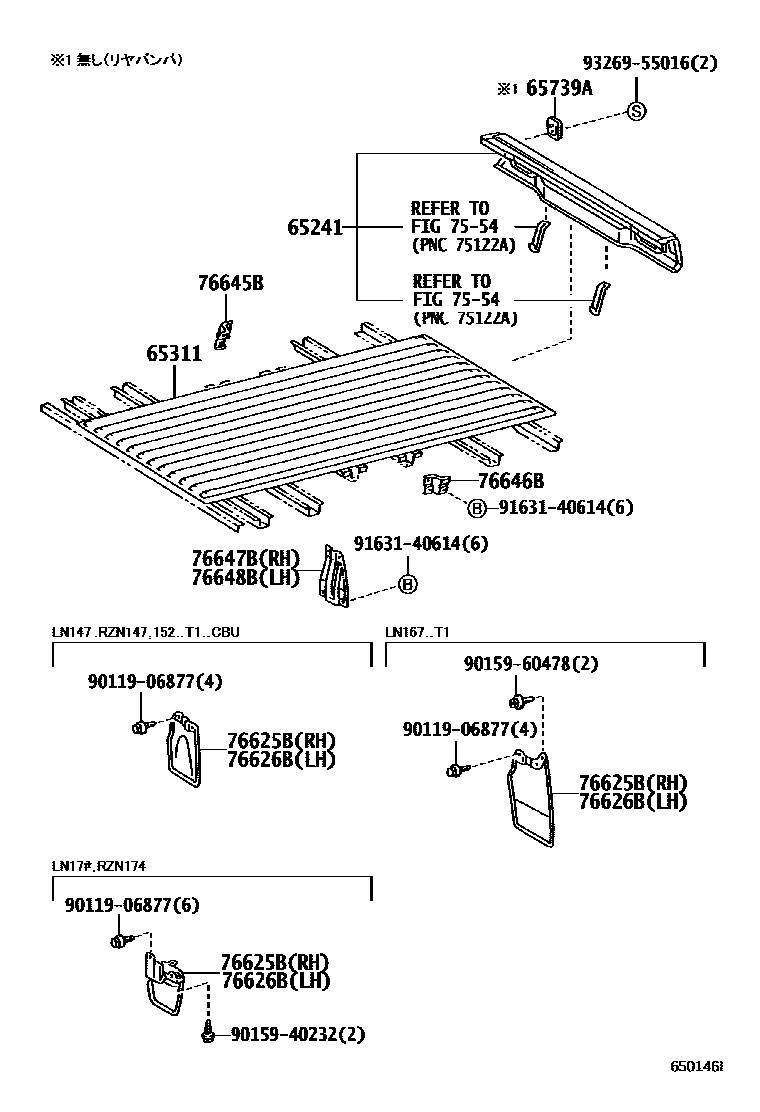

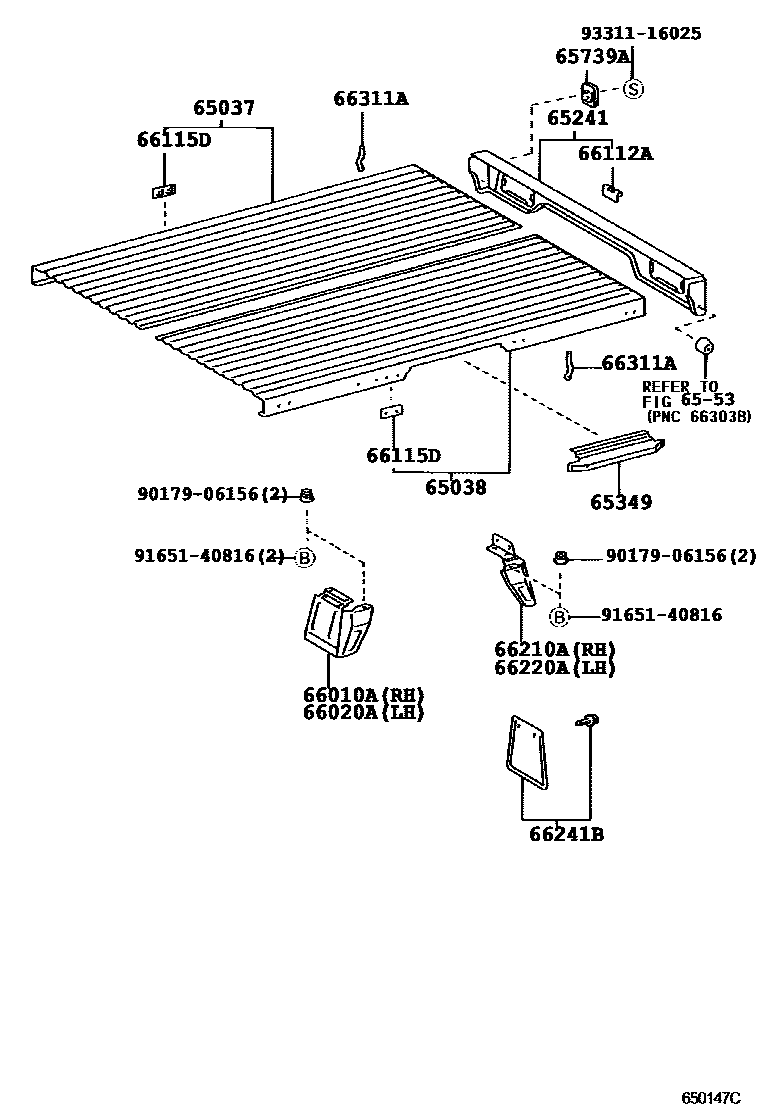

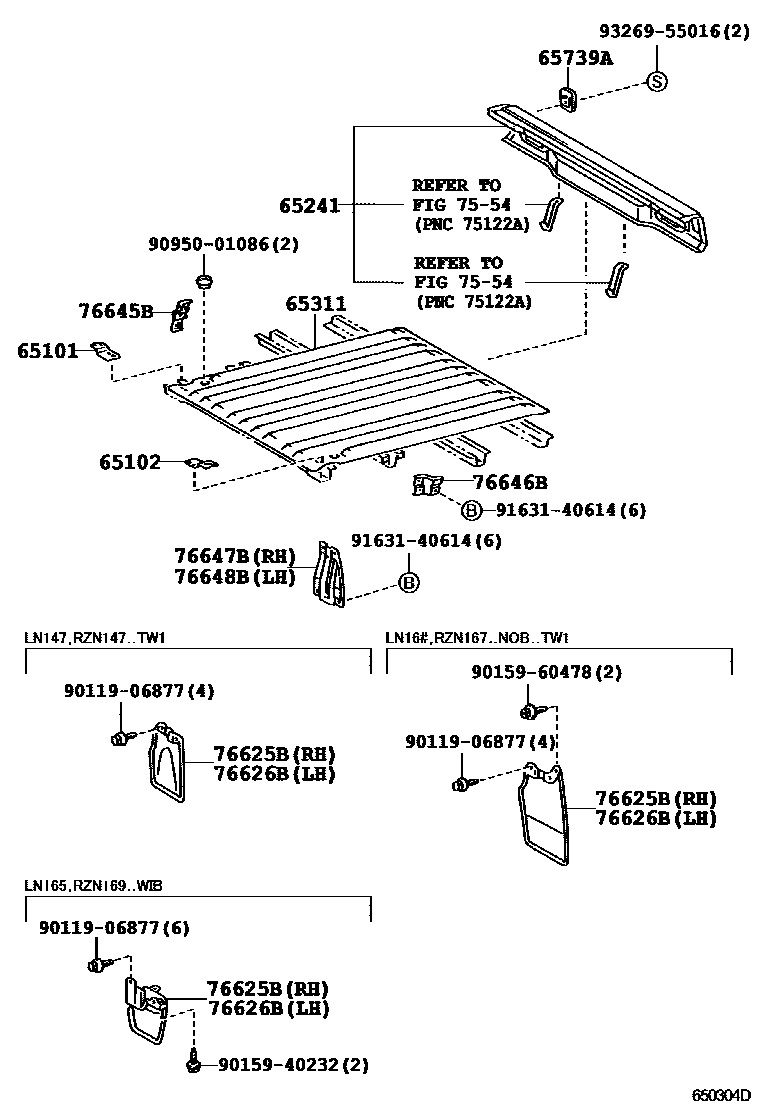

Toyota HILUX 后车身地板和翼子板 — Figure 6552
Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65037 | Floor right side panel sub-assembly | 65037-89103 |
| 65038 | Floor left panel sub-assembly | 65038-89102 |
| 65101 | No. 1 longitudinal beam mounting bracket sub-assembly | 65101-35010 |
| 65102 | No. 2 longitudinal beam mounting bracket sub-assembly | 65102-35010 |
| 65241 | rear cross member | 65240-35040 · 65240-35080 · 65240-89133 |
| 65311 | central floor | 65311-04050 · 65311-35050 · 65311-89129 |
| 65349 | Floor side fender | 65349-35010 · 65349-35020 |
| 65739A | Back door buffer block | 65739-89103 · 66303-87403 |
| 66010A | No. 2 right rear fender assembly | 66010-89102 |
| 66020A | No. 2 left rear fender assembly | 66020-89102 |
| 66112A | Railing recessed hinges | 66112-87402 |
| 66115D | Railing hinge fixings | 66115-95701 |
| 66210A | No. 1 right rear fender assembly | 66210-89102 |
| 66220A | No. 1 left rear fender assembly | 66220-89102 |
| 66241B | Rubber baffle | 66241-39016 |
| 66311A | No. 1 rope hook | 66311-95011 |
| 76625B | Right rear body fender | 76607-35050 · 76625-35140 · 76625-35150 |
| 76626B | Left rear body fender | 76608-35050 · 76626-35140 · 76626-35150 |
| 76645B | Right rear body fender bracket | 76645-35020 |
| 76646B | Left rear body fender bracket | 76646-35010 |
| 76647B | Right rear body fender bracket | 76647-35050 |
| 76648B | Left rear body fender bracket | 76648-35040 |
