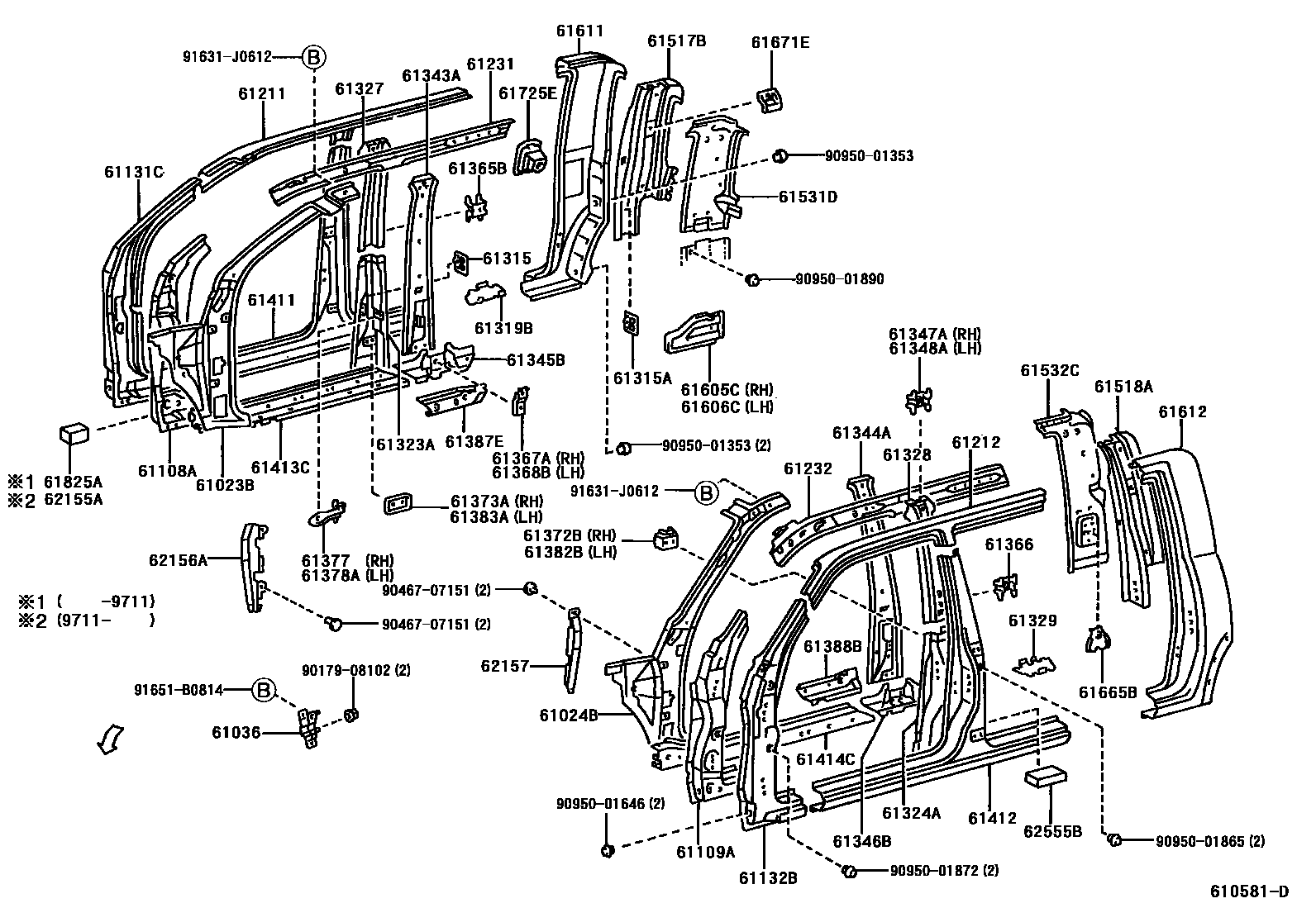

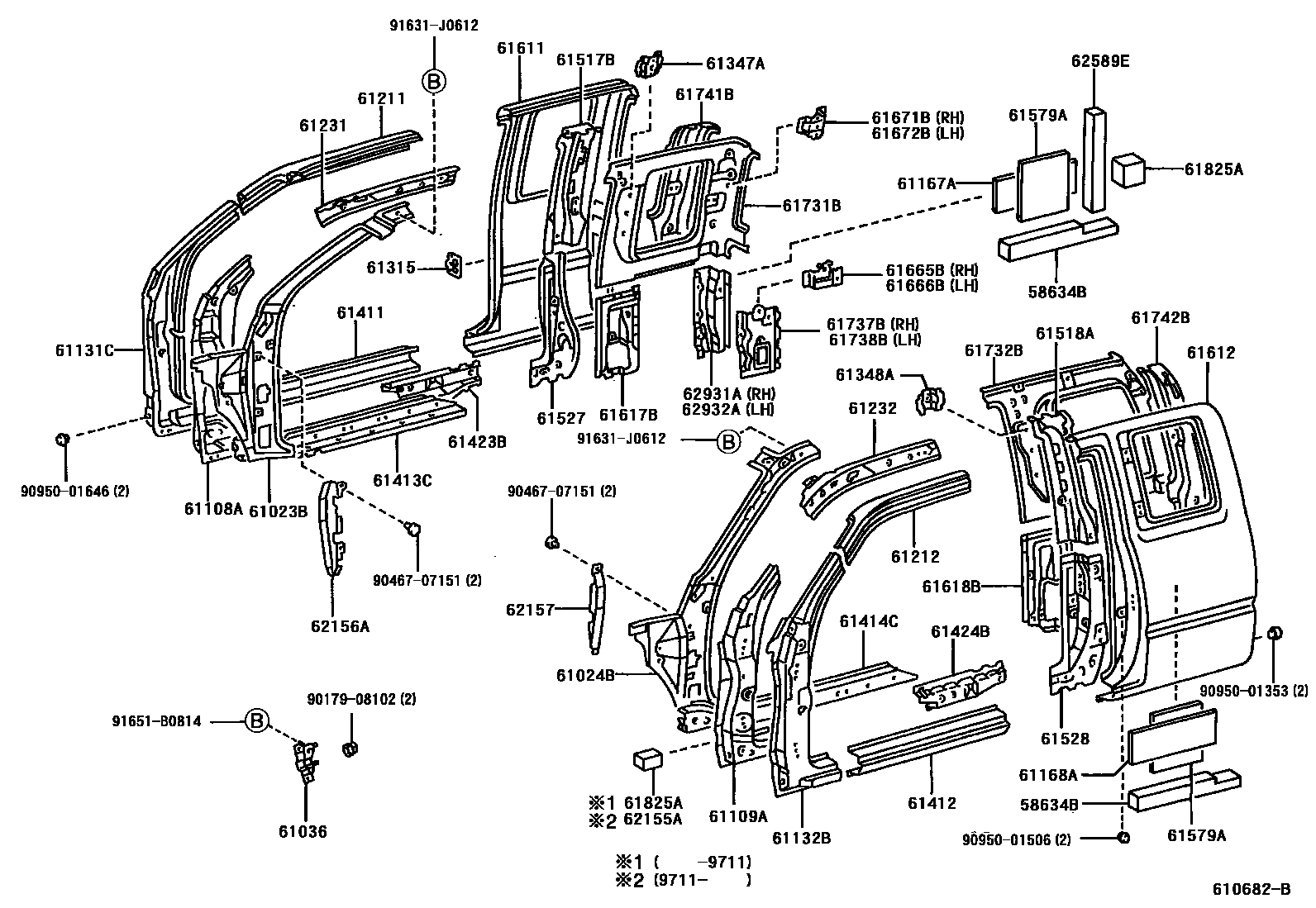

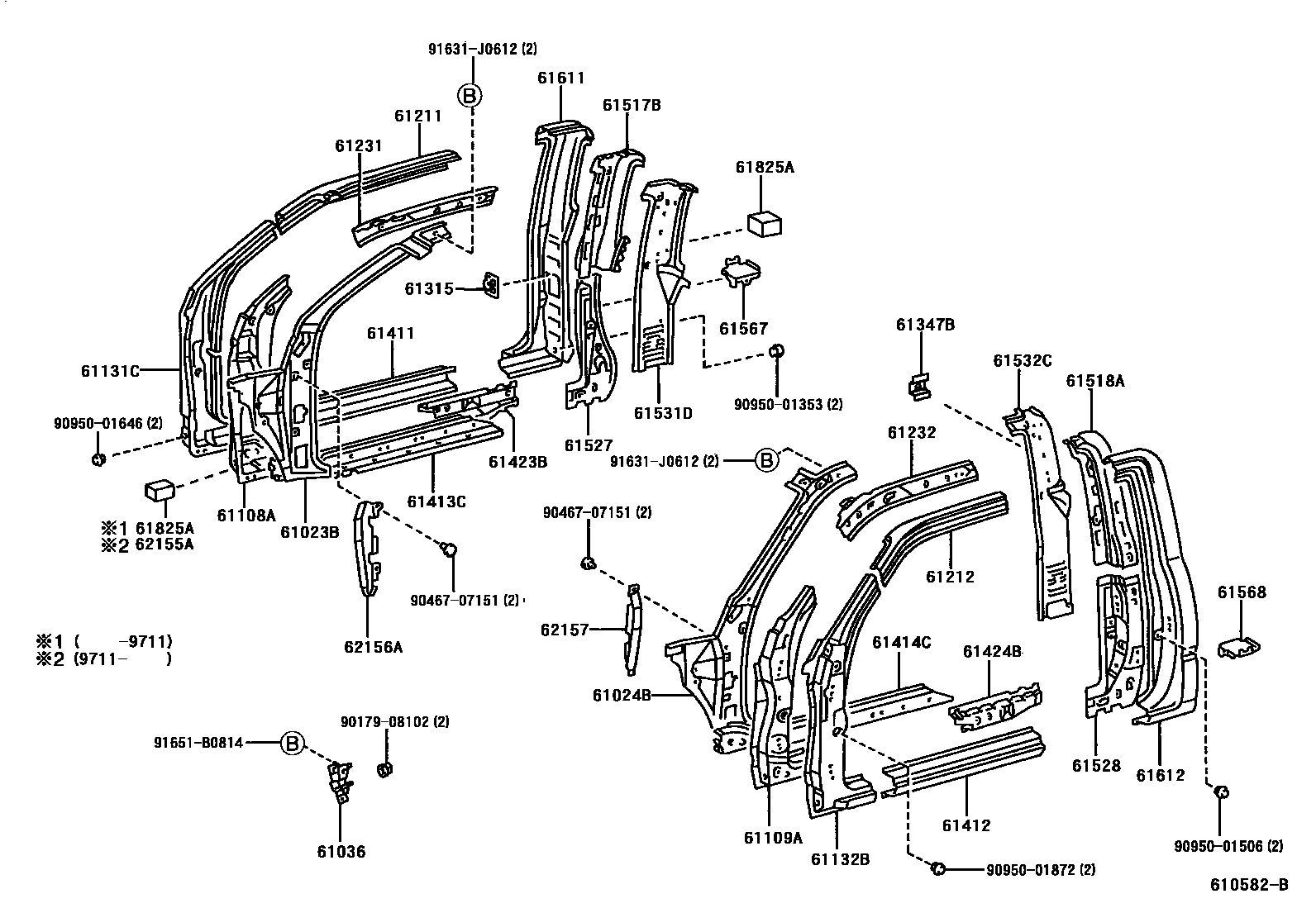

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 3 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58634B | Front floor and rear silencer pads | 58634-35010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-35130 · 61023-35190 |
| 61024B | Left body inner front pillar sub-assembly | 61024-35090 · 61024-35100 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-35010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-35030 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-35030 |
| 61131C | Right body outer front pillar | 61131-35030 · 61131-35040 |
| 61132B | Left body outer front pillar | 61132-35030 · 61132-35040 |
| 61167A | Lower right side panel reinforcement | 61167-35020 |
| 61168A | Left lower side panel reinforcement | 61167-35020 |
| 61211 | Roof right outer longitudinal beam | 61211-35030 · 61211-35040 |
| 61212 | Roof left outer longitudinal beam | 61212-35030 · 61212-35040 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-35150 · 61231-35160 |
| 61232 | Roof left inner longitudinal beam | 61232-35140 · 61232-35150 |
| 61315 | Door latch plate fixing parts | 61315-22020 |
| 61315A | door latch fixing parts | 61315-22020 |
| 61319B | Body center pillar right outer panel | 61319-35010 |
| 61323A | Right body center pillar lower reinforcement | 61323-35030 |
| 61324A | Left body center pillar lower reinforcement | 61324-35030 |
| 61327 | Right body outer center pillar reinforcement | 61327-35030 |
| 61328 | Left body outer center pillar reinforcement | 61328-35030 |
| 61329 | Body center pillar left outer panel | 61329-35010 |
| 61343A | Right body inner center pillar | 61343-35030 |
| 61344A | Left body inner center pillar | 61344-35030 |
| 61345B | Right body inner middle and lower pillar | 61345-35030 |
| 61346B | Left side inner middle and lower pillar | 61346-35030 |
| 61347A | Right seat belt anchor to center pillar reinforcement | 61347-04010 · 61348-35020 |
| 61347B | Seat belt anchor to cab rear pillar reinforcement | 61347-35020 |
| 61348A | Left seat belt anchor to center pillar reinforcement | 61347-04010 · 61348-35020 |
| 61365B | Right No. 3 seat belt anchor to center pillar reinforcement | 61365-35010 |
| 61366 | Left No. 3 seat belt anchor to center pillar reinforcement | 61366-35010 |
| 61367A | Right seat belt anchor to center pillar lower reinforcement | 61367-35020 |
| 61368B | Left seat belt anchor to center pillar lower reinforcement | 61368-35020 |
| 61372B | No. 2 right center pillar hinge upper reinforcement | 61371-35010 |
| 61373A | No. 1 right center pillar hinge lower reinforcement | 61373-35010 |
| 61377 | Right rear door opening limiter arm bracket | 61377-35010 |
| 61378A | Left rear door opening limiter arm bracket | 61377-35010 |
| 61382B | No. 2 left center pillar hinge upper reinforcement | 61371-35010 |
| 61383A | No. 1 left center pillar hinge lower reinforcement | 61373-35010 |
| 61387E | Extension section under the center pillar on the right side of the body | 61387-35010 |
| 61388B | Extension section under left body center pillar | 61388-35010 |
| 61411 | Right door outer sill panel | 61411-35070 · 61411-35080 |
| 61412 | Left door outer sill panel | 61412-35070 · 61412-35080 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-35030 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-35030 |
| 61423B | Right side door sill panel No. 3 reinforcement | 61423-35020 |
| 61424B | Left side door sill panel No. 3 reinforcement | 61424-35020 |
| 61517B | Right side locking column reinforcement | 61517-04050 · 61517-35010 · 61517-35030 |
| 61518A | Left side locking column reinforcement | 61518-04050 · 61518-35010 · 61518-35030 |
| 61527 | Right side locking column lower reinforcement | 61527-35010 |
| 61528 | Left side locking column lower reinforcement | 61528-35010 |
| 61531D | Right inner rear pillar panel of cab | 61531-35020 · 61531-35040 · 61531-35060 |
| 61532C | Cab left inner rear pillar panel | 61532-35020 · 61532-35040 · 61532-35060 |
| 61567 | Right side hoarding end panel | 61567-35020 |
| 61568 | Left side hoarding end panel | 61568-35020 |
| 61579A | Cab rear pillar silencer | 61579-35010 |
| 61605C | Right rear side panel inner panel sub-assembly | 61567-35030 |
| 61606C | Left rear side panel inner panel sub-assembly | 61568-35030 |
| 61611 | Right side hoarding | 61611-35090 · 61611-35100 · 61611-35120 |
| 61612 | left side panel | 61612-35080 · 61612-35090 · 61612-35100 |
| 61617B | Inner lower panel of right side enclosure | 61617-04020 |
| 61618B | Inner lower panel of left side enclosure | 61618-04020 |
| 61665B | Right seat belt anchor to side wheel arch reinforcement | 61665-35020 · 61675-35020 |
| 61666B | Left-hand seat belt anchor to side wheel arch reinforcement | 61676-35020 |
| 61671B | Right wheel cover reinforcement | 61671-35020 |
| 61671E | Seat belt anchor upper reinforcement | 61671-35010 |
| 61672B | Left side wheel cover reinforcement | 61671-35020 |
| 61725E | Fuel inlet | 61725-35010 |
| 61731B | Roof right inner panel | 61731-35020 |
| 61732B | Roof left inner panel | 61732-35020 |
| 61737B | Right inner lower panel of the roof | 61737-35030 |
| 61738B | Roof left inner lower panel | 61738-35030 |
| 61741B | Rear window opening right reinforcement | 61741-04010 |
| 61742B | Rear window opening left reinforcement | 61742-04010 |
| 61825A | Noise Control Panel No. 2 | 62151-20170 |
| 62155A | Front and lower side muffler pads | 62155-89101 |
| 62156A | Right front wall side insulation pad | 62156-35020 |
| 62157 | Left front wall side insulation pad | 62157-35020 |
| 62555B | No. 5 column pad | 62555-35010 |
| 62589E | Corner Window Pillar Gasket | 62589-35010 |
| 62931A | Right side ventilation duct | 62931-04040 |
| 62932A | Left side ventilation duct | 62932-04040 |
